Acura RLX HYBRID 2020 Owner's Manual

570
uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected

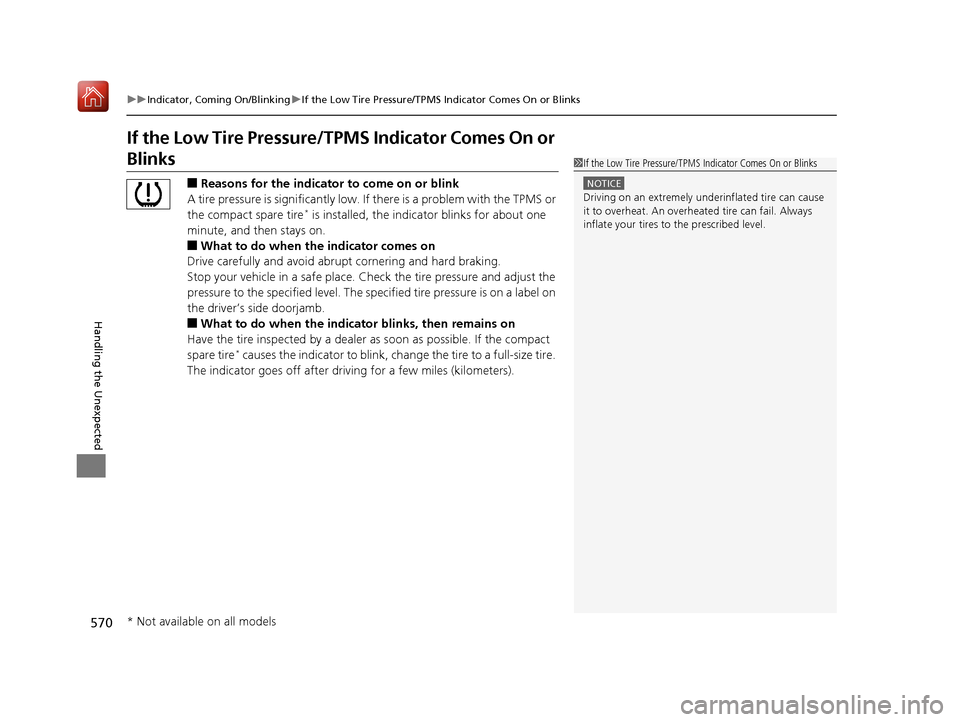

If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low. If there is a problem with the TPMS or
the compact spare tire
* is installed, the indica tor blinks for about one
minute, and then stays on.
■What to do when the indicator comes on
Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver’s side doorjamb.
■What to do when the indicator blinks, then remains on
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire
* causes the indicator to blink, change the tire to a full-size tire.
The indicator goes off after driving for a few miles (kilometers).
1 If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
* Not available on all models
20 ACURA RLX HYBRID-31TY36601.book 570 ページ ２０１９年７月２３日　火曜日　午後６時２５分

571
uuIndicator, Coming On/Blinking uIf the Transmission System Indicator Blinks along with the Warning Message
Handling the Unexpected
If the Transmission System Indicator Blinks along
with the Warning Message
■Reasons for the indicator to blink
The transmission is malfunctioning.
■What to do when the indicator blinks
• Immediately have your vehicle inspected by a dealer.
• Change the gear position to
(N after you turn the power system on.
u Check if the
(N position in the instrument panel and the indicator
on the
(N button light/blink.
u The power system cannot be turned on unless the parking brake is
set.
2 Turning on the Power P. 378
1If the Transmission System In dicator Blinks along with the
Warning Message
You may not be able to turn on the power system.
Make sure to set the parking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle. 2 Emergency Towing P. 580
20 ACURA RLX HYBRID-31TY36601.book 571 ページ ２０１９年７月２３日　火曜日　午後６時２５分

572
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF and check
to see if any applic able fuse is blown.
There are four fuse boxes in the engine
compartment.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the brake fluid reserve tank.
Push the tabs to open the box.
■Engine Compartment Fuse
Box
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1IG1A ACG FR15 A
2IG1A MISS SOL110 A
3−−
4− −
5SMART7.5 A
6 IG1B ECU FR 7.5 A
7IG1B OP FR7.5 A
8 IGP2 15 A
9DBW15 A
10 IGP 15 A
11IG Coil15 A
12 ACM 20 A
13Headlight Washer*(30 A)
14 Interior Lights 10 A
15Back Up Radio10 A
16 Back Up 10 A
17AFP10 A
18 Front Washer 15 A
19Stop7.5 A
20 Right Headlight High Beam 10 A
21Trunk10 A
22 Small 15 A
23Front Fog Lights*(7.5 A)
24 Left Headlight High Beam 10 A
25IMA Motor15 A
26 Right Headlight Low Beam 15 A
27Left Headlight Low Beam15 A
28 IGP2 Sub 7.5 A
29Power Rear Sunshade*(20 A)
30 Heated Windshield 20 A
31Wiper30 A
Circuit ProtectedAmps
* Not available on all models
20 ACURA RLX HYBRID-31TY36601.book 572 ページ ２０１９年７月２３日　火曜日　午後６時２５分

573
uuFuses uFuse Locations
Continued
Handling the Unexpected
Located near the 12-volt battery. Push the
tabs to open the box.
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Main Fuse200 A
2
−(40 A)
Rear Defroster 40 A DR F/B Main 1 60 AAS F/B Main 1 60 A R/B Main 3 50 A
AS F/B Main 2 60 A ABS/VSA RLY 30 A
Heater Motor 40 A
3
R/B Main 160 A
ESB40 A
IG Main60 A
DR F/B Main 260 A
SBW60 A
R/B Main 260 A
Horn & Hazard20 A
ABS/VSA Motor40 A
4EOP 30A
5Left Electric Parking Brake30 A
6 Right Electric Parking Brake 30 A
7Injector20 A
8 Hazard 15 A
9IGA 27.5 A
10 − −
11Horn10 A
Located near the + terminal on the 12-volt
battery. Push the tabs to open the box.
■Circuit protected and fuse rating
1
2Tab
Circuit ProtectedAmps
1Radiator Fan50 A
2EPS80 A
20 ACURA RLX HYBRID-31TY36601.book 573 ページ ２０１９年７月２３日　火曜日　午後６時２５分

574
uuFuses uFuse Locations
Handling the Unexpected
Located inside the left side of the front
bumper. Use the following procedure to
reach the box.
1. Turn the steering wheel all the way to the
right.
2. Remove the holding clips (A) and (B) by
inserting a flat-tip sc rewdriver and lifting
the center pins up.
u Make sure to reinstall the clips after
inspecting the fuses.
u To reinstall the clips, insert them with
the center pins raised, and push until
they are flat.
Inner Fender
Clip (A)
Clips
(B)
Clip (A)
Clip (B)


3.Pull the inner fender back.
4. Pull the lock tab to the direction shown in
the image and pull out the fuse box.
Lock Tab
20 ACURA RLX HYBRID-31TY36601.book 574 ページ ２０１９年７月２３日　火曜日　午後６時２５分

575
uuFuses uFuse Locations
Continued
Handling the Unexpected
Push the tabs to remove the cover.
■Circuit protected and fuse rating
Tab
Circuit ProtectedAmps
1HCA 120 A
2TCU30 A
3HCA 220 A
4STRG MOVE 120 A
5−−
6−−
20 ACURA RLX HYBRID-31TY36601.book 575 ページ ２０１９年７月２３日　火曜日　午後６時２５分

576
uuFuses uFuse Locations
Handling the Unexpected
There are two fuse boxes in the driver’s side.
Located under the dashboard.
Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number.
■Driver’s Side Interior Fuse Box
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Driver’s Side Door Lock10 A
2Passenger’s Side Door Lock10 A
3Driver’s Door Lock10 A
4Driver’s Side Door Unlock10 A
5Passenger’s Side Door
Unlock10 A
6Driver’s Door Unlock10 A
7Door Lock20 A
8−−
9Power System 110 A
10IG1 DR17.5 A
11Meter10 A
12Passenger’s Side Fuse Box20 A
13ACCESSORY7.5 A
14−−
15Driver’s Power Seat Sliding20 A
16Moonroof20 A
17Rear Driver’s Side Power Window20 A
18STRG MOVE 220 A
19Driver’s Power Window20 A
20Power System 215 A
21Fuel Pump20 A
22Power System 27.5 A
23Starter Cut7.5 A
24IG1 DR27.5 A
25Start DIAG7.5 A
26Air Conditioning7.5 A
27Daytime Running Lights7.5 A
28ACC Key Lock7.5 A
29Driver’s Lumbar Support7.5 A
30SMART10 A
31−−
32Driver’s Power Seat
Reclining20 A
33Left e-pretensioner(20 A)
34IG1 Box30 A
Circuit ProtectedAmps
20 ACURA RLX HYBRID-31TY36601.book 576 ページ ２０１９年７月２３日　火曜日　午後６時２５分

577
uuFuses uFuse Locations
Continued
Handling the Unexpected
Located inside the driver’s side outer panel.
When you remove the outer panel, use the
following procedure.
1. Pry on the lower edge of the panel using
a flat-tip screwdriver.
u Wrap the flat-tip screwdriver with a
cloth to prevent scratches.
2. Pull the outer panel towards you, then
remove it.
Outer Panel
Fuse locations are shown on the image
below.
Locate the fuse in question by the fuse
number in the image and chart.
■Circuit protected and fuse rating
3
12
Fuse Box
Circuit ProtectedAmps
1IG Main 230 A
2ST MG30 A
3IG Main 130 A
Located on the lower side panel. Take off
the cover to open.
Fuse locations are shown on the cover.
■Passenger’s Side Interior Fuse
Box
Fuse Label
Cover
20 ACURA RLX HYBRID-31TY36601.book 577 ページ ２０１９年７月２３日　火曜日　午後６時２５分

578
uuFuses uFuse Locations
Handling the Unexpected
■Circuit protected and fuse rating
Circuit ProtectedAmps
1−−
2Front Seat Heaters/AVS*20 A
3Rear Passenger’s Side
Power Window20 A
4Front Passenger’s Lumbar Support7.5 A
5Daytime Running Lights7.5 A
6A/C Water Pump10 A
7Passenger’s Power Seat Sliding20 A
8Passenger’s Power Seat
Reclining20 A
9Rear Seat Heaters20 A
10−−
11Fly Start15 A
12Accessory Power Socket
(Console Compartment)20 A
13Accessory Power Socket (Center Pocket)20 A
14AS ECU7.5 A
15Glove Box7.5 A
16−−
17−−
18Front Passenger’s Power
Window20 A
19SRS110 A
*1:Models without surround view camera system
*2:Models with surround view camera system
20ABS/VSA7.5 A
21BATT ECU7.5 A
22e-pretensioner7.5 A
23−−
24SRS27.5 A
25Illumination7.5 A
26Right e-pretensioner20 A
27Heated Steering Wheel10 A
28Audio AMP30 A*1
40 A*2
Circuit ProtectedAmps
* Not available on all models
20 ACURA RLX HYBRID-31TY36601.book 578 ページ ２０１９年７月２３日　火曜日　午後６時２５分

579
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 572 to 577.
There is a fuse puller in the engine compartment fuse
box located near the br ake fluid reserve tank.Blown Fuse
Combined Fuse
Blown
Fuse
Fuse Puller
