warning ACURA TL 1995 Service Repair Manual

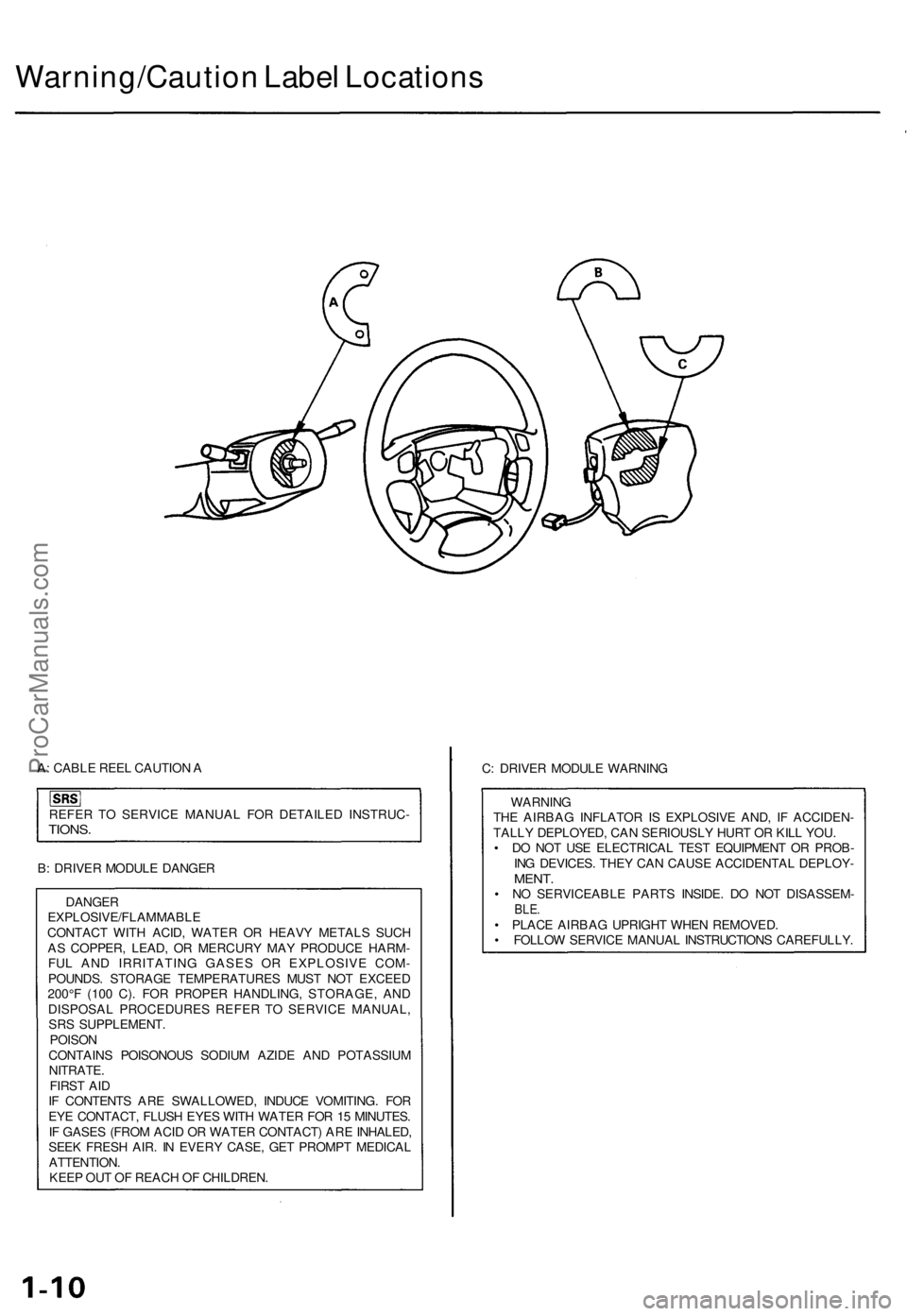

Warning/Caution Label Locations

A: CABLE REEL CAUTION A

REFER TO SERVICE MANUAL FOR DETAILED INSTRUC-

TIONS.

B: DRIVER MODULE DANGER

DANGER

EXPLOSIVE/FLAMMABLE

CONTACT WITH ACID, WATER OR HEAVY METALS SUCH

AS COPPER, LEAD, OR MERCURY MAY PRODUCE HARM-

FUL AND IRRITATING GASES OR EXPLOSIVE COM-

POUNDS. STORAGE TEMPERATURES MUST NOT EXCEED

200°F (100 C). FOR PROPER HANDLING, STORAGE, AND

DISPOSAL PROCEDURES REFER TO SERVICE MANUAL,

SRS SUPPLEMENT.

POISON

CONTAINS POISONOUS SODIUM AZIDE AND POTASSIUM

NITRATE.

FIRST AID

IF CONTENTS ARE SWALLOWED, INDUCE VOMITING. FOR

EYE CONTACT, FLUSH EYES WITH WATER FOR 15 MINUTES.

IF GASES (FROM ACID OR WATER CONTACT) ARE INHALED,

SEEK FRESH AIR. IN EVERY CASE, GET PROMPT MEDICAL

ATTENTION.

KEEP OUT OF REACH OF CHILDREN.
C: DRIVER MODULE WARNING

WARNING

THE AIRBAG INFLATOR IS EXPLOSIVE AND, IF ACCIDEN-

TALLY DEPLOYED, CAN SERIOUSLY HURT OR KILL YOU.

• DO NOT USE ELECTRICAL TEST EQUIPMENT OR PROB-

ING DEVICES. THEY CAN CAUSE ACCIDENTAL DEPLOY-

MENT.

• NO SERVICEABLE PARTS INSIDE. DO NOT DISASSEM-

BLE.

• PLACE AIRBAG UPRIGHT WHEN REMOVED.

• FOLLOW SERVICE MANUAL INSTRUCTIONS CAREFULLY.ProCarManuals.com

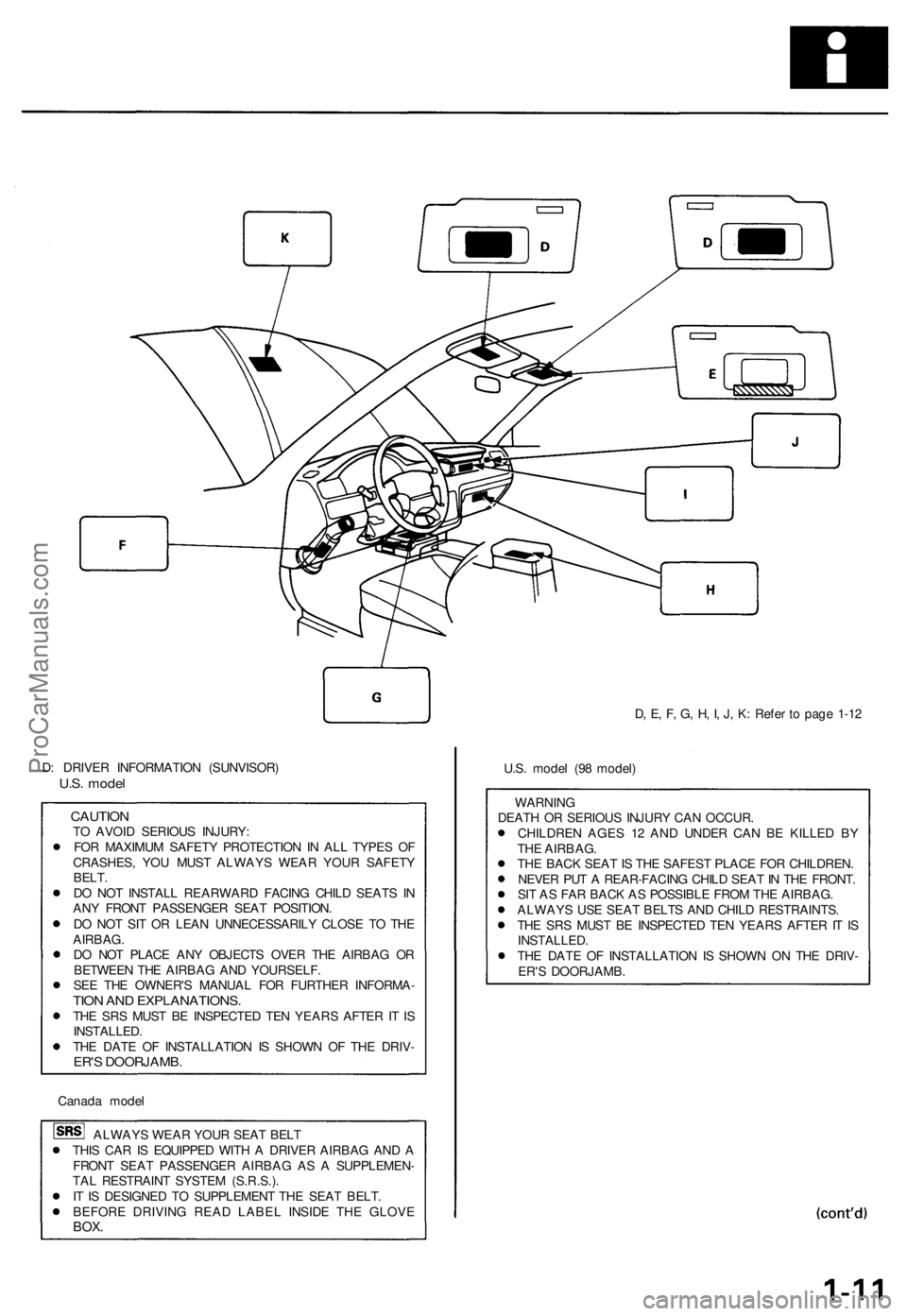

D, E, F, G, H, I, J, K: Refer to page 1-12

D: DRIVER INFORMATION (SUNVISOR)

U.S. model

CAUTION

TO AVOID SERIOUS INJURY:

FOR MAXIMUM SAFETY PROTECTION IN ALL TYPES OF

CRASHES, YOU MUST ALWAYS WEAR YOUR SAFETY

BELT.

DO NOT INSTALL REARWARD FACING CHILD SEATS IN

ANY FRONT PASSENGER SEAT POSITION.

DO NOT SIT OR LEAN UNNECESSARILY CLOSE TO THE

AIRBAG.

DO NOT PLACE ANY OBJECTS OVER THE AIRBAG OR

BETWEEN THE AIRBAG AND YOURSELF.

SEE THE OWNER'S MANUAL FOR FURTHER INFORMA-

TION AND EXPLANATIONS.

THE SRS MUST BE INSPECTED TEN YEARS AFTER IT IS

INSTALLED.

THE DATE OF INSTALLATION IS SHOWN OF THE DRIV-

ER'S DOORJAMB.

Canada model

ALWAYS WEAR YOUR SEAT BELT

THIS CAR IS EQUIPPED WITH A DRIVER AIRBAG AND A

FRONT SEAT PASSENGER AIRBAG AS A SUPPLEMEN-

TAL RESTRAINT SYSTEM (S.R.S.).

IT IS DESIGNED TO SUPPLEMENT THE SEAT BELT.

BEFORE DRIVING READ LABEL INSIDE THE GLOVE

BOX.
U.S. model (98 model)

WARNING

DEATH OR SERIOUS INJURY CAN OCCUR.

CHILDREN AGES 12 AND UNDER CAN BE KILLED BY

THE AIRBAG.

THE BACK SEAT IS THE SAFEST PLACE FOR CHILDREN.

NEVER PUT A REAR-FACING CHILD SEAT IN THE FRONT.

SIT AS FAR BACK AS POSSIBLE FROM THE AIRBAG.

ALWAYS USE SEAT BELTS AND CHILD RESTRAINTS.

THE SRS MUST BE INSPECTED TEN YEARS AFTER IT IS

INSTALLED.

THE DATE OF INSTALLATION IS SHOWN ON THE DRIV-

ER'S DOORJAMB.ProCarManuals.com

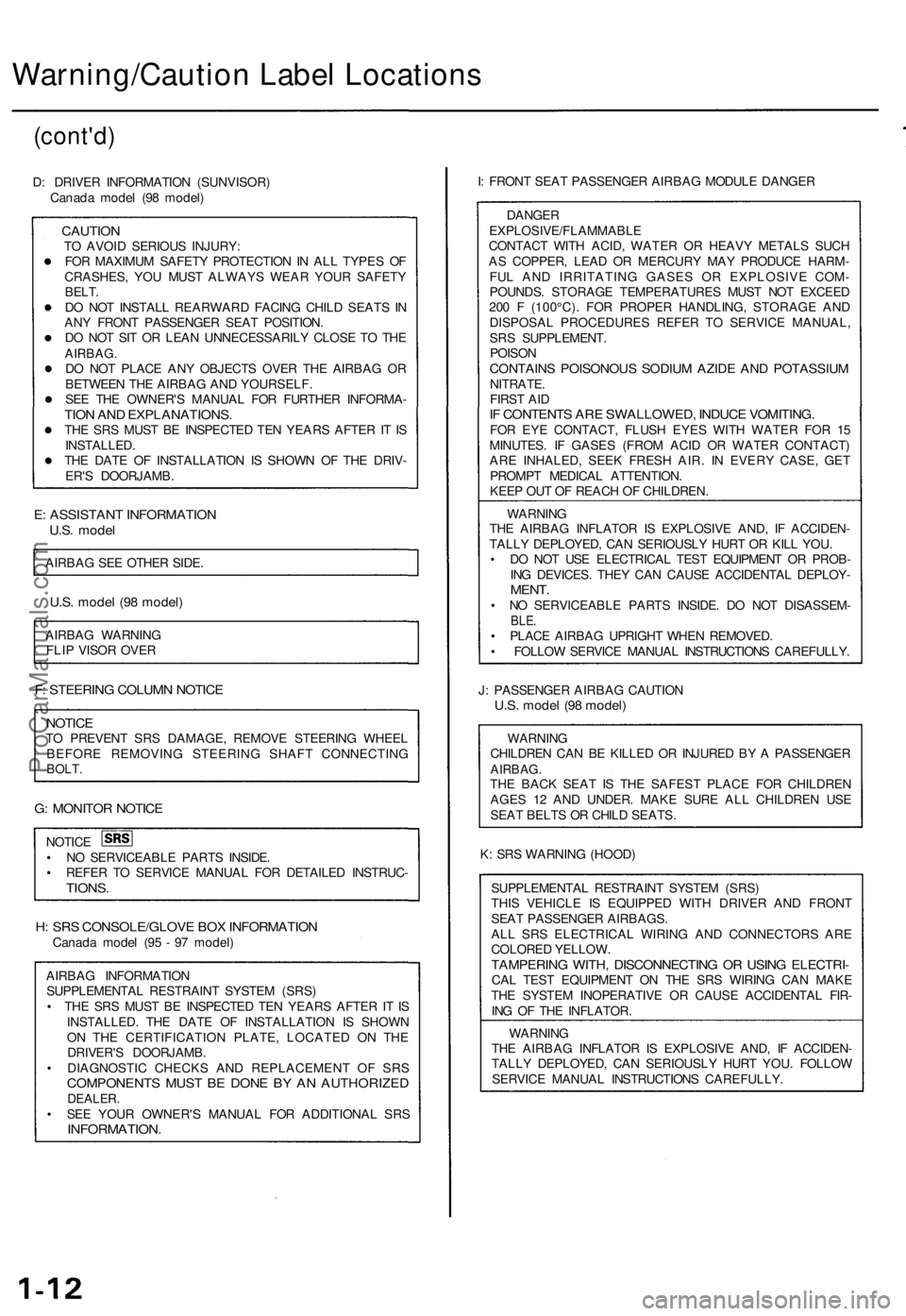

Warning/Caution Label Locations

(cont'd)

D: DRIVER INFORMATION (SUNVISOR)

Canada model (98 model)

CAUTION

TO AVOID SERIOUS INJURY:

FOR MAXIMUM SAFETY PROTECTION IN ALL TYPES OF

CRASHES, YOU MUST ALWAYS WEAR YOUR SAFETY

BELT.

DO NOT INSTALL REARWARD FACING CHILD SEATS IN

ANY FRONT PASSENGER SEAT POSITION.

DO NOT SIT OR LEAN UNNECESSARILY CLOSE TO THE

AIRBAG.

DO NOT PLACE ANY OBJECTS OVER THE AIRBAG OR

BETWEEN THE AIRBAG AND YOURSELF.

SEE THE OWNER'S MANUAL FOR FURTHER INFORMA-

TION AND EXPLANATIONS.

THE SRS MUST BE INSPECTED TEN YEARS AFTER IT IS

INSTALLED.

THE DATE OF INSTALLATION IS SHOWN OF THE DRIV-

ER'S DOORJAMB.

E: ASSISTANT INFORMATION

U.S. model

AIRBAG SEE OTHER SIDE.

U.S. model (98 model)

AIRBAG WARNING

FLIP VISOR OVER

F: STEERING COLUMN NOTICE

NOTICE

TO PREVENT SRS DAMAGE, REMOVE STEERING WHEEL

BEFORE REMOVING STEERING SHAFT CONNECTING

BOLT.

G: MONITOR NOTICE

NOTICE

• NO SERVICEABLE PARTS INSIDE.

• REFER TO SERVICE MANUAL FOR DETAILED INSTRUC-

TIONS.

H: SRS CONSOLE/GLOVE BOX INFORMATION

Canada model (95 - 97 model)

AIRBAG INFORMATION

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

• THE SRS MUST BE INSPECTED TEN YEARS AFTER IT IS

INSTALLED. THE DATE OF INSTALLATION IS SHOWN

ON THE CERTIFICATION PLATE, LOCATED ON THE

DRIVER'S DOORJAMB.

• DIAGNOSTIC CHECKS AND REPLACEMENT OF SRS

COMPONENTS MUST BE DONE BY AN AUTHORIZED

DEALER.

• SEE YOUR OWNER'S MANUAL FOR ADDITIONAL SRS

INFORMATION.
I: FRONT SEAT PASSENGER AIRBAG MODULE DANGER

DANGER

EXPLOSIVE/FLAMMABLE

CONTACT WITH ACID, WATER OR HEAVY METALS SUCH

AS COPPER, LEAD OR MERCURY MAY PRODUCE HARM-

FUL AND IRRITATING GASES OR EXPLOSIVE COM-

POUNDS. STORAGE TEMPERATURES MUST NOT EXCEED

200 F (100°C). FOR PROPER HANDLING, STORAGE AND

DISPOSAL PROCEDURES REFER TO SERVICE MANUAL,

SRS SUPPLEMENT.

POISON

CONTAINS POISONOUS SODIUM AZIDE AND POTASSIUM

NITRATE.

FIRST AID

IF CONTENTS ARE SWALLOWED, INDUCE VOMITING.

FOR EYE CONTACT, FLUSH EYES WITH WATER FOR 15

MINUTES. IF GASES (FROM ACID OR WATER CONTACT)

ARE INHALED, SEEK FRESH AIR. IN EVERY CASE, GET

PROMPT MEDICAL ATTENTION.

KEEP OUT OF REACH OF CHILDREN.

WARNING

THE AIRBAG INFLATOR IS EXPLOSIVE AND, IF ACCIDEN-

TALLY DEPLOYED, CAN SERIOUSLY HURT OR KILL YOU.

• DO NOT USE ELECTRICAL TEST EQUIPMENT OR PROB-

ING DEVICES. THEY CAN CAUSE ACCIDENTAL DEPLOY-

MENT.

• NO SERVICEABLE PARTS INSIDE. DO NOT DISASSEM-

BLE.

• PLACE AIRBAG UPRIGHT WHEN REMOVED.

• FOLLOW SERVICE MANUAL INSTRUCTIONS CAREFULLY.

J: PASSENGER AIRBAG CAUTION

U.S. model (98 model)

WARNING

CHILDREN CAN BE KILLED OR INJURED BY A PASSENGER

AIRBAG.

THE BACK SEAT IS THE SAFEST PLACE FOR CHILDREN

AGES 12 AND UNDER. MAKE SURE ALL CHILDREN USE

SEAT BELTS OR CHILD SEATS.

K: SRS WARNING (HOOD)

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

THIS VEHICLE IS EQUIPPED WITH DRIVER AND FRONT

SEAT PASSENGER AIRBAGS.

ALL SRS ELECTRICAL WIRING AND CONNECTORS ARE

COLORED YELLOW.

TAMPERING WITH, DISCONNECTING OR USING ELECTRI-

CAL TEST EQUIPMENT ON THE SRS WIRING CAN MAKE

THE SYSTEM INOPERATIVE OR CAUSE ACCIDENTAL FIR-

ING OF THE INFLATOR.

WARNING

THE AIRBAG INFLATOR IS EXPLOSIVE AND, IF ACCIDEN-

TALLY DEPLOYED, CAN SERIOUSLY HURT YOU. FOLLOW

SERVICE MANUAL INSTRUCTIONS CAREFULLY.ProCarManuals.com

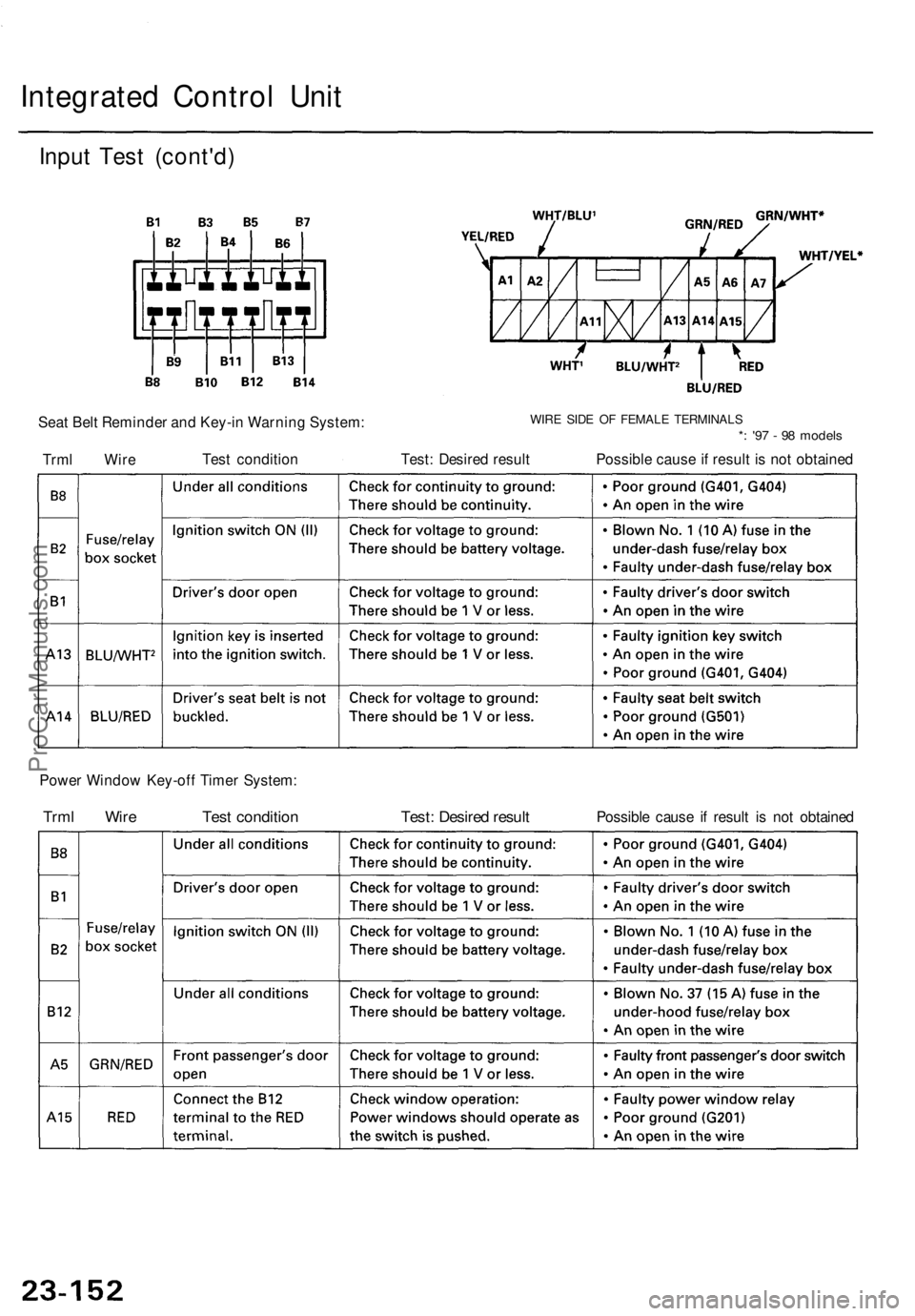

Integrated Control Unit

Input Test (cont'd)

Seat Belt Reminder and Key-in Warning System:
WIRE SIDE OF FEMALE TERMINALS

*: '97 - 98 models

Trml Wire
Test condition
Test: Desired result
Possible cause if result is not obtained

Power Window Key-off Timer System:

Trml Wire
Test condition
Test: Desired result
Possible cause if result is not obtainedProCarManuals.com

SUPPLEMENTAL RESTRAINT SYSTEMThe Acura TL SRS includes a driver's airbag located in the steering wheel hub and a passenger's airbag located in the dashboard above
the glove box. Information necessary to safely service the SRS is included in this Service Manual. Items marked with an asterisk (*) on
the contents page include, or are located near, SRS components. Servicing, disassembling or replacing these items will require special
precautions and tools, and should therefore be done by an authorized Honda dealer.
WARNING

To avoid rendering the SRS inoperative, which could lead to personal injury or death in the event of a severe frontal
collision, all SRS service work must be performed by an authorized Honda dealer.

Improper service procedures, including incorrect removal and installation of the SRS, could lead to personal injury
caused by unintentional activation of the front airbags, seat belt tensioners, and side airbags ('99-01 models).

Do not bump the SRS unit. Otherwise, the system may fail in a collision, or the airbags may deploy when the ignition
switch in ON (II).

All SRS electrical wiring harnesses are covered with yellow insulation. Related components are located in the steering
column, front console, dashboard, dashboard lower panel, in the dashboard above the glove box. Do not use electrical
test equipment on these circuits.
NOTE: The original radio has a coded theft protection circuit. Be sure to get the customer's code number before
± disconnecting the battery.
± removing the No. 39 (10A) fuse from the under±hood fuse/relay box.
± removing the radio.
After service, reconnect power to the radio and turn it on. When the word ºCODEº is displayed, enter the customer's 5-digit code to restore
radio operation.
