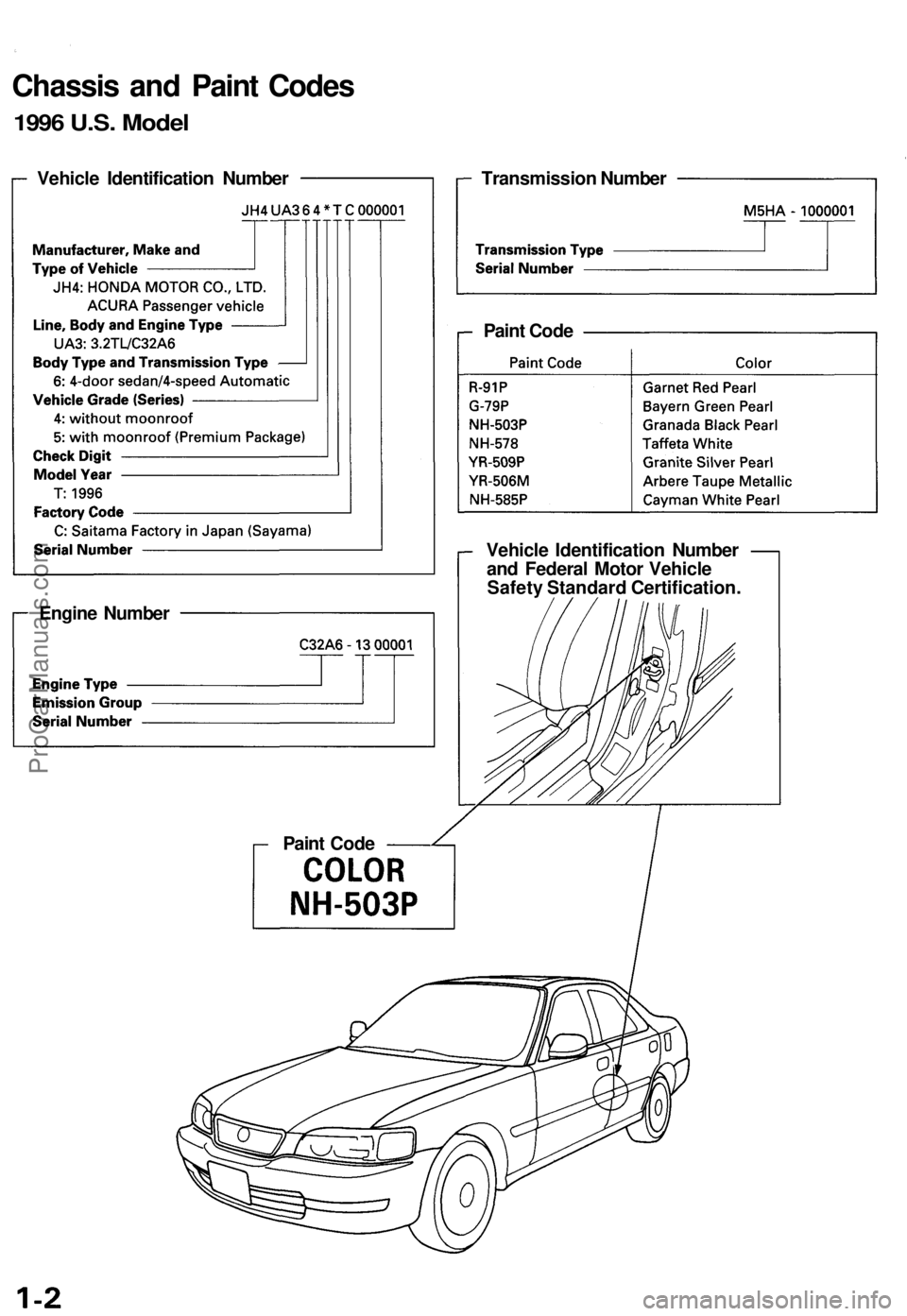

Chassis and Paint Codes
1996 U.S. Model
Vehicle Identification Number
Transmission Number
Engine Number
Vehicle Identification Number
and Federal Motor Vehicle
Safety Standard Certification.
Paint Code
Paint CodeProCarManuals.com
Page 2 of 1771

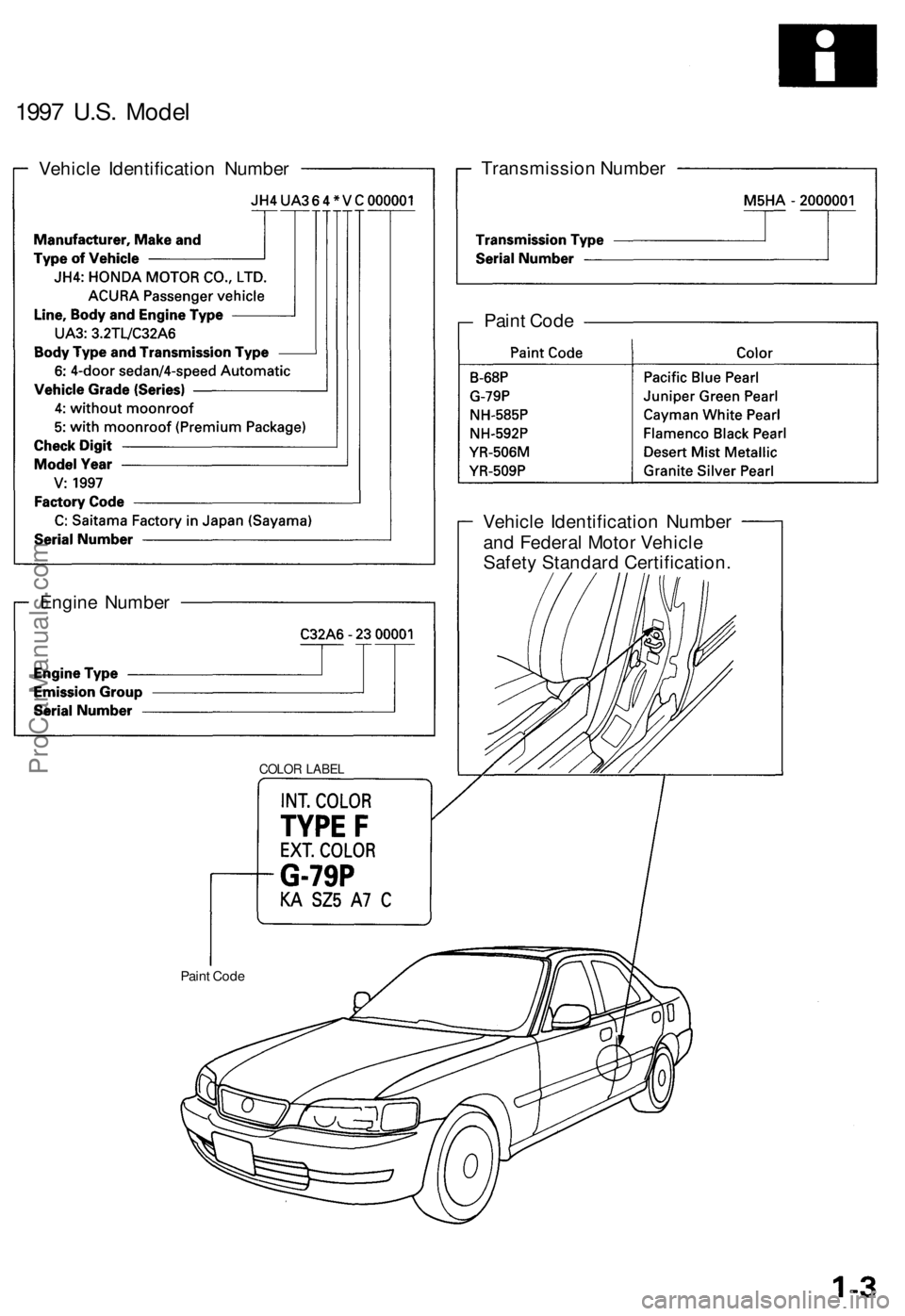

1997 U.S. Model
Vehicle Identification Number
Transmission Number
Vehicle Identification Number
and Federal Motor Vehicle
Safety Standard Certification.
Engine Number
COLOR LABEL
Paint Code
Paint CodeProCarManuals.com
Page 3 of 1771
Chassis and Paint Codes

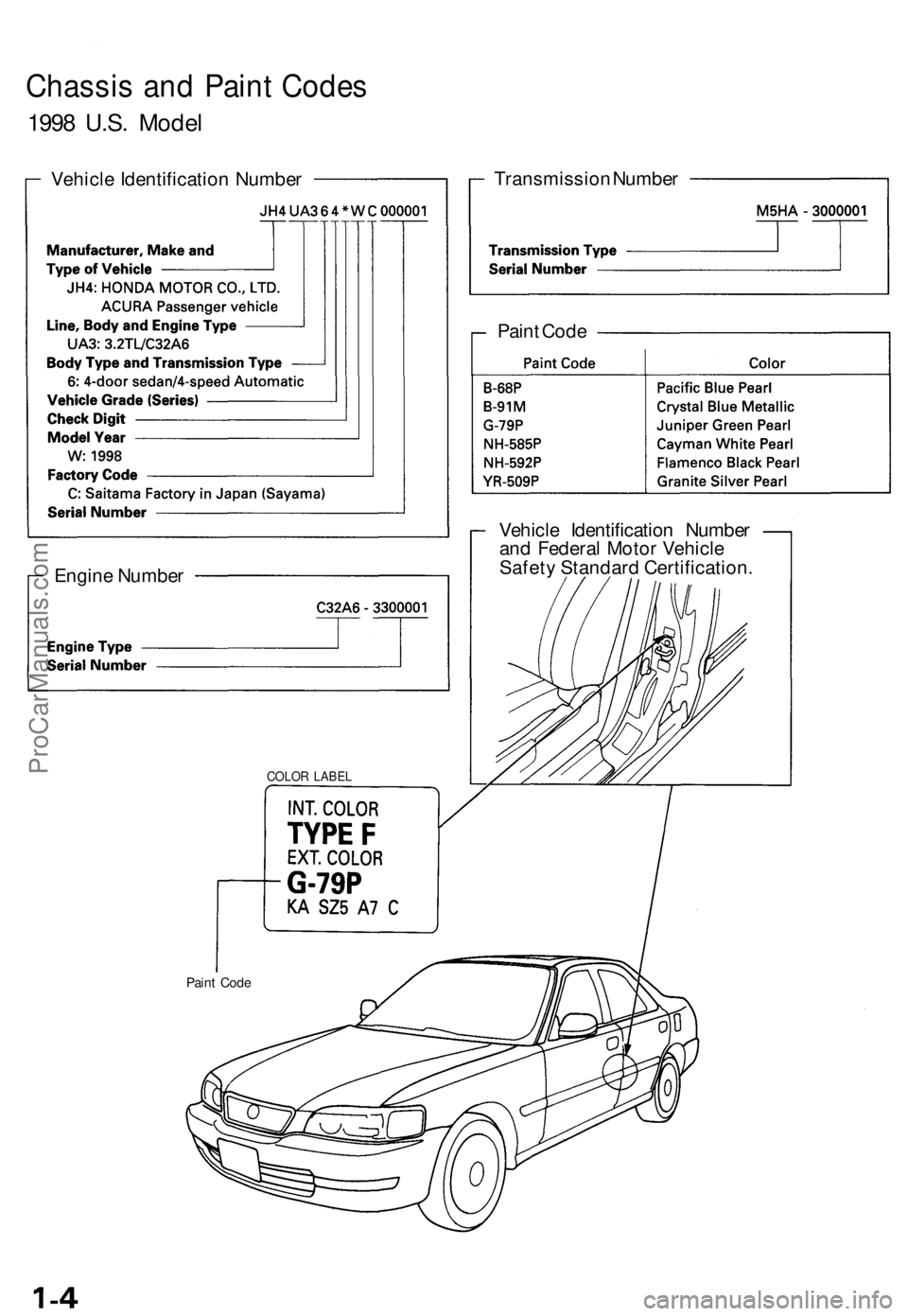

1998 U.S. Model
Vehicle Identification Number
Transmission Number
Engine Number
COLOR LABEL
Vehicle Identification Number
and Federal Motor Vehicle
Safety Standard Certification.
Paint Code
Paint CodeProCarManuals.com
Page 4 of 1771

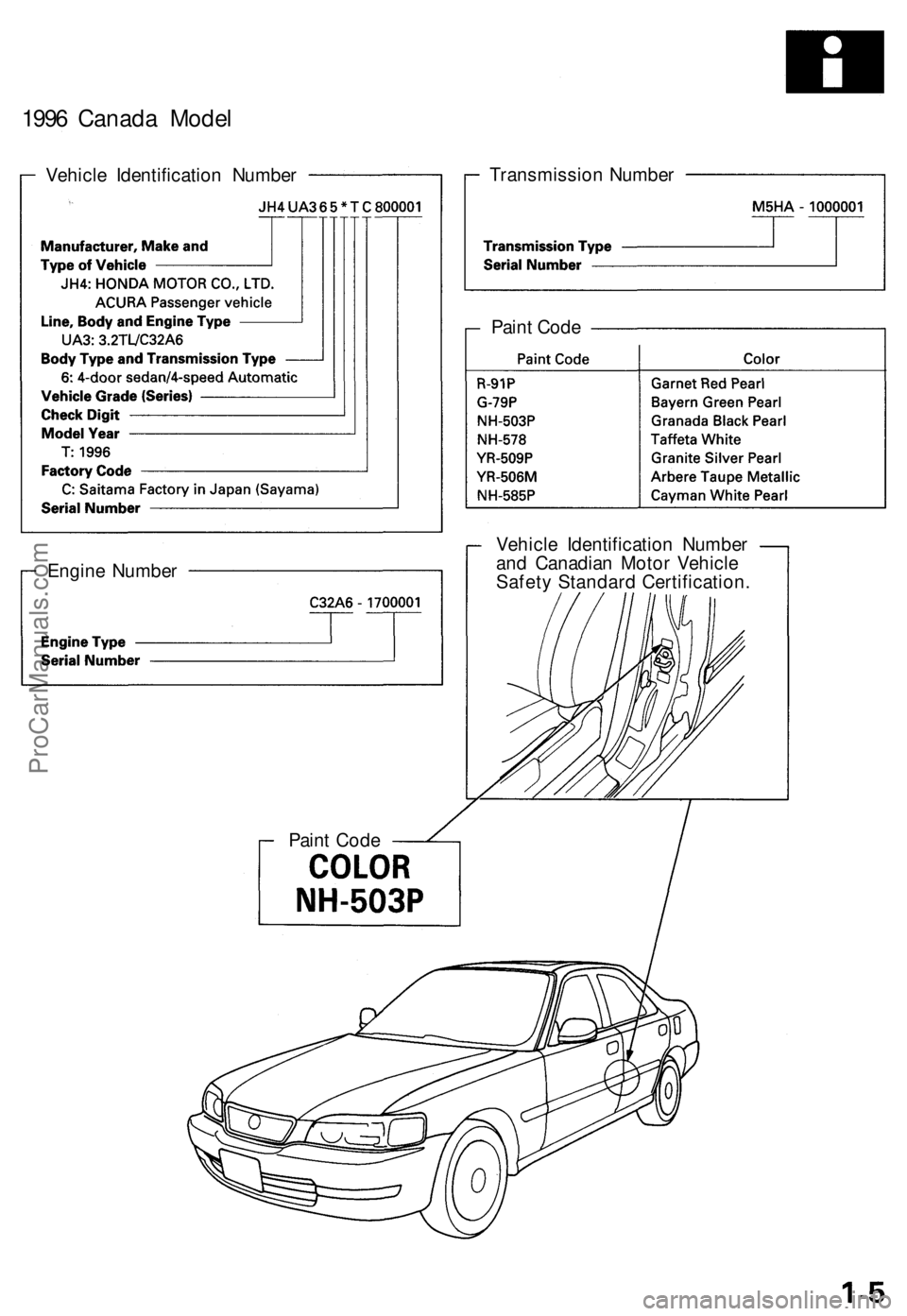

1996 Canada Model
Vehicle Identification Number
Transmission Number
Engine Number
Vehicle Identification Number
and Canadian Motor Vehicle
Safety Standard Certification.
Paint Code
Paint CodeProCarManuals.com
Page 5 of 1771
Chassis and Paint Codes

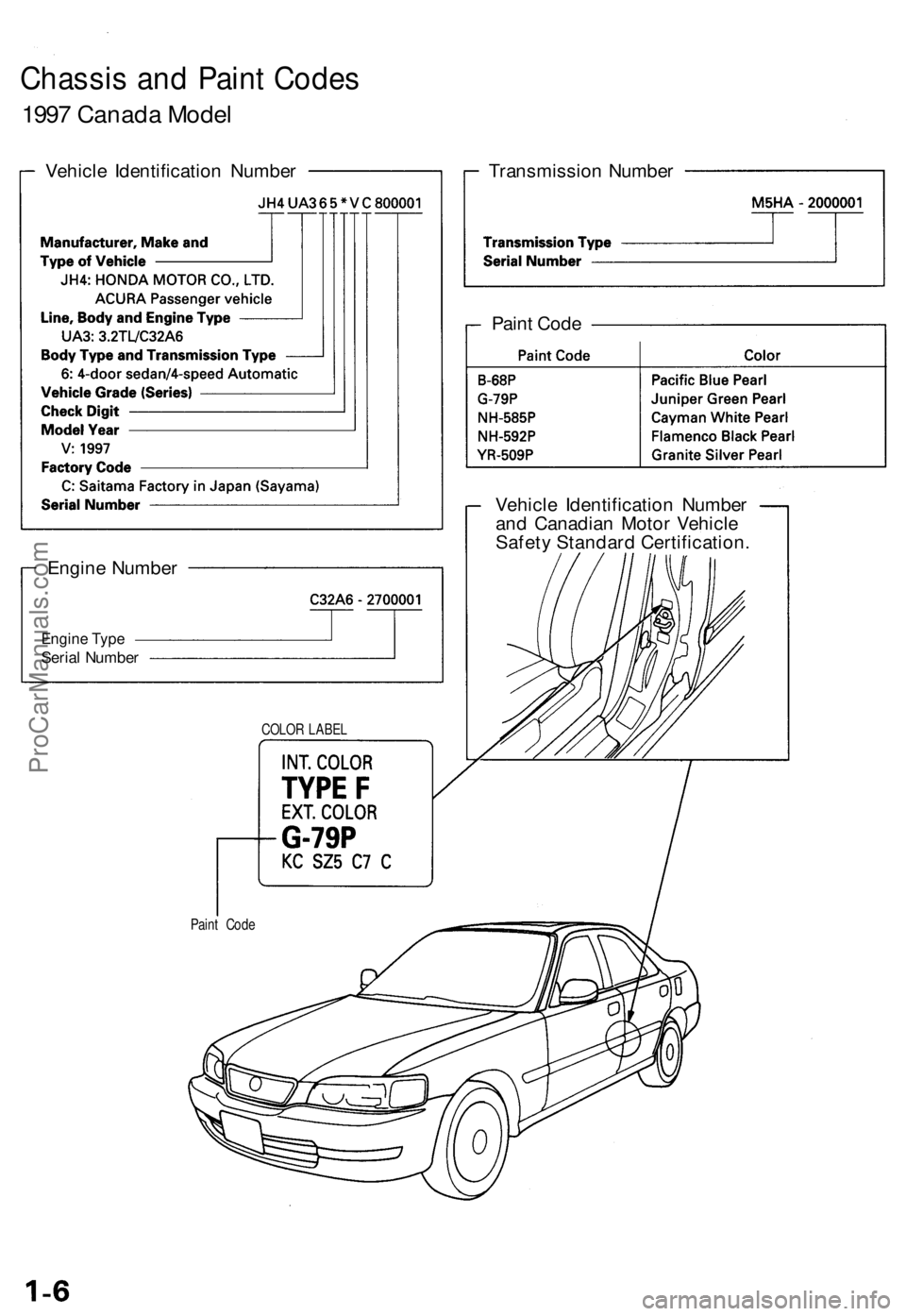

1997 Canada Model
Vehicle Identification Number
Transmission Number
Vehicle Identification Number
and Canadian Motor Vehicle
Safety Standard Certification.
Engine Number
Engine Type
Serial Number
COLOR LABEL
Paint Code
Paint CodeProCarManuals.com
Page 6 of 1771

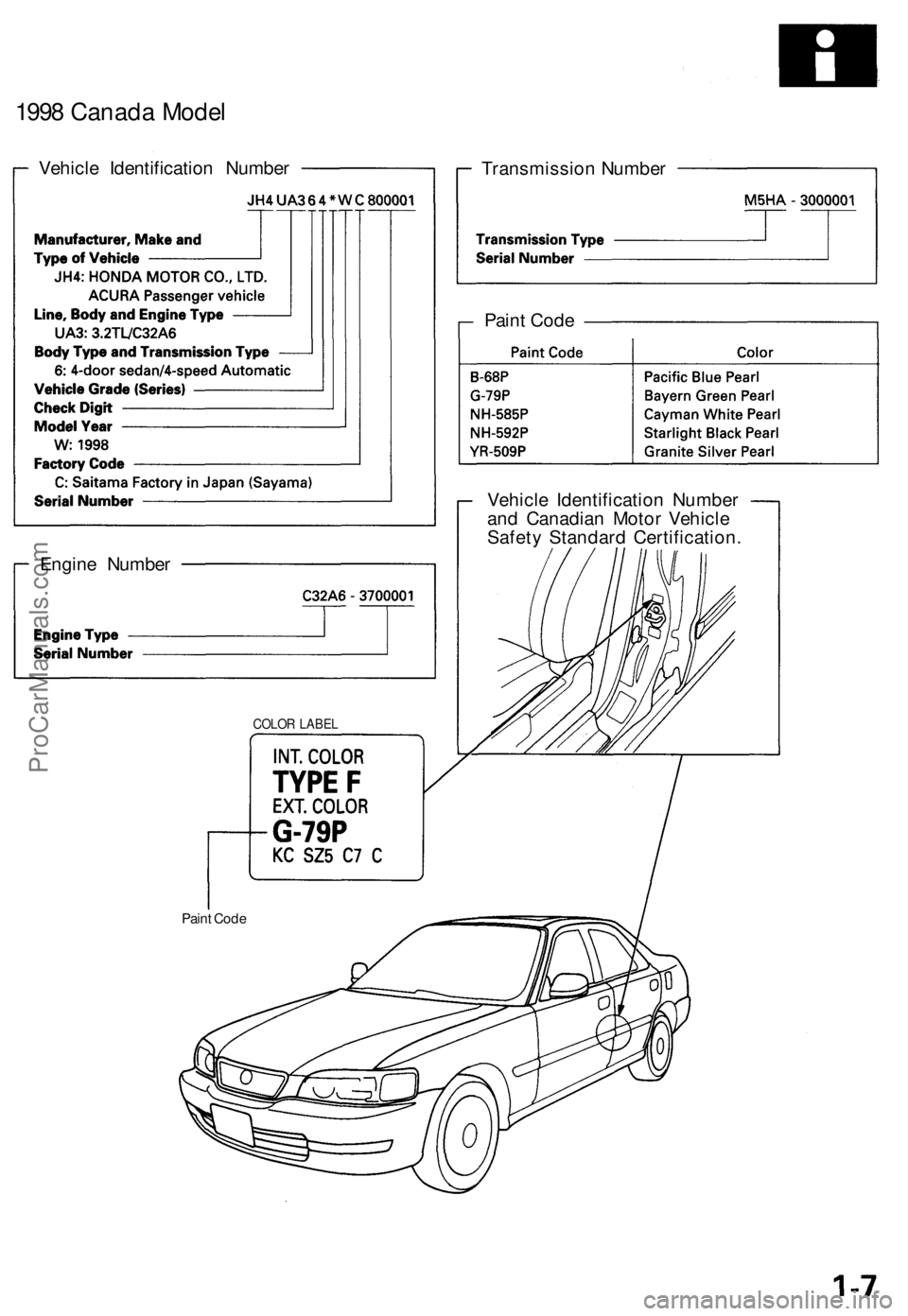

1998 Canada Model
Vehicle Identification Number
Transmission Number
Engine Number
COLOR LABEL
Vehicle Identification Number
and Canadian Motor Vehicle
Safety Standard Certification.
Paint Code
Paint CodeProCarManuals.com
Page 7 of 1771

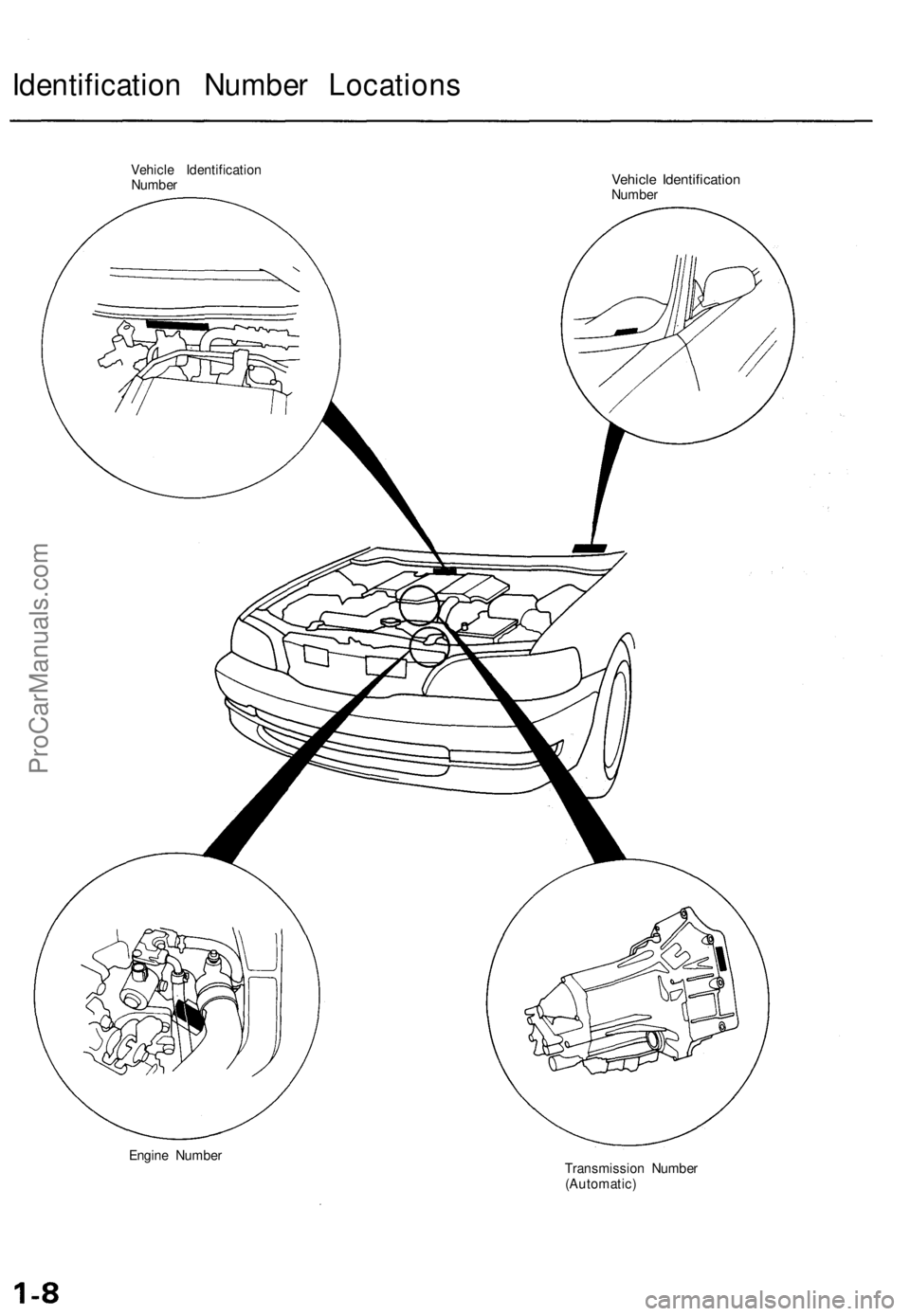

Identification Number Locations
Vehicle Identification
Number
Vehicle Identification
Number
Engine Number
Transmission Number
(Automatic)ProCarManuals.com
Page 8 of 1771

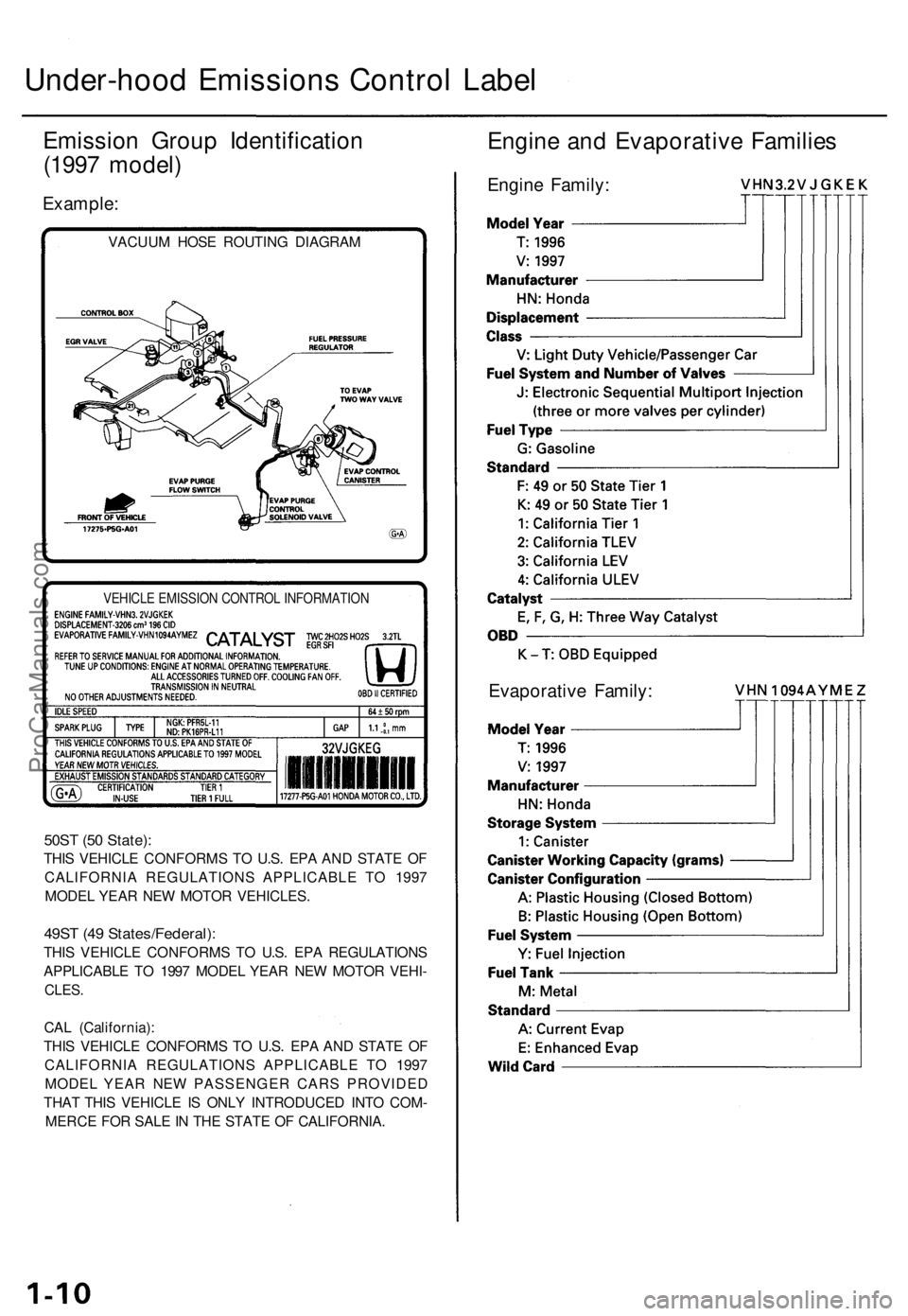

Under-hood Emissions Control Label
Emission Group Identification
(1997 model)
Example:
VACUUM HOSE ROUTING DIAGRAM
VEHICLE EMISSION CONTROL INFORMATION
50ST (50 State):
THIS VEHICLE CONFORMS TO U.S. EPA AND STATE OF
CALIFORNIA REGULATIONS APPLICABLE TO 1997
MODEL YEAR NEW MOTOR VEHICLES.
49ST (49 States/Federal):
THIS VEHICLE CONFORMS TO U.S. EPA REGULATIONS
APPLICABLE TO 1997 MODEL YEAR NEW MOTOR VEHI-
CLES.
CAL (California):
THIS VEHICLE CONFORMS TO U.S. EPA AND STATE OF
CALIFORNIA REGULATIONS APPLICABLE TO 1997
MODEL YEAR NEW PASSENGER CARS PROVIDED
THAT THIS VEHICLE IS ONLY INTRODUCED INTO COM-
MERCE FOR SALE IN THE STATE OF CALIFORNIA.
Engine and Evaporative Families
Engine Family:
Evaporative Family:ProCarManuals.com
Page 9 of 1771

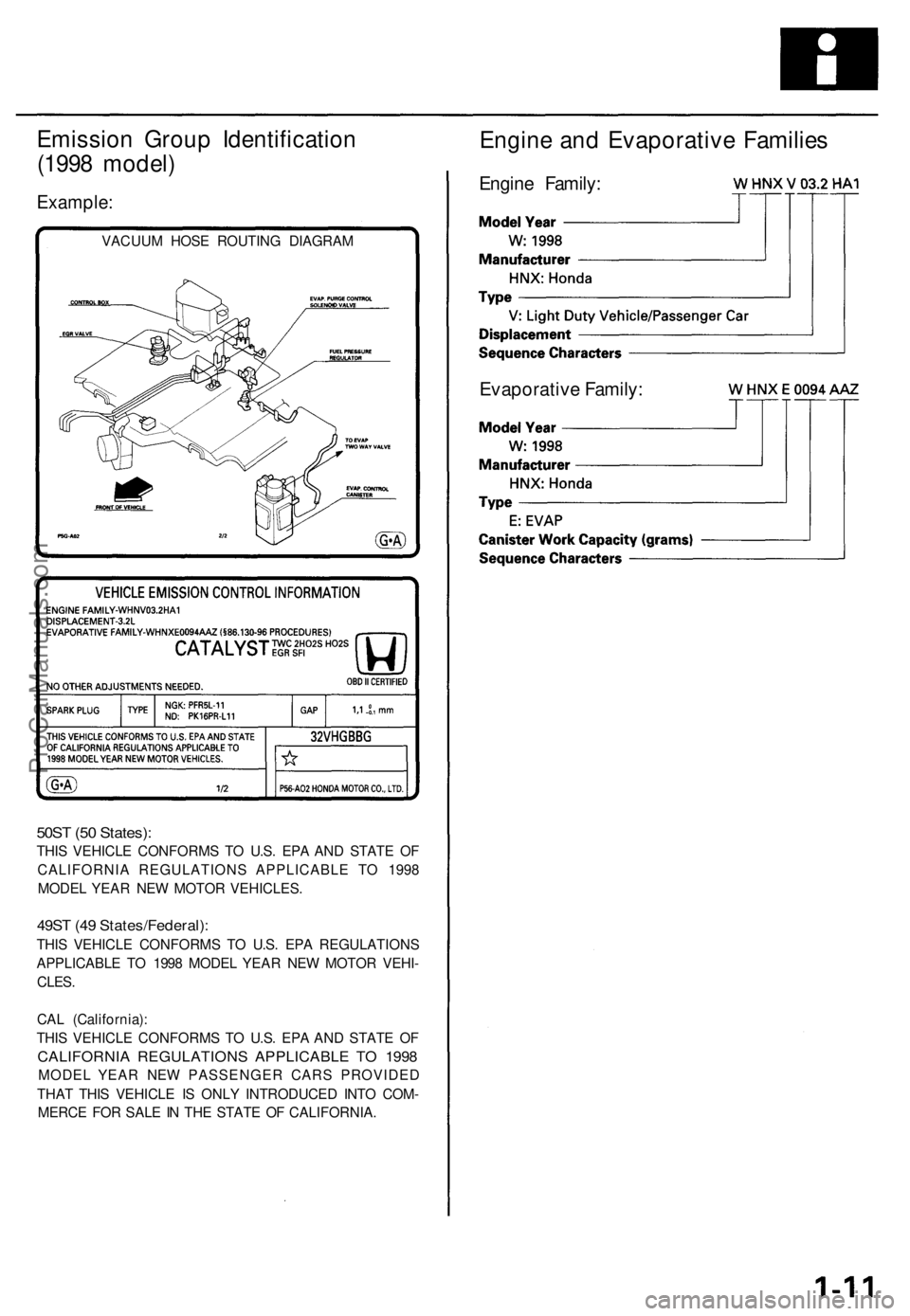

Emission Group Identification
(1998 model)
Example:
VACUUM HOSE ROUTING DIAGRAM
50ST (50 States):
THIS VEHICLE CONFORMS TO U.S. EPA AND STATE OF
CALIFORNIA REGULATIONS APPLICABLE TO 1998
MODEL YEAR NEW MOTOR VEHICLES.
49ST (49 States/Federal):
THIS VEHICLE CONFORMS TO U.S. EPA REGULATIONS
APPLICABLE TO 1998 MODEL YEAR NEW MOTOR VEHI-
CLES.
CAL (California):
THIS VEHICLE CONFORMS TO U.S. EPA AND STATE OF
CALIFORNIA REGULATIONS APPLICABLE TO 1998
MODEL YEAR NEW PASSENGER CARS PROVIDED
THAT THIS VEHICLE IS ONLY INTRODUCED INTO COM-
MERCE FOR SALE IN THE STATE OF CALIFORNIA.
Engine and Evaporative Families
Engine Family:
Evaporative Family:ProCarManuals.com
Page 10 of 1771

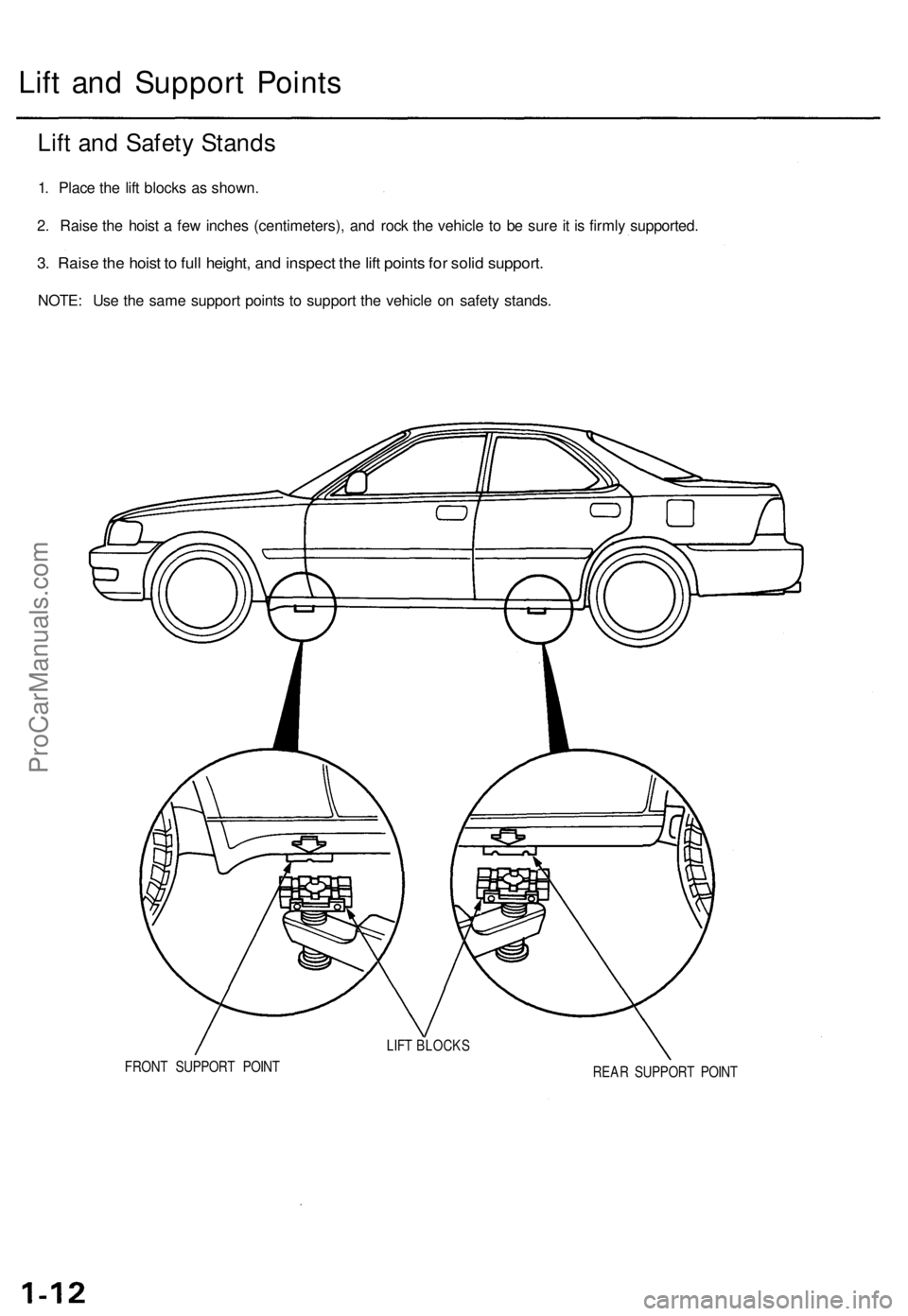

Lift and Support Points
FRONT SUPPORT POINT
REAR SUPPORT POINT
LIFT BLOCKS
Lift and Safety Stands
1. Place the lift blocks as shown.
2. Raise the hoist a few inches (centimeters), and rock the vehicle to be sure it is firmly supported.
3. Raise the hoist to full height, and inspect the lift points for solid support.
NOTE: Use the same support points to support the vehicle on safety stands.ProCarManuals.com
