navigation system Acura TL 2009 Owner's Manual

Changing and Selecting the Folders/Files
Using the interf ace selector, you can
see the list of all the f olders within a
disc. While playing an MP3/WMA/
AAC disc, push the interf ace selector
up. The f older list in the currently
playing disc will appear on the screen. This f eature, when activated, replays
all f iles on the selected f older in the
order they are compressed. To
activate f older repeat play, push the
interf ace selector down while playing
a disc. Turn the interf ace dial to
select Repeat on the AUDIO MENU,
andpressENTERontheinterface
selector. Turn the interf ace dial to
select the f older repeat icon, and
press ENTER on the interf ace
selector.
If the root f older has some additional
f olders in the lower layer, they will
belistedonthescreen. Select a desired f older by turning the
interf ace dial, then press ENTER.
The display returns to normal play,
and the f irst track in the selected
f older begins to play.
To change a f ile, turn the interf ace
dial to select a desired f ile, then
press ENTER.Folder Repeat
Playing a Disc (Models with navigation system)
308
FOLDER LIST
REPEAT OFF ICON
FOLDER REPEAT ICON
TRACK LIST FOLDER REPEAT INDICATOR
\f—\f—y
\fy
) \f\fy\f
y
2009 TL

To turn this feature off, turn the
interf ace dial to select OFF icon, and
press ENTER on the interf ace
selector.This f eature, when activated, plays
all f iles in the current f older in
random order. To activate f older
random play, push the interf ace
selector down while playing a disc.
Turn the interf ace dial to select
Random on the AUDIO MENU, and
press ENTER on the interf ace
selector. Turn the interf ace dial to
select the f older random icon, and
press ENTER on the interf ace
selector.To turn this feature off, turn the
interf ace dial to select OFF icon, and
press ENTER on the interf ace
selector.
Folder Random
Playing a Disc (Models with navigation system)
Features
309
FOLDER RANDOM INDICATOR
FOLDER RANDOM ICON
\f—\f—y


y
) \f\fy\f
y
2009 TL

This feature samples all files in the
selected f older in the order they are
stored. To activate this f eature, press
theSCANsideof theSCAN/A.SEL
bar. You can also select the SCAN
icon with the interf ace dial. Push the
selector down, turn the dial to select
Scan on the AUDIO MENU, then
press ENTER. Turn the dial to select
the scan icon, then press ENTER.
The system begins to play a f ile f or
about 10 seconds, and continues tosample the remaining f iles.
This feature, when activated,
samples the f irst f ile of each f older
f or 10 seconds. To scan a f older,
press the SCAN side of the SCAN/
A.SEL bar. Or, push the interf ace
selector down while playing a disc.
Turn the interf ace dial to select Scan
on the AUDIO MENU, and press
ENTER on the interf ace selector.
Turn the interface dial to select the
f older scan icon, and press ENTER
on the interf ace selector.
To turn this feature off, press the
SCAN side of the bar again, or select
OFF icon by turning the dial, then
press ENTER.
Folder Scan
File Scan
Playing a Disc (Models with navigation system)
310
FILE SCAN ICON
FOLDER SCAN ICONSCAN OFF ICON
\f—\f—y

y
) \f\fy\f
y
2009 TL

à
àà
The system plays the f irst f ile in the
f irst f older f or about 10 seconds. If
you do nothing, the system will then
play the f irst f iles in the next f olders
for 10 seconds. After playing the first
file of the last folder, the system
plays normally.
To turn this feature off, turn the
interf ace dial to select OFF icon, and
press ENTER on the interf ace
selector. The last track sampled
begins to play.
When playing MP3, WMA or AAC
format disc, each time you press the
SCAN side of the SCAN/A.SEL bar,
the system changes in the f ollowing
sequence: Scan Scan f irst track in
folder OFF Scan.
To remove the disc, press the eject
( ) button.
Use the disc controls previously
described.
If you do not remove the disc f rom
the slot, the system will reload the
disc af ter 10 seconds. The disc starts
playing automatically.
Removing Discs f rom the Disc
Player Playing a DVD-A Disc
Playing a Disc (Models with navigation system)
Features
311
NOTE:
\f—\f—\fy
\fy
) \f\fy\f
y
2009 TL

Thechartontherightexplainsthe
error messages you may see in the
center display while playing a disc.
If you see an error message in the
center display while playing a disc,
press the eject button. Af ter ejecting
the disc, check it f or damage or
deformation. If there is no damage,
insert the disc again.
For additional information on
damaged discs, see page .
Theaudiosystemwilltrytoplaythe
disc. If there is still a problem, the
error message will reappear. Press
the eject button, and pull out the disc.
Insert a dif f erent disc. If the new
disc plays, there is a problem with
the f irst disc. If the error message
cycle repeats and you cannot clear it,
take your vehicle to a dealer.Cause
Error
Message Solution
314
Servo Error
Mechanical Error
FOUCS Error
Disc violates copyright
Disc not supported
Load Error
Track/File format not
supported
High Temperature Press the eject button and pull out the disc.
Check the disc for serious damage, signs of
deformation, excessive scratches, and/or dirt
(see page314). Insert the disc again. If the
code does not disappear, or the disc cannot be
removed, consult your dealer. Do not try to
force the disc out of the player.
Current track will be skipped. The next
supported track or file plays automatically.
Will disappear when the temperature returns to
normal.
Disc Player Error Messages (Models with navigation system)
312
BAD DISC
PLEASE CHECK OWNER’SMANUAL
BAD DISC
PLEASE CHECK OWNER’SMANUAL
PUSH EJECT
MECH ERROR CHECK DISC
CHECK DISC LOAD
UNPLAYABLE FILE
HEAT ERROR
\f—\f—y
y
) \f\fy\f
y
2009 TL

When using CD-R, CD-RW,
DVD-R or DVD-RW discs, use
only high quality discs labeled f or
audio use.
Play only standard, round, 5-inch
(12 cm) discs. Smaller or odd-
shaped discs may jam in the drive
or cause other problems.
Handle your discs properly to
prevent damage and skipping.
When recording a CD-R, CD-RW,
DVD-R or DVD-RW the recording
must be closed f or it to be used by
the disc player.
When using DVD-R/RW discs,
they should meet DVD verif ication
standards.When a disc is not being played,
store it in its case to protect it f rom
dust and other contamination. To
prevent warpage, keep discs out of
direct sunlight and extreme heat.
To clean a disc, use a clean sof t cloth.
Wipe across the disc f rom the center
to the outside edge.
A new disc may be rough on the
inner and outer edges. The small
plastic pieces causing this roughness
can f lake of f and f all on the
recording surf ace of the disc,
causing skipping or other problems.
Remove these pieces by rubbing the
inner and outer edges with the side
of a pencil or pen. Never try to insert f oreign objects in
the disc player.
Handle a disc by its edges; never
touch either surf ace. Do not place
stabilizer rings or labels on the disc.
These, along with contamination
f rom f inger prints, liquids, and f elt-
tip pens, can cause the disc to not
play properly, or possibly jam in the
drive.
General Inf ormation
Protecting Discs
Protecting Your Discs (Models with navigation system)
Features
313
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
\f—\f—y
y
) \f\fy\f
y
2009 TL

Examples of these discs are shown
to the right:Bubbled, wrinkled, labeled, and excessively thick discs
Damaged discs
Poor quality discs
The in-dash disc player has a
sophisticated and delicate
mechanism. If you insert a damaged
disc as indicated in this section, it
maybecomestuckinsideand
damage the audio unit.
1.
2.
3.
Additional Inf ormation on
Recommended Discs
Protecting Your Discs (Models with navigation system)
314
Sealed
Warped Burrs
Chipped/
Cracked
Bubbled/
Wrinkled
With Label/
Sticker Using Printer
Label Kit With Plastic
Ring
\f—\f—y
y
) \f\fy\f
y
2009 TL

Small, irregular shaped discsDiscs with scratches, dirty discs Recommended discs are printed
with the f ollowing logo.
Audio unit may not play the
following formats.
This audio unit cannot play a Dual-
disc
.
CD-R,CD-RW,DVD-Ror
DVD-RW may not play due to the
recording conditions.
Scratches and f ingerprints on the
discs may cause the sound to skip.
4.
5.
Protecting Your Discs (Models with navigation system)
Features
315
Fingerprints, scratches, etc.
3-inch (8-cm) CD Triangle Shape
Arrow Shape
Can Shape
\f—\f—y
\fy
) \f\fy\f\fy
2009 TL

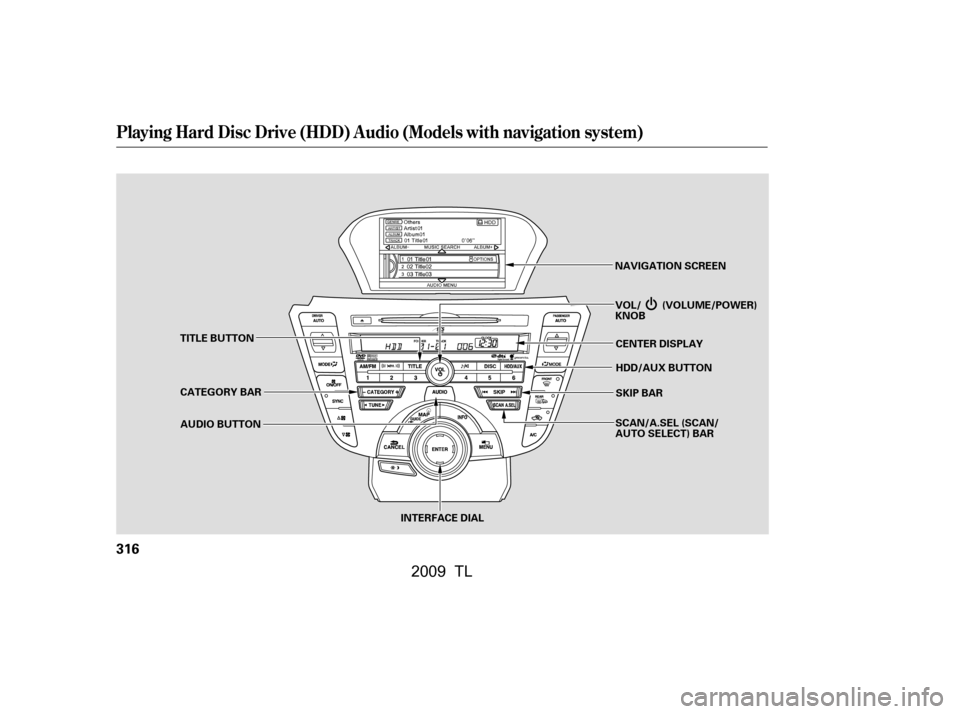

Playing Hard Disc Drive (HDD) Audio (Models with navigation system)
316
TITLE BUTTONAUDIO BUTTON NAVIGATION SCREEN
INTERFACE DIAL HDD/AUX BUTTON
CENTER DISPLAY
SKIP BAR
CATEGORY BAR VOL/ (VOLUME/POWER)
KNOB
SCAN/A.SEL (SCAN/
AUTO SELECT) BAR
\f—\f—y


y
) \f\fy\f
y
2009 TL

µ
µ
µ
µ
µ
µ
µ
µ
µRecording f unction f rom f ollowing
media is not supported.
CD-DA which prohibits the copy
by SCMS
CD-DA with copy control
SACD (Super Audio CD)
DTS-CD
DVD-A
CD-R/RW
DVD-R/RW
Copy controlled CDs (Playback
cannot be guaranteed)
DTS-CDs (Only enabled f or
playback)
The Hard Disc Drive (HDD) Audio
f unction can record tracks f rom
music CDs to the navigation system’s
hard disc. This f unction also allows
f or various playing methods, such as
playingrecordedtracksonanartist-
by-artist or genre-by-genre basis. For
example, you can play the tracks that
youwanttolistentoinanyorder
that you like f or each playlist.
Music data recorded on HDD can
only be used f or personal
enjoyment.
Data is recorded using ultra-
ef f icient compression technology,
theref ore, sound quality may vary
slightly f rom the original.
Title inf ormation will be displayed
when the inf ormation is f ound in
the Gracenote
Album Inf o
(Gracenote
Media Database) on
the built-in hard disk drive. See
page . If the HDD is ever replaced, all data
will be lost and stored music will not
be recovered.
Only recordings f rom a standard
CD-DA (44.1 kHz, 16 bit stereo
PCM digital sound data) to HDD
are supported.
Digital music f iles, such as MP3,
WMA, AAC etc., in CD-R, DVD-R
and USB f lash memory devices
cannot be copied to HDD.
Likewise, digital music f iles
recorded to HDD cannot be copied
to CD-R, DVD-R and USB devices. 342
Playing Hard Disc Drive (HDD) Audio (Models with navigation system)
Features
317
NOTE:
\f—\f—y

y
) \f\fy\fy
2009 TL
