To adjust the sound, press the
AUDIO button, push the interf ace
selector down, and turn the interf ace
dial to Sound Setup. Then press
ENTER on the interf ace selector.
Selectthemodeyouwanttoadjust
by turning the interf ace dial.
BASS, TREBLE, FADER, and
BALANCE are each adjustable. You
can also adjust the strength of the
sound coming f rom the center and
subwoof er speakers. In addition, you
can set the Dolby PL (ProLogic) II
and Speed-sensitive volume
compensation (SVC).
Theseadjustmentscanbemadewith
the (Sound) button or the
interf ace dial.

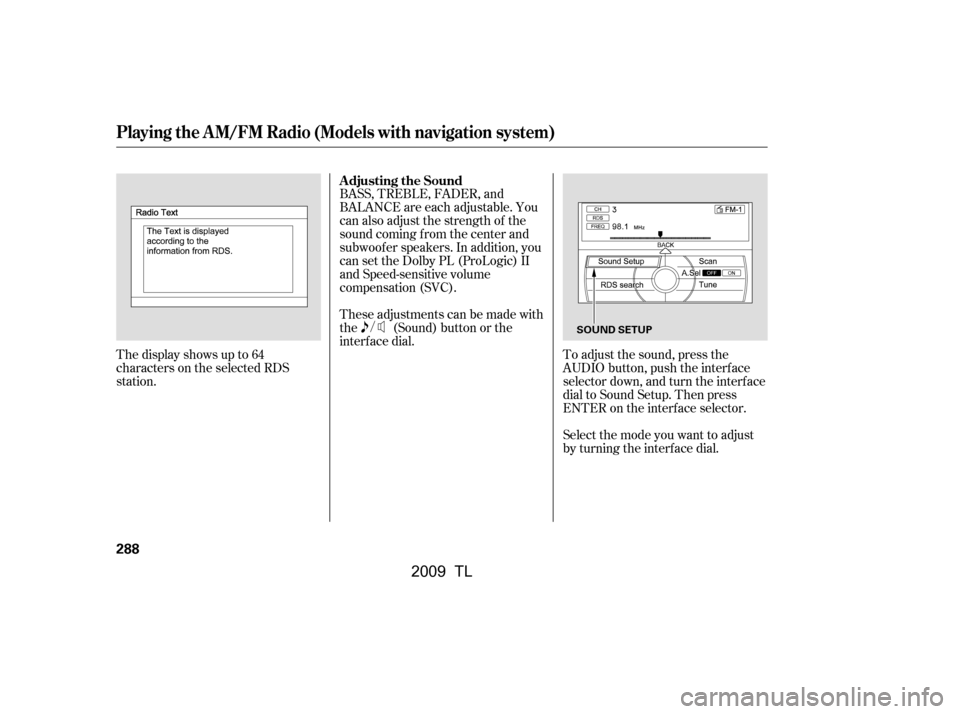

The display shows up to 64
characters on the selected RDS
station. Adjusting the Sound
Playing the A M/FM Radio (Models with navigation system)
288
SOUND SETUP
\f—\f—y

y
) \f\fy\fy
2009 TL

µ
µ These
modes adjust the strength of the
sound coming f rom each speaker.
Fader adjusts the f ront-to-back
strength, while balance adjusts the
side-to-side strength. To adjust f ader
and balance, select FADER or
BALANCE, then press ENTER on
the interf ace selector. The current
setting is shown on the screen. Turn
the interf ace dial or VOL/ knob
to the desired level, and enter your
selection by pressing ENTER on the
interf ace selector. To equalize the
fader or balance, turn the interface
dial or VOL/ knob until the
marks on the sound grid come to the
center of the adjustment bar.
The system will return to the audio
playing mode in the center display
about 10 seconds af ter you stop
adjusting a mode.
Turn the VOL/ knob or
interf ace knob to adjust the setting
to your liking. You can check the
level on the navigation screen or on
the center display. When the level
reaches the center, you will see ‘‘C’’
in the center display.
You can also adjust the sound by
pushing the (Sound) button
repeatedly. Each mode is shown in
the center display as you push the
button. If you do not make an adjustment
within 10 seconds, you will need to
selectthemodeagain.
To adjust bass
and treble, select BASS or TREBLE,
andpressENTERontheinterface
selector. The current setting is
shownonthedisplay.Turnthe
interf ace dial or VOL/ knob to
the desired level, and enter your
selection by pressing ENTER on the
interf ace selector.
If the fader adjustment is set to F9
(maximum f ront level), the
subwoof er is turned of f .
CONT INUED
FADER/BALANCE
BASS/TREBL E
Playing the A M/FM Radio (Models with navigation system)
Features
289
\f—\f—y

\fy
) \f\fy\fy
2009 TL

µµ µ
The SVC mode controls the volume
based on vehicle speed. The f aster
you go, the louder the audio volume
becomes. As you slow down, the
audio volume decreases.
Adjusts the strength of
sound f rom the center speaker.
To adjust the
strength of the sound f rom the
subwoof er speaker, select it and
press ENTER on the interf ace
selector. Turn the interf ace dial to
the desired level, and enter your
selection by pressing ENTER on the
interf ace selector. Dolby
PL (ProLogic) II signal processing
creates multi-channel surround
sound f rom 2 channel stereo audio
sources. Dolby ProLogic II can only
activate when listening to DISC
(CD-DA,MP3,WMA,AAC),XM
radio, AUX (USB, iPod
,AUX,
Bluetooth
Audio), and HDD Audio.
When ProLogic II is available, ‘‘PL
II’’ is shown in the audio display.
When ProLogic II is not available in
the selected audio source, ‘‘DPL2 N/
A’’ is shown on the center display.
The SVC has f our modes: OFF,
LOW, MID, and HIGH. The def ault
setting is MID. To change the SVC
mode, select SVC, then press
ENTER on the interf ace selector.
The current setting is shown on the
screen. Turn the interf ace dial to the
desired level, and enter your
selection by pressing ENTER on the
interf ace selector. If you f eel the
sound is too loud, choose low. If you
f eel the sound is too quiet, choose
high.
Speed-sensit ive Volume
Compensat ion (SVC)CENT ER
SUBWOOFER Dolby PL (ProL ogic) II
Playing the A M/FM Radio (Models with navigation system)
290
\f—
—y
\f
\f\fy
) \f\fy\fy
2009 TL

To set this f eature on or of f , select
Dolby PL II, and press ENTER on
the interf ace selector. Rotate the
interf ace dial to ON or OFF, and
press ENTER.
Manuf actured under license f rom
Dolby Laboratories. ‘‘Dolby’’,
‘‘ProLogic’’, and the double-D symbol
are trademarks of Dolby
Laboratories.In some audio playing modes
(XM,AUX),whenDPLIIison,the
music coming f rom the rear
speakers may sound distorted. This
is due to compression of the music,
and it does not indicate a problem
with the setting.
Playing the A M/FM Radio (Models with navigation system)
Features
291
NOTE:
\f—\f—y


y
) \f\fy\fy
2009 TL

Playing the XMRadio (Models with navigation system)
292
CATEGORY BARTUNE BAR
AUDIO BUTTON
INTERFACE DIAL
PRESET BUTTONS
(SOUND) BUTTON
NAVIGATION SCREEN
CENTER DISPLAY
SKIP BAR SCAN/A.SEL (SCAN/
AUTO SELECT) BAR
XM RADIO BUTTON
TITLE BUTTON
VOL/ (VOLUME/POWER)
KNOB
\f—\f—y

y
) \f\fy\fy
2009 TL

XM radio receives signals f rom two
satellites to produce clear, high-
quality digital reception. It of f ers
many channels in several categories.
Along with a large selection of
dif f erent types of music, XM radio
also allows you to view channel and
category selections in the audio
display.
Your vehicle is capable of receiving
XM Radio anywhere in the United
States and Canada, except Hawaii,
Alaska,andPuertoRico.XM
is a
registered trademark of XM Satellite
Radio
,Inc.
To listen to XM radio, set the power
mode to ACCESSORY or ON. Push
the button to select the XM
radio. The last channel you listened
to will show in the audio screen (if
selected) and the center display.
Adjust the volume by turning the
VOL/ knob. Yourvehiclehastheenginestart/
stop button instead of an ignition
switch. For more inf ormation to
select the power mode, see page .
Each time you push the interface
selector up, the band will change to
XM1 or XM2. Push the AUDIO
button to display XM inf ormation on
the screen. You can operate the XM
radio system with the interf ace dial.
178
CONT INUED
Operating the XM Radio
Playing the XMRadio (Models with navigation system)
Features
293
\f—\f—y


y
) \f\fy\fy
2009 TL

µµ µ
µ´µ
Each time you press and release the
TITLE button, the center display
changes in the f ollowing sequence:
NAME (artist name), TITLE (music
title), and CHANNEL NAME
(channel name).
Onthescreen,youwillseethe
selected CHANNEL (number),
CATEGORY, NAME (artist name),
and TITLE (music title).
You may experience periods when
XM Radio does not transmit the
artist’s name and song title
inf ormation. If this happens, there is
nothing wrong with your system.
To switch between the
category mode and channel mode,
push the interf ace selector down to
display AUDIO MENU, then turn
the interf ace dial to select Mode, and
press ENTER on the interf ace
selector.
Turn the interf ace dial to select CH
or CAT, then press ENTER on the
interface selector. Move the
interfaceselectoruptogoback.
You can also switch the mode by
pressing the TITLE button for 3
seconds.
In the category mode, such as Jazz,
Rock, Classical, etc., you can
navigate through all of the channels
within that category. In the channel
mode, you can select all of the
available channels. Press either side of the
TUNE bar to change channel
selections. Press the side of the
bar f or higher numbered channels
and the side for lower
numbered channels. You can also
change channels with the interf ace
selector, push down the interf ace selector to select AUDIO MENU,
then turn the interface dial to choose
TuneandpressENTERonthe
interf ace selector. Turn the interf ace
dial to the appropriate direction. In
the category mode, you can only
select channels within that category.
Push down the
interf ace selector to select AUDIO
MENU,thenturntheinterfacedial
to select Channel List and press
ENTERontheselector.Turnthe
interf ace dial to select a channel,
then press ENTER to set your
selection.
Press
either side of the bar to select
another category.
Playing the XMRadio (Models with navigation system)
MODE
TUNECHA NNEL L IST
CATEGORY ( or )
294
\f—\f—\fy
\f
y
) \f\fy\fy
2009 TL

µµ µ
µ
The scan f unction gives
you a sampling of all channels while
in the channel mode. In the category
mode, only the channels within that
category are scanned. To activate
SCAN,presstheSCANsideof the
SCAN/A.SEL bar. You will see
SCAN on the screen and center
display.
The system plays each channel in
numerical order f or a f ew seconds,
then selects the next channel. When
you hear a channel you want to
continue listening to, press the
SCAN side of the bar to cancel.
This f unction
samples all channels. Push down the
interf ace selector to select AUDIO
MENU,thenturntheinterfacedial
to select Channel Scan and press
ENTER on the interf ace selector. Press the button. Either
XM1 or XM2 will be shown on the
display.
To store a channel: Youcanstoreupto12
preset channels using the six preset
buttons. Each button stores one
channel f rom the XM1 band and one
channel f rom the XM2 band.
This
f unction samples the stations in the
selected category. Push down the
interf ace selector to select AUDIO
MENU,thenturntheinterfacedial
to select Category Scan and press
ENTER on the interf ace selector. 1.
CONT INUED
SCAN
CHA NNEL SCA N Preset
CAT EGORY SCAN
Playing the XMRadio (Models with navigation system)
Features
295
\f—\f—y

y
) \f\fy\f\f\fy
2009 TL

µ
µ µ
µ
µ
µ The signal is
currently too weak. Move the vehicle
to an area away from tall buildings,
and with an unobstructed view of the
southern horizon.
The selected channel
number does not exist, or is not part
of your subscription, or this channel
has no artist or title inf ormation at
this time.
There is
a problem with the XM antenna.
Please consult your dealer.
The encryption
code is being updated. Wait until the
encryption code is f ully updated.
Channels 0 and 1 should still work
normally. XM is loading the
audio or program inf ormation. The channel
currently selected is no longer
broadcasting. Once a channel is stored, press
and release the proper preset
button to tune to it.
Press the button or scroll
up again. The other XM band will
be shown. Store the next six
channels using steps 2 and 3.
Repeat steps 2 and 3 to store the
f irst six channels.
Pick the preset button you want
f or that channel. Press and hold
the preset button until you hear a
beep. You can also pick the
number with the interf ace dial.
Select your desired number and
press and hold ENTER on the
interf ace selector.
In category mode, only channels
within that category can be
selected. In channel mode, all
channels can be selected.
Use the tune, list, or scan f unction
to tune to a desired channel.
5.
3.
4.
2.
Playing the XMRadio (Models with navigation system)
‘‘NO SIGNA L ’’
‘‘----’’
‘‘CHECK A NT ENNA ’’
‘‘UPDA T ING’’
‘‘L OA DING’’
‘‘OFF A IR’’
XM Radio Display Messages
296
\f—\f—y

y
) \f\fy\f\f
y
2009 TL

The XM satellites are in orbit over
the equator; therefore, objects south
of the vehicle may cause satellite
reception interruptions. To help
compensate f or this, ground-based
repeaters are placed in major
metropolitan areas. Satellite signals
aremorelikelytobeblockedbytall
buildings and mountains the f arther
north you travel f rom the equator.
Depending on where you drive, you
may experience reception problems.
Interf erence can be caused by any of
these conditions:Driving on the north side of an
east/west mountain road.
Driving on the north side of a
large commercial truck on an
east/west road.
Driving in tunnels. Driving on a single lane road
alongside dense trees taller than
50 ft. (15 m) to the south of you.
Driving on the lower level of a
multi-tiered road.
Driving on a road beside a vertical
wall, steep clif f , or hill to the south
of you.There may be other geographic
situations that could affect XM Radio
reception.
As required by the FCC:
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
CONT INUED
Playing the XMRadio (Models with navigation system)
Features
297
GROUND R EPEATER
Signal may be blocked by
mountains or large obstacles
to the south.
Signal weaker in
these areas.
SATELLITE
\f—\f—y
y
) \f\fy\f\fy
2009 TL
