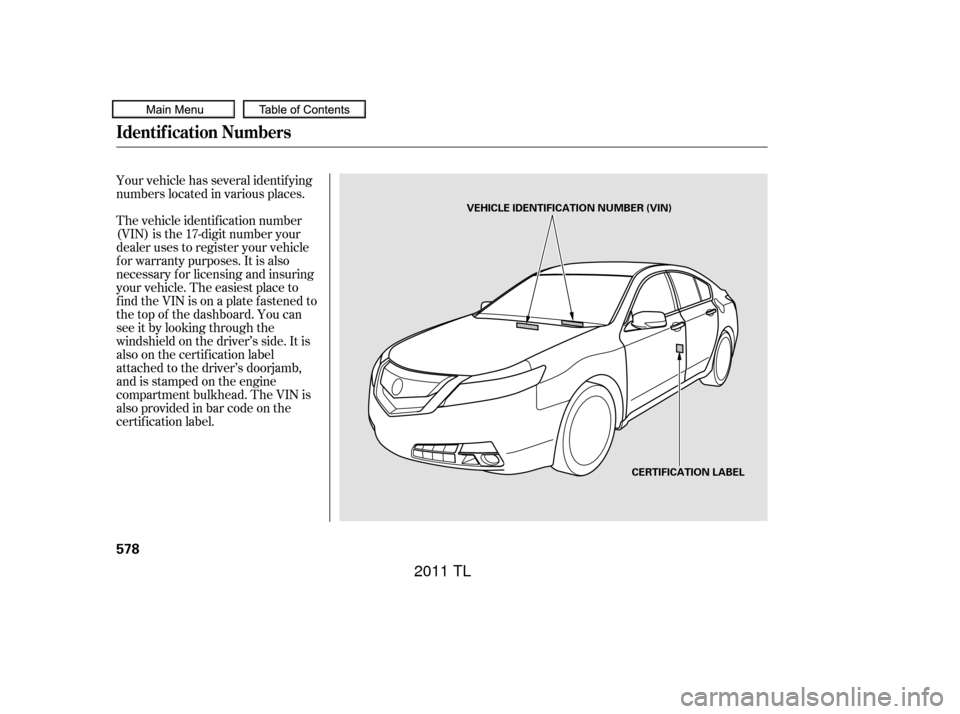

Your vehicle has several identif ying
numbers located in various places.
The vehicle identif ication number
(VIN) is the 17-digit number your
dealer uses to register your vehicle
f or warranty purposes. It is also
necessary f or licensing and insuring
your vehicle. The easiest place to
find the VIN is on a plate fastened to
the top of the dashboard. You can
seeitbylookingthroughthe
windshield on the driver’s side. It is
also on the certification label
attached to the driver’s doorjamb,
and is stamped on the engine
compartment bulkhead. The VIN is
also provided in bar code on the
certif ication label.
Identif ication Numbers
578
CERTIFICATION LABEL
VEHICLE IDENTIFICATION NUMBER (VIN)
10/07/29 12:55:53 31TK4620_583
2011 TL

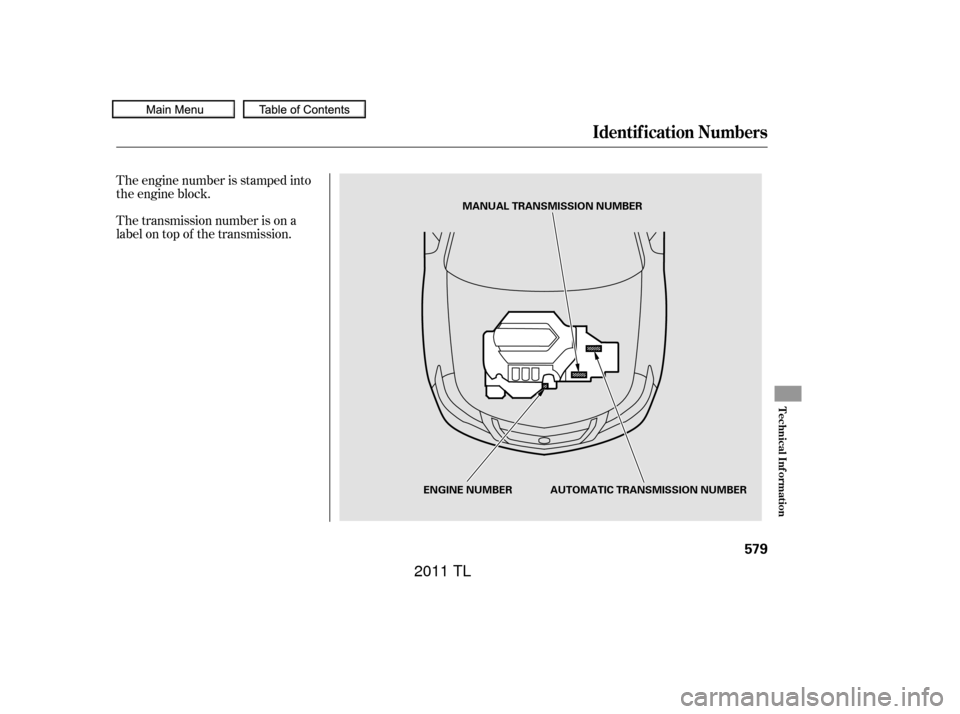

The transmission number is on a
label on top of the transmission. The engine number is stamped into
the engine block.
Identif ication Numbers
Technical Inf ormation
579
MANUAL TRANSMISSION NUMBER
ENGINE NUMBER AUTOMATIC TRANSMISSION NUMBER
10/07/29 12:55:57 31TK4620_584
2011 TL

µµÎ
Î
Î
Î
Specif ications
580
Air Conditioning Seating Capacities Weights Dimensions Capacities
195.5 in (4,966 mm) 18.5 US gal (70
)
Including the coolant in the reserve tank and that remaining in the
engine
Reserve tank capacity: 0.182 US gal (0.69
)
Excluding the oil remaining in the engine 6.1 US qt (5.8
)
2.6 US qt (2.5)
0.48 US qt (0.45
)
0.45 US qt (0.43)
2.93 US qt (2.77
)
2.67 US qt (2.53)
ND-OIL8
17.6 19.4 oz (500 550 g) HFC-134a (R-134a)
Refrigerant type
Charge quantity
Lubricant type Total
Front
Rear 3
2 5
See the certification label attached
to the driver’s doorjamb.
Gross vehicle weight rating 63.8 in (1,620 mm) 63.2 in (1,605.5 mm)
109.3 in (2,775 mm)
57.2 in (1,452 mm)
74.0 in (1,880 mm)
Length
Width
Height
Wheelbase
Track 196.4 in (4,989 mm)
1.66 US gal (6.3
)
2.19 US gal (8.3)
4.5 US qt (4.3
)
4.2 US qt (4.0)
5.3 US qt (5.0)
3.5 US qt (3.3
)
3.0 US qt (2.8)
7.9 US qt (7.5
)
8.1 US qt (7.7)
2.2 US qt (2.1)
2.6 US qt (2.5)
Fuel tank
Engine
coolant
Engine oil
Automatic
transmission
fluid
Manual
transmission
fluid
Rear
differential
fluid (SH-AWD)
Transfer
assembly
fluid (SH-AWD)
Windshield
washer
reservoir Approx.
Front
Rear
Change
Total
Change
Total Change
Total
ChangeIncluding filter
Without filter
Total
Change
Total
U.S. Vehicle
Canada Vehicle 2WD
SH-AWD
2WD
SH-AWD
1:
2: Change
Total
U.S. Vehicle
Canada Vehicle
1
2
10/07/29 12:56:15 31TK4620_585
2011 TL

ÎÎ Î
Î
Î
µ
µ
Î
Î
CONT INUED
Specif ications
Technical Inf ormation
581
Engine (2WD)
Engine (SH-AWD)
Fuses
Battery Lights 3.50 x 3.66 in (89.0 x 93.0 mm)Water cooled 4-stroke
SOHC VTEC 6-cylinder (V6), gasoline engine
212 cu-in (3,471 cm
)
11.2 : 1
ILZKR7B11
Type
BorexStroke
Displacement
Compression ratio
Spark plugs
Type
BorexStroke
Displacement
Compression ratio
Spark plugs
SXU22HCR11S11.2 : 1
223.5 cu-in (3,664 cm
)
3.54 x 3.78 in (90.0 x 96.0 mm) Water cooled 4-stroke
SOHC IN/EX VTEC 6-cylinder (V6), gasoline engineSXU22HCR11
ILZKR7B-11S
Interior
Under-hood
Capacity
12 V 12 V72 AH/20 HR
60 AH/5 HR
On vehicles with high voltage discharge type low beam headlights,
replacement of a bulb should be performed by your dealer.
Headlight (Low beam )
Headlight (High beam/DRL)
Front turn signal/parking
lights
Front side marker lights
Front fog lights
Rear turn signal lights
Back-up lights
Rear side marker lights
Stop/taillights
Side turn signal lights
High-mount brake light
License plate lights
Trunk light
Door courtesy lights
Vanity mirror lights
Console compartment light
Glove box Light
Foot light
See pages570or the fuse label
attached on the side panel.
See pages 571or the fuse label
attached to the inside of the fuse
box door.
See page 569or the fuse box
cover.
35 W (D2S)
60 W (HB3)
24/2.2 CP
3CP
55 W (H11)
21 W
16 W
3CP
3CP
5W
3.4 W
1.4 W
1.4 W
1.4 W
DENSO:
NGK:
NGK: DENSO:
1:
2 : Replacement of a light bulb should be done by your dealer. LED
Driver’s side
Passenger’s side
LED
LED
LED
(Amber)
(Amber)
1
2 2
2
2
10/07/29 12:56:34 31TK4620_586
2011 TL

µ
µ
Î
Î
Î
Î
Î
Î
Î
Î
ÎÎ
ÎÎÎÎ
ÎÎÎ
ÎÎÎ
ÎÎÎ
Specif ications
582
Tires
Alignment Size
Pressure P245/50R17 98V
P245/45R18 96V
245/40ZR19 94Y
T135/80D17 103M
32 psi (220 kPa , 2.2 kgf/cm
)
60 psi (420 kPa , 4.2 kgf/cm)
32 psi (220 kPa , 2.2 kgf/cm
)
37 psi (255 kPa , 2.55 kgf/cm)
Toe-in
Camber
Caster 3.8°1°
0.5°
0.08 in (2.0 mm) 0.00 in (0.0 mm)
Front/Rear
Spare
Front
Rear
Spare
TL
TECH
SH-AWD
SH-AWD TECH
SH-AWD TECH HPT
SH-AWD with high performance tires
Front
Rear
Front
Rear
Front
Optional for TECH (2WD)
1:
2:
3:
4:
5:
6:
7:
8 : Canadian A-Spec
1, 2
1, 2, 3, 4
3, 4, 7
5, 6, 8
5, 6, 8
10/07/29 12:56:44 31TK4620_587
2011 TL

The tires on your vehicle meet all
U.S. Federal Saf ety Requirements.
All tires are also graded f or
treadwear, traction, and temperature
perf ormance according to
Department of Transportation
(DOT) standards. The f ollowing
explains these gradings.
Quality grades can be f ound where
applicable on the tire sidewall
between tread shoulder and
maximum section width. For
example:
All passenger car tires must conf orm
to Federal Saf ety Requirements in
addition to these grades.The treadwear grade is a compara-
tive rating based on the wear rate of
the tire when tested under controlled
conditions on a specif ied government
test course. For example, a tire
graded 150 would wear one and one-
half (1 1/2) times as well on the
government course as a tire graded
100. The relative perf ormance of
tires depends upon the actual condi-
tions of their use, however, and may
depart signif icantly f rom the norm
due to variations in driving habits,
service practices and dif f erences in
road characteristics and climate.
The traction grades, f rom highest to
lowest, are AA, A, B, and C. Those
grades represent the tire’s ability to
stop on wet pavement as measured
under controlled conditions on
specif ied government test surf aces
of asphalt and concrete. A tire
marked C may have poor traction
perf ormance.
Warning: The traction grade
assignedtothistireisbasedon
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.
Unif orm T ire Quality Grading
T readwear 200
Traction AA
Temperature A T readwear
T raction
DOT Tire Quality Grading (U.S. Vehicles)
Technical Inf ormation
583
10/07/29 12:56:51 31TK4620_588
2011 TL

Warning: The temperature grade f or
this tire is established f or a tire that
is properly inf lated and not
overloaded. Excessive speed,
underinf lation, or excessive loading,
either separately or in combination,
can cause heat buildup and possible
tire f ailure.
The temperature grades are A (the
highest), B, and C, representing the
tire’s resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled
conditions on a specif ied indoor
laboratory test wheel. Sustained high
temperature can cause the material
of the tire to degenerate and reduce
tire life, and excessive temperature
can lead to sudden tire f ailure. The
grade C corresponds to a level of
perf ormance which all passenger car
tires must meet under the Federal
Motor Vehicle Saf ety Standard No.
109. Grades B and A represent
higher levels of perf ormance on the
laboratory test wheel than the
minimum required by law. Temperature
DOT Tire Quality Grading (U.S. Vehicles)
584
10/07/29 12:56:56 31TK4620_589
2011 TL

µ
µ
µ
µ
µ
µ µ
The tires that came on your vehicle
have a number of markings. Those
you should be aware of are
described below. Whenever tires are replaced, they
should be replaced with tires of the
same size. Below is an example of
tire size with an explanation of what
each component means.
Vehicletype(Pindicates
passenger vehicle).
Tire width in millimeters.
Aspect ratio (the tire’s section
height as a percentage of its
width).
Tire construction code (R
indicates radial).
Rim diameter in inches. Speed symbol (an
alphabetical code indicating
the maximum speed rating). Load index (a numerical code
associated with the maximum
load the tire can carry).
P
R
17 245
50 V 98
CONT INUED
Tire Size
Tire Labeling
Technical Inf ormation
585
Tire Size
(1)
(1)
Tire Identification Number (TIN)
(3) Maximum Tire Pressure
(4) Maximum Tire Load (2)
(3)
(4)
(2) (1)
TIRE LABELING EXAMPLE
P245/50R17 98V
10/07/29 12:57:07 31TK4620_590
2011 TL

µ
µ µ
µ µ
µ
µ µ
µ
µ
The tire identif ication number (TIN)
is a group of numbers and letters
that look like the f ollowing example.
TIN is located on the sidewall of the
tire.
Manuf acturer’s
identification mark.
Tire type code.
Date of manufacture. This indicates that the tire
meets all requirements of
the U.S. Department of
Transportation. Cold Tire Pressure The tire air
pressure when the vehicle has been
parked f or at least three hours or
driven less than 1 mile (1.6 km).
Load Rating Means the maximum
load that a tire is rated to carry for a
given inf lation pressure.
Maximum Inf lation Pressure The
maximum tire air pressure that the
tire can hold.
Maximum Load Rating Means the
load rating for a tire at the maximum
permissible inflation pressure for
that tire. Recommended Inf lation Pressure
The cold tire inf lation pressure
recommended by the manuf acturer.
Treadwear Indicators (TWI)
Means the projections within the
principal grooves designed to give a
visual indication of the degrees of
wear of the tread.
DOT
B97R
FW6X
2202 Year
Week
T ire Ident if icat ion Number (T IN)Glossary of T ire T erminology
Tire Labeling
586
DOT B97R FW6X 2202
10/07/29 12:57:17 31TK4620_591
2011 TL

µ
Each tire, including the spare (if
provided), should be checked
monthly when cold and inf lated to
the inf lation pressure recommended
by the vehicle manuf acturer on the
vehicle placard or tire inf lation
pressure label.
(If your vehicle has tires of a
dif f erent size than the size indicated
on the vehicle placard or tire
inf lation pressure label, you should
determine the proper tire inf lation
pressure f or those tires.)As an added safety feature,
your
vehicle has been
equipped with a tire
pressure monitoring system (TPMS)
that illuminates a low tire pressure
telltale when one or more of your
tires is signif icantly under-inf lated.
Accordingly, when the low tire
pressure telltale illuminates, you
should stop and check your tires as
soon as possible, and inf late them to
the proper pressure. Driving on a signif icantly under-
inf lated tire causes the tire to
overheat and can lead to tire failure.
Under-inf lation also reduces f uel
efficiency and tire tread life, and may
af f ect the vehicle’s handling and
stopping ability.
Please note that the TPMS is not a
substitute for proper tire
maintenance, and it is the driver’s
responsibility to maintain correct tire
pressure, even if under-inf lation has
not reached the level to trigger
illumination of the TPMS low tire
pressure telltale.
CONT INUED
Tire Pressure Monitoring System (TPMS) Required Federal Explanation
Technical Inf ormation
587
10/07/29 12:57:24 31TK4620_592
2011 TL
