Acura TL 2013 Owner's Manual

Start the engine. If you are
replacing a driver’s side bulb, turn
the steering wheel all the way to
theright.If youarereplacinga
passenger’s side bulb, turn the
steering wheel to the lef t. Turn of f

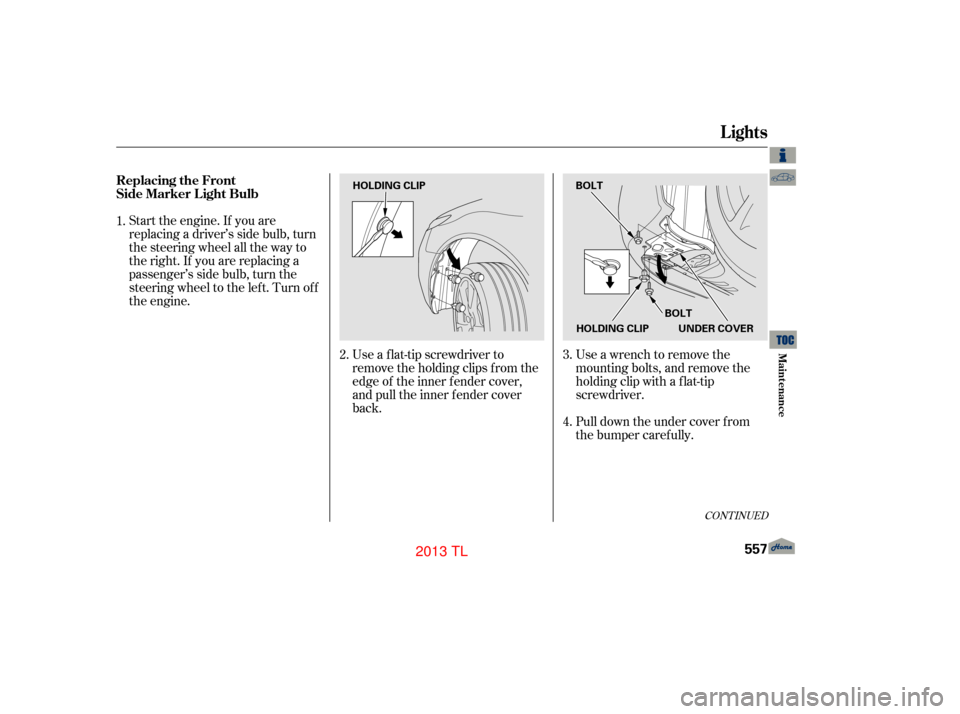

the engine.Use a wrench to remove the
mounting bolts, and remove the
holding clip with a f lat-tip
screwdriver.
Use a f lat-tip screwdriver to
remove the holding clips f rom the
edge of the inner f ender cover,
and pull the inner f ender cover
back.
Pull down the under cover f rom
the bumper caref ully.
3.
2.
1.
4.
CONT INUED
Replacing the Front
Side Marker Light Bulb
Lights
Maint enance
557
HOLDING CLIPUNDER COVER
BOLT
HOLDING CLIP BOLT
12/07/20 11:41:54 31TK4640_562
2013 TL

Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.Start the engine. If you are
replacing a driver’s side bulb, turn
the steering wheel all the way to
theright.If youarereplacinga
passenger’s side bulb, turn the
steering wheel to the lef t. Turn of f
the engine.
Remove the bulb by pulling it
straight out of its socket. Install the new bulb in the socket
by pushing it straight in the socket
until it bottoms.
Insert the socket into the
headlight assembly. Turn it
clockwise to lock it in place.
Turn on the lights to make sure
the new bulb is working.
Push the under cover in place and
set the inner f ender cover in the
original position. Install the bolts
and tighten them securely. Insert
each holding clip, and lock it by
pushingonitscenter.
5.
6. 7.
8.
1.
9.
10. Replacing a Front T urn Signal/
Parking L ight Bulb
Lights
558
SOCKET
BULB
12/07/20 11:42:01 31TK4640_563
Maint enance
2013 TL

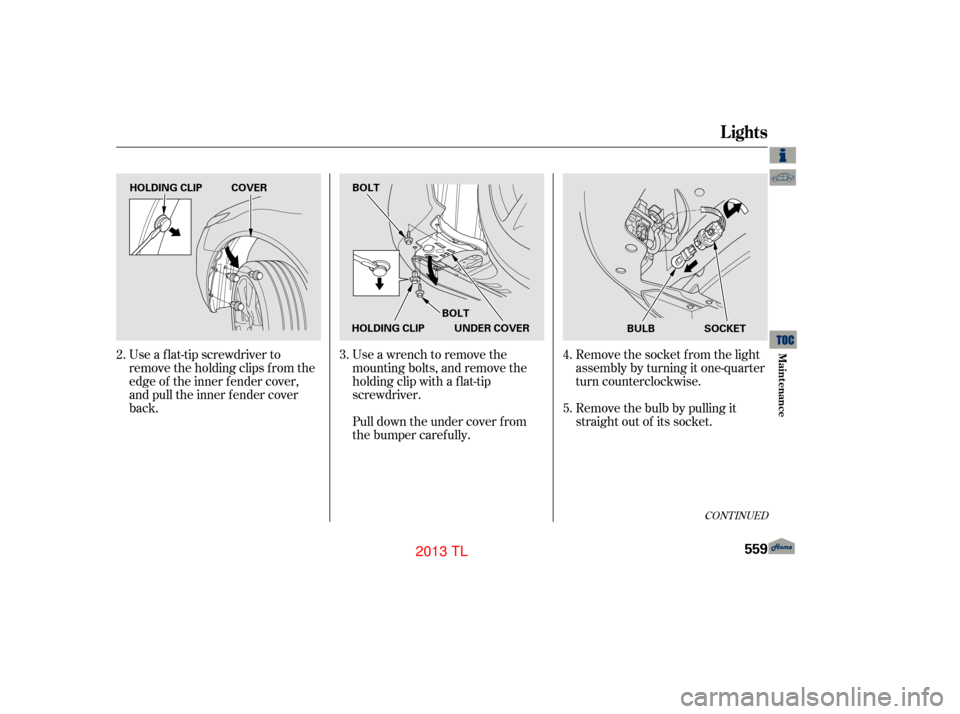

Remove the socket f rom the light
assembly by turning it one-quarter
turn counterclockwise.
Use a wrench to remove the
mounting bolts, and remove the
holding clip with a f lat-tip
screwdriver.
Pull down the under cover f rom
the bumper caref ully.
Use a f lat-tip screwdriver to
remove the holding clips f rom the
edge of the inner f ender cover,
and pull the inner f ender cover
back.
Remove the bulb by pulling it
straight out of its socket.
3.
2. 4.
5.
CONT INUED
Lights
Maint enance
559
HOLDING CLIP COVER
HOLDING CLIP UNDER COVER SOCKET
BOLT
BOLT BULB
12/07/20 11:42:08 31TK4640_564
2013 TL

Your vehicle uses halogen light
bulbs. When replacing a bulb, handle
it by its plastic case, and protect the
glass from contact with your skin or
hard objects. If you touch the glass,
clean it with denatured alcohol and a
clean cloth.Start the engine. If you are
replacing a driver’s side bulb, turn
the steering wheel all the way to
theright.If youarereplacinga
passenger’s side bulb, turn the
steering wheel to the lef t. Turn of f
the engine.
Thefoglightswereproperlyaimed
when your vehicle was new. If you
regularly carry heavy items in the
trunk, readjustment may be required.
Adjustment should be done by your
dealer or another qualif ied
technician.
Install the new bulb in the socket
by pushing it straight in the socket
until it bottoms.
Push the under cover in place and
set the inner f ender cover in the
original position. Install the bolts
and tighten them securely. Insert
each holding clip, and lock it by
pushingonitscenter. Turn on the lights to make sure
the new bulb is working. Insert the socket into the light
assembly. Turn it clockwise to
lock it in place.
6.
7.
8.
9. 1.
Replacing a Front Fog L ight Bulb
Lights
560
Halogen bulbs get very hot when lit. Oil,
perspiration, or a scratch on the glass
can cause the bulb to overheat and
shatter.
12/07/20 11:42:16 31TK4640_565
Maint enance
2013 TL

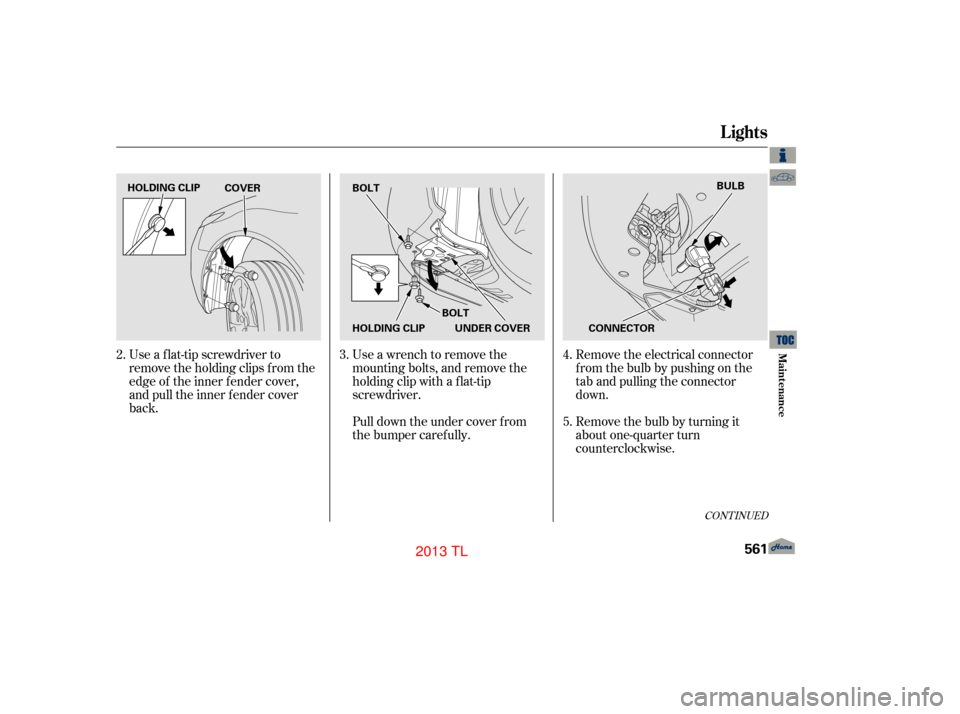

Remove the electrical connector
f rom the bulb by pushing on the
tab and pulling the connector
down.
Remove the bulb by turning it
about one-quarter turn
counterclockwise.
Use a wrench to remove the
mounting bolts, and remove the
holding clip with a f lat-tip
screwdriver.
Pull down the under cover f rom
the bumper caref ully.
Use a f lat-tip screwdriver to
remove the holding clips f rom the
edge of the inner f ender cover,
and pull the inner f ender cover
back.
4.
5.
3.
2.
CONT INUED
Lights
Maint enance
561
HOLDING CLIP
UNDER COVER
COVER
BOLT
HOLDING CLIP BOLT
CONNECTORBULB
12/07/20 11:42:24 31TK4640_566
2013 TL

Remove the nuts f rom the stud
bolts with a socket or wrench.
Open the trunk.
Remove the screw in the center of
theholdingcliponthesideof the
trunk lining. Pull the lining back.
Insert the new bulb into the hole,
and turn it one-quarter turn
clockwise to lock it in place.
Push the electrical connector back
onto the bulb. Make sure it is on
all the way.
Turn on the f og lights to test the
new bulb.
Push the under cover in place and
set the inner f ender cover in the
original position. Install the bolts
and tighten them securely. Insert
each holding clip, and lock it by
pushingonitscenter.
1.
2
.
6.
7.
8.
9.
Lights
Replacing Rear Bulbs
562
SCREW
NUTS
12/07/20 11:42:33 31TK4640_567
Maint enance
2013 TL

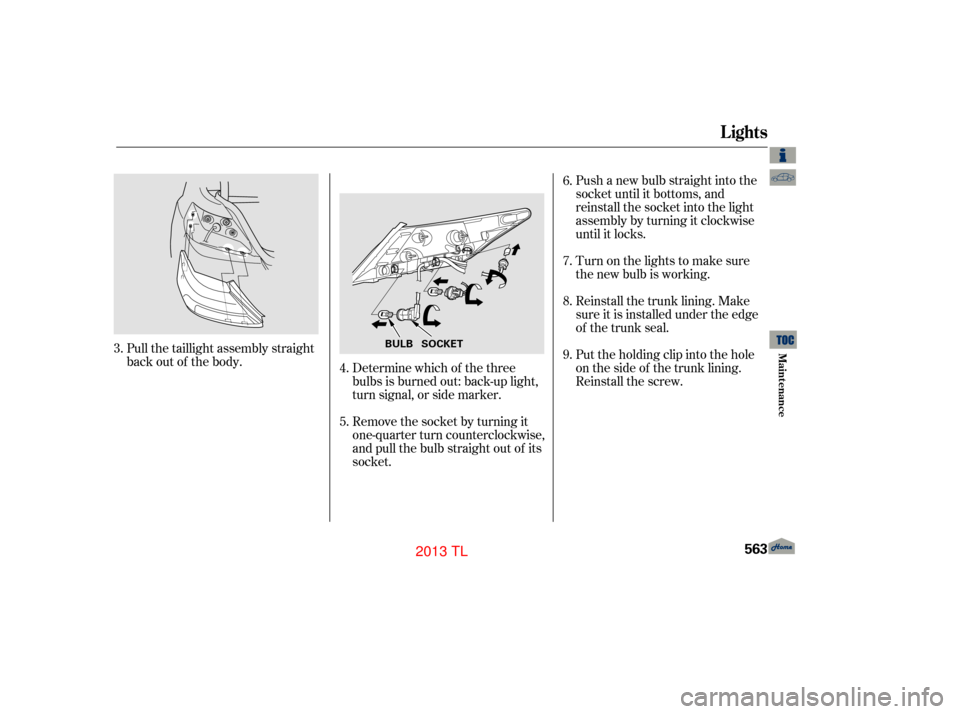

Push a new bulb straight into the
socket until it bottoms, and
reinstall the socket into the light
assembly by turning it clockwise
until it locks.
Turn on the lights to make sure
the new bulb is working.
Reinstall the trunk lining. Make
sure it is installed under the edge
of the trunk seal.
Put the holding clip into the hole
on the side of the trunk lining.
Reinstall the screw.
Determine which of the three
bulbs is burned out: back-up light,
turn signal, or side marker.
Remove the socket by turning it
one-quarter turn counterclockwise,
and pull the bulb straight out of its
socket.
Pull the taillight assembly straight
back out of the body. 6.
7.
8.
9.
5. 4.
3.
Lights
Maint enance
563
BULB SOCKET
12/07/20 11:42:41 31TK4640_568
2013 TL

Each outside mirror has side turn
signal lights. The lights should be
replaced by your dealer.
This light should be replaced by your
dealer.
The license plate has two lights
above it. The bulbs should be
replaced by your dealer.If your seat belts get dirty, use a sof t
brush with a mixture of mild soap
and warm water to clean them. Do
not use bleach, dye, or cleaning
solvents. Let the belts air-dry bef ore
you use the vehicle.Dirt build-up around the openings of
the seat belt anchors can cause the
belts to retract slowly. Wipe the
openings with a clean cloth
dampened in mild soap and warm
water or isopropyl alcohol.
Lights, Cleaning the Seat Belts
Side T urn Signal L ights
High-mount Brake L ight
Rear License Plate Light Bulbs
Cleaning the Seat Belts
564
OPENING
12/07/20 11:42:49 31TK4640_569
Maint enance
2013 TL

The floor mats that came with your
vehicle hook over the f loor mat
anchors. This keeps the f loor mats
f rom sliding f orward (possibly
interf ering with the pedals), or
backwards (making the f ront
passenger’s weight sensors
inef f ective).If you remove a f loor mat, make sure
tore-anchoritwhenyouputitback
in your vehicle.
If you use non-Acura f loor mats,
make sure they f it properly and that
theycanbeusedwiththefloormat
anchors. Do not put additional f loor
mats on top of the anchored mats.
To lock or unlock each anchor, turn
the knob. Make sure the rear f loor mats are
also properly hooked. If not, the f loor
mat will interf ere with the seat
operation and make the f ront
passenger’s weight sensors
inef f ective.
Floor Mat s
Maint enance
565
FLOOR MAT ANCHORS
DRIVER’S SIDE FLOOR MAT
REAR PASSENGER’S FLOOR MAT
Unlock
Lock Unlock
Lock
FLOOR MAT ANCHOR
12/07/20 11:42:56 31TK4640_570
2013 TL

This f ilter removes the dust and
pollenthatisbroughtinfromthe
outside through the climate control
system.
Have your dealer replace the filter
when this service is indicated by a
maintenance message on the multi-
inf ormation display. It should be
replaced every 15,000 miles (24,000
km) if you drive primarily in urban
areas that have high concentrations
of soot in the air, or if the f low f rom
theclimatecontrolsystembecomes
less than usual.Check the condition of the wiper
blades at least every 6 months.
Replace them if you f ind signs of
cracking in the rubber, areas that are
getting hard, or if they leave streaks
and unwiped areas when used.
To replace a wiper blade:
Raise each wiper arm of f the
windshield, lif ting the driver’s side
first, then the passenger’s side.
1.
Dust and Pollen Filter
Wiper Blades
Exterior Care
Dust and Pollen Filter, Exterior Care, Wiper Blades
566
Do not open the hood when the wiper
arms are raised, or you will damage the
hood and wiper arms.
Chemical solvents and strong cleaners
can damage the paint, metal, and
plastic on your vehicle.
