Acura TL 2013 Owner's Manual

µ
If you need to connect the battery to
a charger, disconnect both cables to
prevent damaging your vehicle’s
electrical system. Always disconnect
the negative ( ) cable first, and
reconnect it last.
Check the terminals f or corrosion (a
white or yellowish powder) af ter
removing all engine compartment
covers (see page ). To remove
corrosion, cover the terminals with a
solution of baking soda and water. It
will bubble up and turn brown. When
this stops, wash it of f with plain
water. Dry off the battery with a
cloth or paper towel. Coat the
terminals with grease to help prevent
f urther corrosion.
If additional battery maintenance is
needed, see your Acura dealer or a
qualif ied technician.
Battery posts,
terminals, and related accessories
contain lead and lead compounds.
The sensor on the negative
terminal monitors your
vehicle’s battery condition.
If there is a problem with the sensor,
you will see a ‘‘CHECK BATTERY
SENSOR’’ message on the multi-
inf ormation display. Have the vehicle
checked by your dealer.
To see the battery label, remove the
lef t side engine compartment cover
(see page ).
542 542
CONT INUED
Checking the Battery
WARNING:
Wash your hands af ter handling.
Maint enance
577
The battery gives off explosive
hydrogen gas during normal
operation.
A spark or flame can cause the
battery to explode with enough
force to kill or seriously hurt you.
Wear protective clothing and a
face shield, or have a skilled
technician do the battery
maintenance.
12/07/20 11:44:39 31TK4640_582
2013 TL

Block the rear wheels.
If the vehicle is to be stored f or a
longer period, it should be
supported on jackstands so the
tires are of f the ground.
Leave one window open
slightly (if the vehicle
is being stored indoors).
Disconnect the battery.
Support the f ront wiper blade
arms with a f olded towel or rag so
they do not touch the windshield.
To minimize sticking, apply a
silicone spray lubricant to all door
and trunk seals. Also, apply a
vehiclebodywaxtothepainted
surfaces that mate with the door
and trunk seals.
If you need to park your vehicle f or
an extended period (more than 1
month), there are several things you
should do to prepare it f or storage.
Proper preparation helps prevent
deterioration and makes it easier to
get your vehicle back on the road. If
possible, store your vehicle indoors.
Leave the parking brake off. Put
the transmission in reverse
(manual) or Park (automatic). Cleantheinterior.Makesurethe
carpeting, floor mats, etc., are
completely dry. Wash and dry the exterior
completely. Fill the f uel tank.
If your vehicle’s battery is
disconnected or goes dead, the
audio system may disable itself. The
next time you turn on the radio,
you will see ‘‘ENTER CODE’’ in the
frequency display. Use the preset
buttons to enter the code (see
page
).
If your vehicle’s battery is
disconnected, or goes dead, the time
setting may be lost. To reset the time,
see page .
The navigation system will also
disableitself.Thenexttimeyouset
to the ON mode, the system will
require you to enter a PIN bef ore it
can be used. Ref er to the navigation
system manual. 391
390On models without navigation system
On models with navigation system
Checking the Battery, Vehicle Storage
Vehicle Storage
578
12/07/20 11:44:50 31TK4640_583
Maint enance
2013 TL

Cover the vehicle with a
‘‘breathable’’ cover, one made
f rom a porous material such as
cotton. Non-porous materials, such
as plastic sheeting, trap moisture,
which can damage the paint.
If possible, periodically run the
engine until it reaches f ull
operating temperature (the
cooling f ans cycle on and of f
twice). Pref erably, do this once a
month.Vacuum dirt and dust f rom the
leather f requently. Pay close
attention to the pleats and seams.
Clean the leather with a sof t cloth
dampened with a 90% water and 10%
neutral wool detergent solution.
Then buf f it with a clean, dry cloth.
Remove any dust or dirt on leather
surf aces immediately. Leather
Vehicle Storage, Interior Care
Maint enance
579
12/07/20 11:44:54 31TK4640_584
2013 TL

580
12/07/20 11:44:56 31TK4640_585
2013 TL

This section covers the more
common problems that motorists
experience with their vehicles. It
gives you inf ormation about how to
safely evaluate the problem and what
to do to correct it. If the problem has
stranded you on the side of the road,
you may be able to get going again.
If not, you will also f ind instructions
on getting your vehicle towed.......................
Compact Spare Tire .582
....................
Changing a Flat Tire .583
.............
If the Engine Won’t Start . 588
................................
Jump Starting .591
..............
If the Engine Overheats . 593
.........
Low Oil Pressure Indicator . 595
..........
Charging System Indicator . 596
.......
Malf unction Indicator Lamp . 597
...............
Brake System Indicator . 598
Opening the Fuel Fill Door ....................................
Manually .599
..............................................
Fuses .600
..............................
Fuse Locations .604
......................
Emergency Towing .607
..........
If Your Vehicle Gets Stuck . 609
Taking Care of the Unexpected
T aking Care of t he Unexpect ed
581
12/07/20 11:44:59 31TK4640_586
2013 TL

Use the compact spare tire as a
temporary replacement only. Get
your regular tire repaired or replaced,
and put it back on your vehicle as
soon as you can.
Check the air pressure of the
compact spare tire every time you
check the other tires. It should be
inf lated to:Replace the tire when you can see
the tread wear indicator bars. The
replacement tire should be the same
sizeanddesign,mountedonthe
same wheel. The spare tire is not
designed to be mounted on a regular
wheel, and the spare wheel is not
designed f or mounting a regular tire.
Follow these precautions:
Never exceed 50 mph (80 km/h).
This tire gives a harsher ride and
less traction on some road
surf aces. Use greater caution
while driving. Do not mount snow chains on the
compact spare tire.
Do not use your compact spare
tire on another vehicle unless it is
thesamemakeandmodel.
After the flat tire is replaced with
the spare tire, the low tire
pressure/TPMS indicator stays on.
Af ter several miles (kilometers)
driving with the spare, this
indicator begins to f lash, then
stays on again. You will also see a
‘‘CHECK TPMS SYSTEM’’
message on the multi-inf ormation
display (see page ).
517
Compact Spare Tire
582
INDICATOR LOCATION MARK
TREAD WEAR INDICATOR BAR
60 psi (420 kPa , 4.2 kgf/cm)
12/07/20 11:45:07 31TK4640_587
T aking Care of t he Unexpect ed
2013 TL

Î
CONT INUED
If you have a f lat tire while driving,
pull over saf ely. Drive slowly along
the shoulder until you get to an area
far away from traffic lanes.Park the vehicle on f irm, level, and
non-slippery ground. Put the
transmission in Park (automatic)
or reverse (manual). Apply the
parking brake.
Turn on the hazard warning lights,
and turn the ignition switch to
the LOCK (0) position. Have all
passengers get out of the vehicle
while you change the tire.
Open the trunk. Raise the trunk
f loor lid by lif ting up on the back
edge.
3.
2. 1.
Changing a Flat Tire
T aking Care of t he Unexpect ed
583
The vehicle can easily roll off
the jack, seriously injuring
anyone underneath.
Follow the directions for
changing a tire exactly, and
never get under the vehicle
when it is supported only by the
jack.
12/07/20 11:45:15 31TK4640_588
Î
Models equipped with the
keyless access system have an engine
start/stop button instead of
an ignition switch. VEHICLE OFF
(LOCK) Mode is the equivalent of
LOCK (0).
For more information
,
see pages
and .
:
184 187
2013 TL

Loosen each wheel nut 1/2 turn
with the wheel nut wrench.
Take the tool case out of the spare
tire.
Unscrew the wing bolt and take
the spare tire out of its well.
Take the jack out of the tool kit
case. Placethejackunderthejacking
point nearest the tire you need to
change. Turn the end bracket
clockwise until the top of the jack
contacts the jacking point. Make
sure the jacking point tab is
restinginthejacknotch.
Place blocks in front and back of
the wheel diagonally opposite the
tire you are changing.
7. 8.
6. 4.
5. 9.
Changing a Flat Tire
584
WHEEL NUT WRENCH
EXTENSION JACK WHEEL NUT
WRENCH
JACKING POINTS
12/07/20 11:45:23 31TK4640_589
T aking Care of t he Unexpect ed
2013 TL

CONT INUED
Bef ore mounting the spare tire,
wipe any dirt of f the mounting
surface of the wheel and hub with
a clean cloth. Wipe the hub
carefully;itmaybehotfrom
driving.
Remove the wheel nuts, then
remove the f lat tire. Handle the
wheel nuts caref ully; they may be
hot from driving. Place the flat tire
on the ground with the outside
surface facing up.
Use the extension and the wheel
nut wrench as shown to raise the
vehicle until the f lat tire is of f the
ground.
10.
11. 12.
Changing a Flat Tire
T aking Care of t he Unexpect ed
585
BRAKE HUB
WHEEL NUT WRENCH EXTENSION
12/07/20 11:45:30 31TK4640_590
2013 TL

Tighten the wheel nuts securely
in the same crisscross pattern.
Have the wheel nut torque
checked at the nearest
automotive service facility.
Tighten the wheel nuts to:
Remove the center cap before
storing the f lat tire in the trunk
well.

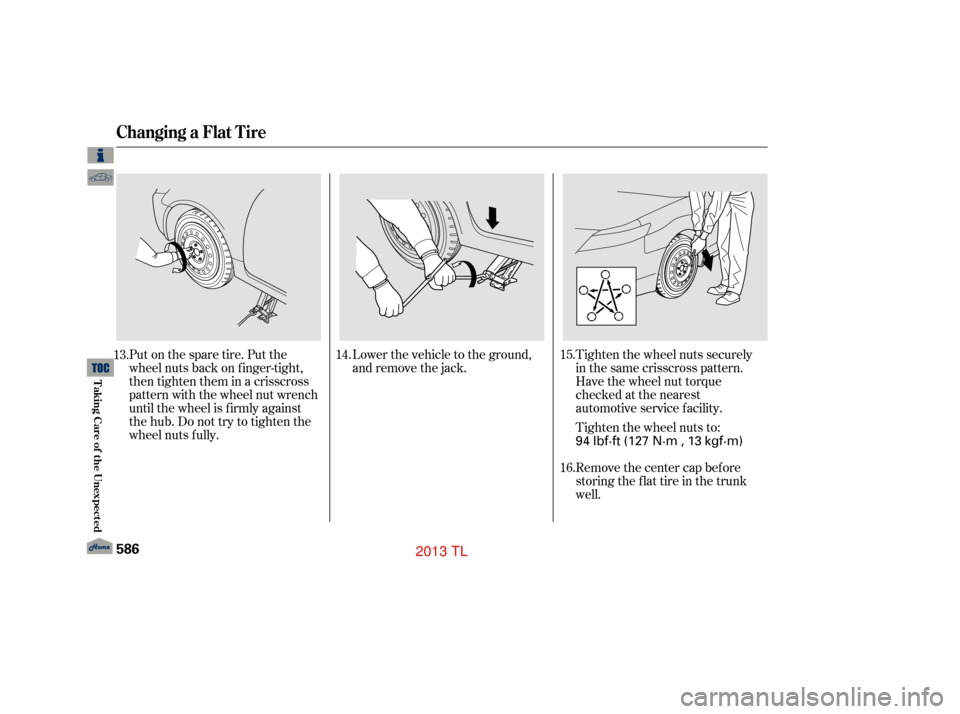

Lower the vehicle to the ground,
and remove the jack.
Put on the spare tire. Put the
wheel nuts back on f inger-tight,
then tighten them in a crisscross
pattern with the wheel nut wrench
until the wheel is f irmly against
the hub. Do not try to tighten the
wheel nuts f ully.
13.
14.
15.
16.
Changing a Flat Tire
586
94 lbf·ft (127 N·m , 13 kgf·m)
12/07/20 11:45:36 31TK4640_591
T aking Care of t he Unexpect ed
2013 TL
