Pressing either INFO button ( / )
switches the display f rom the
message to another display. Once
you switch the display, this message
will go of f .
Along with the message, the system
message indicator comes on (see
page ).

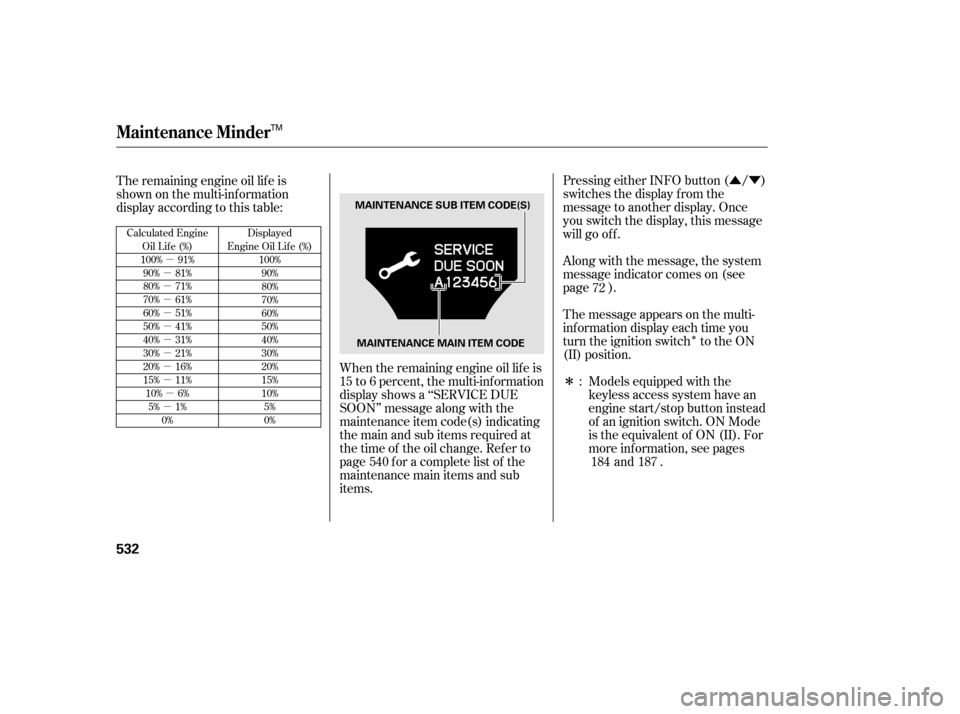

When the remaining engine oil lif e is
15 to 6 percent, the multi-inf ormation
display shows a ‘‘SERVICE DUE
SOON’’ message along with the
maintenance item code(s) indicating
themainandsubitemsrequiredat
thetimeof theoilchange.Referto
page f or a complete list of the
maintenance main items and sub
items.
The remaining engine oil lif e is
shown on the multi-inf ormation
display according to this table:
The message appears on the multi-
inf ormation display each time you
turn the ignition switch to the ON
(II) position.Models equipped with the
keyless access system have an
engine start/stop button instead
of an ignition switch. ON Mode
is the equivalent of ON (II). For
more inf ormation, see pagesand .
72
:
540 184 187
Calculated Engine Oil Lif e (%)
100% 91% 90% 81%
80% 71%
70% 61%
60% 51%
50% 41%
40% 31%
30% 21%
20% 16%
15% 11%10% 6% 5% 1% 0% Displayed
Engine Oil Lif e (%) 100%90%
80%
70%
60%
50%
40%
30%
20%
15%
10%5%
0%
Maintenance Minder
532
MAINTENANCE MAIN ITEM CODE
MAINTENANCE SUB ITEM CODE(S)
TM
12/07/20 11:38:45 31TK4640_537

CONT INUED
When the remaining oil lif e is 5 to 1
percent, the multi-information
display shows a ‘‘SERVICE DUE
NOW’’ message with the same
maintenance items ‘‘SERVICE DUE
SOON’’ was displayed with. When
you see this message, have the
indicated maintenance perf ormed as
soon as possible.
Press the SEL/RESET button on the
steering wheel repeatedly to select
the engine oil lif e inf ormation. Along
with the ‘‘OIL LIFE’’ message, you
will see the percentage of the
remaining engine oil lif e and the
maintenance item codes on the
multi-inf ormation display.
This message reminds you that your
vehicle will soon be due f or
scheduled maintenance.
Maintenance Minder
Maint enance
533
REMAINING ENGINE OIL LIFE
MAINTENANCE
MAIN ITEM CODE
MAIN ITEM(S) SUB ITEM(S) MAINTENANCE
SUB ITEM CODE(S)
TM
12/07/20 11:38:51 31TK4640_538

ÛÝ
Pressing either INFO button ( / )
switches the display f rom the
message to another display. Once
you switch the display, this message
will go of f .
Press the SEL/RESET button on the
steering wheel repeatedly to select
the engine oil lif e. The message
‘‘SERVICE,’’ along with ‘‘5%,’’ and the
maintenance item code are displayed
on the multi-information display
when the calculated engine oil lif e is
1to5percent(seepage ).If the indicated maintenance service
is not done and the remaining engine
oil lif e reaches 0%, the multi-
inf ormation display will show the
message ‘‘SERVICE PAST DUE’’
and the maintenance item code(s).
This message is displayed when the
total distance traveled is less than 10
miles (f or U.S. models) or 10 km (f or
Canadian models) af ter the engine
oillifebecame0%.
532
Maintenance Minder
534
TM
12/07/20 11:38:57 31TK4640_539

Î
ÛÝ
Î
CONT INUED
Press the SEL/RESET button on the
steering wheel repeatedly to select
the engine oil lif e. The message
‘‘SERVICE,’’ along with ‘‘0%,’’ and the
maintenance item code are displayed
on the multi-information display
when the calculated engine oil lif e is
0to1percent.
These messages will come on every
time you turn the ignition switch to
the ON (II) position.
If the indicated required service is
not done and the remaining engine
oil lif e becomes 0%, the multi-
inf ormation display will show a
‘‘SERVICE PAST DUE’’ message,
the total distance traveled after the
remaining oil lif e became 0%, and the
maintenance item code(s).
Models equipped with the
keyless access system have an
engine start/stop button instead
of an ignition switch. ON Mode
is the equivalent of ON (II). For
more inf ormation, see pages
and .
Pressing either INFO button ( / )
switches the display f rom the
message to another display. To see
the message again, press either
INFO button repeatedly. Immediately have the service
perf ormed, and make sure to reset
the display as described on page . :
184 187 537
Maintenance Minder
Maint enance
535
U.S.TOTAL PAST DUE DISTANCE
TRAVELED
MAINTENANCE CODES
Canada
TM
12/07/20 11:39:05 31TK4640_540

ÛÝ
This message is displayed again
when you drive over 10 miles (f or
U.S. models) or 10 km (f or Canadian
models) af ter seeing the 0% message.
Immediately have the service
perf ormed, and make sure to reset
the display as described on page .
Pressing either INFO button ( / )
switches the display f rom the
message to another display. To see
the message again, press either
INFO button repeatedly.
All maintenance items shown on the
multi-inf ormation display are in code.
For an explanation of these
maintenance codes, see page .
When you press the SEL/RESET
button to select the engine oil lif e,
the message ‘‘SERVICE,’’ along with
the maintenance item code(s) and
the total negative distance traveled
af ter the oil lif e became 0%, will be
displayed on the multi-inf ormation
display.
540
537
Maintenance Minder
Maintenance Main Items and Sub
Items
536
U.S.
MAINTENANCE
MAIN ITEM
MAINTENANCE
SUB ITEMS
MAINTENANCE
MAIN ITEM MAINTENANCE
SUB ITEMS
TOTAL PAST DUE DISTANCE
TRAVELED
Canada
TM
12/07/20 11:39:13 31TK4640_541

ÎÎ
Û
Î Your dealer will reset the display
af ter completing the required
maintenance service. You will see
‘‘OIL LIFE 100%’’ on the display the
next time you turn the ignition
switch to the ON (II) position. Turn the ignition switch to the
ON (II) position.
Models equipped with the
keyless access system have an
engine start/stop button instead
of an ignition switch. ON Mode
is the equivalent of ON (II). For
more inf ormation, see pages and .
If maintenance service is done by
someone other than your dealer,
reset the Maintenance Minder as
f ollows: If the engine oil lif e is not
displayed, press the SEL/RESET
buttononthesteeringwheel
repeatedly.

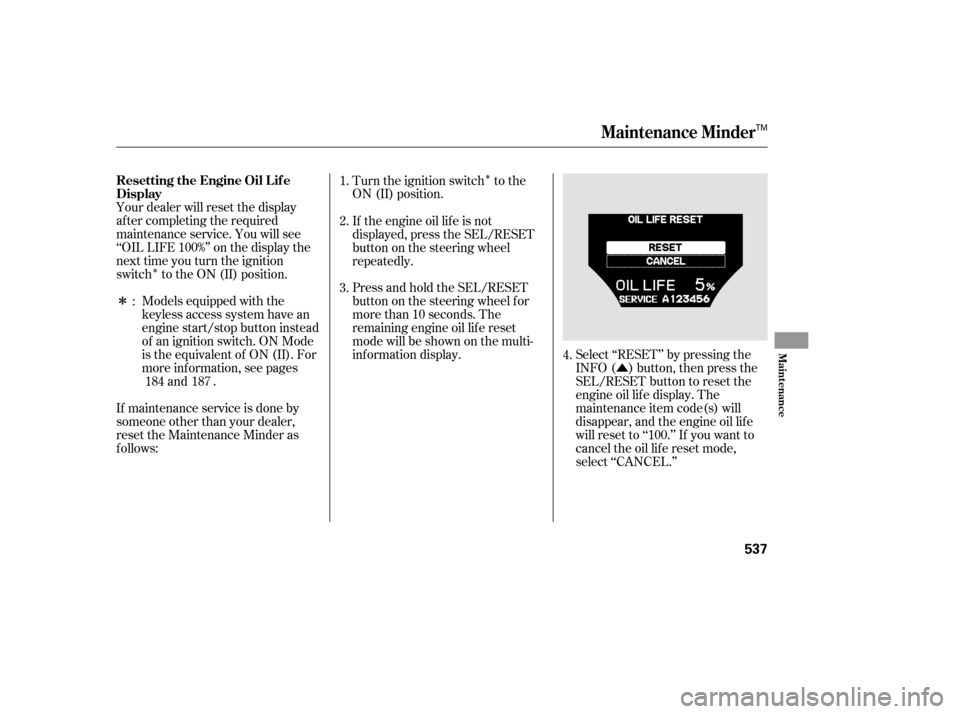

Press and hold the SEL/RESET
button on the steering wheel f or
more than 10 seconds. The
remaining engine oil lif e reset
mode will be shown on the multi-
inf ormation display. Select ‘‘RESET’’ by pressing the
INFO ( ) button, then press the
SEL/RESET button to reset the
engine oil lif e display. The
maintenance item code(s) will
disappear, and the engine oil lif e
will reset to ‘‘100.’’ If you want to
cancel the oil lif e reset mode,
select ‘‘CANCEL.’’
3. 1.
2.
4.
:
184 187
Maintenance Minder
Resetting the Engine Oil Lif e
Display
Maint enance
537
TM
12/07/20 11:39:21 31TK4640_542

Ì
Your authorized dealer knows your
vehicle best and can provide
competent, ef f icient service.
However, service at a dealer is not
mandatory to keep your warranties
in effect. Maintenance may be done
by any qualif ied service f acility or
person who is skilled in this type of
automotive service. Keep all receipts
as proof of completion, and have the
person who does the work f ill out
your Maintenance Journal or
Canadian Maintenance Log. Check
your warranty booklet f or more
inf ormation.
If you have the required service
done but do not reset the display, or
reset the display without doing the
service, the system will not show the
correct maintenance intervals. This
canleadtoseriousmechanical
problems because you will no longer
have an accurate record of when
maintenance is needed.
We recommend using Acura parts
and fluids whenever you have
maintenance done. These are
manuf actured to the same high-
quality standards as the original
components, so you can be conf ident
of their perf ormance and durability.According to state and federal
regulations, f ailure to perf orm
maintenance on the items marked
with will not void your emissions
warranties. However, all
maintenance services should be
perf ormed in accordance with the
intervals indicated by the multi-
inf ormation display. U.S. Vehicles:
Maintenance Minder
Important Maintenance
Precautions
538
TM
12/07/20 11:39:27 31TK4640_543

Î
Î
Ì Ì Î
Î
µµ
Ì
Î
Î
Maintenance Minder
540
:
TM
If the message ‘‘SERVICE DUE NOW’’ does not appear more than 12 months
after the display is reset, change the engine oil every year.
See information on maintenance and emissions warranty on page .
Inspect idle speed every 160,000 miles (256,000 km). Independent of the Maintenance Minder information, replace the brake
fluid every 3 years.
Adjust the valves during services A, B, 1, 2, or 3 if they are noisy.
NOTE:
2:
1:
SH-AWD only
538
Maintenance Main Items
Replace engine oil
Replace engine oil and oil filter
Inspect front and rear brakes
Check parking brake adjustment
Inspect these items: Tie rod ends, steering gear box, and boots
Suspension components
Driveshaft boots
Brake hoses and line (including ABS/VSA)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connections Maintenance Sub Items
Rotate tires
Replace air cleaner element If you drive in dusty conditions, replace every
15,000 miles (24,000 km).
Replace dust and pollen filter If you drive primarily in urban areas that have high
concentrations of soot in the air from industry and
from diesel-powered vehicles, replace every 15,000
miles (24,000 km).
Inspect drive belt
Replace transmission fluid
Replace transmission and transfer fluid
Replace spark plugs
Replace timing belt and inspect water pump If you drive regularly in very high temperatures (over
110°F, 43°C), or in very low temperatures (under20°F, 29°C), replace every 60,000 miles (U.S.)/
100,000 km (Canada).
Inspect valve clearance
Replace engine coolant
Replace rear differential fluid Driving in mountainous areas at very low vehicle
speeds results in higher level of mechanical (shear)
stress to fluid. This requires differential fluid changes
more frequently than recommended by the
Maintenance Minder. If you regularly drive your
vehicle under these conditions, have the differential
fluid changed at 7,500 miles (12,000 km), then every
15,000 miles (24,000 km).
A
B
Symbol
Symbol
3
4
5 1
2
61
1
2
2
Maintenance Minder
12/07/20 11:39:42 31TK4640_545

Unscrew and remove the engine oil
fill cap on top of the valve cover.
Pour in the oil slowly and caref ully so
you do not spill. Clean up any spills
immediately. Spilled oil could
damage components in the engine
compartment. Install the engine oil
f ill cap, and tighten it securely. Wait
a f ew minutes, and recheck the oil
level (see page ). Do not f ill
above the upper mark; you could
damage the engine.Oil is a major contributor to your
engine’s perf ormance and longevity.
Always use a premium-grade
detergent oil displaying the API
Certif ication Seal. This seal indicates
the oil is energy conserving, and that
it meets the American Petroleum
Institute’s latest requirements. It is
highly recommended that you use
Acura Motor Oil in your vehicle f or
optimum engine protection.
Make sure the API Certif ication Seal
says ‘‘For Gasoline Engines.’’
The oil viscosity or weight is
provided on the container’s label.
Acura Motor Oil is the pref erred
0W-20 lubricant f or your vehicle.
0W-20 oil is f ormulated f or year-
round protection of your vehicle to
improve cold weather starting and
f uel economy.
474
CONT INUED
Recommended Engine Oil 2WD models:
A dding Engine Oil
Maint enance
543
ENGINE OIL FILL CAP
Ambient Temperature
API CERTIFICATION SEAL
12/07/20 11:40:00 31TK4640_548

You may use a synthetic motor oil if
it meets the same requirements
given f or a conventional motor oil: it
displays the API Certif ication Seal
and it is the proper weight. You must
f ollow the oil and f ilter change
intervals shown on the multi-
inf ormation display.
Your vehicle does not require any oil
additives. Additives may adversely
af f ect the engine or transmission
perf ormance and durability.Always change the oil and f ilter
according to the maintenance
messages shown on the multi-
inf ormation display. The oil and f ilter
collect contaminants that can
damage your engine if they are not
removed regularly.
Changing the oil and f ilter requires
special tools and access f rom
underneath the vehicle. The vehicle
should be raised on a service station-
type hydraulic lif t f or this service.
Unless you have the knowledge and
proper equipment, you should have
this maintenance done by a skilled
technician.
Acura Motor Oil is the pref erred
5W-20 lubricant f or your vehicle. 5W-
20 oil is f ormulated f or year-round
protection of your vehicle to improve
cold weather starting and f uel
economy.
Synthetic Oil
Engine Oil A dditivesChanging the Engine Oil and
Filter
SH-AWD models:
A dding Engine Oil, Changing the Engine Oil and Filter
544
Ambient Temperature
12/07/20 11:40:08 31TK4640_549
