Acura TLX 2015 Owner's Manual

110
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
Message
Condition
Explanation

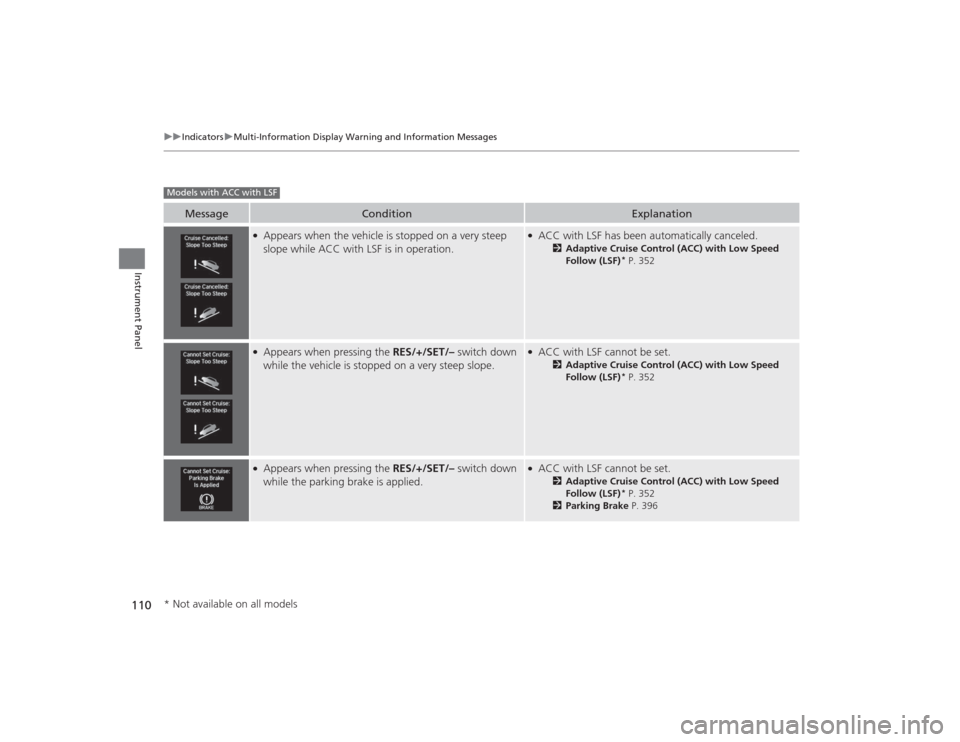

●Appears when the vehicle is stopped on a very steep
slope while ACC with LSF is in operation.
●ACC with LSF has been automatically canceled.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)
* P. 352
●Appears when pressing the RES/+/SET/– switch down
while the vehicle is stopped on a very steep slope.
●ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)
* P. 352
●Appears when pressing the RES/+/SET/– switch down
while the parking brake is applied.
●ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)
* P. 352
2 Parking Brake P. 396
Models with ACC with LSF* Not available on all models

111
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
Message
Condition
Explanation

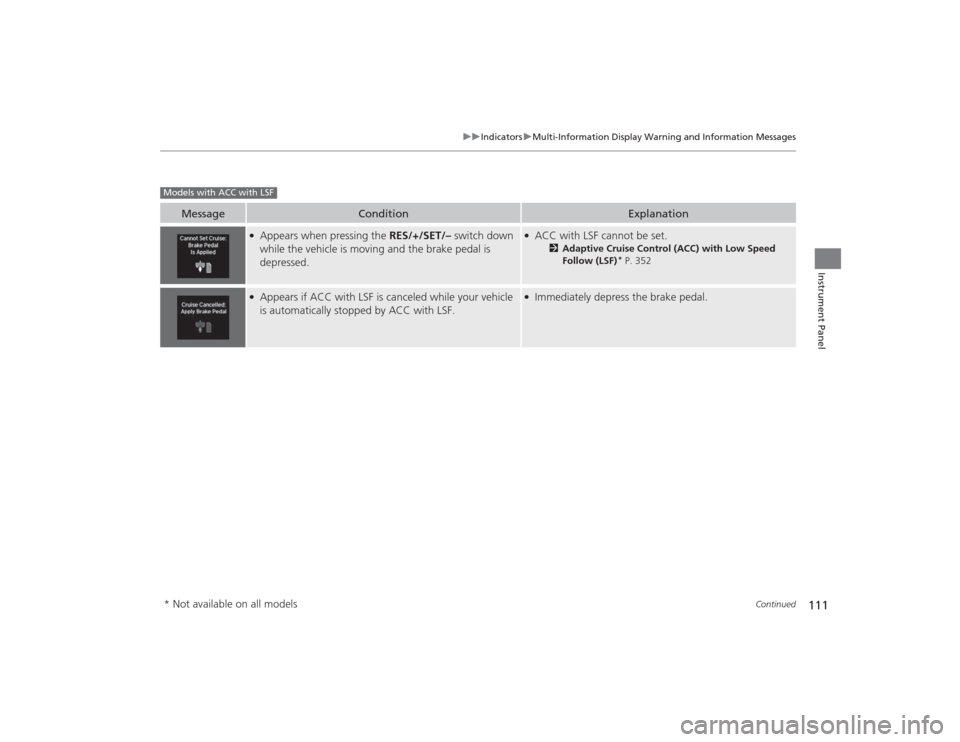

●Appears when pressing the RES/+/SET/– switch down
while the vehicle is moving and the brake pedal is
depressed.
●ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)
* P. 352
●Appears if ACC with LSF is canceled while your vehicle
is automatically stopped by ACC with LSF.
●Immediately depress the brake pedal.
Models with ACC with LSF* Not available on all models

112
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
Message
Condition
Explanation
●Appears when you unlock and open the driver’s door
while the engine is running by two-way keyless access
remote.
2Remote Engine Start with Vehicle Feedback
* P. 325
Models with two-way keyless access remote* Not available on all models

113
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
Message
Condition
Explanation
●Appears when the vehicle is driving out of a detected
line. The beeper sounds simultaneously.●Beeps and a warning display alert you that the vehicle is
drifting out of a detected lane.●Rapid vibrations on the steering wheel and a warning
display alert you that the vehicle is drifting out of a
detected lane.
●Keep the vehicle within the lane you are driving.●The color of either line changes from white to amber as
the vehicle gets closer to that side of the lane line.
●Blinks when you fail to steer the vehicle. The beeper
sounds simultaneously.
●Operate the steering wheel to resume the LKAS.
●Appears when the LKAS is in operation, or the LKAS
button is pressed, but there is a problem with a system
related to the LKAS. The LKAS cancels automatically.
The beeper sounds simultaneously.
●If any other system indicators come on, such as the
VSA ®, ABS and brake system, take appropriate action.
Models with LKAS
Models with LDW or models with RDM selected Warning onlyModels with RDM selected Normal or Wide

114
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
Message
Condition
Explanation
●Appears when the LKAS is in operation, or the LKAS
button is pressed, but the temperature inside the front
sensor camera is too high. The LKAS cancels
automatically. The beeper sounds simultaneously.
●Use the climate control system to cool down the
camera.●Goes off - The camera has been cooled down. Pressing
the LKAS button can resume the system.
2 Front Sensor Camera
* P. 351
●Appears when the area around the camera is blocked by
dirt, mud, etc. Stop your vehicle in a safe place, and
wipe it off with a soft cloth.●May appear when driving in bad weather (rain, snow,
fog, etc.)
●Have your vehicle checked by a dealer if the indicator
and message come back on after you cleaned the area
around the camera.
Models with LKAS* Not available on all models

115
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
Message
Condition
Explanation
●Appears when Auto Idle Stop Guidance Screens ON
has been selected from the customization menu.●Appears when Auto Idle Stop does not activate for
some reason.●Appears when the engine restarts automatically.●Appears when the battery temperature is around 14°F
(−10°C). or lower.●Appears when Auto Idle Stop does not activate because
the climate control system is in use, and the difference
between the set temperature and actual interior
temperature becomes significant.●Appears when Auto Idle Stop does not activate because
the engine coolant temperature is low or high.
2 Auto Idle Stop
* P. 342
●Appears when Auto Idle Stop does not activate because
the battery charge level is low.
●Appears even though the battery is fully charged
- The system may not read the battery amount correctly.
Drive for a few minutes.●Appears after charging the battery or jump
starting - Disconnect the negative - cable once and
reconnect it again to the battery. Drive a few minutes.
Models with Auto Idle Stop* Not available on all models

116
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
Message
Condition
Explanation
●Appears when Auto Idle Stop does not activate because
the pressure to the brake pedal is not enough.
●Depress the brake pedal firmly.
●Appears when Auto Idle Stop Guidance Screens ON
has been selected from the customization menu.●Appears when the system is under the following
conditions while Auto Idle Stop activates:●The battery charge level is low.●The battery temperature is around 14°F (-10°C) or
lower.
The climate control system is in use, and the difference
●The engine restarts automatically in a few seconds.
2 Starting the Engine P. 322
Models with Auto Idle Stop
●between the set temperature and actual interior
temperature becomes significant.●The humidity in the interior is high.

117Instrument Panel
Gauges and Multi-Information DisplayGaugesGauges include the speedometer, tachometer, fuel gauge and related indicators.
They are displayed when the power mode is in ON.
Displays your driving speed in mph or km/h.
Shows the number of engine revolutions per minute.
Displays the amount of fuel left in the fuel tank.
Displays the temperature of the engine coolant.■
Speedometer
■
Tachometer
■
Fuel Gauge
■
Temperature Gauge
1Fuel GaugeNOTICEYou should refuel when the needle approaches .
Running out of fuel can cause the engine to misfire,
damaging the catalytic converter.
The actual amount of remaining fuel may differ from
the fuel gauge reading.
E
1Temperature GaugeNOTICEDriving with the temperature gauge pointer in the
upper zone can cause serious engine damage. Pull
safely to the side of the road and allow engine
temperature to return to normal.
2 Overheating P. 503

118
uuGauges and Multi- Information Display uMulti-Information Display
Instrument Panel
Multi-Information DisplayThe multi-information display shows the odometer, trip meter, outside temperature
indicator, and other gauges. It also displays important messages such as warnings
and other helpful information.

119
uuGauges and Multi-Information Display uMulti-Information Display
Continued
Instrument Panel
■Main displays
Roll the right selector wheel to change the display.■
Switching the DisplayModels with full color display
QT
Right Selector Wheel
Engine Oil Life
Vehicle Settings Elapsed Time
OFF
Average Speed
Range
Instant Fuel Economy/
Average Fuel Economy
Compass
*
Tire Pressure for
Each TireTurn-by-Turn
Directions
*
IDS
IDS/SH-AWD ®
*
* Not available on all models
