ECO mode Acura TLX 2017 Owner's Manual
[x] Cancel search | Manufacturer: ACURA, Model Year: 2017, Model line: TLX, Model: Acura TLX 2017Pages: 553, PDF Size: 33.77 MB
Page 507 of 553
506
uuEngine Does Not Start uEmergency Engine Stop
Handling the Unexpected
Emergency Engine Stop
The ENGINE START/STOP button may be used to st op the engine due to an
emergency situation even while driving. If you must stop the engine, do either of the
following operations:
• Press and hold the ENGINE START/STOP button for about two seconds.
• Firmly press the ENGINE START/STOP button twice.
The steering wheel will not lock. However, because turning off the engine disables
the power assist the engine provides to the steering and braking systems, it will
require significantly more physical effort an d time to steer and slow the vehicle. Use
both feet on the brake pedal to slow down the vehicle and stop immediately in a
safe place.
The power mode is in ACCESSORY when the engine is stopped.
To change the mode to VEHICLE OF F, change the gear position to
(P after the
vehicle comes to a complete stop.
1 Emergency Engine Stop
Do not press the button while driving unless it is
absolutely necessary for th e engine to be switched
off.
17 ACURA TLX-31TZ36200.book 506 ページ ２０１６年６月１０日 金曜日 午後６時３９分
Page 509 of 553
508
uuJump Starting u
Handling the Unexpected

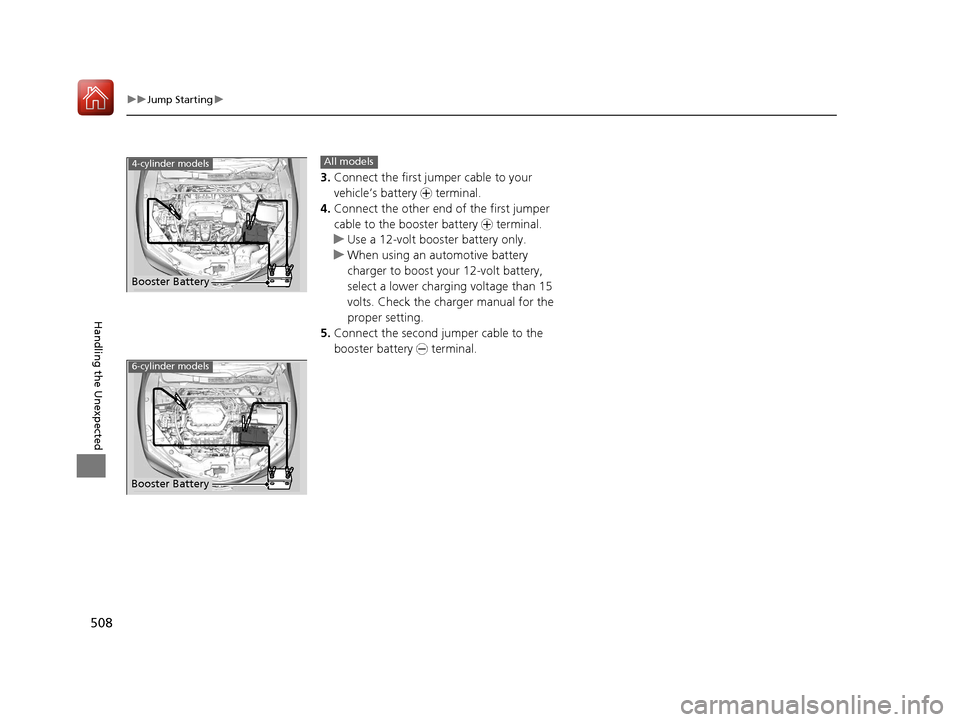

3.Connect the first jump er cable to your
vehicle’s battery + terminal.
4. Connect the other end of the first jumper
cable to the booster battery + terminal.
u Use a 12-volt booster battery only.
u When using an automotive battery
charger to boost your 12-volt battery,
select a lower charging voltage than 15
volts. Check the charger manual for the
proper setting.
5. Connect the second jumper cable to the
booster battery - terminal.
Booster Battery
4-cylinder modelsAll models
6-cylinder models
Booster Battery
17 ACURA TLX-31TZ36200.book 508 ページ ２０１６年６月１０日 金曜日 午後６時３９分
Page 510 of 553
509
uuJump Starting u
Continued
Handling the Unexpected
6.Connect the other end of the second
jumper cable to the mounting bolt (4-
cylinder models)/engine hanger (6-cylinder
models) as shown. Do not connect this
jumper cable to any other part.
7. If your vehicle is connected to another
vehicle, start the assisting vehicle’s engine
and increase its rpm slightly.
8. Attempt to start your ve hicle’s engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.4-cylinder models
6-cylinder models
17 ACURA TLX-31TZ36200.book 509 ページ ２０１６年６月１０日 金曜日 午後６時３９分
Page 519 of 553
518
uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low. If there is a problem with the TPMS or
the compact spare tire
* is installed, the indica tor blinks for about one
minute, and then stays on.
■What to do when the indicator comes on
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver’s side doorjamb.
■What to do when the indicator blinks
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire
* causes the indicator to blink, change the tire to a full-size tire.
The indicator goes off after driv ing for a few miles (kilometers).
1If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely unde rinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
TPMS Fill Assist provides visual and audible assistance
during tire pressure adjustment. With the power
mode in ON, while you adjust tire pressure up or
down, the system alerts you as follows:
Below recommended pressure: The beeper
sounds and exterior lights flash once every five
seconds.
At recommended pressure: The beeper sounds
and exterior lights flash ra pidly for ~ five seconds.
Above recommended pressure: The beeper
sounds and lights flash twice every three seconds.
* Not available on all models
17 ACURA TLX-31TZ36200.book 518 ページ ２０１６年６月１０日 金曜日 午後６時３９分
Page 532 of 553
531
uuSpecifications u
Information
■Brake Fluid
■ Dual Clutch Transmission Fluid
*
■Automatic Transmission Fluid*
■Rear Differential Fluid*
■Transfer Assembly Fluid*
SpecifiedAcura Heavy Duty Brake Fluid DOT 3
SpecifiedAcura Automatic Transmission Fluid
ATF-TYPE 2.0
Capacity Change 4.1 US qt (3.9 ℓ)
SpecifiedAcura Automatic Transmission Fluid
ATF-TYPE 3.0
Capacity Change 3.5 US qt (3.3 ℓ)
SpecifiedAcura DPSF-II
Capacity Change 1.92 US qt (1.82 ℓ)
Specified·Acura Hypoid Gear Oil HGO-1
·Hypoid gear oil SAE 75W-85 or SAE 90 (API
grade GL4 or GL5)
Capacity Change 0.45 US qt (0.43 ℓ)
■ Engine Oil
*1: 4-cylinder models
*2: 6-cylinder models
■Engine Coolant
*1: 4-cylinder models
*2: 6-cylinder models
Recommended·Genuine Acura Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 ℓ)
Change
including
filter
4.4 US qt (4.2 ℓ)
*1
4.5 US qt (4.3 ℓ)*2
SpecifiedAcura Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.66 US gal (6.3 ℓ)*1
2.22 US gal (8.4 ℓ)*2
(change including the remaining
0.21 US gal (0.8 ℓ) in the reserve tank)
■ Tire
*1: 4-cylinder models
*2: 6-cylinder models
*3: Vehicles with optional spare tire
RegularSize225/55R17 97H*1
225/50R18 95H*2
Pressure
psi (kPa [kgf/cm2])32 (220 [2.2])
Compact
Spare*3
SizeT135/80D17 103M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular17 x 7 1/2J*1
18 x 7 1/2J*2
Compact Spare*317 x 4T
* Not available on all models
17 ACURA TLX-31TZ36200.book 531 ページ ２０１６年６月１０日 金曜日 午後６時３９分
Page 543 of 553
Index
542
Index
Index
A
AAC.................................................... 232, 242
ABS (Anti-lock Brake System) ................... 406
Accessories and Modifications ................. 481
Accessory Power Sockets .......................... 192
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) .................... 89, 353
Additives
Coolant ................................................... 449
Engine Oil ................................................ 443
Washer .................................................... 452
Additives, Engine Oil ................................ 443
Adjusting Armrest ................................................... 185
Front Seats .............................................. 179
Head Restraints........................................ 181
Mirrors .................................................... 177
Steering Wheel ........................................ 176
Temperature ............................................ 123
Agile Handling Assist ................................ 392
Aha
TM Menu .............................................. 241
AhaTM Radio .............................................. 252
Air Conditioning System (Climate Control System) .................................................... 198
Changing the Mode ................................ 201
Defrosting the Windshield and Windows ............................................... 205
Dust and Pollen Filter ............................... 475
Sensors .................................................... 206
Synchronized Mode ................................. 202
Using Automatic Climate Control ............ 198 Air Pressure
....................................... 463, 531
Airbags ........................................................ 39
Advanced Airbags ..................................... 45
Airbag Care............................................... 53
Driver’s Knee Airbag.................................. 46
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 42
Indicator.............................................. 51, 80
Passenger Airbag Off Indicator .................. 52
Sensors ..................................................... 39
Side Airbags .............................................. 48
Side Curtain Airbags.................................. 50
AM/FM Radio ............................................ 225
Anti-lock Brake System (ABS) .................. 406
Indicator.................................................... 79
Armrest ..................................................... 185
Audio Remote Controls ........................... 211
Audio System ............................................ 208
Adjusting the Sound................................ 223
Auxiliary Input Jack.................................. 209
Error Messages ........................................ 248
General Information ................................ 253
Internet Radio ......................................... 239
iPhone............................................. 239, 256
iPod ........................................................ 235
MP3/WMA/AAC .............................. 232, 242
Reactivating ............................................ 210
Recommended CDs ................................. 254
Recommended Devices............................ 256
Remote Controls ..................................... 211
Security Code .......................................... 210 Shortcuts ................................................ 214
Theft Protection ...................................... 210
USB Flash Drives...................................... 256
USB Port ................................................. 209
Audio/Information Screen ....................... 219
Authorized Manuals ................................ 539
Auto Door Locking/Unlocking ................ 151
Customize ...................................... 132, 268
Auto Idle Stop .......................................... 342
OFF Button ............................................. 342
Auto Idle Stop Indicator (Green) .............. 92
Auto Idle Stop System Indicator (Amber) ..................................................... 92
Automatic Brake Hold ............................. 404
Indicator ........................................... 72, 404
Automatic Brake Hold System Indicator ........................................... 72, 404
Automatic Lighting .................................. 166
Automatic Transmission .......................... 330
Creeping................................................. 330
Kickdown ............................................... 330
Operating the Shift Button ................ 18, 332
Shifting ................................................... 331
Auxiliary Input Jack ................................. 209
Average Fuel Economy ............................ 123
Average Speed ......................................... 124
B
Battery
Charging (Battery)........................... 471, 472
17 ACURA TLX-31TZ36200.book 542 ページ ２０１６年６月１０日 金曜日 午後６時３９分
Page 545 of 553
544
Index
Customized Features........................ 126, 257
D
Daytime Running Lights ........................... 168
Dead Battery ............................................. 507
Defrosting the Windshield and
Windows .................................................. 205
Devices that Emit Radio Waves ................ 533
Dimming
Headlights ............................................... 165
Rearview Mirror ....................................... 177
Dipstick (Engine Oil) ................................. 444
Directional Signals (Turn Signal) .............. 164
Door Mirrors ............................................. 178
Doors ......................................................... 139
Auto Door Locking .................................. 151
Auto Door Unlocking ............................... 151
Door Open Indicator ............................ 31, 81
Door Open Message ................................ 102
Keys ........................................................ 139
Locking/Unlocking the Doors from the Inside ............................................... 13, 148
Locking/Unlocking the Doors from the
Outside .................................................. 142
Lockout Prevention System ...................... 146
DOT Tire Quality Grading ........................ 465
Driver’s Knee Airbag .................................. 46
Driving ....................................................... 315
Automatic Transmission ........................... 330
Braking .................................................... 400 Cruise Control ......................................... 348
Dual Clutch Transmission ........................ 330
Shifting Gear ................................... 331, 338
Starting the Engine.................................. 322
Driving Position Memory System ............ 174
Dual Clutch Transmission ......................... 330
Creeping ................................................. 330
Fluid ........................................................ 451
Kickdown ................................................ 330
Operating the Shift Lever................... 20, 339
Shift Lever Does Not Move ...................... 511
Shifting ................................................... 338
Dust and Pollen Filter ............................... 475
E
ECON (Econ mode) Indicator ..................... 88
Elapsed Time ............................................. 124
Electric Parking Brake Indicator.................................................... 71
Electric Parking Brake System
Indicator............................................ 71, 517
Electric Power Steering (EPS) System Indicator............................................ 80, 516
Electronic Stability Control (ESC) ............. 390
Emergency ................................................ 525
Emissions Testing (Readiness Codes) ....... 535
Engine ....................................................... 532
Coolant ................................................... 449
Jump Starting .......................................... 507
Oil ........................................................... 443 Remote Engine Start ............................... 325
Starting................................................... 322
Engine Coolant ........................................ 449
Adding to the Radiator ........................... 450
Adding to the Reserve Tank .................... 449
Overheating ............................................ 512
Temperature Gauge ................................ 117
Engine Oil ................................................. 443
Adding ................................................... 446
Checking ................................................ 444
Displaying Oil Life ................................... 436
Low Oil Pressure Indicator ................. 70, 514
Recommended Engine Oil ....................... 443
ENGINE START/STOP Button .................... 161
e-pretensioners .......................................... 34
EPS (Electric Power Steering) System ........ 80
Exhaust Gas Hazard (Carbon Monoxide) .. 66
Exterior Care (Cleaning) .......................... 478
Exterior Mirrors ........................................ 178
F
FCW (Forward Collision Warning) .......... 367
Features .................................................... 207
Filters Dust and Pollen....................................... 475
Oil .......................................................... 447
Flat Tire ..................................................... 485
Floor Mats ................................................ 477
Fluids
Automatic Transmission .......................... 451
17 ACURA TLX-31TZ36200.book 544 ページ ２０１６年６月１０日 金曜日 午後６時３９分
Page 547 of 553
546
Index
Indicators..................................................... 70
Adaptive Cruise Control (ACC) with
Low Speed Follow (LSF) .................... 89, 353
Anti-lock Brake System (ABS) ..................... 79
Auto Idle Stop (Green) ............................... 92
Auto Idle Stop System (Amber) .................. 92
Automatic Brake Hold........................ 72, 404
Automatic Brake Hold System ............ 72, 404
Blind Spot Information (BSI) ............... 90, 394
Brake System (Amber)................................ 73
Brake System (Red) ............................ 70, 515
Charging System ............................... 74, 514
Collision Mitigati on Braking System
TM
(CMBSTM) ........................................... 93, 94
CRUISE CONTROL .............................. 84, 349
CRUISE MAIN .................................... 84, 348
Door and Trunk Open .......................... 31, 81
ECON (Econ mode) .................................... 88
Electric Parking Brake................................. 71
Electric Parking Brake System ............. 71, 517
Electric Power Steering (EPS) System .. 80, 516
Fog Lights .................................................. 83
Forward Collision Wa rning (FCW) .............. 85
Gear Position ............................................. 75
High Beam................................................. 83
Immobilizer System .................................... 83
Keyless Access System ............................... 84
Lane Departure Warning (LDW) ................. 86
Lane Keeping Assist System (LKAS) .... 89, 384
Lights On ................................................... 83
Low Fuel .................................................... 79 Low Oil Pressure ................................ 70, 514
Low Tire Pressure/TPMS ............. 82, 396, 398
Malfunction Indicator Lamp............... 74, 515
Precision All-Wheel Steer
TM (P-AWS
®)
System .................................................... 88
Road Departure Mitigation (RDM) ............. 87
Seat Belt Reminder .............................. 33, 78
Security System Alarm ............................... 84
SPORT (Sport mode) .................................. 88
Super Handling-All Wheel Drive
TM
(SH-AWD ®) .............................................. 91
Supplemental Restraint System ............ 51, 80
System Message ........................................ 82
Transmission ....................................... 76, 77
Turn Signal ................................................ 83
Vehicle Stability Assist (VSA ®)
System ............................................ 81, 390
VSA ® OFF .......................................... 81, 391
Information .............................................. 529
Instant Fuel Economy ............................... 124
Instrument Panel ........................................ 69
Brightness Control................................... 172
Integrated Dynamics System ................... 346
Integrated Dynamics System Button ........ 346
Interface Dial ............................................ 212
Interior Lights ........................................... 186
Interior Rearview Mirror .......................... 177
Internet Radio .......................................... 239
iPhone ............................................... 239, 256
iPod ................................................... 235, 256
J
Jack (Wheel Nut Wrench) ........................ 500
Jump Starting ........................................... 507
K
Key Number Tag ...................................... 141
Keyless Access System .............................. 142
Keyless Lockout Prevention ..................... 146
Keys ........................................................... 139
Lockout Prevention ................................. 146
Number Tag............................................ 141
Rear Door Won’t Open ........................... 150
Remote Transmitter ................................ 145
Two-way Keyless Access Remote..... 147, 325
Types and Functions................................ 139
Kickdown (Automatic Transmission) ...... 330
Kickdown (Dual Clutch Transmission) .... 330
L
Lane Departure Warning (LDW)............. 373
Lane Keeping Assist System (LKAS) ........ 382
Language (HFL) ........................................ 279
LATCH (Child Seats) ................................... 59
LDW (Lane Departure Warning) ............. 373
Lights ................................................ 165, 453
Automatic............................................... 166
Bulb Replacement ................................... 453
Daytime Running Lights .......................... 168
Fog Lights ............................................... 168
17 ACURA TLX-31TZ36200.book 546 ページ ２０１６年６月１０日 金曜日 午後６時３９分
Page 548 of 553
547
Index
High Beam Indicator ................................. 83
Interior.................................................... 186
Light Switches......................................... 165
Lights On Indicator.................................... 83
Turn Signals ............................................ 164
Load Limits ............................................... 319
Locking/Unlocking ................................... 139
Auto Door Locking/Unlocking ................. 151
Childproof Door Locks ............................ 150
From Inside ............................................. 148
From Outside .......................................... 142
Keys........................................................ 139
Using a Key............................................. 146
Lockout Prevention System ..................... 146
Low Battery Charge ................................. 514
Low Fuel Indicator ..................................... 79
Low Keyless Access Remote Signal
Strength .................................................. 141
Low Oil Pressure Indicator ................. 70, 514
Lower Anchors ........................................... 59
Lubricant Specifications Chart ................ 531
Luggage (Maximum Load Limit) ............. 319
Lumbar Support ....................................... 179
M
Maintenance............................................ 431
Battery .................................................... 471
Brake Fluid .............................................. 452
Cleaning ................................................. 476
Climate Control System .......................... 475 Coolant ................................................... 449
Maintenance Minder
TM............................ 435
Oil ........................................................... 444
Precautions .............................................. 432
Radiator .................................................. 450
Remote Transmitter ......................... 473, 474
Replacing Light Bulbs ............................... 453
Safety ...................................................... 433
Service Items ........................................... 438
Tires ........................................................ 462
Transmission Fluid ................................... 451
Under the Hood .............................. 440, 441
Malfunction Indicator Lamp .............. 74, 515
Map Lights ................................................ 187
Maximum Load Limit ............................... 319
Meters, Gauges ......................................... 117
Mirrors ....................................................... 177
Adjusting ................................................. 177
Door........................................................ 178
Exterior .................................................... 178
Interior Rearview ..................................... 177
Modifications (and Accessories) .............. 481
Moonroof .................................................. 160
MP3 ................................................... 232, 242
Multi-Information Display ....................... 118
Multi-View Rear Camera .......................... 426
N
Numbers (Identification).......................... 532
O
Odometer................................................. 123
Oil (Engine) ....................................... 443, 531
Adding .................................................... 446
Checking................................................. 444
Displaying Oil Life .................................... 436
Low Oil Pressure Indicator ................. 70, 514
Recommended Engine Oil ............... 443, 531
Viscosity .......................................... 443, 531
On Demand Multi-Use Display
TM............. 213
Opening
Trunk ...................................................... 527
Opening/Closing Hood....................................................... 442
Moonroof ............................................... 160
Power Windows ...................................... 158
Trunk ...................................................... 152
Operating the Switches Around the Steering Wheel ....................................... 161
Outside Temperature ............................... 123
Adjusting ................................................ 123
Overheating .............................................. 512
P
Paddle Shifters (Sequential Mode) .......... 337
Paddle Shifters (Sequential Shift
Mode) ...................................................... 341
Pandora ®................................................... 240
Panic Mode ............................................... 157
Parking ...................................................... 417
17 ACURA TLX-31TZ36200.book 547 ページ ２０１６年６月１０日 金曜日 午後６時３９分
