TPMS Acura TLX 2017 User Guide

483
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 484
If a Tire Goes Flat Temporarily Repairi ng a Flat Tire....... 485
Changing a Flat Tire ......................... 497
Engine Does Not Start Checking the Engine ........................ 504
If the Keyless Access Remote Battery is Weak ............................................. 505
Emergency Engine Stop ................... 506
Jump Starting .................................... 507
Shift Lever Does Not Move .............. 511Overheating
How to Handle Overheating............. 512
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On .. 514If the Charging System Indicator Comes On ................................................. 514
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 515
If the Brake System Indicator (Red) Comes On .. 515If the Electric Power Steering (EPS) System Indicator Comes On ........................... 516
If the Electric Parking Brake System Indicator Comes On ....................... 517 If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 518
If the Transmission Indicator Blinks along with the Warning Message.............. 519
Fuses Fuse Locations ................................. 520
Inspecting and Changing Fuses ........ 524
Emergency Towing ........................... 525
When You Cannot Unlock the Fuel Fill Door ................................................. 526When You Cannot Open the Trunk ..... 527RefuelingRefueling From a Portable Fuel Container ... 528
17 ACURA TLX-31TZ36200.book 483 ページ ２０１６年６月１０日　金曜日　午後６時３９分

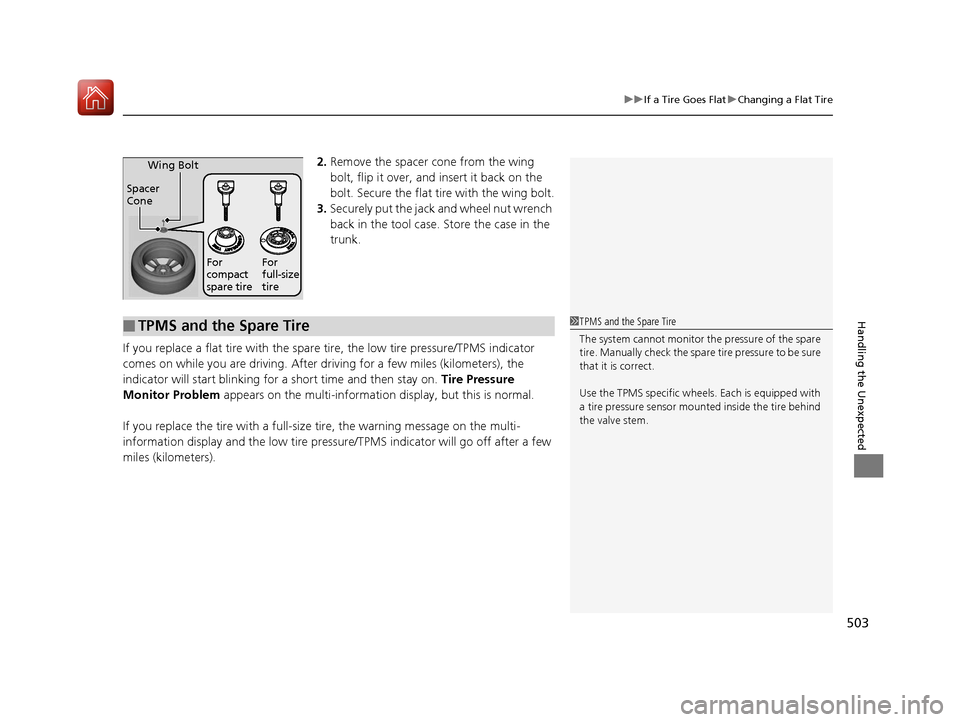

503
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
2. Remove the spacer cone from the wing
bolt, flip it over, and insert it back on the
bolt. Secure the flat tire with the wing bolt.
3. Securely put the jack and wheel nut wrench
back in the tool case. Store the case in the
trunk.
If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. After dr iving for a few miles (kilometers), the
indicator will start blinking for a short time and then stay on. Tire Pressure
Monitor Problem appears on the multi-information display, but this is normal.
If you replace the tire with a full-siz e tire, the warning message on the multi-
information display and the low tire pressu re/TPMS indicator will go off after a few
miles (kilometers).
Spacer
Cone Wing Bolt
For
compact
spare tire
For
full-size
tire
■TPMS and the Spare Tire1
TPMS and the Spare Tire
The system cannot monitor th e pressure of the spare
tire. Manually check the spare tire pressure to be sure
that it is correct.
Use the TPMS specific wheels. Each is equipped with
a tire pressure sensor mount ed inside the tire behind
the valve stem.
17 ACURA TLX-31TZ36200.book 503 ページ ２０１６年６月１０日　金曜日　午後６時３９分

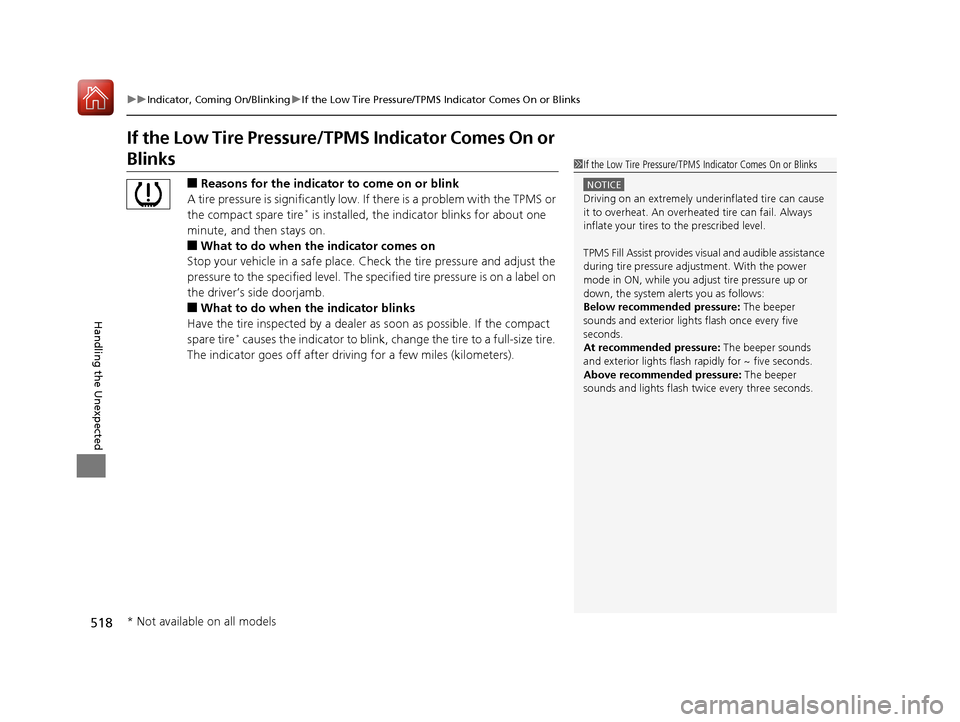

518
uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low. If there is a problem with the TPMS or
the compact spare tire
* is installed, the indica tor blinks for about one
minute, and then stays on.
■What to do when the indicator comes on
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver’s side doorjamb.
■What to do when the indicator blinks
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire
* causes the indicator to blink, change the tire to a full-size tire.
The indicator goes off after driv ing for a few miles (kilometers).
1If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely unde rinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
TPMS Fill Assist provides visual and audible assistance
during tire pressure adjustment. With the power
mode in ON, while you adjust tire pressure up or
down, the system alerts you as follows:
Below recommended pressure: The beeper
sounds and exterior lights flash once every five
seconds.
At recommended pressure: The beeper sounds
and exterior lights flash ra pidly for ~ five seconds.
Above recommended pressure: The beeper
sounds and lights flash twice every three seconds.
* Not available on all models
17 ACURA TLX-31TZ36200.book 518 ページ ２０１６年６月１０日　金曜日　午後６時３９分

533
Information
Devices that Emit Radio Waves
The following products and systems on your vehicle emit radio waves when in operation.
Each of the above complies with the appropriate requirements or the required standards of FCC
(Federal Communications Commission) and Industry Canada Standard, described below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
This device complies with industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
AcuraLink*
Audio System
Blind Spot Information System*
Bluetooth ® Audio
Bluetooth® HandsFreeLink ®
Collision Mitigati on Braking SystemTM *
HomeLink® Universal Transceiver
Immobilizer System
Keyless Access System
Tire Pressure Monitoring System (TPMS)
Remote Engine Start with Vehicle Feedback*
* Not available on all models
17 ACURA TLX-31TZ36200.book 533 ページ ２０１６年６月１０日　金曜日　午後６時３９分

546
Index
Indicators..................................................... 70
Adaptive Cruise Control (ACC) with
Low Speed Follow (LSF) .................... 89, 353
Anti-lock Brake System (ABS) ..................... 79
Auto Idle Stop (Green) ............................... 92
Auto Idle Stop System (Amber) .................. 92
Automatic Brake Hold........................ 72, 404
Automatic Brake Hold System ............ 72, 404
Blind Spot Information (BSI) ............... 90, 394
Brake System (Amber)................................ 73
Brake System (Red) ............................ 70, 515
Charging System ............................... 74, 514
Collision Mitigati on Braking System
TM
(CMBSTM) ........................................... 93, 94
CRUISE CONTROL .............................. 84, 349
CRUISE MAIN .................................... 84, 348
Door and Trunk Open .......................... 31, 81
ECON (Econ mode) .................................... 88
Electric Parking Brake................................. 71
Electric Parking Brake System ............. 71, 517
Electric Power Steering (EPS) System .. 80, 516
Fog Lights .................................................. 83
Forward Collision Wa rning (FCW) .............. 85
Gear Position ............................................. 75
High Beam................................................. 83
Immobilizer System .................................... 83
Keyless Access System ............................... 84
Lane Departure Warning (LDW) ................. 86
Lane Keeping Assist System (LKAS) .... 89, 384
Lights On ................................................... 83
Low Fuel .................................................... 79 Low Oil Pressure ................................ 70, 514
Low Tire Pressure/TPMS ............. 82, 396, 398
Malfunction Indicator Lamp............... 74, 515
Precision All-Wheel Steer
TM (P-AWS
®)
System .................................................... 88
Road Departure Mitigation (RDM) ............. 87
Seat Belt Reminder .............................. 33, 78
Security System Alarm ............................... 84
SPORT (Sport mode) .................................. 88
Super Handling-All Wheel Drive
TM
(SH-AWD ®) .............................................. 91
Supplemental Restraint System ............ 51, 80
System Message ........................................ 82
Transmission ....................................... 76, 77
Turn Signal ................................................ 83
Vehicle Stability Assist (VSA ®)
System ............................................ 81, 390
VSA ® OFF .......................................... 81, 391
Information .............................................. 529
Instant Fuel Economy ............................... 124
Instrument Panel ........................................ 69
Brightness Control................................... 172
Integrated Dynamics System ................... 346
Integrated Dynamics System Button ........ 346
Interface Dial ............................................ 212
Interior Lights ........................................... 186
Interior Rearview Mirror .......................... 177
Internet Radio .......................................... 239
iPhone ............................................... 239, 256
iPod ................................................... 235, 256
J
Jack (Wheel Nut Wrench) ........................ 500
Jump Starting ........................................... 507
K
Key Number Tag ...................................... 141
Keyless Access System .............................. 142
Keyless Lockout Prevention ..................... 146
Keys ........................................................... 139
Lockout Prevention ................................. 146
Number Tag............................................ 141
Rear Door Won’t Open ........................... 150
Remote Transmitter ................................ 145
Two-way Keyless Access Remote..... 147, 325
Types and Functions................................ 139
Kickdown (Automatic Transmission) ...... 330
Kickdown (Dual Clutch Transmission) .... 330
L
Lane Departure Warning (LDW)............. 373
Lane Keeping Assist System (LKAS) ........ 382
Language (HFL) ........................................ 279
LATCH (Child Seats) ................................... 59
LDW (Lane Departure Warning) ............. 373
Lights ................................................ 165, 453
Automatic............................................... 166
Bulb Replacement ................................... 453
Daytime Running Lights .......................... 168
Fog Lights ............................................... 168
17 ACURA TLX-31TZ36200.book 546 ページ ２０１６年６月１０日　金曜日　午後６時３９分

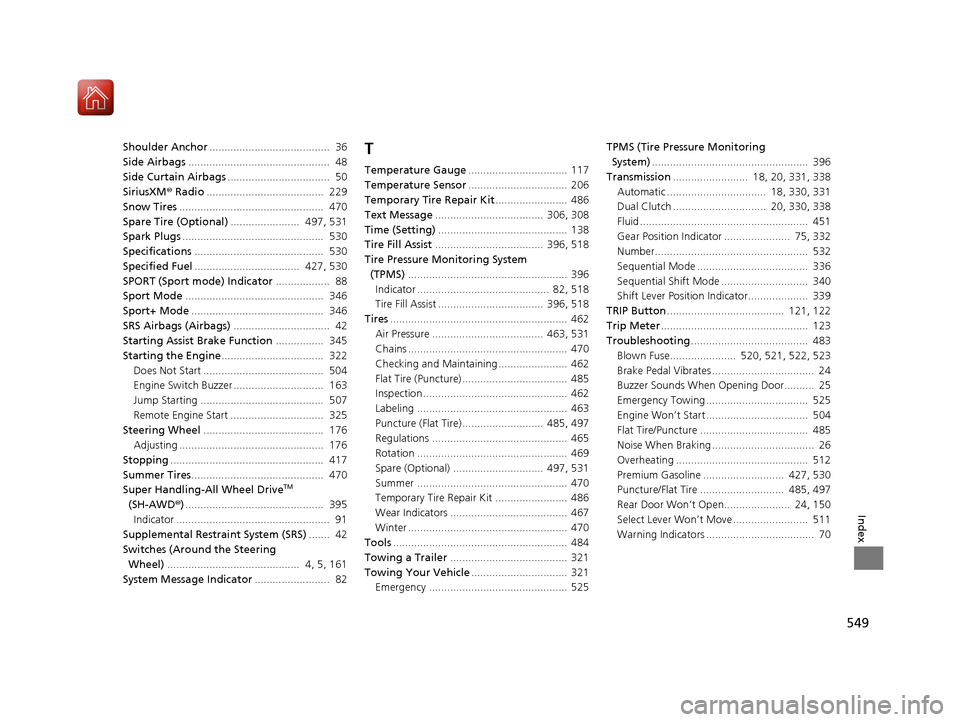

549
Index
Shoulder Anchor........................................ 36
Side Airbags ............................................... 48
Side Curtain Airbags .................................. 50
SiriusXM ® Radio ....................................... 229
Snow Tires ................................................ 470
Spare Tire (Optional) ....................... 497, 531
Spark Plugs ............................................... 530
Specifications ........................................... 530
Specified Fuel ................................... 427, 530
SPORT (Sport mode) Indicator .................. 88
Sport Mode .............................................. 346
Sport+ Mode ............................................ 346
SRS Airbags (Airbags) ................................ 42
Starting Assist Brake Function ................ 345
Starting the Engine .................................. 322
Does Not Start ........................................ 504
Engine Switch Buzzer .............................. 163
Jump Starting ......................................... 507
Remote Engine Start ............................... 325
Steering Wheel ........................................ 176
Adjusting ................................................ 176
Stopping ................................................... 417
Summer Tires ............................................ 470
Super Handling-All Wheel Drive
TM
(SH-AWD ®).............................................. 395
Indicator ................................................... 91
Supplemental Restraint System (SRS) ....... 42
Switches (Around the Steering
Wheel) ............................................ 4, 5, 161
System Message Indicator ......................... 82
T
Temperature Gauge................................. 117
Temperature Sensor ................................. 206
Temporary Tire Repair Kit ........................ 486
Text Message .................................... 306, 308
Time (Setting) ........................................... 138
Tire Fill Assist .................................... 396, 518
Tire Pressure Monitoring System
(TPMS) ..................................................... 396
Indicator ............................................ 82, 518
Tire Fill Assist ................................... 396, 518
Tires ........................................................... 462
Air Pressure ..................................... 463, 531
Chains ..................................................... 470
Checking and Maintaining ....................... 462
Flat Tire (Puncture) ................................... 485
Inspection ................................................ 462
Labeling .................................................. 463
Puncture (Flat Tire) ........................... 485, 497
Regulations ............................................. 465
Rotation .................................................. 469
Spare (Optional) .............................. 497, 531
Summer .................................................. 470
Temporary Tire Repair Kit ........................ 486
Wear Indicators ....................................... 467
Winter ..................................................... 470
Tools .......................................................... 484
Towing a Trailer ....................................... 321
Towing Your Vehicle ................................ 321
Emergency .............................................. 525 TPMS (Tire Pressure Monitoring
System) .................................................... 396
Transmission ......................... 18, 20, 331, 338
Automatic ................................. 18, 330, 331
Dual Clutch ............................... 20, 330, 338
Fluid ........................................................ 451
Gear Position Indicator ...................... 75, 332
Number................................................... 532
Sequential Mode ..................................... 336
Sequential Shift Mode ............................. 340
Shift Lever Position Indicator.................... 339
TRIP Button ....................................... 121, 122
Trip Meter ................................................. 123
Troubleshooting ....................................... 483
Blown Fuse...................... 520, 521, 522, 523
Brake Pedal Vibrates .................................. 24
Buzzer Sounds When Opening Door.......... 25
Emergency Towing .................................. 525
Engine Won’t Start .................................. 504
Flat Tire/Puncture .................................... 485
Noise When Braking .................................. 26
Overheating ............................................ 512
Premium Gasoline ........................... 427, 530
Puncture/Flat Tire ............................ 485, 497
Rear Door Won’t Open...................... 24, 150
Select Lever Won’t Move ......................... 511
Warning Indicators .................................... 70
17 ACURA TLX-31TZ36200.book 549 ページ ２０１６年６月１０日　金曜日　午後６時３９分
