81
uuIndicators u
Continued
Instrument Panel
*1:On the left: Models with full color display
On the right: Models wi thout full color display
*2:Models without full color display
IndicatorNameOn/BlinkingExplanationMessage*1
Vehicle
Stability Assist
(VSA ®) System
Indicator
●Comes on for a few seconds
when you set the power
mode to ON, then goes off.
●Blinks when VSA ® is active.●Comes on if there is a
problem with the VSA ®
system or hill start assist
system.
●Stays on constantly - Have your vehicle
checked by a dealer.
2 Vehicle Stability Assist (VSA® ), aka
Electronic Stability Control (ESC),
System P. 390
2 Hill Start Assist System P. 328
Vehicle
Stability Assist
(VSA®) OFF
Indicator●Comes on for a few seconds
when you set the power
mode to ON, then goes off.
●Comes on when you
deactivate VSA ®.
2 VSA ® On and Off P. 391——
Door and
Trunk Open
Indicator
●Comes on for a few seconds
if you set the power mode to
ON, then goes off.
●Comes on if any door or the
trunk is not completely
closed.
The beeper sounds and the
message appears if any door
or the trunk is opened while
driving.
●Goes off when all doors and the trunk are
closed.
—*2
17 ACURA TLX-31TZ36200.book 81 ページ ２０１６年６月１０日　金曜日　午後６時３９分

82
uuIndicators u
Instrument Panel
*1:On the left: Models with full color display
On the right: Models wi thout full color display
IndicatorNameOn/BlinkingExplanationMessage*1
Low Tire
Pressure/TPMS
Indicator
●Comes on for a few seconds
when you set the power
mode to ON, then goes off.
●Comes on if the tire pressure
of any of the tires becomes
significantly low.
●Blinks for about one minute,
and then stays on if there is a
problem with the TPMS, or
when a spare tire
* is
temporarily installed.
●Comes on while driving - Stop in a safe
place, check tire pres sures, and inflate the
tire(s) if necessary.
●Blinks and remains on - Have your vehicle
checked by a dealer. If the vehicle is fitted
with a spare
*, get your regular tire repaired
or replaced and put back on your vehicle as
soon as you can.
System
Message
Indicator
●Comes on for a few seconds
when you set the power
mode to ON, then goes off.
●Comes on along with a beep
when a problem is detected.
A system message on the
multi-information display
appears at the same time.
●While the indicator is on, roll the right
selector wheel to see the message again.
●Refer to the Indicators information in this
chapter when a system message appears on
the multi-information display. Take the
appropriate action for the message.
●The multi-informatio n display does not
return to the normal screen unless the
warning is canceled, or the right selector
wheel is rolled.
——
* Not available on all models
17 ACURA TLX-31TZ36200.book 82 ページ ２０１６年６月１０日　金曜日　午後６時３９分

83
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Turn Signal and
Hazard Warning
Indicators●Blinks when you operate the turn
signal lever.
●Blink if you press the hazard warning
button.
●Does not blink or blinks rapidly - A turn
signal light bulb has blown. Change the
bulb immediately.
2Replacing Light Bulbs P. 453, 454, 456
—
High Beam
Indicator●Comes on when the high beam
headlights are on.——
Lights On
Indicator
●Comes on whenever the light switch
is on, or in AUTO when the exterior
lights are on.●If you set the power mode to ACCESSORY
or VEHICLE OFF (LOCK) while the exterior
lights are on, a chime sounds when the
driver’s door is opened.
—
Fog Light
Indicator*●Comes on when the fog lights are
on.——
Immobilizer
System Indicator
●Comes on briefly when you set the
power mode to ON, then goes off.
●Comes on if the immobilizer system
cannot recognize the key
information.
●Blinks - You cannot start the engine. Set
the power mode to VEHICLE OFF (LOCK),
then select the ON mode again.
●Repeatedly blinks - The system may be
malfunctioning. Have your vehicle checked
by a dealer.
●Do not attempt to alter this system or add
other devices to it. Electrical problems can
occur.
—
* Not available on all models
17 ACURA TLX-31TZ36200.book 83 ページ ２０１６年６月１０日　金曜日　午後６時３９分

84
uuIndicators u
Instrument Panel
*1:On the left: Models with full color display
On the right: Models wi thout full color display
*2:Models with full color display
*3:Models without full color display
IndicatorNameOn/BlinkingExplanationMessage*1
Security
System Alarm
Indicator●Blinks when the security
system alarm has been set.
2 Security System Alarm P. 155——
Keyless Access
System
Indicator
●Comes on for a few seconds
when you set the power
mode to ON, then goes off.
●Comes on as soon as a
problem is detected in the
keyless access system or
keyless starting system.
●Have your vehicle checked by a dealer.
CRUISE MAIN
Indicator*
●Comes on when you press
the CRUISE button.
2Cruise Control* P. 348——
CRUISE
CONTROL
Indicator
*
●Comes on when you have set
a speed for cruise control.
2 Cruise Control* P. 348——
Indicator
*2
*3
*2
*3
* Not available on all models
17 ACURA TLX-31TZ36200.book 84 ページ ２０１６年６月１０日　金曜日　午後６時３９分

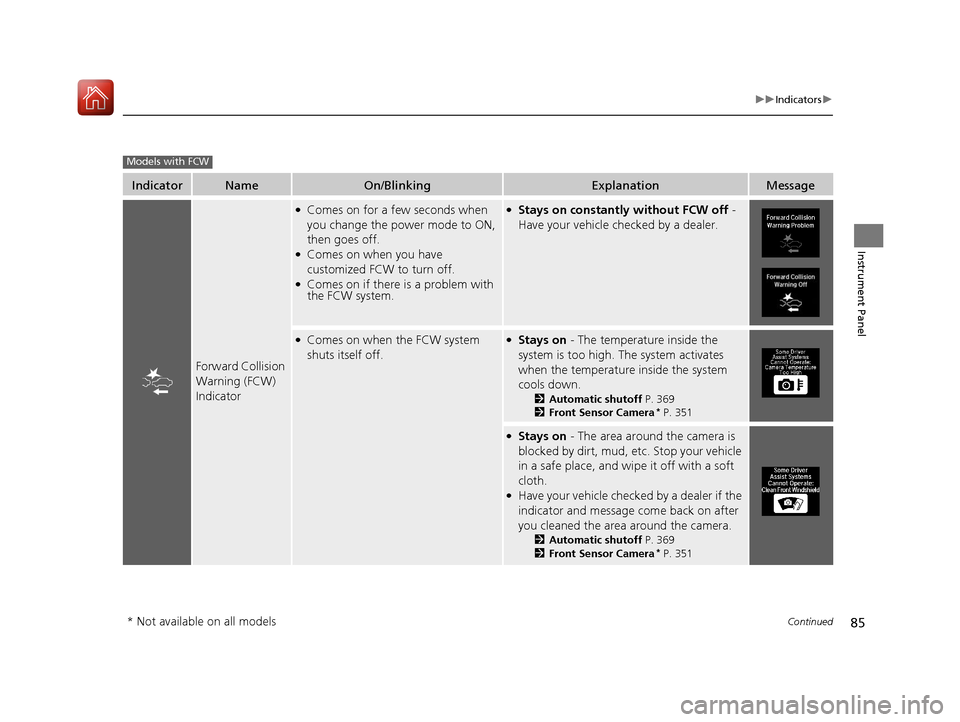

85
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Forward Collision
Warning (FCW)
Indicator
●Comes on for a few seconds when
you change the power mode to ON,
then goes off.
●Comes on when you have
customized FCW to turn off.
●Comes on if there is a problem with
the FCW system.
●Stays on constantly without FCW off -
Have your vehicle checked by a dealer.
●Comes on when the FCW system
shuts itself off.●Stays on - The temperature inside the
system is too high. The system activates
when the temperature inside the system
cools down.
2 Automatic shutoff P. 369
2 Front Sensor Camera* P. 351
●Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your vehicle
in a safe place, and wipe it off with a soft
cloth.
●Have your vehicle checked by a dealer if the
indicator and message come back on after
you cleaned the area around the camera.
2 Automatic shutoff P. 369
2 Front Sensor Camera* P. 351
Models with FCW
* Not available on all models
17 ACURA TLX-31TZ36200.book 85 ページ ２０１６年６月１０日　金曜日　午後６時３９分

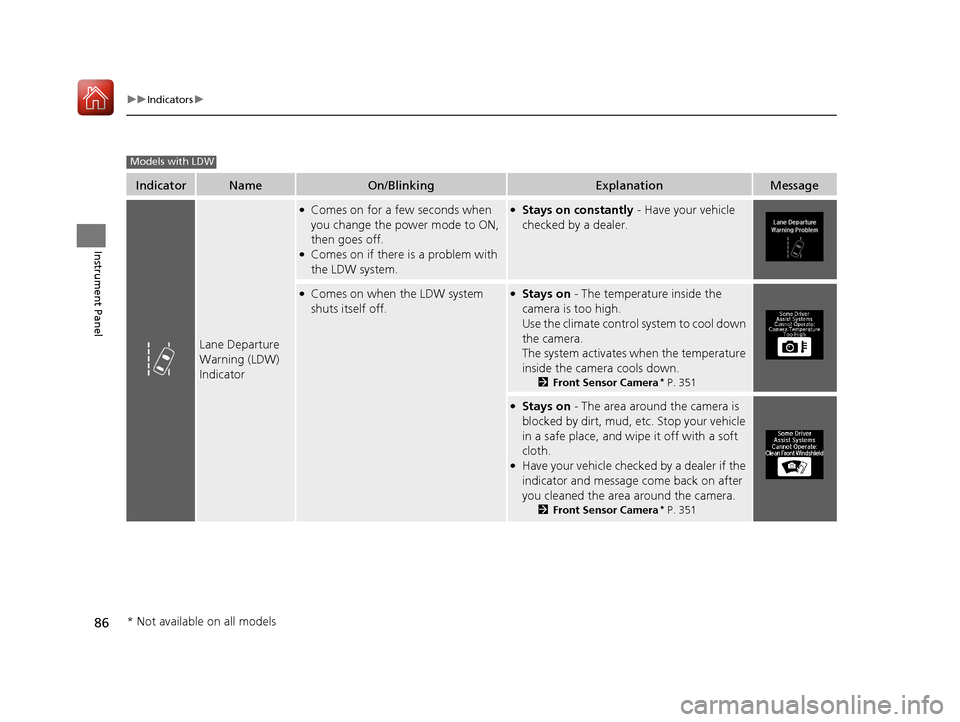

86
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Lane Departure
Warning (LDW)
Indicator
●Comes on for a few seconds when
you change the power mode to ON,
then goes off.
●Comes on if there is a problem with
the LDW system.
●Stays on constantly - Have your vehicle
checked by a dealer.
●Comes on when the LDW system
shuts itself off.●Stays on - The temperature inside the
camera is too high.
Use the climate control system to cool down
the camera.
The system activates when the temperature
inside the camera cools down.
2 Front Sensor Camera* P. 351
●Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your vehicle
in a safe place, and wipe it off with a soft
cloth.
●Have your vehicle checked by a dealer if the
indicator and message come back on after
you cleaned the area around the camera.
2 Front Sensor Camera* P. 351
Models with LDW
* Not available on all models
17 ACURA TLX-31TZ36200.book 86 ページ ２０１６年６月１０日　金曜日　午後６時３９分

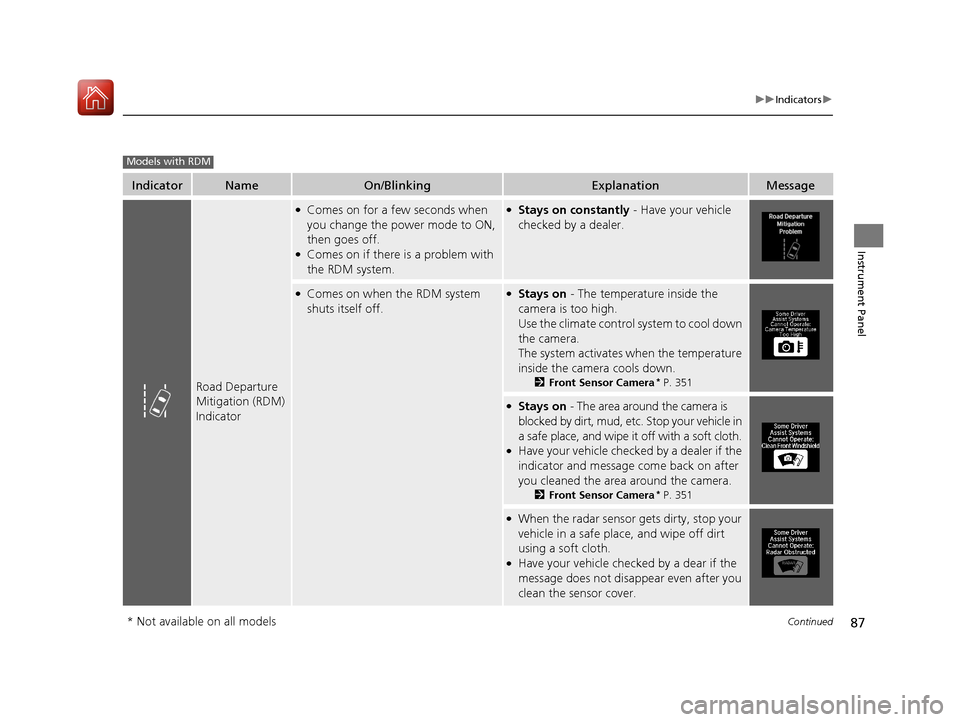

87
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Road Departure
Mitigation (RDM)
Indicator
●Comes on for a few seconds when
you change the power mode to ON,
then goes off.
●Comes on if there is a problem with
the RDM system.
●Stays on constantly - Have your vehicle
checked by a dealer.
●Comes on when the RDM system
shuts itself off.●Stays on - The temperature inside the
camera is too high.
Use the climate control system to cool down
the camera.
The system activates when the temperature
inside the camera cools down.
2 Front Sensor Camera* P. 351
●Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your vehicle in
a safe place, and wipe it off with a soft cloth.
●Have your vehicle checked by a dealer if the
indicator and message come back on after
you cleaned the area around the camera.
2 Front Sensor Camera* P. 351
●When the radar sensor gets dirty, stop your
vehicle in a safe place, and wipe off dirt
using a soft cloth.
●Have your vehicle checked by a dear if the
message does not disappear even after you
clean the sensor cover.
Models with RDM
* Not available on all models
17 ACURA TLX-31TZ36200.book 87 ページ ２０１６年６月１０日　金曜日　午後６時３９分

88
uuIndicators u
Instrument Panel
*1:On the left: Models with full color display
On the right: Models wi thout full color display
IndicatorNameOn/BlinkingExplanationMessage*1
Precision All-
Wheel SteerTM
(P-AWS ®)
System
Indicator
*
●Comes on for a few seconds
when you set the power
mode to ON, then goes off.
●If it comes on at any other
time, there is a problem with
the Precision All-Wheel
Steer
TM (P-AWS ®) system.
●Comes on while driving - Have your
vehicle checked by a dealer.
●The system may limit the vehicle speed to
50 mph (80 km/h) or less.
SPORT (Sport
mode)
Indicator
●Comes on for a few seconds
when you set the power
mode to ON, then goes off.
●Comes on when you press
the Integrated Dynamics
System button if the Sport or
Sport+ mode was selected.2 Integrated Dynamics System P. 346
ECON (Econ
mode)
Indicator
●Comes on for a few seconds
when you set the power
mode to ON.
●Comes on when you press
the Integrated Dynamics
System button if the Econ
mode was selected.2 Integrated Dynamics System P. 346
* Not available on all models
17 ACURA TLX-31TZ36200.book 88 ページ ２０１６年６月１０日　金曜日　午後６時３９分

89
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Adaptive Cruise
Control (
ACC) with
Low Speed Follow
(LSF) Indicator
(Amber)
*
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on if there is a problem with
ACC with LSF.
●Comes on while driving - Have your
vehicle checked by a dealer.
Adaptive Cruise
Control (
ACC) with
Low Speed Follow
(LSF) Indicator
(Green)
*
●Comes on when you press the MAIN
button.
2 Adaptive Cruise Control (ACC) with
Low Speed Follow (LSF)* P. 353—
Lane Keeping
Assist System
(LKAS ) Indicator
(Amber)
*
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on if there is a problem with
the LKAS.
●Stays on constantly - Have your vehicle
checked by a dealer.
Lane Keeping
Assist System
( LKAS ) Indicator
(Green)
*
●Comes on when you press the MAIN
button.
2 Lane Keeping Assist System (LKAS)*
P. 382—
* Not available on all models
17 ACURA TLX-31TZ36200.book 89 ページ ２０１６年６月１０日　金曜日　午後６時３９分

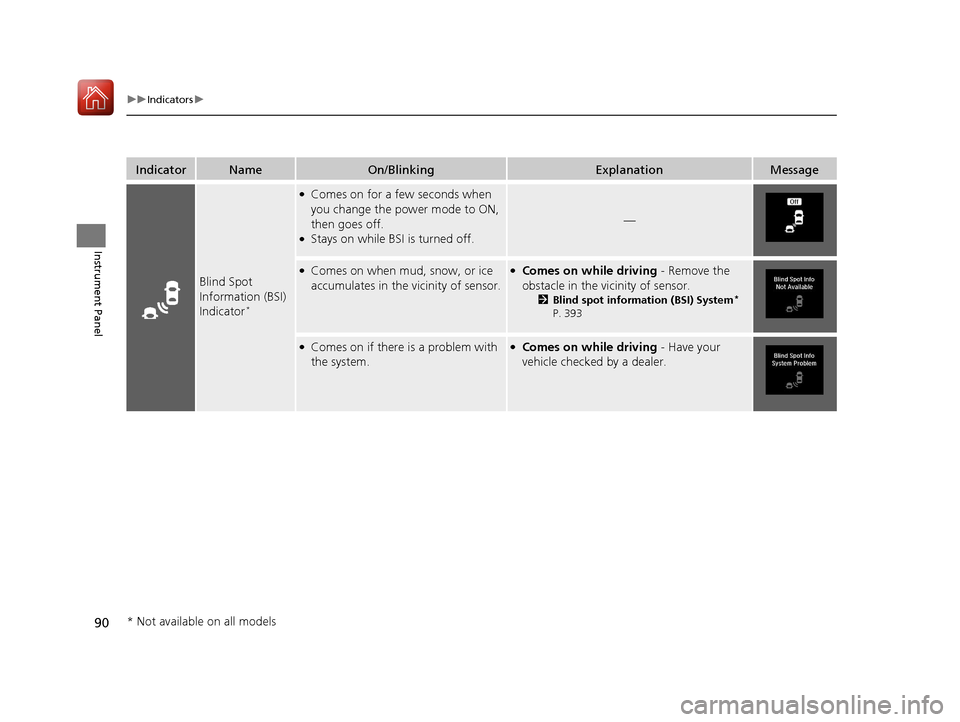

90
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Blind Spot
Information (BSI)
Indicator
*
●Comes on for a few seconds when
you change the power mode to ON,
then goes off.
●Stays on while BSI is turned off.
—
●Comes on when mud, snow, or ice
accumulates in the vicinity of sensor.●Comes on while driving - Remove the
obstacle in the vicinity of sensor.
2 Blind spot information (BSI) System*
P. 393
●Comes on if there is a problem with
the system.●Comes on while driving - Have your
vehicle checked by a dealer.
* Not available on all models
17 ACURA TLX-31TZ36200.book 90 ページ ２０１６年６月１０日　金曜日　午後６時３９分
