engine Acura TLX 2017 Owner's Guide

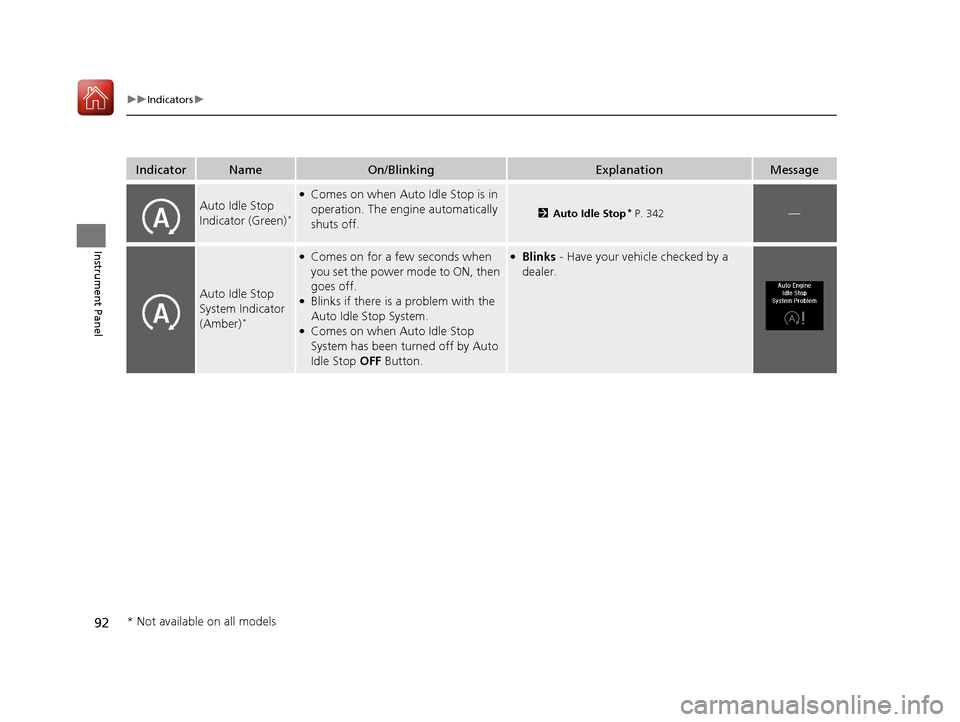

92
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Auto Idle Stop
Indicator (Green)*
●Comes on when Auto Idle Stop is in
operation. The engine automatically
shuts off.
2Auto Idle Stop* P. 342—
Auto Idle Stop
System Indicator
(Amber)
*
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Blinks if there is a problem with the
Auto Idle Stop System.
●Comes on when Auto Idle Stop
System has been turned off by Auto
Idle Stop OFF Button.
●Blinks - Have your vehicle checked by a
dealer.
* Not available on all models
17 ACURA TLX-31TZ36200.book 92 ページ ２０１６年６月１０日　金曜日　午後６時３９分

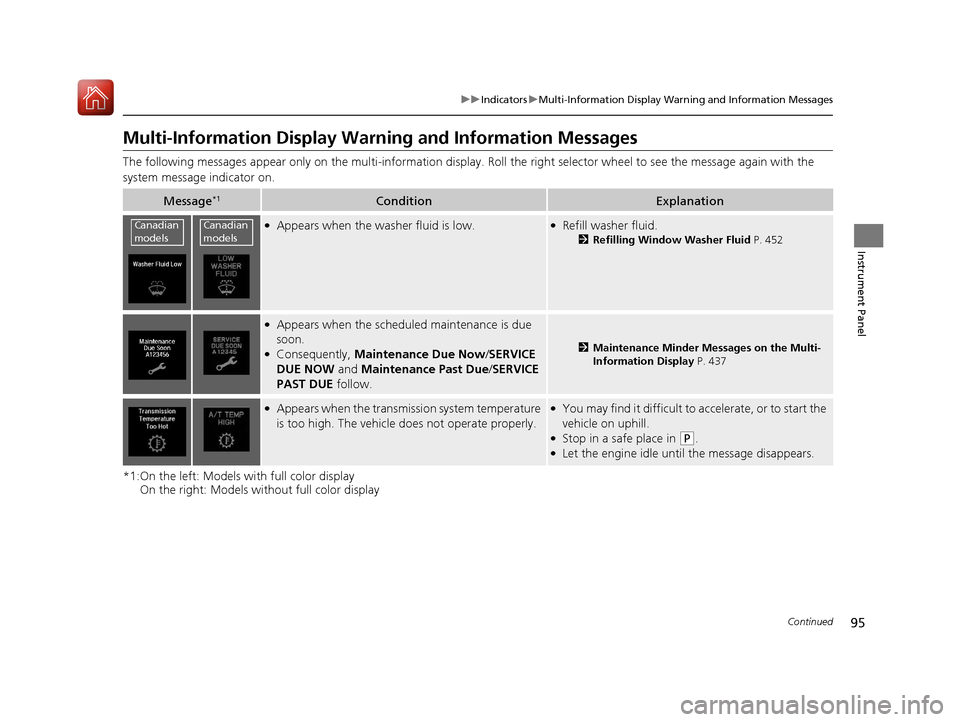

95
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
Multi-Information Display Warn ing and Information Messages
The following messages appear only on the multi-information display. Roll the right selector wheel to see the message again with the
system message indicator on.
*1:On the left: Models with full color display On the right: Models wi thout full color display
Message*1ConditionExplanation
●Appears when the washer fluid is low.●Refill washer fluid.
2Refilling Window Washer Fluid P. 452
●Appears when the scheduled maintenance is due
soon.
●Consequently, Maintenance Due Now /SERVICE
DUE NOW and Maintenance Past Due /SERVICE
PAST DUE follow.2Maintenance Minder Messages on the Multi-
Information Display P. 437
●Appears when the transmi ssion system temperature
is too high. The vehicle does not operate properly.●You may find it difficult to accelerate, or to start the
vehicle on uphill.
●Stop in a safe place in (P.●Let the engine idle until the message disappears.
Canadian
modelsCanadian
models
17 ACURA TLX-31TZ36200.book 95 ページ ２０１６年６月１０日　金曜日　午後６時３９分

96
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
*1:On the left: Models with full color display
On the right: Models wi thout full color display
Message*1ConditionExplanation
●Appears when the transmission system temperature
is too high. The vehicle no longer moves.●Immediately stop in a safe place in (P.●Let the engine idle until the message disappears.
●Appears when the engine coolant temperature gets
abnormally high.
2Overheating P. 512
●Appears when there is a pr oblem with the sensor on
the battery.
●Appears along with the battery charging system
indicator when the batte ry is not charging.
●Have your vehicle checked by a dealer.
2Checking the Battery P. 471●Turn off the climate control system and rear
defogger to reduce electricity consumption.
2If the Charging System Indicator Comes On
P. 514
17 ACURA TLX-31TZ36200.book 96 ページ ２０１６年６月１０日　金曜日　午後６時３９分

97
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
*1:On the left: Models with full color display
On the right: Models wi thout full color display
Message*1ConditionExplanation
●Appears when the starter system has a problem.●Hold the ENGINE START/STOP button up to 15
seconds to start the engine.
Have your vehicle ch ecked by a dealer.
●Appears after the driver’s door is opened when the
power mode is in ACCESSORY.
2Starting the Engine P. 322
●Appears when the power mode is in ACCESSORY.
—
U.S.
Canada
U.S.
Canada
17 ACURA TLX-31TZ36200.book 97 ページ ２０１６年６月１０日　金曜日　午後６時３９分

99
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
*1:On the left: Models with full color display
On the right: Models wi thout full color display
Message*1ConditionExplanation
●Appears if the keyless access remote’s battery is too
weak to start the engine or the key is not with you
to start the engine.
A beeper sounds six times.●Bring the keyless access remote in front of the
ENGINE START/STOP button to be touched with.
2If the Keyless Access Remote Battery is Weak
P. 505
●Appears three seconds after the To Start, Hold
Remote Near Start Button , then To Start Engine
messages appeared sequentially.●Unless you bring the keyless access remote in front
of the ENGINE START/STOP button, this message
does not appear.
2 If the Keyless Access Remote Battery is Weak
P. 505
●Appears when the power m ode is in ACCESSORY or
ON.2 Starting the Engine P. 322
●Appears when the engine does not restart
automatically due to the following reason:
• The hood is open.
• There is a problem in the system that disables
Auto Idle Stop.●Follow the normal procedure to start the engine.
2 Starting the Engine P. 322
Models with Auto Idle StopModels with Auto Idle Stop
17 ACURA TLX-31TZ36200.book 99 ページ ２０１６年６月１０日　金曜日　午後６時３９分

100
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
*1:On the left: Models with full color display
On the right: Models wi thout full color display
Message*1ConditionExplanation
●Appears when you attempt to change to another
gear position with the transmission in
(P and the
engine OFF.
●To select another gear position while in (P, the
engine must be ON.
●Appears when you try to change the gear position
after the position has au tomatically been changed
to
(P with the driver’s door open and the driver’s
seat belt unfastened.
●Press the (P button If you leave the vehicle.
●Appears when you change to (N, and press the
ENGINE START/STOP button within five seconds.
●Appears when the vehicle is stopped with the
driver’s seat belt unfastened and there is a chance
that the vehicle may roll unintentionally.
●The gear position remains in (N for 15 minutes,
then automatically switches to
(P.
2 If you want to keep the (N position in
ACCESSORY P. 334
●Press the (P button before release the brake pedal
when idling, parking or exiting the vehicle.
2 Shift Operation P. 332
●Appears when the engine stops without the
transmission in
(P, and does not restart
automatically.
●Appears if you open the ho od while Auto Idle Stop
activates.
●If you want to set the power mode to ON, change
the gear position to
(P.●If you want to start the engine, follow the normal
procedure.
2 Starting the Engine P. 322
Models with electronic gear selector
Models with Auto Idle StopModels with Auto Idle Stop
17 ACURA TLX-31TZ36200.book 100 ページ ２０１６年６月１０日　金曜日　午後６時３９分

103
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
*1:On the left: Models with full color display
On the right: Models wi thout full color display
Message*1ConditionExplanation
●Appears if you press the ENGINE START/STOP
button to turn the engine off without the shift lever
in
(P.
●Press the ENGINE START/STOP button twice after
moving the shift lever to
(P.
●Appears when you try to ch ange the shift position
other than
(P with the driver’s door open.
●Moving the shift lever to (P If you leave the vehicle.
Models with shift lever
17 ACURA TLX-31TZ36200.book 103 ページ ２０１６年６月１０日　金曜日　午後６時３９分

112
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when you unlock and open the driver’s door
while the engine is running by two-way keyless access
remote.
2Remote Engine Start with Vehicle Feedback* P. 325
Models with two-way keyless access remote
* Not available on all models
17 ACURA TLX-31TZ36200.book 112 ページ ２０１６年６月１０日　金曜日　午後６時３９分

115
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when Auto Idle Stop Guidance Screens ON
has been selected from the customization menu.
●Appears when Auto Idle St op does not activate for
some reason.
●Appears when the engine restarts automatically.●Appears when the battery temperature is around 14°F
(−10°C) or lower.
●Appears when Auto Idle Stop does not activate because
the climate control system is in use, and the difference
between the set temperature and actual interior
temperature becomes significant.
●Appears when Auto Idle Stop does not activate because
the engine coolant temperature is low or high.
2 Auto Idle Stop* P. 342
●Appears when Auto Idle Stop does not activate because
the battery charge level is low.●Appears even though the ba ttery is fully charged
- The system may not read the battery amount correctly.
Drive for a few minutes.
●Appears after charging the battery or jump
starting - Disconnect the negative - cable once and
reconnect it again to the ba ttery. Drive a few minutes.
Models with Auto Idle Stop
* Not available on all models
17 ACURA TLX-31TZ36200.book 115 ページ ２０１６年６月１０日　金曜日　午後６時３９分

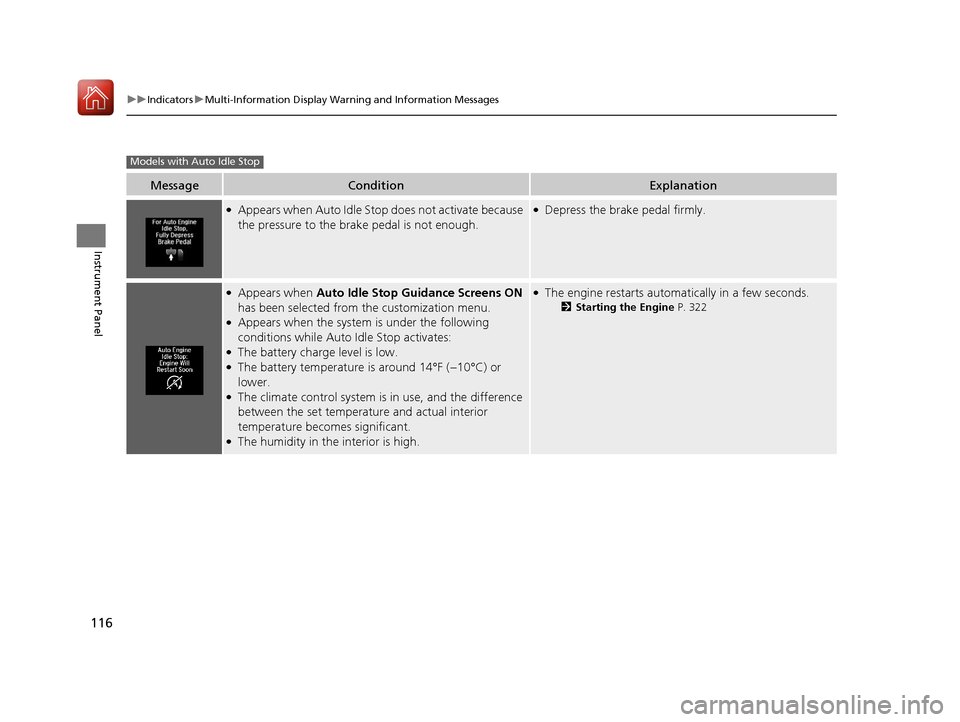

116
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when Auto Idle Stop does not activate because
the pressure to the brake pedal is not enough.●Depress the brake pedal firmly.
●Appears when Auto Idle Stop Guidance Screens ON
has been selected from the customization menu.
●Appears when the system is under the following
conditions while Auto Idle Stop activates:
●The battery charge level is low.●The battery temperature is around 14°F (−10°C) or
lower.
●The climate control system is in use, and the difference
between the set temperature and actual interior
temperature becomes significant.
●The humidity in the interior is high.
●The engine restarts automatically in a few seconds.
2 Starting the Engine P. 322
Models with Auto Idle Stop
