display Acura TLX 2017 Owner's Guide

96
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
*1:On the left: Models with full color display
On the right: Models wi thout full color display
Message*1ConditionExplanation
●Appears when the transmission system temperature
is too high. The vehicle no longer moves.●Immediately stop in a safe place in (P.●Let the engine idle until the message disappears.
●Appears when the engine coolant temperature gets
abnormally high.
2Overheating P. 512
●Appears when there is a pr oblem with the sensor on
the battery.
●Appears along with the battery charging system
indicator when the batte ry is not charging.
●Have your vehicle checked by a dealer.
2Checking the Battery P. 471●Turn off the climate control system and rear
defogger to reduce electricity consumption.
2If the Charging System Indicator Comes On
P. 514
17 ACURA TLX-31TZ36200.book 96 ページ ２０１６年６月１０日　金曜日　午後６時３９分

97
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
*1:On the left: Models with full color display
On the right: Models wi thout full color display
Message*1ConditionExplanation
●Appears when the starter system has a problem.●Hold the ENGINE START/STOP button up to 15
seconds to start the engine.
Have your vehicle ch ecked by a dealer.
●Appears after the driver’s door is opened when the
power mode is in ACCESSORY.
2Starting the Engine P. 322
●Appears when the power mode is in ACCESSORY.
—
U.S.
Canada
U.S.
Canada
17 ACURA TLX-31TZ36200.book 97 ページ ２０１６年６月１０日　金曜日　午後６時３９分

98
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
*1:On the left: Models with full color display
On the right: Models wi thout full color display
Message*1ConditionExplanation
●Appears when you close the door with the power
mode in ON without the keyless access remote
inside the vehicle.●Disappears when you bring the keyless access
remote back inside the vehicle and close the door.
2Keyless Access Remote Reminder P. 163
●Appears when the keyless access remote battery
becomes weak.●Replace the battery as soon as possible.
2Replacing the Button Battery P. 473
17 ACURA TLX-31TZ36200.book 98 ページ ２０１６年６月１０日　金曜日　午後６時３９分

99
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
*1:On the left: Models with full color display
On the right: Models wi thout full color display
Message*1ConditionExplanation
●Appears if the keyless access remote’s battery is too
weak to start the engine or the key is not with you
to start the engine.
A beeper sounds six times.●Bring the keyless access remote in front of the
ENGINE START/STOP button to be touched with.
2If the Keyless Access Remote Battery is Weak
P. 505
●Appears three seconds after the To Start, Hold
Remote Near Start Button , then To Start Engine
messages appeared sequentially.●Unless you bring the keyless access remote in front
of the ENGINE START/STOP button, this message
does not appear.
2 If the Keyless Access Remote Battery is Weak
P. 505
●Appears when the power m ode is in ACCESSORY or
ON.2 Starting the Engine P. 322
●Appears when the engine does not restart
automatically due to the following reason:
• The hood is open.
• There is a problem in the system that disables
Auto Idle Stop.●Follow the normal procedure to start the engine.
2 Starting the Engine P. 322
Models with Auto Idle StopModels with Auto Idle Stop
17 ACURA TLX-31TZ36200.book 99 ページ ２０１６年６月１０日　金曜日　午後６時３９分

100
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
*1:On the left: Models with full color display
On the right: Models wi thout full color display
Message*1ConditionExplanation
●Appears when you attempt to change to another
gear position with the transmission in
(P and the
engine OFF.
●To select another gear position while in (P, the
engine must be ON.
●Appears when you try to change the gear position
after the position has au tomatically been changed
to
(P with the driver’s door open and the driver’s
seat belt unfastened.
●Press the (P button If you leave the vehicle.
●Appears when you change to (N, and press the
ENGINE START/STOP button within five seconds.
●Appears when the vehicle is stopped with the
driver’s seat belt unfastened and there is a chance
that the vehicle may roll unintentionally.
●The gear position remains in (N for 15 minutes,
then automatically switches to
(P.
2 If you want to keep the (N position in
ACCESSORY P. 334
●Press the (P button before release the brake pedal
when idling, parking or exiting the vehicle.
2 Shift Operation P. 332
●Appears when the engine stops without the
transmission in
(P, and does not restart
automatically.
●Appears if you open the ho od while Auto Idle Stop
activates.
●If you want to set the power mode to ON, change
the gear position to
(P.●If you want to start the engine, follow the normal
procedure.
2 Starting the Engine P. 322
Models with electronic gear selector
Models with Auto Idle StopModels with Auto Idle Stop
17 ACURA TLX-31TZ36200.book 100 ページ ２０１６年６月１０日　金曜日　午後６時３９分

101
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
*1:On the left: Models with full color display
On the right: Models wi thout full color display
Message*1ConditionExplanation
●Appears when you try to change the gear position
without depressing the brake pedal.●Depress the brake pedal, then select a shift button.
●Appears when you try to change the gear position
without releasing your foot off the accelerator
pedal.●Release your foot off the accelerator pedal, then
select a shift button.
●Appears when the (P button is pressed while the
vehicle is moving.
●Appears if you change the gear position to (R while
the vehicle is moving forward, or to
(D while the
vehicle is reversing.
●Make sure that the vehicle comes to a stop before
operating the select button.
—
●Appears if there is a problem with the e-
pretensioner system*.
●Have your vehicle ch ecked by a dealer.
●Appears when you set the power mode to ON
without fastening the driver’s seat belt.
●Appears when you change the gear position after
(P has been automatically selected with the driver’s
door open, the driver’s s eat belt unfastened, then
the brake pedal is released.
●Fasten the seat belt properly before you start to
drive.
2 Shift Operation P. 332
Models with electronic gear selector
* Not available on all models
17 ACURA TLX-31TZ36200.book 101 ページ ２０１６年６月１０日　金曜日　午後６時３９分

102
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
*1:On the left: Models with full color display
On the right: Models wi thout full color display
Message*1ConditionExplanation
●Appears if any door or the trunk is not completely
closed.
●The beeper sounds and the message appears if any
door or the trunk is opened while driving.
●Goes off when all doors and the trunk are closed.
●Appears when the hood is opened.●Close the hood.
17 ACURA TLX-31TZ36200.book 102 ページ ２０１６年６月１０日　金曜日　午後６時３９分

103
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
*1:On the left: Models with full color display
On the right: Models wi thout full color display
Message*1ConditionExplanation
●Appears if you press the ENGINE START/STOP
button to turn the engine off without the shift lever
in
(P.
●Press the ENGINE START/STOP button twice after
moving the shift lever to
(P.
●Appears when you try to ch ange the shift position
other than
(P with the driver’s door open.
●Moving the shift lever to (P If you leave the vehicle.
Models with shift lever
17 ACURA TLX-31TZ36200.book 103 ページ ２０１６年６月１０日　金曜日　午後６時３９分

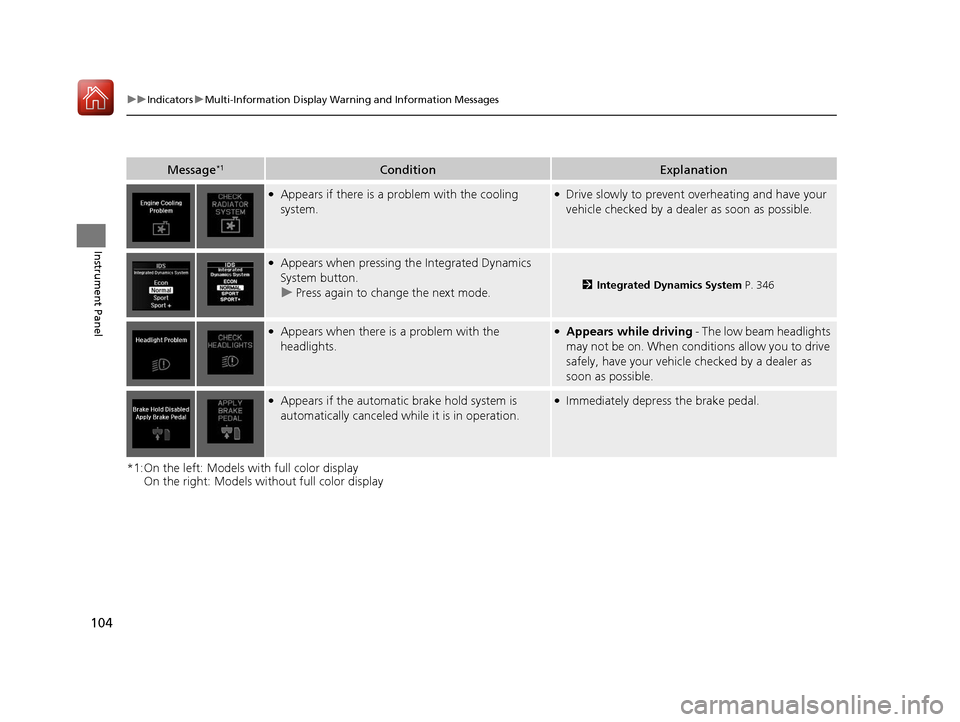

104
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
*1:On the left: Models with full color display
On the right: Models wi thout full color display
Message*1ConditionExplanation
●Appears if there is a problem with the cooling
system.●Drive slowly to prevent overheating and have your
vehicle checked by a deal er as soon as possible.
●Appears when pressing th e Integrated Dynamics
System button. u Press again to change the next mode.
2 Integrated Dynamics System P. 346
●Appears when there is a problem with the
headlights.●Appears while driving - The low beam headlights
may not be on. When conditions allow you to drive
safely, have your vehicle checked by a dealer as
soon as possible.
●Appears if the automatic brake hold system is
automatically canceled while it is in operation.●Immediately depress the brake pedal.
17 ACURA TLX-31TZ36200.book 104 ページ ２０１６年６月１０日　金曜日　午後６時３９分

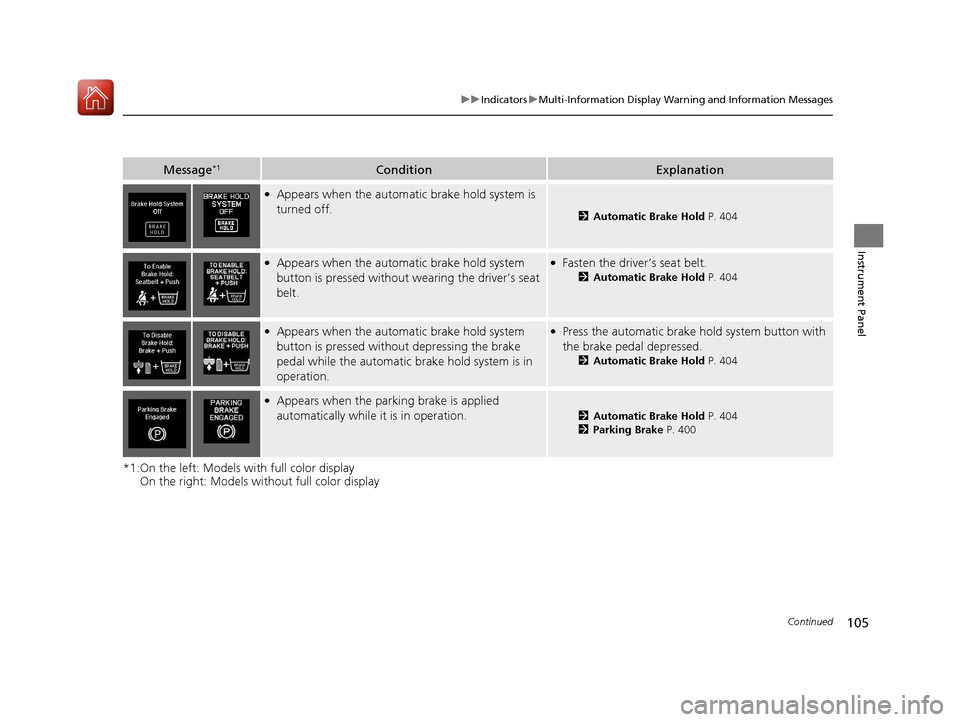

105
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
*1:On the left: Models with full color display
On the right: Models wi thout full color display
Message*1ConditionExplanation
●Appears when the automa tic brake hold system is
turned off.
2 Automatic Brake Hold P. 404
●Appears when the automatic brake hold system
button is pressed without w earing the driver’s seat
belt.●Fasten the driver’s seat belt.
2 Automatic Brake Hold P. 404
●Appears when the automatic brake hold system
button is pressed without depressing the brake
pedal while the automatic br ake hold system is in
operation.●Press the automatic brake hold system button with
the brake pedal depressed.
2 Automatic Brake Hold P. 404
●Appears when the parking brake is applied
automatically while it is in operation.
2Automatic Brake Hold P. 404
2 Parking Brake P. 400
