uuGauges and Multi-Information Display uMulti-Information Display
126
Instrument Panel
Use the multi-information display to customize certain features.
■How to customize

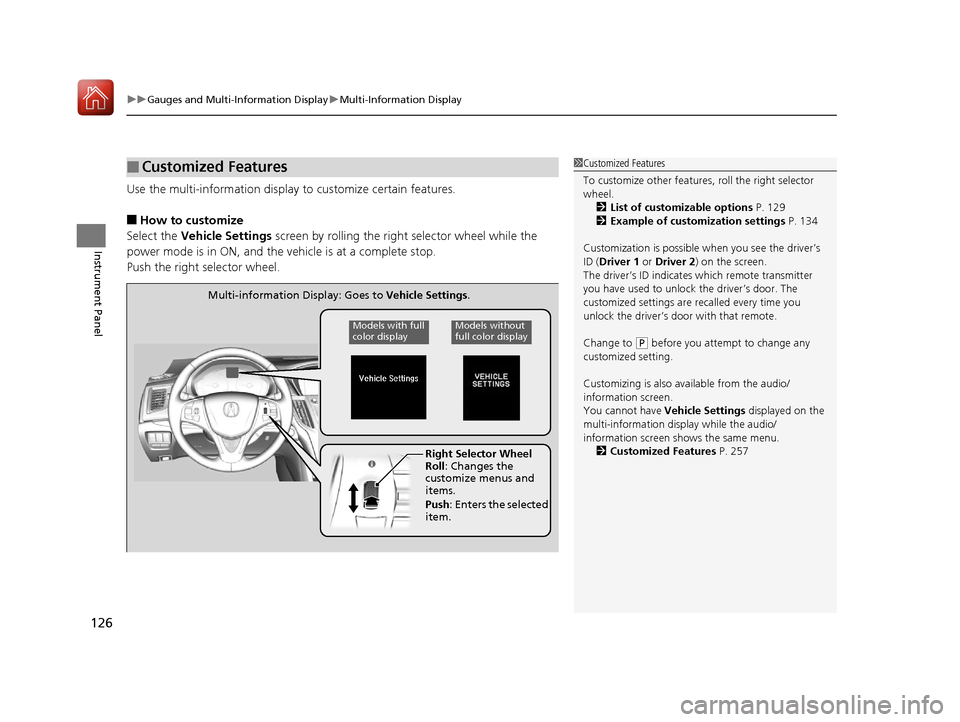

Select the Vehicle Settings screen by rolling the right selector wheel while the
power mode is in ON, and the vehicle is at a complete stop.
Push the right selector wheel.
■Customized Features1 Customized Features
To customize other features , roll the right selector
wheel.
2 List of customizable options P. 129
2 Example of customization settings P. 134
Customization is possible when you see the driver’s
ID ( Driver 1 or Driver 2) on the screen.
The driver’s ID indicates which remote transmitter
you have used to unlock the driver’s door. The
customized settings are recalled every time you
unlock the driver’s door with that remote.
Change to
( P before you attempt to change any
customized setting.
Customizing is also av ailable from the audio/
information screen.
You cannot have Vehicle Settings displayed on the
multi-information display while the audio/
information screen shows the same menu. 2 Customized Features P. 257
Right Selector Wheel
Roll: Changes the
customize menus and
items.
Push : Enters the selected
item.
Multi-information Display: Goes to Vehicle Settings.
Models without
full color displayModels with full
color display
17 ACURA TLX-31TZ36200.book 126 ページ ２０１６年６月１０日　金曜日　午後６時３９分

127
uuGauges and Multi-Information Display uMulti-Information Display
Continued
Instrument Panel
■Customization flow
Roll the right selector wheel to select Vehicle Settings and push the right selector wheel.
Vehicle Settings
“Trip A” Reset Timing
Language Selection
Adjust Outside Temp. Display
Memory Position Link
Door Unlock Mode
Keyless Access Light Flash
Driver Assist System Setup
Meter Setup
Driving Position Setup
Keyless Access Setup
“Trip B” Reset Timing
Turn by Turn Display*
Forward Collision Warning Distance*
ACC Forward Vehicle Detect Beep*
Push
Push
Push
Lane Keeping Assist Suspend Beep*
Blind Spot Info*
Seat Position Movement At Entry/Exit
Auto Seat Belt Tension*
Roll
Keyless Access Beep
Push
Roll
Push
Push
Roll
Roll
Roll
Roll
Roll
Roll
ACC Display Speed Unit*
Road Departure Mitigation Setting*
Remote Start System On/Off*
Keyless Access Beep Volume
Auto Idle Stop Guidance Screens*
Roll
* Not available on all models
17 ACURA TLX-31TZ36200.book 127 ページ ２０１６年６月１０日　金曜日　午後６時３９分

128
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel
Exit
Door Setup
Maintenance Info.
Default All
Lighting Setup
Key And Remote Unlock Mode
Auto Door Lock
Auto Door Unlock
Keyless Lock Answer Back
Security Relock Timer
Interior Ligh t Dimming Time
Headlight Auto Off Timer
Auto Light Sensitivity
Push
Push
Roll
Roll
Roll
IDS SetupPushPreferred IDS Mode
Push
PushMaintenance Reset
Roll
Roll
Roll
Roll
Roll
Roll
17 ACURA TLX-31TZ36200.book 128 ページ ２０１６年６月１０日　金曜日　午後６時３９分

129
uuGauges and Multi-Information Display uMulti-Information Display
Continued
Instrument Panel
■List of customizable options
*1:Default Setting Setup Group Customizable Features
Description Selectable Settings
Driver Assist
System
Setup
Forward Collision
Warning Distance*Changes at which distance FCW or CMBSTM alerts, or
turns FCW on and off.Long /Normal*1/Short /Off
ACC Forward Vehicle
Detect Beep*
Causes the system to beep when the system detects a
vehicle, or when the vehicl e goes out of the ACC with
LSF range.
On /Off*1
ACC Display Speed Unit*Changes the speed unit for ACC with LSF on the multi-
information display.mph*1/km/h (U.S.)
mph /km/h*1 (Canada)
Road Departure
Mitigation Setting*Changes the setting for the road departure mitigation
system.Normal*1/ Wide /Warning
Only
Lane Keeping Assist
Suspend Beep*Causes the system to beep when the LKAS is suspended.On/Off*1
Blind Spot Info*Changes the setting for th e blind spot information.Audible And Visual
Alert*1/Visual Alert /Off
* Not available on all models
17 ACURA TLX-31TZ36200.book 129 ページ ２０１６年６月１０日　金曜日　午後６時３９分

130
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel
*1:Default SettingSetup Group Customizabl
e Features Description Selectable Settings
Meter Setup Language Selection
Changes the displayed language. English
*1/
Français /
Español
Adjust Outside Temp.
Display Adjusts the temperature reading by a few degrees. -5°F ~
±0°F
*1 ~ +5°F
(U.S.)
-3°C ~ ±0°C
*1 ~ +3°C
(Canada)
“Trip A” Reset Timing Changes the setting of how to reset trip meter A,
average fuel economy A, average speed A, and elapsed
time A. When Refueled
/IGN Off/
Manually Reset
*1
“Trip B” Reset Timing Changes the setting of how to reset trip meter B,
average fuel economy B, av
erage speed B, and elapsed
time B. When Refueled
/IGN Off/
Manually Reset*1
Auto Idle Stop Guidance
Screens*Selects whether the Auto Idle Stop guidance screens
comes on. On
/Off*1
Turn by Turn Display*Selects whether the turn-b y-turn display comes on
during the route guidance. On*1/
Off
* Not available on all models
17 ACURA TLX-31TZ36200.book 130 ページ ２０１６年６月１０日　金曜日　午後６時３９分

131
uuGauges and Multi-Information Display uMulti-Information Display
Continued
Instrument Panel
*1: Default SettingSetup Group Customizable Features
Description Selectable Settings
Driving
Position
Setup
Memory Position LinkTurns the driving position memory system on and
off.On*1/Off
Seat Position Movement
At Entry/ExitDepending on the set seating position the driver seat
may move forward or rearward when entering/
exiting the vehicle.
On*1/Off
Auto Seat Belt Tension*Turns the auto seatbelt te nsion setting for the seat
belt e-pretensioner on and off.On*1/ Off
Keyless
Access
Setup Door Unlock Mode
Changes which doors unlock when you grab the
driver’s door handle. Driver Door Only
*1/
All Doors
Keyless Access Beep
Volume Changes the beep volume.
High
*1/Low
Keyless Access Light
Flash Causes some exterior li
ghts to flash when you
unlock/lock the doors. On
*1/
Off
Keyless Access Beep Causes the beeper to sound when you unlock/lock
the doors. On
*1/
Off
Remote Start System On/
Off
*Turns the remote engine start feature on and off. On*1/Off
* Not available on all models
17 ACURA TLX-31TZ36200.book 131 ページ ２０１６年６月１０日　金曜日　午後６時３９分

132
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel
*1: Default SettingSetup Group Customizable Features Description Selectable Settings
Lighting
Setup
Interior Light Dimming
TimeChanges the length of time
the interior lights stay on
after you close the doors.60sec /30sec*1/15sec
Headlight Auto Off
TimerChanges the length of time the exterior lights stay
on after you close the driver’s door.60sec /30sec /15sec*1/ 0sec
Auto Light SensitivityChanges the timing for the headlights to come on.Max/High /Mid*1/Low/ Min
Door Setup Auto Door Lock
Changes the setting for when the doors
automatically lock. With Vehicle Speed
*1/
Shift
From P /Off
Auto Door Unlock Changes the setting for when the doors
automatically unlock. All Doors When Driver’s
Door Opens
*1/
All Doors
When Shifted To Park /All
Doors When Ignition
Switched Off/Off
Key And Remote Unlock
Mode Sets up either the driver’s door or all doors to unlock
on the first operation of the remote or built-in key.
Driver Door
*1/ All Doors
Keyless Lock Answer
Back LOCK/UNLOCK- The exte
rior lights flash.
LOCK (2nd push)- The beeper sounds. On
*1/
Off
Security Relock Timer Changes the time it takes for the doors to relock and
the security system to set after you unlock the
vehicle without opening any door.
90sec
/60sec /30sec
*1
17 ACURA TLX-31TZ36200.book 132 ページ ２０１６年６月１０日　金曜日　午後６時３９分

133
uuGauges and Multi-Information Display uMulti-Information Display
Continued
Instrument Panel
*1: Default SettingSetup Group Customizable Features
Description Selectable Settings
IDS SetupPreferred IDS ModeChanges the Integrated Dynamics System mode
setting for when you set the power mode to ON.Last Used*1/Econ /Normal /
Sport
Maintenance
Info. Maintenance Reset
Resets/Cancels the engine oil life display when you
have performed the maintenance service. Cancel
/Reset
Default All—Cancels/Resets all the customized settings as
default.Cancel /Set
17 ACURA TLX-31TZ36200.book 133 ページ ２０１６年６月１０日　金曜日　午後６時３９分

134
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel
■Example of customization settings
The steps for changing the “Trip A” Reset Timing setting to When Refueled are
shown below. The default setting for “Trip A” Reset Timing is Manually Reset .
1. Roll the right selector wheel to select
Vehicle Settings , then push the right
selector wheel.
2. Roll the right selector wheel until Meter
Setup appears on the display.
3. Push the right selector wheel.
u Language Selection appears first on
the display.
*1 : Models with full color display
*2 : Models without full color display
*1 *2
*1*2
17 ACURA TLX-31TZ36200.book 134 ページ ２０１６年６月１０日　金曜日　午後６時３９分

135
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel

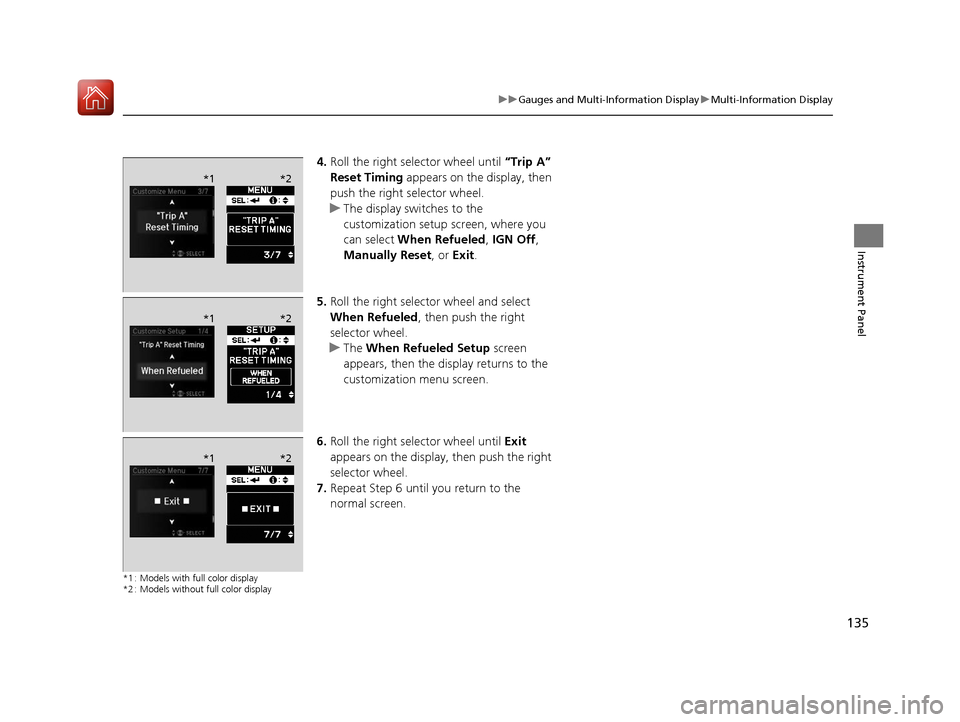

4. Roll the right selector wheel until “Trip A”
Reset Timing appears on the display, then
push the right selector wheel.
u The display swit ches to the
customization setup screen, where you
can select When Refueled , IGN Off,
Manually Reset , or Exit .
5. Roll the right selector wheel and select
When Refueled , then push the right
selector wheel.
u The When Refueled Setup screen
appears, then the di splay returns to the
customization menu screen.
6. Roll the right selector wheel until Exit
appears on the display, then push the right
selector wheel.
7. Repeat Step 6 until you return to the
normal screen.
*1 : Models with full color display
*2 : Models without full color display
