Acura TLX 2017 Owner's Manual

480
uuCleaning uExterior Care
Maintenance

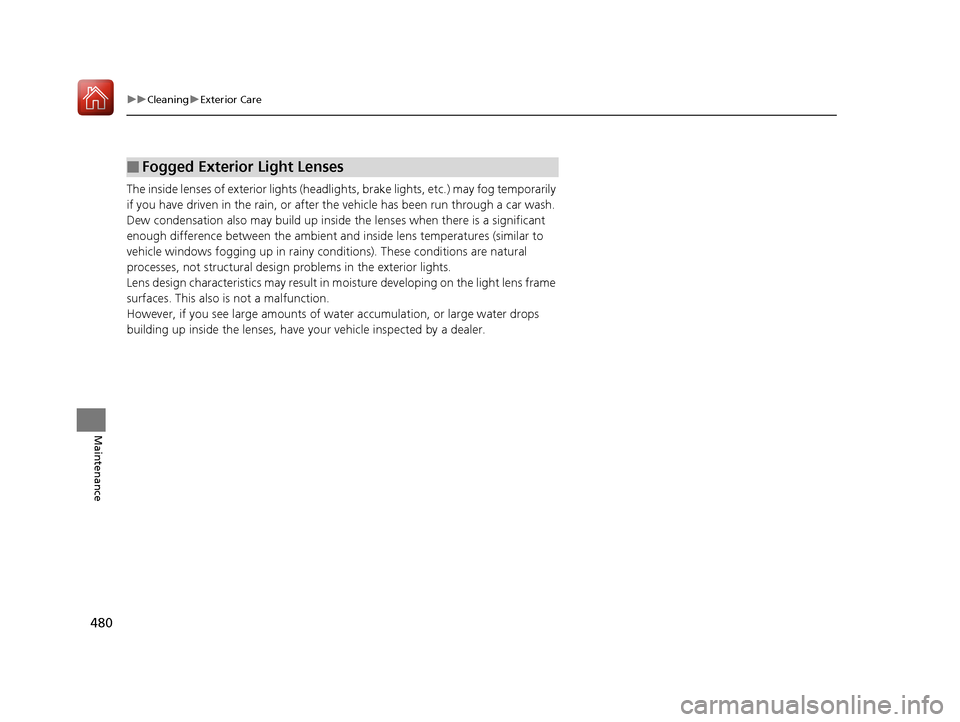

The inside lenses of exterior lights (headlig hts, brake lights, etc.) may fog temporarily
if you have driven in the rain, or after the vehicle has been run through a car wash.
Dew condensation also may build up inside the lenses when there is a significant
enough difference between the ambient and inside lens temperatures (similar to
vehicle windows fogging up in rainy conditions). These conditions are natural
processes, not structural design problems in the exterior lights.
Lens design characteristics may result in mo isture developing on the light lens frame
surfaces. This also is not a malfunction.
However, if you see large amounts of wa ter accumulation, or large water drops
building up inside the lenses, have your vehicle inspected by a dealer.
■Fogged Exterior Light Lenses
17 ACURA TLX-31TZ36200.book 480 ページ ２０１６年６月１０日　金曜日　午後６時３９分

481
Maintenance

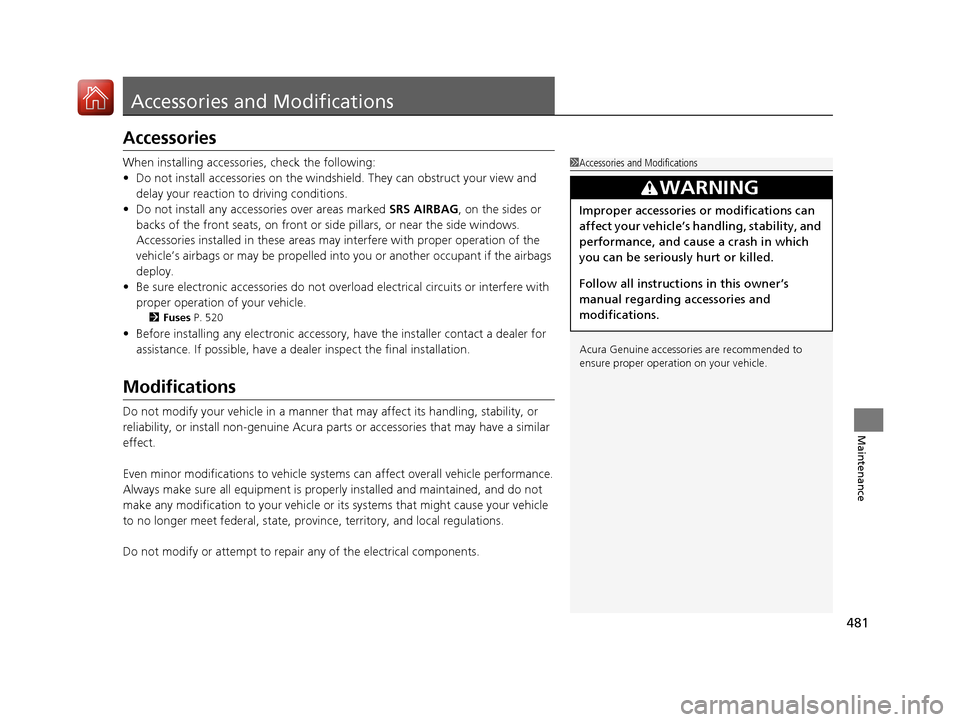

Accessories and Modifications
Accessories
When installing accessories, check the following:
• Do not install accessories on the windsh ield. They can obstruct your view and
delay your reaction to driving conditions.
• Do not install any accessories over areas marked SRS AIRBAG, on the sides or
backs of the front seats, on front or si de pillars, or near the side windows.
Accessories installed in these areas may interfere with proper operation of the
vehicle’s airbags or may be propelled into you or another occupant if the airbags
deploy.
• Be sure electronic accessories do not overload electrical circuits or interfere with
proper operation of your vehicle.
2 Fuses P. 520
•Before installing any electro nic accessory, have the installer contact a dealer for
assistance. If possible, have a deal er inspect the final installation.
Modifications
Do not modify your vehicle in a manner that may affect its handling, stability, or
reliability, or install non-genuine Acura pa rts or accessories that may have a similar
effect.
Even minor modifications to vehicle systems can affect overall vehicle performance.
Always make sure all equipment is properly installed and maintained, and do not
make any modification to your vehicle or its systems that might cause your vehicle
to no longer meet federal, state, pr ovince, territory, and local regulations.
Do not modify or attempt to repair any of the electrical components.
1Accessories and Modifications
Acura Genuine accessori es are recommended to
ensure proper operati on on your vehicle.
3WARNING
Improper accessories or modifications can
affect your vehicle’s handling, stability, and
performance, and cause a crash in which
you can be seriously hurt or killed.
Follow all instruction s in this owner’s
manual regarding accessories and
modifications.
17 ACURA TLX-31TZ36200.book 481 ページ ２０１６年６月１０日　金曜日　午後６時３９分

482
17 ACURA TLX-31TZ36200.book 482 ページ ２０１６年６月１０日　金曜日　午後６時３９分

483
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 484
If a Tire Goes Flat Temporarily Repairi ng a Flat Tire....... 485
Changing a Flat Tire ......................... 497
Engine Does Not Start Checking the Engine ........................ 504
If the Keyless Access Remote Battery is Weak ............................................. 505
Emergency Engine Stop ................... 506
Jump Starting .................................... 507
Shift Lever Does Not Move .............. 511Overheating
How to Handle Overheating............. 512
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On .. 514If the Charging System Indicator Comes On ................................................. 514
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 515
If the Brake System Indicator (Red) Comes On .. 515If the Electric Power Steering (EPS) System Indicator Comes On ........................... 516
If the Electric Parking Brake System Indicator Comes On ....................... 517 If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 518
If the Transmission Indicator Blinks along with the Warning Message.............. 519
Fuses Fuse Locations ................................. 520
Inspecting and Changing Fuses ........ 524
Emergency Towing ........................... 525
When You Cannot Unlock the Fuel Fill Door ................................................. 526When You Cannot Open the Trunk ..... 527RefuelingRefueling From a Portable Fuel Container ... 528
17 ACURA TLX-31TZ36200.book 483 ページ ２０１６年６月１０日　金曜日　午後６時３９分

484
Handling the Unexpected

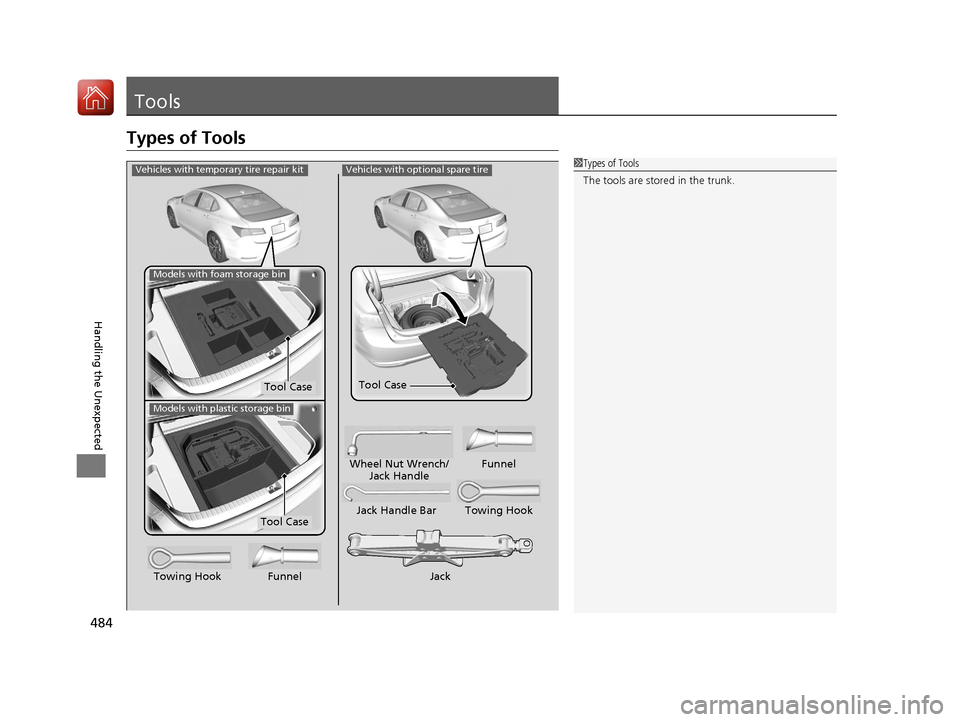

Tools
Types of Tools
1Types of Tools
The tools are stored in the trunk.Vehicles with optional spare tire
Jack
Jack Handle Bar Towing Hook
Wheel Nut Wrench/
Jack Handle Funnel
Towing Hook Funnel
Tool Case
Vehicles with temporary tire repair kit
Tool Case
Models with foam storage bin
Models with plastic storage bin
Tool Case
17 ACURA TLX-31TZ36200.book 484 ページ ２０１６年６月１０日　金曜日　午後６時３９分

485Continued
Handling the Unexpected
If a Tire Goes Flat
Temporarily Repairing a Flat Tire
If the tire has a large cut or is otherwise severely damaged, you will need to have the
vehicle towed. If the tire only has a small puncture, from a nail for instance, you can
use the temporary tire repair kit so that you can drive to the nearest service station
for a more permanent repair.
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then stop in a safe place.
1. Park the vehicle on a firm, level, and n on-slippery surface and apply the parking
brake.
2. Change the gear position to
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF
(LOCK).
1 Temporarily Repairing a Flat Tire
The kit should not be used in the following situations.
Instead, contact a dealer or roadside assistance to
have the vehicle towed.
•The tire sealant has expired.
•More than one tire is punctured.•The puncture or cut is larger than 3/16 inch (4 mm).
•The tire side wall is da maged or the puncture is
outside the contact area.
•Damage has been caused by driving with the tire
extremely under inflated.
•The tire bead is no longer seated.
•The rim is damaged.
Do not remove a nail or screw that punctured the
tire. If you remove it from the tire, you may not be
able to repair the puncture using the kit.
NOTICE
Do not use a puncture-repairing agent other than the
one provided in the kit that came with your vehicle. If
a different agent is used, you may permanently
damage the tire pressure sensor.
When the puncture is:Kit Use
Smaller than 3/16 inch (4 mm)Yes
Larger than 3/16 inch (4 mm)No
Contact
Area
17 ACURA TLX-31TZ36200.book 485 ページ ２０１６年６月１０日　金曜日　午後６時３９分

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
486
Handling the Unexpected

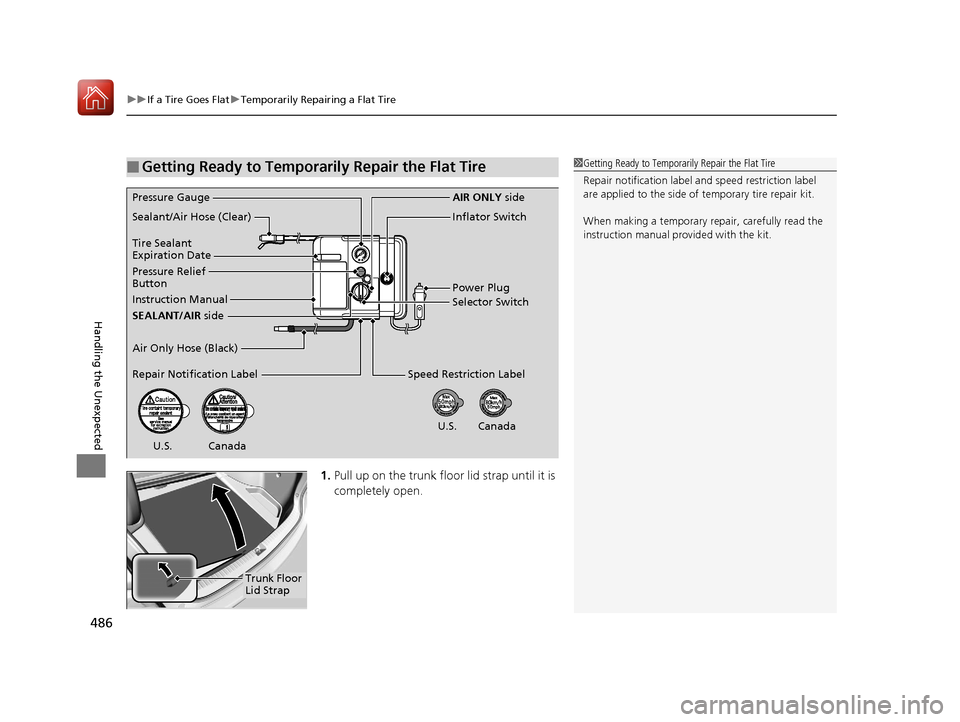

1. Pull up on the trunk floor lid strap until it is
completely open.
■Getting Ready to Temporarily Repair the Flat Tire1Getting Ready to Temporarily Repair the Flat Tire
Repair notificati on label and speed restriction label
are applied to the side of temporary tire repair kit.
When making a temporary repair, carefully read the
instruction manual provided with the kit.
Instruction Manual
Air Only Hose (Black)
Speed Restriction Label
Repair Notification Label Pressure Relief
Button Inflator Switch
Selector Switch
SEALANT/AIR side
Sealant/Air Hose (Clear)
AIR ONLY
side
Power Plug
Pressure Gauge
Tire Sealant
Expiration Date
U.S. Canada
U.S. Canada
Trunk Floor
Lid Strap
17 ACURA TLX-31TZ36200.book 486 ページ ２０１６年６月１０日　金曜日　午後６時３９分

487
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Continued
Handling the Unexpected

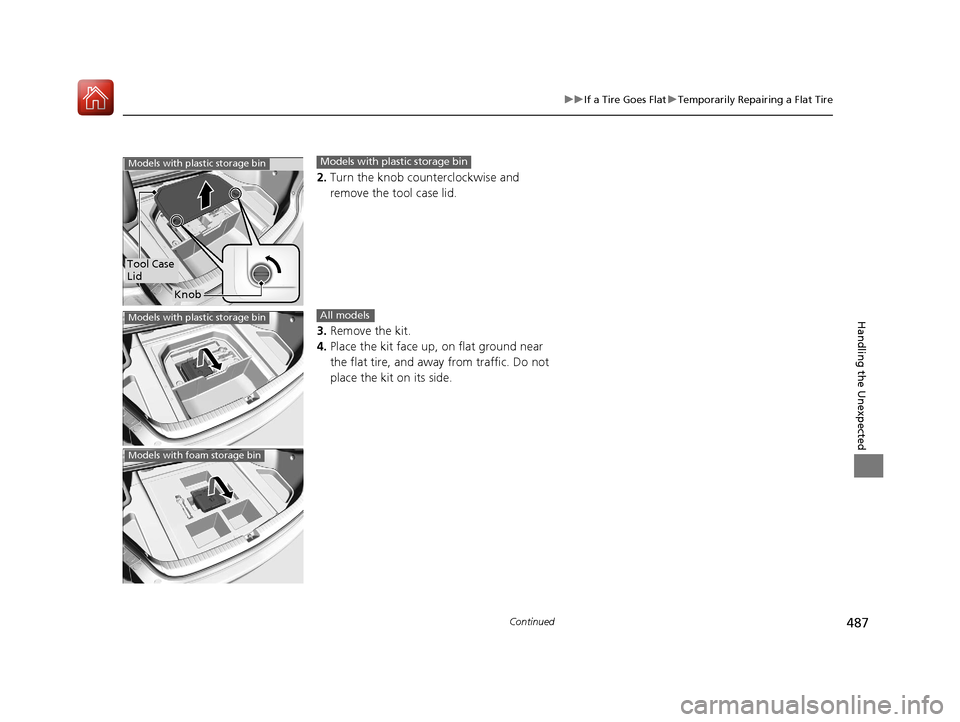

2. Turn the knob counterclockwise and
remove the tool case lid.
3. Remove the kit.
4. Place the kit face up, on flat ground near
the flat tire, and away from traffic. Do not
place the kit on its side.
Tool Case
Lid
Knob
Models with plastic storage binModels with plastic storage bin
Models with plastic storage binAll models
Models with foam storage bin
17 ACURA TLX-31TZ36200.book 487 ページ ２０１６年６月１０日　金曜日　午後６時３９分

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
488
Handling the Unexpected

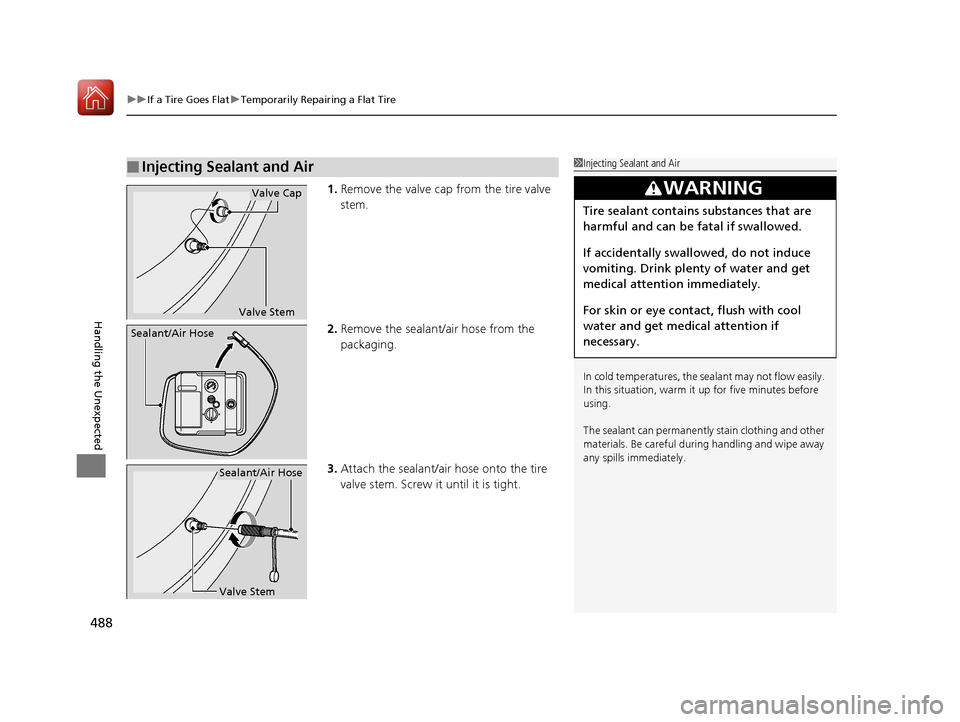

1. Remove the valve cap from the tire valve
stem.
2. Remove the sealant/air hose from the
packaging.
3. Attach the sealant/air hose onto the tire
valve stem. Screw it until it is tight.
■Injecting Sealant and Air1Injecting Sealant and Air
In cold temperatures, the sealant may not flow easily.
In this situation, warm it up for five minutes before
using.
The sealant can permanentl y stain clothing and other
materials. Be careful duri ng handling and wipe away
any spills immediately.
3WARNING
Tire sealant contains substances that are
harmful and can be fatal if swallowed.
If accidentally swallowed, do not induce
vomiting. Drink plenty of water and get
medical attention immediately.
For skin or eye contact, flush with cool
water and get medical attention if
necessary.
Valve Stem
Valve Cap
Sealant/Air Hose
Valve Stem
Sealant/Air Hose
17 ACURA TLX-31TZ36200.book 488 ページ ２０１６年６月１０日　金曜日　午後６時３９分

Continued489
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
4. Plug in the compressor to the accessory
power socket.
u Be careful not to pinch the cord in a
door or window.
u Do not plug any other electronic
devices into other accessory power
sockets.
2 Accessory Power Sockets P. 192
5.Start the engine.
u Keep the engine running while injecting
sealant and air.
2 Carbon Monoxide Gas P. 66
6.Turn the selector switch to SEALANT/
AIR .
1Injecting Sealant and Air
NOTICE
Do not operate the temporary tire repair kit
compressor for more than 15 minutes. The
compressor can overheat and become permanently
damaged.
There are two accessory power sockets:
•In the console compartment•In the front of the center pocket 2 Accessory Power Sockets P. 192
Until the sealant injection is complete, the pressure
shown on the pressure gauge will appear higher than
actual. After the sealant injection is complete the
pressure will drop and then begin to rise again as the
tire is inflated with air. This is normal. To accurately
measure the air pressure usi ng the gauge, turn the air
compressor off only after the sealant injection is
complete.
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.
SEALANT/AIR side
17 ACURA TLX-31TZ36200.book 489 ページ ２０１６年６月１０日　金曜日　午後６時３９分
