uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF
(LOCK). Turn headlights and all accessories
off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 553 to 556.
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined Fuse Blown Fuse
Fuse Puller
19 ACURA TLX-31TZ36400.book 557 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

561
Handling the Unexpected
Refueling

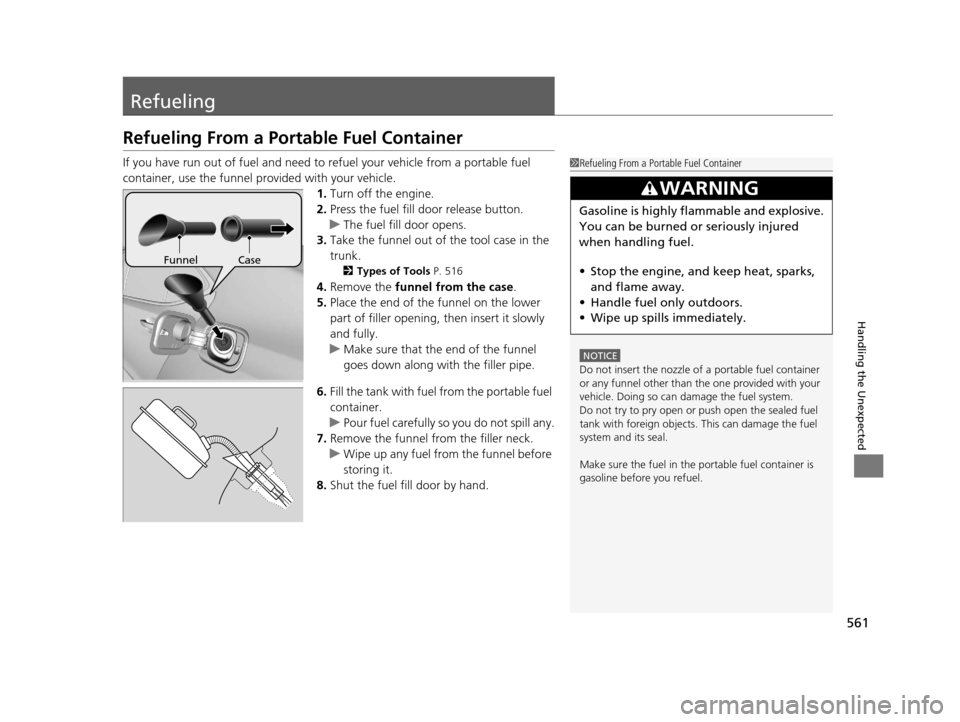

Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.
1.Turn off the engine.
2. Press the fuel fill door release button.
u The fuel fill door opens.
3. Take the funnel out of the tool case in the
trunk.
2 Types of Tools P. 516
4.Remove the funnel from the case .
5. Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
6. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
7. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
8. Shut the fuel fill door by hand.
1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuel.
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Funnel Case
19 ACURA TLX-31TZ36400.book 561 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

563
Information
This chapter includes your vehicle’s specifications, locations of identification numbers, and other
information required by regulation.
Specifications .................................... 564
Identification Numbers Vehicle Identification Number (VIN), Engine Number, and Transmission
Number ......................................... 566
Devices that Emit Radio Waves ....... 567
Reporting Safety Defects ................. 569Emissions Testing
Testing of Readiness Codes.............. 570
Warranty Coverages ........................ 572
Authorized Manuals ......................... 574
Client Service Information ............... 575
19 ACURA TLX-31TZ36400.book 563 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

564
Information
Specifications
■Vehicle Specifications
*1: 4-cylinder models
*2: 6-cylinder models with 2WD
*3: 6-cylinder models with AWD
■Air Conditioning
ModelAcura TLX
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating U.S.: 4,497 lbs (2,040 kg)*1
U.S.: 4,619 lbs (2,095 kg)*2
U.S.: 4,762 lbs (2,160 kg)*3
Canada: 2,055 kg*1
Canada: 2,170 kg*3
Gross Axle Weight
Rating (Front)U.S.: 2,370 lbs (1,075 kg)*1
U.S.: 2,535 lbs (1,150 kg)*2
U.S.: 2,579 lbs (1,170 kg)*3
Canada: 1,120 kg*1
Canada: 1,180 kg*3
Gross Axle Weight
Rating (Rear)U.S.: 2,161 lbs (980 kg)*1, *2
U.S.: 2,227 lbs (1,010 kg)*3
Canada: 980 kg*1
Canada: 1,015 kg*3
Refrigerant TypeHFC-134a (R-134a)
Charge Quantity 16.7 – 18.5 oz (475 – 525 g)
Lubricant TypeND-OIL 8
Quantity 4.27 – 5.19 cu-in (70 – 85 cm3)
■ Engine Specifications
*1: 4-cylinder models
*2: 6-cylinder models
■Fuel
■ Washer Fluid
Displacement144 cu-in (2,356 cm3)*1
212 cu-in (3,471 cm3)*2
Spark Plugs NGKDILKAR7H11GS
*1
DILKAR7G11GS*1
DILZKR7B11G*2
DENSO DXE22HQR-D11S*1
TypeUnleaded premium gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 17.2 US gal (65 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 5.7 US qt (5.4 L)
■ Light Bulbs
Headlights (High/Low Beam)LED
Fog Lights*LEDFront Turn Signal/Parking LightsLED
Front Side Marker Lights LED
Side Turn Signal Lights
(on Door Mirrors)LED
Brake/Taillights/Rear Side Marker
Lights LED
Brake/TaillightsLED
Back-Up Lights 21 W
Rear Turn Signal Lights21 W
High-Mount Brake Light LED
Rear License Plate LightsLED
Puddle Lights*LEDInterior LightsFront and Rear Map LightsLEDFront and Rear Ambient LightsLEDVanity Mirror Lights1.4 WDoor Courtesy Lights3.4 WConsole Compartment Light1.4 WGlove Box Light1.4 WDoor Inner Handle LightsLEDTrunk Light5 W
* Not available on all models
19 ACURA TLX-31TZ36400.book 564 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

565
uuSpecifications u
Information

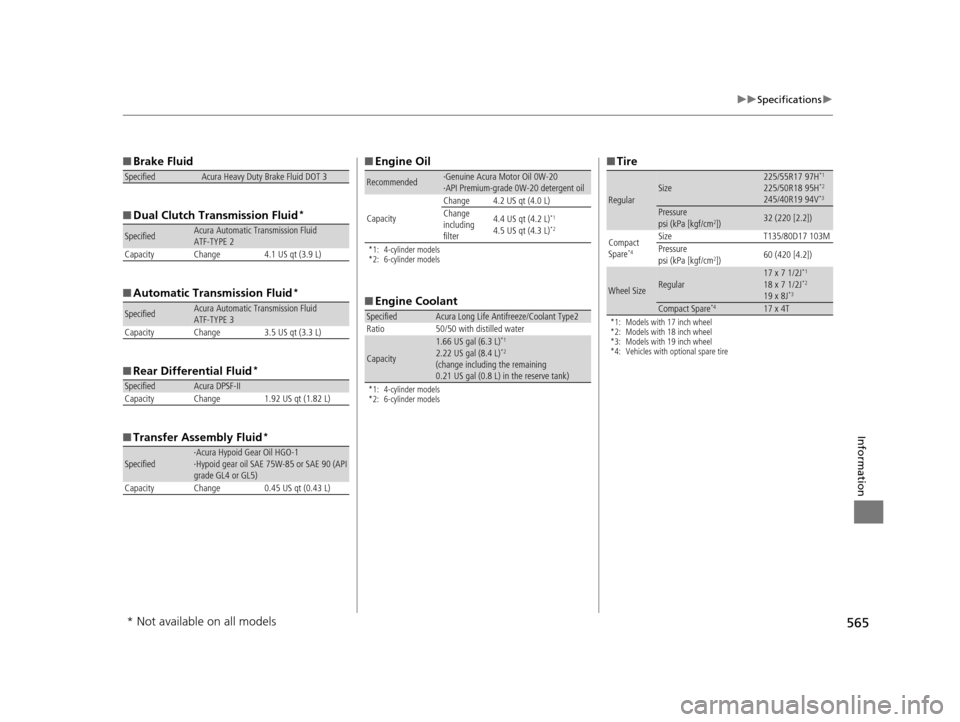

■Brake Fluid
■ Dual Clutch Transmission Fluid
*
■Automatic Transmission Fluid*
■Rear Differential Fluid*
■Transfer Assembly Fluid*
SpecifiedAcura Heavy Duty Brake Fluid DOT 3
SpecifiedAcura Automatic Transmission Fluid
ATF-TYPE 2
Capacity Change 4.1 US qt (3.9 L)
SpecifiedAcura Automatic Transmission Fluid
ATF-TYPE 3
Capacity Change 3.5 US qt (3.3 L)
SpecifiedAcura DPSF-II
Capacity Change 1.92 US qt (1.82 L)
Specified·Acura Hypoid Gear Oil HGO-1
·Hypoid gear oil SAE 75W-85 or SAE 90 (API
grade GL4 or GL5)
Capacity Change 0.45 US qt (0.43 L)
■ Engine Oil
*1: 4-cylinder models
*2: 6-cylinder models
■Engine Coolant
*1: 4-cylinder models
*2: 6-cylinder models
Recommended·Genuine Acura Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 L)
Change
including
filter
4.4 US qt (4.2 L)
*1
4.5 US qt (4.3 L)*2
SpecifiedAcura Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.66 US gal (6.3 L)*1
2.22 US gal (8.4 L)*2
(change including the remaining
0.21 US gal (0.8 L) in the reserve tank)
■ Tire
*1: Models with 17 inch wheel
*2: Models with 18 inch wheel
*3: Models with 19 inch wheel
*4: Vehicles with optional spare tire
RegularSize225/55R17 97H*1
225/50R18 95H*2
245/40R19 94V*3
Pressure
psi (kPa [kgf/cm2])32 (220 [2.2])
Compact
Spare*4
SizeT135/80D17 103M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular17 x 7 1/2J*1
18 x 7 1/2J*2
19 x 8J*3
Compact Spare*417 x 4T
* Not available on all models
19 ACURA TLX-31TZ36400.book 565 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

566
Information
Identification Numbers
Vehicle Identification Number (VIN), Engine Number,
and Transmission Number

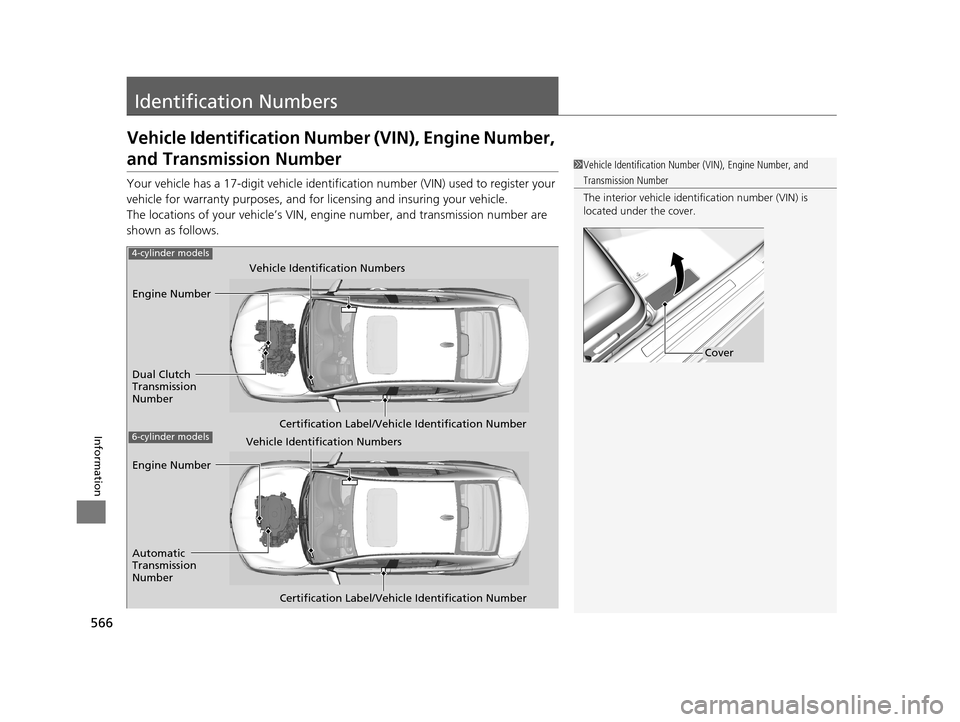

Your vehicle has a 17-digit vehicle identifi cation number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, engine number, and transmission number are
shown as follows.
1 Vehicle Identification Number (VIN), Engine Number, and
Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
Cover
Vehicle Identification Numbers
Engine Number
Dual Clutch
Transmission
Number Certification Label/Vehicle Identification Number
Vehicle Identification Numbers
Engine Number
Automatic
Transmission
Number Certification Label/Vehicle Identification Number
4-cylinder models
6-cylinder models
19 ACURA TLX-31TZ36400.book 566 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

567Continued
Information
Devices that Emit Radio Waves
The following products and systems on your vehicle emit radio waves when in operation.
Each of the above complies with the appropriate requirements or the required standards of FCC
(Federal Communications Commission) and Industry Canada Standard, described below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
AcuraLink*
Audio System
Blind Spot Information System*
Bluetooth ® Audio
Bluetooth® HandsFreeLink ®
Collision Mitigation Braking SystemTM
HomeLink® Universal Transceiver
Immobilizer System
Keyless Access System
Tire Pressure Monitoring System (TPMS)
Remote Engine Start with Vehicle Feedback*
Wireless charger*
* Not available on all models
19 ACURA TLX-31TZ36400.book 567 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

570
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness code as part of the onboard self diagnostic system. Some
States use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testi ng is performed just after the battery has
gone dead or been disconnected.
To check if they are set, set the power mo de to ON, without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it then goes off, the
readiness codes are set. If it blinks fi ve times, the readiness codes are not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retesting by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the accelerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P.
Increase the engine speed to 2,000 rpm, and hold it there for about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
1Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again onl y after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
19 ACURA TLX-31TZ36400.book 570 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

571
uuEmissions Testing uTesting of Readiness Codes
Information

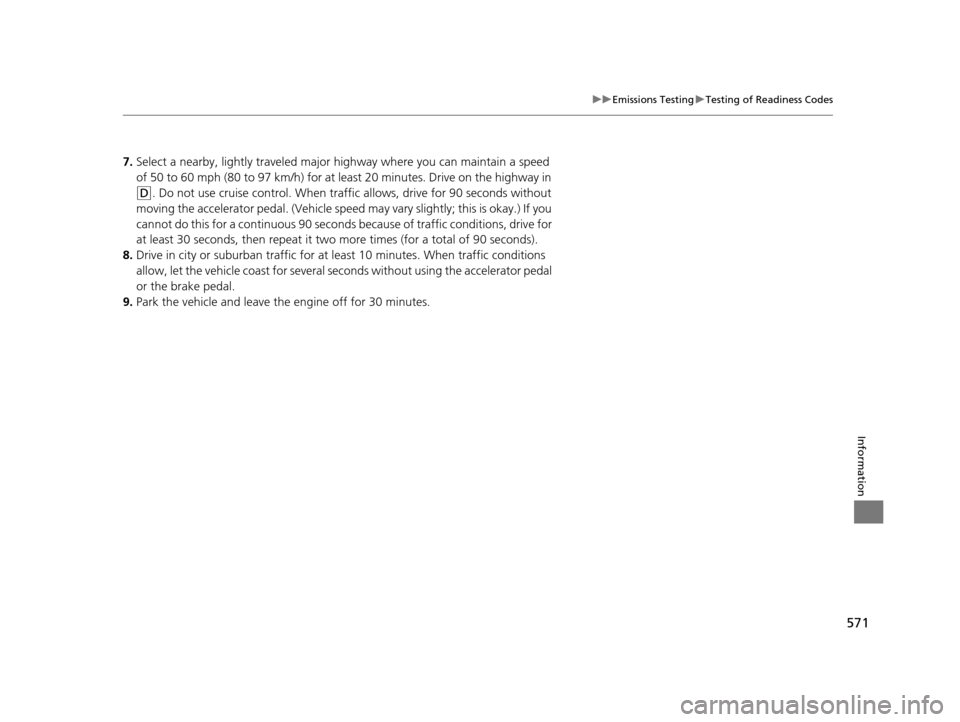

7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D. Do not use cruise control. When traffi c allows, drive for 90 seconds without
moving the accelerator pedal. (V ehicle speed may vary slightly; this is okay.) If you
cannot do this for a continuous 90 seconds because of traffic conditions, drive for
at least 30 seconds, then repeat it two more times (for a total of 90 seconds).
8. Drive in city or suburban traffic for at l east 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
19 ACURA TLX-31TZ36400.book 571 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

575Continued
Information

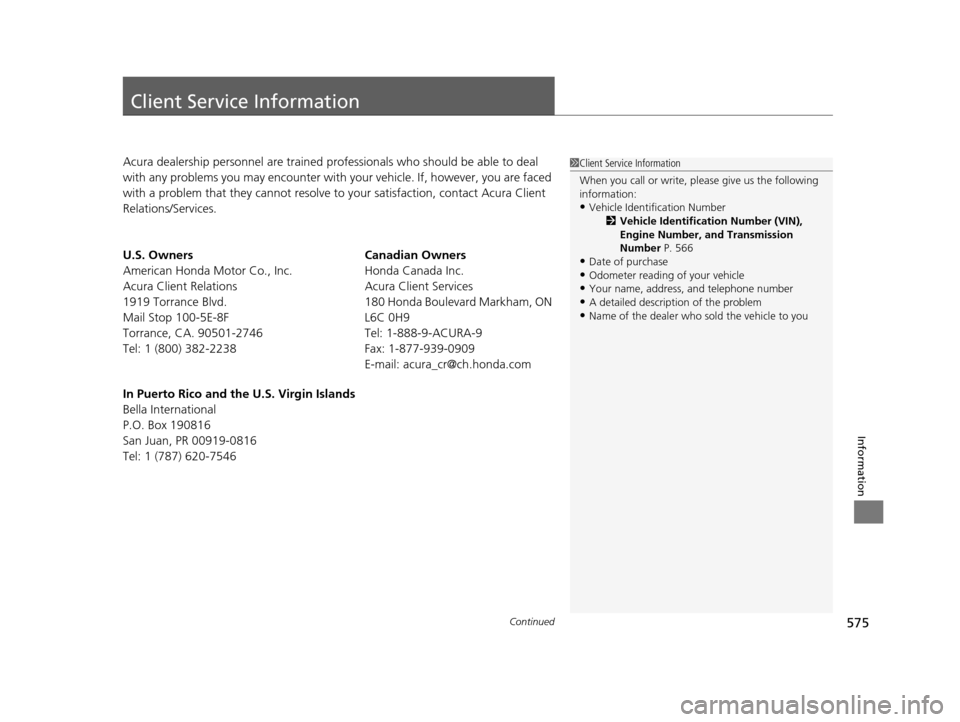

Client Service Information
Acura dealership personnel are trained professionals who should be able to deal
with any problems you may encounter with your vehicle. If, however, you are faced
with a problem that they cannot resolve to your satisfaction, contact Acura Client
Relations/Services.
U.S. Owners
American Honda Motor Co., Inc.
Acura Client Relations
1919 Torrance Blvd.
Mail Stop 100-5E-8F
Torrance, CA. 90501-2746
Tel: 1 (800) 382-2238 Canadian Owners
Honda Canada Inc.
Acura Client Services
180 Honda Boulevard Markham, ON
L6C 0H9
Tel: 1-888-9-ACURA-9
Fax: 1-877-939-0909
E-mail: [email protected]
In Puerto Rico and the U.S. Virgin Islands
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: 1 (787) 620-75461 Client Service Information
When you call or write, please give us the following
information:
•Vehicle Identification Number
2Vehicle Identification Number (VIN),
Engine Number, and Transmission
Number P. 566
•Date of purchase•Odometer reading of your vehicle
•Your name, address, and telephone number
•A detailed description of the problem•Name of the dealer who sold the vehicle to you
19 ACURA TLX-31TZ36400.book 575 ページ ２０１８年２月１６日　金曜日　午後１２時２２分
