fog light bulb Acura TLX 2019 Owner's Manual

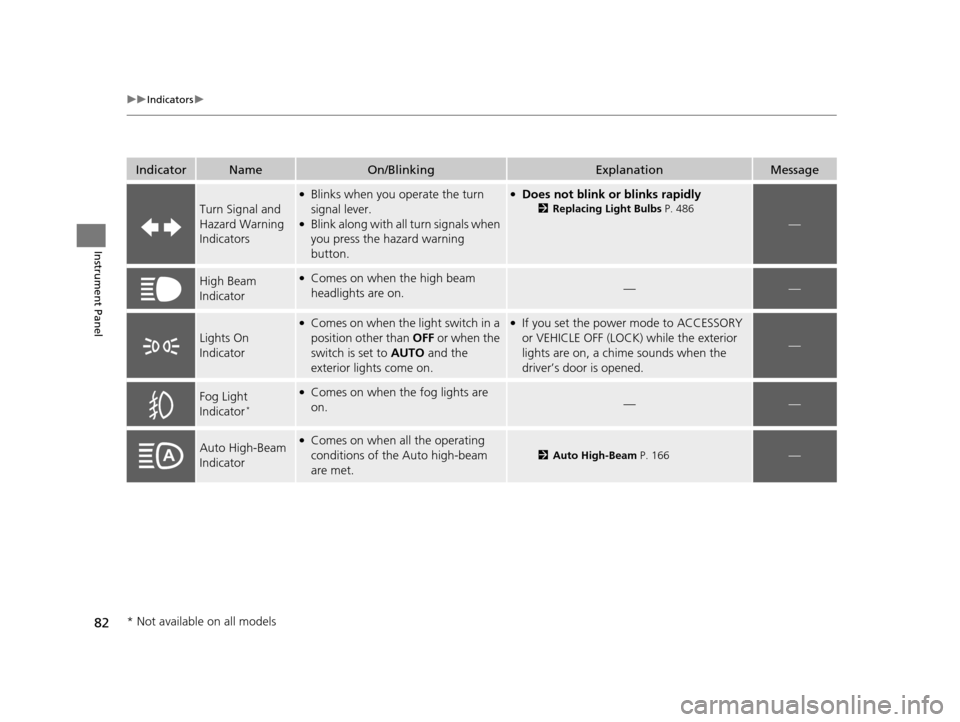

82
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Turn Signal and
Hazard Warning
Indicators
●Blinks when you operate the turn
signal lever.
●Blink along with all turn signals when
you press the hazard warning
button.
●Does not blink or blinks rapidly
2Replacing Light Bulbs P. 486
—
High Beam
Indicator●Comes on when the high beam
headlights are on.——
Lights On
Indicator
●Comes on when the light switch in a
position other than OFF or when the
switch is set to AUTO and the
exterior lights come on.●If you set the power mode to ACCESSORY
or VEHICLE OFF (LOCK) while the exterior
lights are on, a chime sounds when the
driver’s door is opened.
—
Fog Light
Indicator*
●Comes on when the fog lights are
on.——
Auto High-Beam
Indicator●Comes on when all the operating
conditions of the Auto high-beam
are met.
2 Auto High-Beam P. 166—
* Not available on all models
19 ACURA TLX-31TZ36400.book 82 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

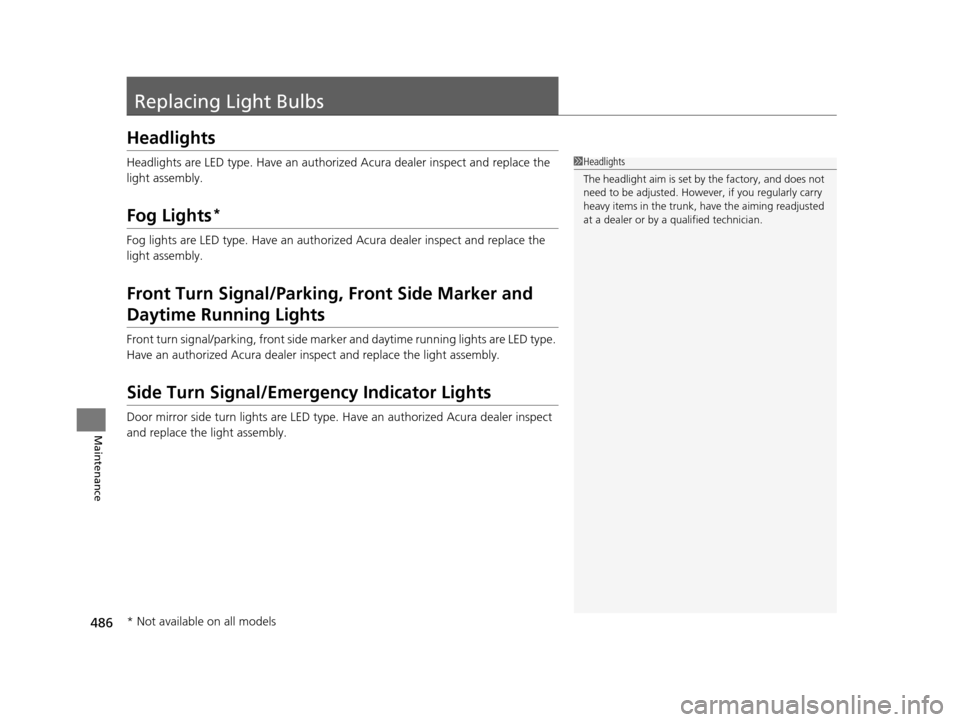

486
Maintenance
Replacing Light Bulbs
Headlights
Headlights are LED type. Have an authorized Acura dealer inspect and replace the
light assembly.
Fog Lights*
Fog lights are LED type. Have an authoriz ed Acura dealer inspect and replace the
light assembly.
Front Turn Signal/Parking, Front Side Marker and
Daytime Running Lights
Front turn signal/parking, front side mar ker and daytime running lights are LED type.
Have an authorized Acura dealer in spect and replace the light assembly.
Side Turn Signal/Emergency Indicator Lights
Door mirror side turn lights are LED type. Have an authorized Acura dealer inspect
and replace the light assembly.
1Headlights
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the trunk, have the aiming readjusted
at a dealer or by a qualified technician.
* Not available on all models
19 ACURA TLX-31TZ36400.book 486 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

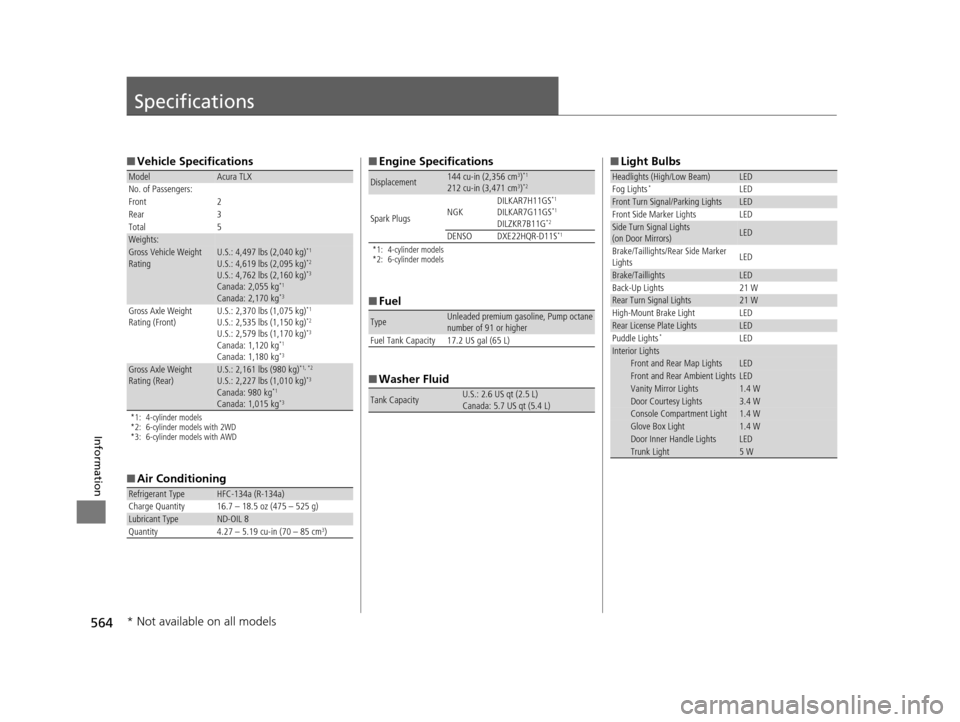

564
Information
Specifications
■Vehicle Specifications
*1: 4-cylinder models
*2: 6-cylinder models with 2WD
*3: 6-cylinder models with AWD
■Air Conditioning
ModelAcura TLX
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating U.S.: 4,497 lbs (2,040 kg)*1
U.S.: 4,619 lbs (2,095 kg)*2
U.S.: 4,762 lbs (2,160 kg)*3
Canada: 2,055 kg*1
Canada: 2,170 kg*3
Gross Axle Weight
Rating (Front)U.S.: 2,370 lbs (1,075 kg)*1
U.S.: 2,535 lbs (1,150 kg)*2
U.S.: 2,579 lbs (1,170 kg)*3
Canada: 1,120 kg*1
Canada: 1,180 kg*3
Gross Axle Weight
Rating (Rear)U.S.: 2,161 lbs (980 kg)*1, *2
U.S.: 2,227 lbs (1,010 kg)*3
Canada: 980 kg*1
Canada: 1,015 kg*3
Refrigerant TypeHFC-134a (R-134a)
Charge Quantity 16.7 – 18.5 oz (475 – 525 g)
Lubricant TypeND-OIL 8
Quantity 4.27 – 5.19 cu-in (70 – 85 cm3)
■ Engine Specifications
*1: 4-cylinder models
*2: 6-cylinder models
■Fuel
■ Washer Fluid
Displacement144 cu-in (2,356 cm3)*1
212 cu-in (3,471 cm3)*2
Spark Plugs NGKDILKAR7H11GS
*1
DILKAR7G11GS*1
DILZKR7B11G*2
DENSO DXE22HQR-D11S*1
TypeUnleaded premium gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 17.2 US gal (65 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 5.7 US qt (5.4 L)
■ Light Bulbs
Headlights (High/Low Beam)LED
Fog Lights*LEDFront Turn Signal/Parking LightsLED
Front Side Marker Lights LED
Side Turn Signal Lights
(on Door Mirrors)LED
Brake/Taillights/Rear Side Marker
Lights LED
Brake/TaillightsLED
Back-Up Lights 21 W
Rear Turn Signal Lights21 W
High-Mount Brake Light LED
Rear License Plate LightsLED
Puddle Lights*LEDInterior LightsFront and Rear Map LightsLEDFront and Rear Ambient LightsLEDVanity Mirror Lights1.4 WDoor Courtesy Lights3.4 WConsole Compartment Light1.4 WGlove Box Light1.4 WDoor Inner Handle LightsLEDTrunk Light5 W
* Not available on all models
19 ACURA TLX-31TZ36400.book 564 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

578
Index
B
BatteryCharging (Battery) ................................... 503
Charging System Indicator ................. 75, 547
Jump Starting .......................................... 540
Maintenance (Checking the Battery) ........ 502
Belts (Seat) .................................................. 34
Beverage Holders ...................................... 195
Blind spot information (BSI) System ........ 420
Bluetooth ® Audio ..................................... 255
Bluetooth ® HandsFreeLink ®..................... 317
Booster Seats (For Children) ....................... 68
Brake System ............................................. 428
Anti-lock Brake System (ABS) ................... 434
Automatic Brake Hold.............................. 432
Brake Assist System ................................. 435
Fluid ........................................................ 485
Foot Brake ............................................... 431
Parking Brake .......................................... 428
Brake System (Amber) Indicator .................................................... 72
Brake System (Red)
Indicator ............................................ 72, 548
Brightness Control (Instrument Panel) .... 172
BSI (Blind spot information) System ........ 420
Built-in Key ................................................ 134
Bulb Replacement ..................................... 486
Back-Up Lights......................................... 489
Brake/Taillights ........................................ 488
Brake/Taillights and Rear Side Marker
Lights..................................................... 488 Fog Lights ............................................... 486
Front Side Marker/Parking Lights ............. 486
Headlights ............................................... 486
High-Mount Brake Light .......................... 490
Puddle Lights........................................... 490
Rear License Plate Lights .......................... 490
Rear Turn Signal Lights ............................ 487
Side Turn Signal/Emergency Indicator
Lights .................................................... 486
Bulb Specifications ................................... 564
C
Carbon Monoxide Gas ............................... 69
Carrying Cargo ................................. 357, 359
CD Player ................................................... 244
Center Pocket ........................................... 194
Certification Label .................................... 566
Changing Bulbs ........................................ 486
Charging System Indicator ................. 75, 547
Child Safety ................................................. 56
Childproof Door Locks............................. 147
Child Seat .................................................... 56
Booster Seats ............................................ 68
Child Seat for Infants................................. 58
Child Seat for Small Children ..................... 59
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 63
Larger Children ......................................... 67
Rear-facing Child Seat ............................... 58
Selecting a Child Seat ................................ 60 Using a Tether .......................................... 65
Childproof Door Locks ............................. 147
Cleaning the Exterior ............................... 509
Cleaning the Interior ............................... 507
Client Service Information ....................... 575
Climate Control System ........................... 205
Changing the Mode................................ 208
Defrosting the Windshield and
Windows .............................................. 211
Dust and Pollen Filter .............................. 506
Sensors ................................................... 212
Synchronized Mode ................................ 209
Using Automatic Climate Control............ 205
Clock ......................................................... 132
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................ 436
Coat Hooks ............................................... 200
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 436
Compact Spare Tire (Optional) ....... 530, 565
Compass .................................................... 352
Console Compartment ............................. 193
Controls .................................................... 131
Coolant (Engine) ...................................... 482
Adding to the Radiator ........................... 483
Adding to the Reserve Tank .................... 482
Overheating ............................................ 545
Creeping (Automatic Transmission) ........ 370
Creeping (Dual Clutch Transmission) ...... 370
Cross Traffic Monitor ............................... 451
Cup Holders .............................................. 195
19 ACURA TLX-31TZ36400.book 578 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

582
Index
Lights................................................. 162, 486
Automatic ............................................... 163
Bulb Replacement .................................... 486
Daytime Running Lights ........................... 165
Fog Lights ................................................ 165
High Beam Indicator .................................. 82
Interior .................................................... 189
Light Switches ......................................... 162
Lights On Indicator .................................... 82
Turn Signals ............................................. 161
Load Limits ................................................ 359
Locking/Unlocking .................................... 133
Auto Door Locking/Unlocking .................. 148
Childproof Door Locks ............................. 147
From Inside .............................................. 145
From Outside ........................................... 136
Keys ........................................................ 133
Using a Key ............................................. 142
Lockout Prevention System ...................... 143
Low Battery Charge .................................. 547
Low Fuel Indicator ...................................... 78
Low Keyless Access Remote Signal
Strength ................................................... 135
Low Oil Pressure Indicator ................. 74, 547
Lower Anchors ............................................ 61
Lubricant Specifications Chart ................. 565
Luggage (Maximum Load Limit) .............. 359
Lumbar Support ........................................ 180M
Maintenance............................................. 463
Battery .................................................... 502
Brake Fluid .............................................. 485
Cleaning ................................................. 507
Climate Control System ........................... 506
Coolant ................................................... 482
Maintenance Minder
TM............................ 467
Oil ........................................................... 476
Precautions ............................................. 464
Radiator .................................................. 483
Remote Transmitter ......................... 504, 505
Replacing Light Bulbs .............................. 486
Safety...................................................... 465
Service Items ........................................... 470
Tires ........................................................ 493
Transmission Fluid ................................... 484
Under the Hood .............................. 472, 473
Malfunction Indicator Lamp .............. 75, 548
Map Lights ................................................ 190
Maximum Load Limit ............................... 359
Meters, Gauges ......................................... 113
Mirrors ...................................................... 177
Adjusting ................................................ 177
Door ....................................................... 178
Exterior ................................................... 178
Interior Rearview ..................................... 177
Modifications (and Accessories) .............. 512
Moonroof ................................................. 157
MP3 ................................................... 244, 252
Multi-Information Display ....................... 114Multi-View Rear Camera
......................... 456
N
Numbers (Identification)......................... 566
O
Odometer................................................. 117
Oil (Engine) ...................................... 475, 565
Adding ................................................... 478
Checking ................................................ 476
Displaying Oil Life ................................... 468
Low Oil Pressure Indicator ................. 74, 547
Recommended Engine Oil ............... 475, 565
Viscosity.......................................... 475, 565
On Demand Multi-Use Display
TM............. 220
Open Source Licenses .............................. 291
Opening Trunk ...................................................... 560
Opening/Closing Hood ...................................................... 474
Moonroof ............................................... 157
Power Windows...................................... 155
Trunk ...................................................... 149
Operating the Switches Around the
Steering Wheel ....................................... 158
Outside Temperature .............................. 117
Adjusting ................................................ 117
Overheating ............................................. 545
19 ACURA TLX-31TZ36400.book 582 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

585
Index
Flat Tire/Puncture .................................... 517
Noise When Braking ................................. 27
Overheating ............................................ 545
Premium Gasoline ........................... 459, 564
Puncture/Flat Tire ............................ 517, 530
Rear Door Won’t Open ..................... 25, 147
Select Lever Won’t Move ........................ 544
Warning Indicators.................................... 72
Trunk ........................................................ 149
Lid .......................................................... 149
Light Bulbs .............................................. 564
Main Switch............................................ 151
Open Message .......................................... 97
Unable to Open ...................................... 560
Turn Signals .............................................. 161
Indicators (Instrume nt Panel) ..................... 82
Turn-by-Turn Directions .......................... 118
Two-way Keyless Access Remote .... 144, 365
U
Under-Floor Storage Area....................... 201
Unlocking the Doors ................................ 136
Unlocking the Fron t Doors from the
Inside ................................................. 13, 145
USB Flash Drives ....................................... 276
USB Port .................................................... 215
Using the Keyless Access System ............. 136
V
Valet Mode............................................... 151
Vanity Mirrors ............................................... 7
Vehicle Identification Number ................ 566
Vehicle Stability Assist ® (VSA ®) ................ 417
Off Button ............................................... 418
Off Indicator ...................................... 80, 418
System Indicator ................................ 80, 417
Viscosity (Oil) .................................... 475, 565
VSA ® (Vehicle Stability Assist ®) ................ 417
W
Wallpaper ................................................. 226
Warning and Information Messages ......... 92
Warning Indicator On/Blinking ............... 547
Warning Labels ........................................... 70
Warranties (Warranty Manual provided
separately) ............................................... 572
Watts ......................................................... 564
Wear Indicators (Tire) ............................... 498
Wheel Nut Wrench (Jack Handle) ........... 533
Window Washers ...................................... 169
Adding/Refilling Fluid ............................... 485
Switch ..................................................... 169
Windows (Opening and Closing) ............. 155
Windshield
Cleaning .......................................... 508, 510
Defrosting/Defogging .............................. 211
Washer Fluid ........................................... 485
Wiper Blades ........................................... 491 Wipers and Washers................................ 169
Winter Tires .............................................. 501
Snow Tires .............................................. 501
Tire Chains .............................................. 501
Wipers and Washers ................................. 169
Checking and Replacing Wiper Blades ..... 491
Wireless Charger ...................................... 197
WMA ................................................. 244, 252
Worn Tires ................................................ 493
19 ACURA TLX-31TZ36400.book 585 ページ ２０１８年２月１６日　金曜日　午後１２時２２分
