Pandora Acura TLX 2020 Owner's Manual

17
Quick Reference Guide
Audio Remote Controls
(P217)
●SOURCE Button
Press to change the audio mode: FM/AM/
SiriusXM ®/CD/USB/iPod/Apple CarPlay/
Android Auto/ Bluetooth® Audio/
Pandora ®
*/AUX.
● Left Selector Wheel
Roll to adjust the volume up/down.
Radio: Move to a side to change the
preset station.
Move to a side and hold to select
the next or previous strong station.
CD/USB device: Move to a side to skip to the
beginning of the next song or
return to the beginning of the
current song.
Move to a side and hold to change
a folder.
Left Selector Wheel
SOURCE Button
* Not available on all models
20 ACURA TLX-31TZ36500.book 17 ページ ２０１９年２月７日　木曜日　午後２時２分

213
Features
This chapter describes how to operate technology features.
Audio SystemAbout Your Audio System ................ 214
USB Port .......................................... 215
Auxiliary Input Jack .......................... 216
Audio System Theft Protection ......... 216
Audio Remote Controls .................... 217
Audio System Basic Operation ........ 219
On Demand Multi-Use Display
TM....... 220
Information Screen .......................... 223
Adjusting the Sound ........................ 228
Display Setup ................................... 229
Playing AM/FM Radio ....................... 230 Playing SiriusXM
® Radio ................... 233
Playing a CD .................................... 244
Playing an iPod ................................ 247
Playing Pandora ®
*1........................... 250
Playing a USB Flash Drive ................. 252
Playing Bluetooth ® Audio................. 255
Siri Eyes Free .................................... 257
Apple CarPlay .................................. 258
Android Auto................................... 262
Audio Error Messages ...................... 267 General Information on the Audio
System ............................................. 274
Customized Features ........................ 292
HomeLink ® Universal Transceiver ... 314
Bluetooth® HandsFreeLink® ............. 317
Compass
*.......................................... 352
*1: Available only on U.S. models.
* Not available on all models
20 ACURA TLX-31TZ36500.book 213 ページ ２０１９年２月７日　木曜日　午後２時２分

217
uuAudio System uAudio Remote Controls
Continued
Features
Audio Remote Controls
Allow you to operate the audio system whil e driving. The information is shown on
the multi-information display. SOURCE Button
Cycles through the audio modes as follows:
FM AM SiriusXM®CD USB/iPod/Apple
CarPlay/Android Auto Bluetooth®
Audio Pandora®
*AUX
Left Selector Wheel
Roll Up: To increase the volume.
Roll Down: To decrease the volume.
Push: To mute. Push again to unmute.
• When listening to the radio
Move to the right: To select the next preset radio station.
Move to the left: To select the previous preset radio station.
Move to the right and hold: To select the next strong station.
To select the next channel. (SiriusXM ® only)
Move to the left and hold: To select the previous strong station.
To select the previous channel. (SiriusXM ® only)
1Audio Remote Controls
Some mode appears only when an appropriate
device or medium is used.
Left Selector Wheel
SOURCE Button
* Not available on all models
20 ACURA TLX-31TZ36500.book 217 ページ ２０１９年２月７日　木曜日　午後２時２分

218
uuAudio System uAudio Remote Controls
Features
• When listening to a CD, iPod, USB flash drive, or Bluetooth® Audio
Move to the right: To skip to the next song.
Move to the left: To go back to the beginning of the current or previous song.
Move to the right and hold: To go to the next folder. (Bluetooth® Audio only)
Move to the left and hold: To go to the previous folder. ( Bluetooth® Audio
only)
• When listening to a CD or USB flash drive
Move to the right and hold: To skip to the next folder.
Move to the left and hold: To go back to the previous folder.
• When listening to Pandora ®
*
Move to the right: To skip to the next track.
Move to the right and hold: To select the next station.
Move to the left and hold: To select the previous station.
* Not available on all models
20 ACURA TLX-31TZ36500.book 218 ページ ２０１９年２月７日　木曜日　午後２時２分

250
uuAudio System Basic Operation uPlaying Pandora ®*1
Features
Playing Pandora ®*1
Your audio system allows you to listen to music from the Pandora ® app on a
compatible smartphone.
This function is available when the phone is paired and connected to the vehicle’s
Bluetooth ® HandsFreeLink ® (HFL) system, or with an iPhone, you can connect using
your USB cable to the USB port.
2 Phone Setup P. 325
2 USB Port P. 215
*1:Available only on U.S. models.
1Playing Pandora ®*1
Pandora®, the Pandora logo, and the Pandora trade
dress are trademarks or registered trademarks of
Pandora Media, Inc., used with permission. Pandora
is currently available exclusively in the United States.
To find out if your phone is compatible with this
feature, visit www.handsfreelink.com/Acura , or call
1-888-528-7876.
VOL/ (Volume/Power) Knob
Press to turn the audio system on
and off.
Turn to adjust the volume.
Audio Menu
Select to display the menu items.
Source
Select to change an audio source.
(Information) Icon
Select to display the current track
details.
Select to display the previous
screen.
Stations
Select to display the station list
screen.
On Demand Multi-Use DisplayTMLike/Dislike Icons
Select to evaluate a track.
Skip Icon
Select to skip a track.
Play/Pause Icon
Select to pause or play a track.Station Up/Down Icons
Select to change a station.
Bookmark Track Icon
Bookmarks the current track.
Bookmark Artist Icon
Bookmarks the current artist.
20 ACURA TLX-31TZ36500.book 250 ページ ２０１９年２月７日　木曜日　午後２時２分

251
uuAudio System Basic Operation uPlaying Pandora ®*1
Features
1.Select Stations .
2. Select an item to select a track.
■Create Station
You can create a station by Genre, Current
Track or Current Artist .
1. Select Stations .
2. Select Create Station.
3. Select the item you want to create a station.
You can also create a station by the following
procedure.
1. Select track name or artist name.
2. Select Yes.
■Select the conn ecting method
If the two devices that install Pandora app are c onnected via the USB and Bluetooth®
connection separately, you can select the USB or Bluetooth® connection to use the
Pandora ®.
1. Select the PANDORA on the source list screen.
2. Select USB or Bluetooth .
■How to Select a Track from the Stations List1Playing Pandora ®*1
Pandora® is a personalized Intern et radio service that
selects music based on an arti st, track, or genre a user
enters, and streams what is likely to be of interest.
To use this service in your vehicle, the Pandora ® app
must first be installed on your phone. Visit
www.pandora.com . for more information.
If you cannot operate Pandora ® through the audio
system, it may be streaming through Bluetooth®
Audio. Make sure Pandora ® mode on your audio
system is selected.
Available operating functi ons vary on software
versions. Some functions ma y not be available on the
vehicle’s audio system.
If there is a problem, you may see an error message
on the On Demand Multi-Use Display
TM.
2 Pandora ® P. 270
There are restrictions on the number of tracks you
can skip or dislike in a given hour.
If your phone is connec ted to Android Auto,
Pandora ® is only available through the Android Auto
interface.
Visit the Android Auto website to check
compatibility.
Select track or artist name.
20 ACURA TLX-31TZ36500.book 251 ページ ２０１９年２月７日　木曜日　午後２時２分

270
uuAudio Error Messages uPandora®
Features
Pandora ®
If an error occurs while playing Pandora ®, you may see the following error messages.
If you cannot clear the error message, contact a dealer.
Error MessageSolution
This USB device is incompatible. Please see your owner’s
manual for more details.Appears when an incompatible device is connected. Disconnect
the device. Then turn the audio system off, and turn it again. Do
not reconnect the device that caused the error.
There is an unsupported device detected. When safe, please
reconnect your device.Appears when there is a problem with the audio system. Check if
the device is compatible with the audio system.
No stations have been created. When safe, please create a
station on the device.
Appears when there is no station lis t on the device. Use the device
to create a station.There is no active station.
This PANDORA station is currently not available. Please select
another station.
Music licenses force us to limi t the number of tracks you may
skip each hour.Appears when you try to skip a track over the predetermined
number of times in an hour.
The system is unable to save rating.
The system is unable to save bookmark.
or
The system is unable to skip.
Appears when the commanded operation is failed. Try again later.
There is no data available.Appears when no data is available with Pandora® activated.
Reboot the app and reconnect the device.
U.S. models
20 ACURA TLX-31TZ36500.book 270 ページ ２０１９年２月７日　木曜日　午後２時２分

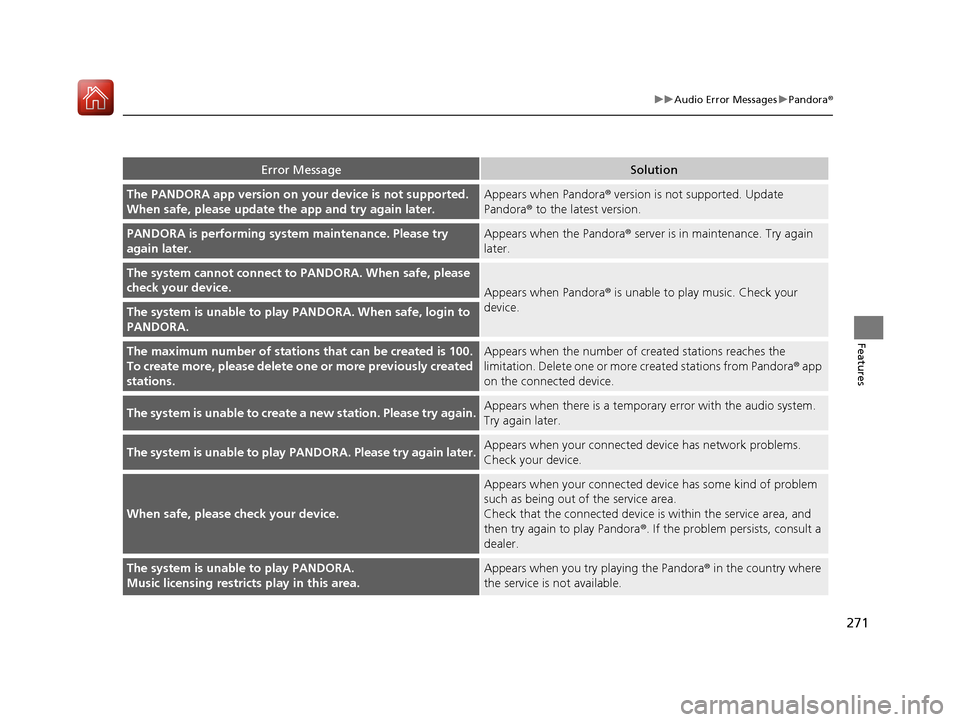

271
uuAudio Error Messages uPandora ®
Features
Error MessageSolution
The PANDORA app version on your device is not supported.
When safe, please update the app and try again later.Appears when Pandora® version is not supported. Update
Pandora ® to the latest version.
PANDORA is performing system maintenance. Please try
again later.Appears when the Pandora ® server is in maintenance. Try again
later.
The system cannot connect to PANDORA. When safe, please
check your device.
Appears when Pandora® is unable to play music. Check your
device.
The system is unable to play PANDORA. When safe, login to
PANDORA.
The maximum number of stations that can be created is 100.
To create more, please delete on e or more previously created
stations.Appears when the number of created stations reaches the
limitation. Delete one or more created stations from Pandora ® app
on the connected device.
The system is unable to create a new station. Please try again.Appears when there is a temporar y error with the audio system.
Try again later.
The system is unable to play PANDORA. Please try again later.Appears when your connected device has network problems.
Check your device.
When safe, please check your device.
Appears when your connected device has some kind of problem
such as being out of the service area.
Check that the connected device is within the service area, and
then try again to play Pandora ®. If the problem persists, consult a
dealer.
The system is unable to play PANDORA.
Music licensing restricts play in this area.Appears when you try playing the Pandora ® in the country where
the service is not available.
20 ACURA TLX-31TZ36500.book 271 ページ ２０１９年２月７日　木曜日　午後２時２分

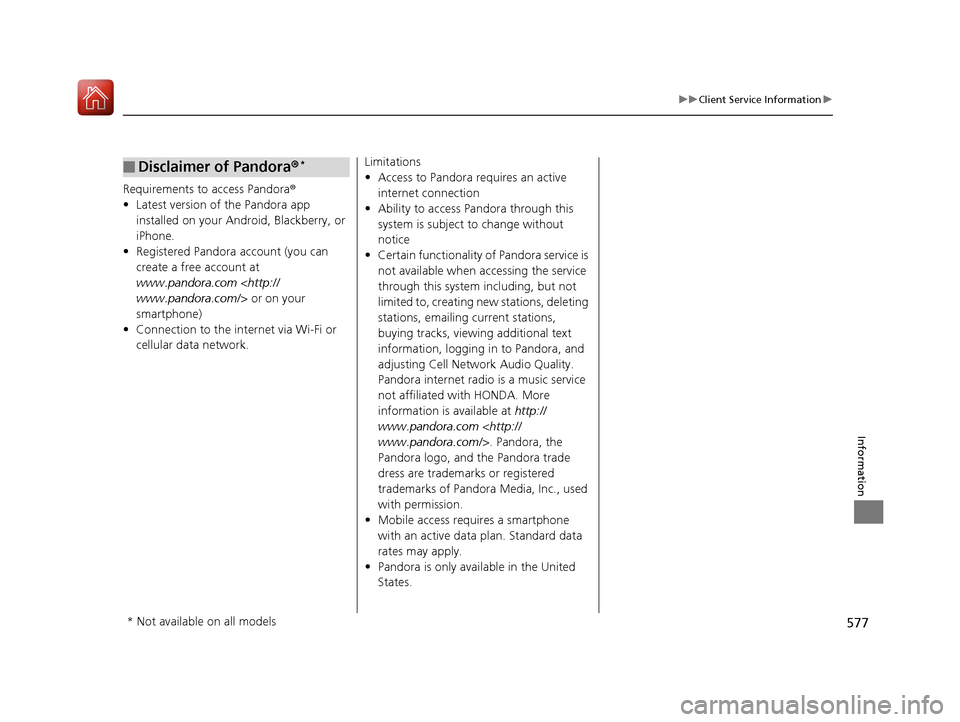

577
uuClient Service Information u
Information
Requirements to access Pandora ®
• Latest version of the Pandora app
installed on your Android, Blackberry, or
iPhone.
• Registered Pandora account (you can
create a free account at
www.pandora.com www.pandora.com/ > or on your
smartphone)
• Connection to the in ternet via Wi-Fi or
cellular data network.
■Disclaimer of Pandora ®*Limitations
•Access to Pandora requires an active
internet connection
• Ability to access Pandora through this
system is subject to change without
notice
• Certain functionality of Pandora service is
not available when accessing the service
through this system including, but not
limited to, creating new stations, deleting
stations, emailing current stations,
buying tracks, viewing additional text
information, logging in to Pandora, and
adjusting Cell Network Audio Quality.
Pandora internet radio is a music service
not affiliated with HONDA. More
information is available at http://
www.pandora.com www.pandora.com/ >. Pandora, the
Pandora logo, and the Pandora trade
dress are trademarks or registered
trademarks of Pandora Media, Inc., used
with permission.
• Mobile access requires a smartphone
with an active data plan. Standard data
rates may apply.
• Pandora is only available in the United
States.
* Not available on all models
20 ACURA TLX-31TZ36500.book 577 ページ ２０１９年２月７日　木曜日　午後２時２分

Index
578
Index
Index
A
AAC.................................................... 244, 252
ABS (Anti-lock Brake System) ................... 435
Accessories and Modifications ................. 514
Accessory Power Sockets .......................... 196
AcuraWatch
TM............................................. 22
Adaptive Cruise Control (ACC) with Low Speed Follow ........................................... 390
Additives Coolant ................................................... 484
Engine Oil ................................................ 477
Washer .................................................... 487
Additives, Engine Oil ................................ 477
Adjusting
Armrest ................................................... 188
Front Seats .............................................. 180
Head Restraints........................................ 183
Mirrors .................................................... 177
Steering Wheel ........................................ 176
Temperature ............................................ 117
Agile Handling Assist ................................ 420
Air Conditioning System (Climate Control
System) .................................................... 205
Changing the Mode ................................ 208
Defrosting the Windshield and
Windows ............................................... 211
Dust and Pollen Filter ............................... 508
Sensors .................................................... 212
Synchronized Mode ................................. 209
Using Automatic Climate Control ............ 205
Air Pressure ....................................... 496, 567 Airbags
........................................................ 41
Advanced Airbags ..................................... 47
Airbag Care............................................... 55
Driver’s Knee Airbag.................................. 48
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 44
Indicator.............................................. 53, 79
Passenger Airbag Off Indicator .................. 54
Sensors ..................................................... 41
Side Airbags .............................................. 50
Side Curtain Airbags.................................. 52
AM/FM Radio ............................................ 230
Ambient Light Off Switch ........................ 191
Android Auto ........................................... 262
Anti-lock Brake System (ABS) .................. 435
Indicator.................................................... 79
Apple CarPlay ........................................... 258
Armrest ..................................................... 188
Audio Remote Controls ........................... 217
Audio System ............................................ 214
Adjusting the Sound................................ 228
Auxiliary Input Jack.................................. 216
Error Messages ........................................ 267
General Information ................................ 274
iPhone............................................. 250, 276
iPod ........................................................ 247
MP3/WMA/AAC .............................. 244, 252
Pandora ®................................................. 250
Reactivating ............................................ 216
Recommended CDs ................................. 275
Recommended Devices............................ 276 Remote Controls ..................................... 217
Security Code ......................................... 216
Theft Protection ...................................... 216
USB Flash Drives...................................... 276
USB Port ................................................. 215
Authorized Manuals ................................ 575
Auto Door Locking/Unlocking ................ 148
Customize ...................................... 126, 304
Auto High-Beam ...................................... 166
Auto Idle Stop .......................................... 382
OFF Button ............................................. 383
Auto Idle Stop Indicator (Green) .............. 89
Auto Idle Stop System Indicator (Amber) ..................................................... 89
Automatic Brake Hold ............................. 433
Indicator ........................................... 74, 433
Automatic Brake Hold System
Indicator ........................................... 74, 433
Automatic Folding Door Mirror .............. 179
Automatic Lighting .................................. 163
Automatic Transmission .......................... 370
Creeping................................................. 370
Kickdown ............................................... 370
Operating the Shift Button ................ 18, 372
Shifting ................................................... 371
Auxiliary Input Jack ................................. 216
Average Fuel Economy ............................ 117
Average Speed ......................................... 118
20 ACURA TLX-31TZ36500.book 578 ページ ２０１９年２月７日　木曜日　午後２時２分
