Acura TSX 2004 Owner's Manual

µ
If you press the LOAD button while
a CD is playing, the system will stop
playing that CD and start the loading
sequence. It will then play the CD
just loaded.
You can also load a CD into an empty
position while a CD is playing by
touching the appropriate disc icon.
Select an empty position (the disc
icon below the disc number is dark),
and touch the icon f or that position
(1 6). The system will stop playing
the current CD and start the loading
sequence. It will then play the CD
just loaded.
Audio System
Comf ort and Convenience Feat ures158
EJECT
BUTTON
LOAD
BUTTON DISC ICONS
CD SLOT AUDIO DISPLAY BUTTON
CD/AUX BUTTON
SEEK/SKIP BAR
CD LOAD
INDICATOR
CH DISC BAR
DISC NUMBER

µ
ÛÝ ÛÝ
Û
Ý
Û
Ý
Select the CD changer by pressing
the CD/AUX button. You will see
‘‘CD’’ in the upper display. The
system will begin playing the last
selected disc in the CD changer. You
will see the disc and track numbers
displayed.
When that disc ends, the next disc in
the CD changer is loaded and played.
Af ter the last disc f inishes, the
system returns to disc one.
You can use the SKIP bar while a
disc is playing to select passages and
change tracks. To select a dif f erent disc, touch the
appropriate disc icon (1 6) or
press the ‘‘ ’’ or ‘‘ ’’ on the CH
DISC bar. If you use a disc icon to
select an empty position in the CD
changer, the system will go into the
loading sequence (see page ). When you touch the TRACK SCAN
icon on the audio display, the f irst
track of the current CD plays for
about 10 seconds. You will see
TRACK SCAN highlighted in the
display (or SCAN in the upper
display). To hear the rest of the
track, touch TRACK SCAN again,
within 10 seconds. If you don’t, the
system advances to the next track,
plays about 10 seconds of it, and
continues through the rest of the
tracks the same way.
To move rapidly within a track, press
andhold‘‘ ’’or‘‘ ’’ontheSKIP
bar. The system will continue to
move through the track. Press to
move forward, or to move
backward. Release the bar when the
system reaches the point you want.
Each time you press and release ,
the system skips forward to the
beginning of the next track. Press
and release to skip backward to
the beginning of the current track.
Press it again to skip to the
beginning of the previous track.
157
Operat ionTrack Scan
Audio System
Comf ort and Convenience Feat ures159

When you touch the TRACK RPT
icon on the audio display, the system
continuously replays the current
track. As a reminder, you will see
TRACK REPEAT in the display (or
RPT in the upper display). To turn
this feature off, touch TRACK
REPEAT again.
When you touch the DISC RPT icon
on the audio display, the system
continuously replays the current CD.
As a reminder, you will see DISC
REPEAT in the display (or D-RPT in
the upper display). To turn this
feature off, touch DISC RPT again.
When you touch the DISC SCAN
icon on the audio display, the f irst
track of the current CD plays for
about 10 seconds. You will see DISC
SCAN in the display (or D-SCAN in
the upper display). To hear the rest
of the CD, touch DISC SCAN again,
within 10 seconds. If you don’t, the
system advances to the next CD,
plays about 10 seconds of it, and
continues through the rest of the
CDs the same way. When the
system reaches the last CD, DISC
SCAN is cancelled, and the CD plays
normally.
When you touch the RANDOM icon
on the audio display, the system
plays the tracks of the current CD in
random order, rather than in the
order they were recorded. As a
reminder, you will see TRACK
RANDOM in the display. To turn
this f eature of f , touch RANDOM
again, or select a different CD with
one of the disc icons.
Disc Scan
Track Repeat
Disc Repeat Random Play
Audio System
Comf ort and Convenience Feat ures160

To take the system out of CD mode,
press the AM/FM button. Each time
you press the AM/FM button, the
system changes to the next mode
(AM, FM1, or FM2). When you
return to CD mode by pressing the
CD button, play will continue at the
same point that it left off.
If you turn the system of f while a CD
is playing, either with the PWR/VOL
knob or the ignition switch, play will
continue at the same point when you
turn it back on.
CONT INUED
Audio System
Comf ort and Convenience Feat ures161
PWR/VOL
KNOBCD/AUX BUTTON DISC ICONS
AM/FM BUTTON
SCAN BUTTON

To remove the disc that is currently
playing, press the eject button. You
will see ‘‘EJEC’’ in the upper display.
When you remove the disc f rom the
slot, the system automatically begins
the load sequence so you can load
another CD in that position. If you do
not load another CD, within 15
seconds, the system selects the
previous mode (AM, FM1, or FM2).
If you do not remove the disc f rom
the slot, the system will reload the
disc af ter 15 seconds and put the CD
changer in pause mode. To begin
playing the disc, press the CD button.
To remove a different CD from the
changer,firstselectitwiththe
appropriate disc icon or the DISC bar.
When that CD begins playing, press
the eject button.
Removing CDs f rom t he Changer
Audio System
Comf ort and Convenience Feat ures162

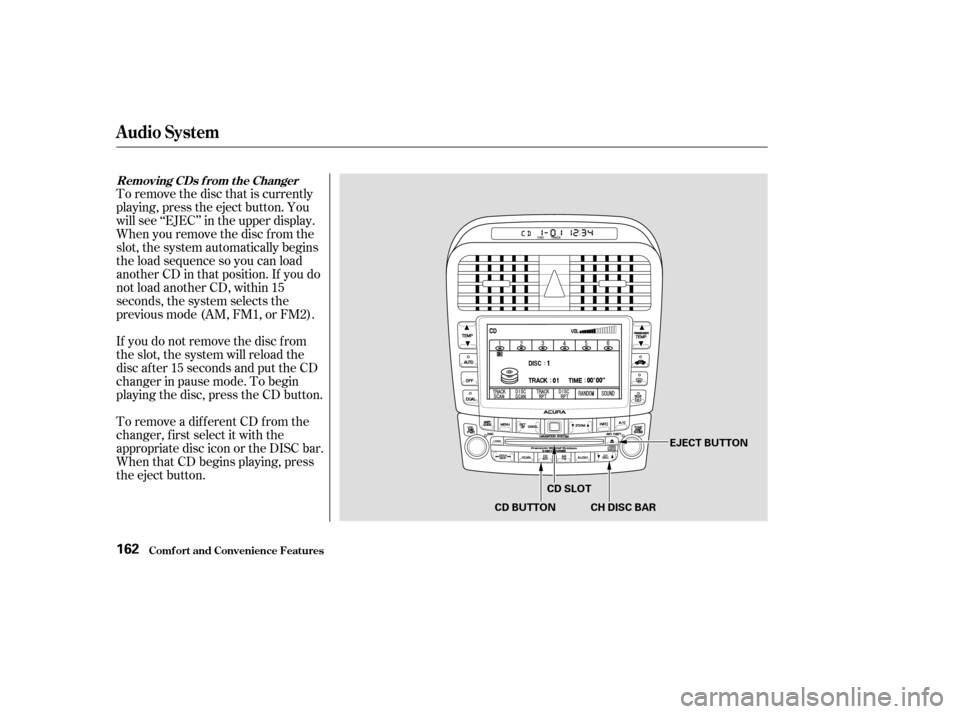

CD SLOTEJECT BUTTON
CD BUTTON CH DISC BAR

If you press the eject button while
listening to the radio, or with the
audio system turned of f , the disc
that was last selected is ejected.
Af ter that disc is ejected, pressing
the eject button again will eject the
next disc in numerical order. By
doing this six times, you can remove
all the CDs f rom the changer.
In any mode, if you press the eject
button and hold it until you hear a
beep, the system will eject all of the
discs in the changer.
You can also eject discs when the
ignition switch is of f by pressing the
eject button. The disc that was last
selected is ejected f irst. You can
eject all six discs, one at a time.
Audio System
Comf ort and Convenience Feat ures163

If you see an error indication in the
upper display while operating the CD
changer, f ind the cause in the chart
to the right. If you cannot clear the
error indication, take the car to your
Acura dealer.Indication Cause
Solution
FOCUS Error
Mechanical ErrorPress the CD eject button and pull out the CDs.
Check for an error indication. Insert the CDs
again. If the code does not disappear or the
CDs cannot be pulled out, consult your Acura
dealer.
Press the CD eject button and pull out the CDs.
Check for an error indication. Insert the CDs
again. If the code does not disappear or the
CDs cannot be pulled out, consult your Acura
dealer.
CD Changer Error Indications
Audio System
Comf ort and Convenience Feat ures164

A new CD may be rough on the
inner and outer edges. The small
plastic pieces causing this roughness
can f lake of f and f all on the re-
cording surf ace of the disc, causing
skipping or other problems. Remove
these pieces by rubbing the inner
and outer edges with the side of a
pencil or pen.
To clean a disc, use a clean sof t cloth.
Wipe across the disc f rom the center
to the outside edge. When a CD is not being played, store
it in its case to protect it f rom dust
and other contamination. To prevent
warpage, keep CDs out of direct
sunlight and extreme heat.
Handle a CD by its edges; never
touch either surf ace. Do not place
stabilizer rings or labels on the CD.
These, along with contamination
f rom f ingerprints, liquids, and f elt-tip
pens, can cause the CD to not play
properly, or possibly jam in the drive.
Never try to insert f oreign objects in
the CD changer.
Protecting Compact Discs
Audio System
Comf ort and Convenience Feat ures165

Î
Î
The cassette system f eatures Dolby
noise reduction, automatic sensing of
chromium-dioxide (CrO ) tape, and
auto-reverse f or continuous play.
To operate the cassette player, the
ignition switch must be in
ACCESSORY(I) or ON(II). Make
sure the tape opening on the cassette
is f acing to the right, then insert the
cassette most of the way into the slot.
The system will pull it in the rest of
the way, and begin to play.
2
Dolby noise reduction manuf actured under
license from Dolby Laboratories Licensing Corpo-
ration. ‘‘DOLBY’’ and the double-D symbol are trademarks of Dolby Laboratories
Licensing Corporation.
Operating the Cassette Player
(Optional)
Audio System
Comf ort and Convenience Feat ures166
TAPE DIRECTION INDICATOR
SEEK/SKIP
BAR CH DISC BAR
AUDIO DISPLAY BUTTON
AM/FM BUTTON
CD/AUX BUTTON
PWR/VOL
KNOB
NR ICON
RPT INDICATOR
PLAY/PROG
ICON RPT ICON

ÛNoise reduction remains of f until you
turn it on by pressing the icon again.
When the system reaches the end of
the tape, it will automatically reverse
direction and play the other side. If
you want to remove the cassette
from the drive, press the eject button
on the cassette player.
Thetapedirectionindicatoronthe
upper display will light to show you
which side of the cassette is playing.
The indicates the side you
inserted f acing upward is now
playing. If you want to play the other
side, push the AUDIO DISPLAY
button to change to the audio display,
then touch the PLAY/PROG icon.
Dolby noise reduction turns on when
you insert a cassette. If the tape was
not recorded with Dolby noise reduc-
tion, push the AUDIO DISPLAY
button to change to the audio display,
and turn it of f by touching the NR
icon.
If you turn the system of f while a
tape is playing, either with the PWR/
VOL knob or by turning of f the
ignition, the cassette will remain in
the drive. When you turn the system
back on, the cassette player will be in
pause mode. To begin playing, push
the AUDIO DISPLAY button to
change to the audio display, then
touch the PLAY/PROG icon.
To switch to the radio or CD
changer while a tape is playing, press
the AM/FM or CD/AUX button. To
change back to the cassette player,
push the CD/AUX button.
Audio System
Comf ort and Convenience Feat ures167
