Acura TSX 2009 Owner's Manual

The back of the rear seat folds down
to give you direct access to the trunk.
Each side f olds down separately.
With only half the seat f olded, you
can still carry a passenger in the
back seat. The seat-back can be
released f rom inside the trunk.When storing cargo, you can move
therearcentershoulderbeltoutof
the way by removing the belt from
the guide.To release the seat-back from inside
the trunk, pull the release under the
trunk panel. Push the seat-back
down f rom inside the trunk, or pull
the seat-back down f rom inside the
vehicle.
Seats
Folding the Rear Seats
138
CENTER SHOULDER BELTGUIDE
RELEASE
\f—\f—\fy\f\fy
)!
\f\fy\f
y
2009 TSX

Make sure all rear shoulder belts are
positioned in f ront of the rear seat-
back, and the center shoulder belt is
re-positioned in the guide whenever
the seat-back is in its upright position.
Be sure there are no twists in any
shoulder belt.
Remove any items from the seat
beforeyoufolddowntheseat-back. Make sure that the folded seat-back
does not press against the f ront
passenger’s seat, as this could cause
the weight sensors to work
improperly.
Make sure the rear seat armrest is
stored. If the rear head restraints get caught
on the f ront seat backs and you
cannot fold down the rear seat-back
f ully, you can remove the head
restraints (see page ).
Make sure the removed head
restraints are securely stored.
To lock the seat-back upright, push it
f irmly against the trunk panel. Make
sure it is latched in place by pulling
on the top of the seat.
Do not put any heavy items on the
seat-back when it is folded down.
Make sure all items in the trunk, or
items extending through the opening
into the back seat, are secured.
Looseitemscanflyforwardand
cause injury if you have to brake
hard. See on page
.
Never drive with the seat-back
f olded down and the trunk lid open.
See on
page .
136
36755Carrying Cargo
Carbon Monoxide Hazard
Seats
Inst rument s and Cont rols
139
\f—\f—\fy\f\fy
)!
\f\fy\f
y
2009 TSX

To use the console lid as an armrest,
slide it to the desired position while
pulling up the release lever. Release
the lever to lock it in position where
youwantittostop.The rear seat armrest is in the
center of the rear seat. Pivot it down
to use it.
A beverage holder is located in the
armrest.
Seats
Armrest
140
Front
Rear
LEVER
\f—\f—\fy\f\fy
)!
\f\fy\f
y
2009 TSX

In the HI setting, the heater turns off
when the seat gets warm, and turns
back on after the seat’s temperature
drops.
In the LO setting, the heater runs
continuously. It does not cycle with
temperature changes.
Follow these precautions whenever
you use the seat heaters:If the engine is lef t idling f or an
extended period, do not use the
seat heaters even on the LO
setting. It can weaken the battery,
causing hard starting.
Use the HI setting only to heat the
seats quickly, because it draws
large amounts of current f rom the
battery.
Both f ront seats are equipped with
seat heaters. Because of the sensors
f or the side airbag cutof f system,
there is no heater in the passenger’s
seat-back. The ignition switch must
be in the ON (II) position to use the
heaters. Push the front of the switch, HI, to
rapidly heat up the seat. Af ter the
seat reaches a comfortable
temperature, select LO by pushing
the back of the switch. This will keep
the seat warm.
Seat Heaters
Inst rument s and Cont rols
141
Passenger’s
Seat
Driver’s
Seat
HEATERS
SEAT HEATER SWITCH
\f—\f—\fy\f
y
)!
\f\fy\f
y
2009 TSX

Store a driving position only when
the vehicle is parked.Turn the ignition switch to the ON
(II) position. You cannot add a
new driving position to the
memory unless the ignition switch
is in the ON (II) position. You can
recall a memorized position with
the ignition switch in any position.
Adjust the seat to a comfortable
position (see page ). Press and release the SET button
on the control panel. You will hear
a beep. Immediately press and
hold one of the memory buttons (1
or 2) until you hear two beeps.
The indicator in the memory
button will come on. The current
position of the driver’s seat is now
stored.
This setting can be linked or
unlinked with the remote transmitter.
To switch the link setting, see page
.
Two seat positions can be stored in
separate memories. You select a
memorized position by pushing the
appropriate button or using the
appropriate remote transmitter
(Driver 1 or Driver 2).
Your vehicle has a memory feature
f or the driver’s seat position.
3.
1.
2.
134
93
U.S. TSX and Canadian TSX PremiumStoring a Driving Position in
Memory
Driving Position Memory System
142
MEMORY BUTTONS
SET BUTTON
\f—\f—\fy

y
)!
\f\fy\f
y
2009 TSX

The system will move the driver’s
seat to the memorized position. The
indicator in the selected memory
button will flash during movement.
When the adjustment is complete,
you will hear two beeps, and the
indicator will stay on.
Not press a memory button within
5 seconds.
Each memory button stores only one
driving position. Storing a new
position erases the previous setting
stored in that button’s memory. If
you want to add a new position while
retaining the current one, use the
other memory button. To select a memorized position, do
this:
Doing any of the f ollowing af ter
pressing the SET button will cancel
the storing procedure.
Readjust the seat position.
Turn the ignition switch out from
the ON (II) position.
Make sure the parking brake is set
and the shif t lever is in Park
(automatic).If the parking brake is not set, you
must press and hold the memory
button until the adjustment is
complete.

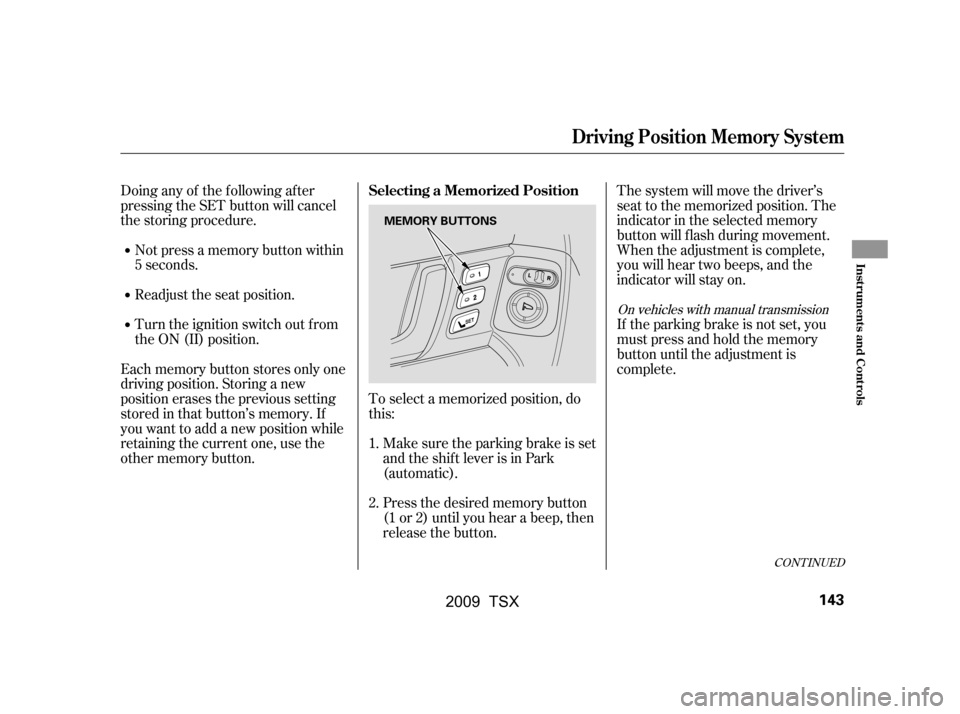

Press the desired memory button
(1 or 2) until you hear a beep, then
release the button.
1.
2.
On vehicles with manual transmission
CONT INUED
Selecting a Memorized Position
Driving Position Memory System
Inst rument s and Cont rols
143
MEMORY BUTTONS
\f—\f—\fy\f\fy
)!
\f\fy\f
y
2009 TSX

To stop the system’s automatic
adjustment, do any of these actions:Press any button on the control
panel: SET, 1, or 2.
Push any of the adjustment
switches f or the seat.
Shif t out of Park (automatic).
Release the parking brake
(manual). If desired, you can use the
adjustment switches to change the
seat position af ter it is in its
memorized position. If you change
the memorized position, the
indicator in the memory button will
go out. To keep this seat position f or
later use, you must store it in the
driver’s seat position memory.
Driving Position Memory System
144
\f—\f—\fy\fy
)!
\f\fy\f
y
2009 TSX

Turn the ignition switch to the ON
(II) position.
Move the selector switch to L
(driver’s side) or R (passenger’s
side).
Keeptheinsideandoutsidemirrors
clean and adjusted f or best visibility.
Be sure to adjust the mirrors bef ore
you start driving. The inside mirror can automatically
darken to reduce glare. To turn on
this feature, press the button on the
bottom of the mirror. The AUTO
indicator comes on as a reminder.
When it is on, the mirror darkens
when it senses the headlights of a
vehicle behind you, then returns to
normal visibility when the lights are
gone. Press the button again to turn
of f this f eature.
1.
2.
CONT INUED
Mirrors
A djusting the Power Mirrors
Inst rument s and Cont rols
145
SELECTOR
SWITCH
INDICATOR
SENSOR
AUTO BUTTON ADJUSTMENT
SWITCH
There is also a sensor on the back of
the mirror. Items hung on the mirror
may block this sensor and af f ect its
perf ormance.
\f—\f—\fy\fy
)!
\f\fy\f
\fy
2009 TSX

Push the appropriate edge of the
adjustment switch to move the
mirrorright,left,up,ordown.
When you f inish, move the
selector switch to the center (off)
position. This turns the
adjustment switch of f to keep your
settings.To tilt the passenger mirror, place
the selector switch in the right
position.
To turn the feature off, place the
switch in the center or lef t position. The outside mirrors are heated toremove fog and frost. With the
ignition switch in the ON (II)
position, turn on the heaters by
pressing the rear window def ogger
button. The indicator in the button
comesonasareminder.Pressthe
button again to turn the heaters and
the def ogger of f .
The passenger’s outside mirror has a
reverse tilt f eature. When in reverse,
the mirror will tilt down slightly to
improve your view as you parallel
park. Shif ting out of reverse will
return the mirror to its original
position.
This heated mirror f unction has a
timer (see page ).
3.
4.
117
PowerMirrorHeaters
Reverse Tilt Door Mirror
Mirrors
146
HEATED MIRROR BUTTON
\f—\f—\fy\f\fy
)!
\f\fy\f

y
2009 TSX

µ
Turn the ignition switch to the ON
(II) position to raise or lower any
window. To open a window, push the
switchdownandholdit.Releasethe
switch when you want the window to
stop. Pull back on the switch and
hold it to close the window.
To open either f ront
window f ully, push the window
switch f irmly down to the second
detent, then release it. The window
automatically goes down all the way.
To stop the window f rom going all
the way down, pull back on the
window switch briefly.
To close either f ront window f ully,
pull back the window switch f irmly
to the second detent, then release it.
The window automatically goes all
the way up. To stop the window from
going all the way up, push down on
the window switch briefly.
CONT INUED
Power Windows
AUTO
Inst rument s and Cont rols
147
MAIN SWITCH
DRIVER’S WINDOWSWITCH
FRONTPASSENGER’SWINDOW SWITCH
INDICATOR
Closing a power window on
someone’s hands or fingers can
cause serious injury.
Make sure your passengers are
away from the windows before
closing them.
——y
y
)!
y
y
