Display Acura TSX 2010 Owner's Manual

When in reverse, the navigation
system ‘‘hard’’ buttons are locked out,
except the ‘‘ ’’ button.
Pressing and releasing the button
allows you to switch the brightness
of the rearview camera image
between the night and the day
positions.
You can also adjust the brightness of
the rearview camera image by
turning the knob on the interf ace
dial.
Since the rearview camera display
area is limited, you should always
back up slowly and caref ully, and
look behind you f or obstacles.
Whenever you shif t to reverse (R)
with the ignition switch in the ON
(II) position, the rearview is shown
on the navigation system screen.
For the best picture, always keep the
rearview camera clean, and do not
cover the camera lens. To avoid
scratching the lens when you clean it,
use a moist, sof t cloth.On vehicles with navigation system
Rearview Camera and Monitor
344
REARVIEW CAMERA
The camera brightness cannot be
adjusted by voice control.
2010 TSX

If the system still detects a leak in
the vehicle’s evaporative emissions
system, the malf unction indicator
lamp (MIL) comes on. If the f uel f ill
cap was not already tightened, turn
the engine of f , and check or
retighten the f uel f ill cap until it
clicks at least once. The MIL should
go off after several days of normal
driving once the cap is tightened or
replaced. If the MIL does not go of f ,
have your vehicle inspected by a
dealer. For more inf ormation, see
page . The ‘‘TIGHTEN FUEL CAP’’
message will appear each time you
restart the engine until the system
turns the message off.
Turn the engine of f , and conf irm the
f uel f ill cap is installed. If it is, loosen
it, then retighten it until it clicks at
least once. The message should go off after several days of normal
driving once you tighten or replace
thefuelfillcap.Toscrolltoanother
message, press the INFO button.
Your vehicle’s on board diagnostic
system will detect a loose or missing
f uel f ill cap as an evaporative system
leak. The f irst time a leak is detected
a ‘‘TIGHTEN FUEL CAP’’ message
appears on the multi-inf ormation
display.
Screw the fuel fill cap back on
until it clicks at least once. If you
do not properly tighten the cap,
you will see a ‘‘TIGHTEN FUEL
CAP’’ message on the multi-
inf ormation display. If the system
still detects an evaporative system
leak af ter retightening the cap, the
malf unction indicator lamp may
come on (see page ).
Push the f uel f ill door closed until
it latches. If the door won’t close
f ully, do not f orce it. Unlock the
drivers door f irst.
6.
7.
472
472
Service Station Procedure
Tighten Fuel Cap Message
Bef ore Driving
349
The f uel door and its latching
mechanism can be permanently
damaged if the f uel door is f orced
closed when the driver’s door is
locked.
2010 TSX

µµ
µ µ
µ
µ
µ
Aggressive driving (hard
acceleration and braking)
Excessive idling, accelerating and
braking in stop-and-go traf f ic
Cold engine operation (engines
aremoreefficientwhenwarmed
up)
Driving with a heavy load or the
air conditioner running
Improperly inf lated tires
The f ollowing f actors can lower your
vehicle’s f uel economy:
A properly maintained vehicle
maximizes f uel economy. Poor
maintenance can signif icantly reduce
f uel economy. Always maintain your
vehicle according to the maintenance
messages displayed on the multi-
inf ormation display (see
on page ).
For example: Rapid
acceleration, abrupt cornering,
and hard braking increase fuel
consumption.
Aerodynamic drag has a big ef f ect
on f uel economy at speeds above
45 mph (75 km/h). Reduce your
speed and you reduce the drag.
Trailers, car top carriers, roof
racks and bike racks are also big
contributors to increased drag.
If your vehicle has a
manual transmission, you can
boost your f uel economy by up
shif ting as early as possible.
Idling
results in 0 miles per gallon (0 kms
per liter).
In
particular, a build-up of snow or
mud on your vehicle’s underside
adds weight and rolling resistance.
Frequent cleaning helps your f uel
economy. It puts a heavier
load on the engine, increasing f uel
consumption. An underinf lated tire increases
‘‘rolling resistance,’’ which reduces
f uel economy.
410
CONT INUED
Fuel Economy Factors Use the recommended viscosity
motor oil, displaying the A PI
Certif ication Seal (see page ).
Improving Fuel Economy Owner’s
Maintenance Checks Drive moderately
Observe the speed limit
Always drive in the highest gear
possible
Avoid excessive idling
K eep your vehicle clean A void carrying excess weight in
your vehicle Maintain proper tire inf lation
416
Vehicle Maint enance Drive Ef f icient ly
Fuel Economy
Bef ore Driving
355
2010 TSX

Make sure all windows, mirrors,
and outside lights are clean and
unobstructed. Remove f rost, snow,
or ice.Make sure the doors are securely
closed and locked.
Fasten your seat belt. Check that
your passengers have f astened
their seat belts (see page ). Check the steering wheel
adjustment (see page ).
Check that the hood is f ully closed.
Check that the trunk is f ully
closed.
Check that any items you may be
carrying are stored properly or
f astened down securely.
Youshoulddothesechecksand
adjustments bef ore you drive your
vehicle:
Check the seat adjustment (see
page ).
When you start the engine, check
the gauges and indicators in the
instrument panel, and the
messages on the multi-inf ormation
display (see pages , and
).
Visually check the tires. If a tire
looks low, use a gauge to check its
pressure. Check the adjustment of the
inside and outside mirrors (see
page ).
3. 2. 1.
4.
5. 6.
7.
8.
9.
15 68
134
118 59
70
145
10. 11.
Preparing to Drive
366
2010 TSX

If there is a problem with the
starting system, you will see a
‘‘CHECK STARTING SYSTEM’’
message on the multi-inf ormation
display when the ignition switch is
turned to the ON (II) position. You
will also see this message when the
auto control mode of the starting
system has a problem.If this message is on, the ignition
switchhastobeheldintheSTART
(III) position manually until the
engine starts. The ignition switch
canbeheldinthatpositionupto15
seconds.
Even though you may be able to
start the engine manually without
the auto control mode of the starting
system, have your vehicle inspected
by a dealer.
Check Starting System Message
Starting the Engine (6-cylinder models)
Driving
369
U.S.
Canada
2010 TSX

If the malf unction indicator lamp
comes on along with the ‘‘D’’
indicator, there is a problem with the
automatic transmission control
system. Avoid rapid acceleration, and
have the transmission checked by
your dealer as soon as possible.
The ‘‘D’’ indicator comes on f or a
f ew seconds when you turn the
ignition switch to the ON (II)
position. If it f lashes while driving (in
any shif t position), it indicates a

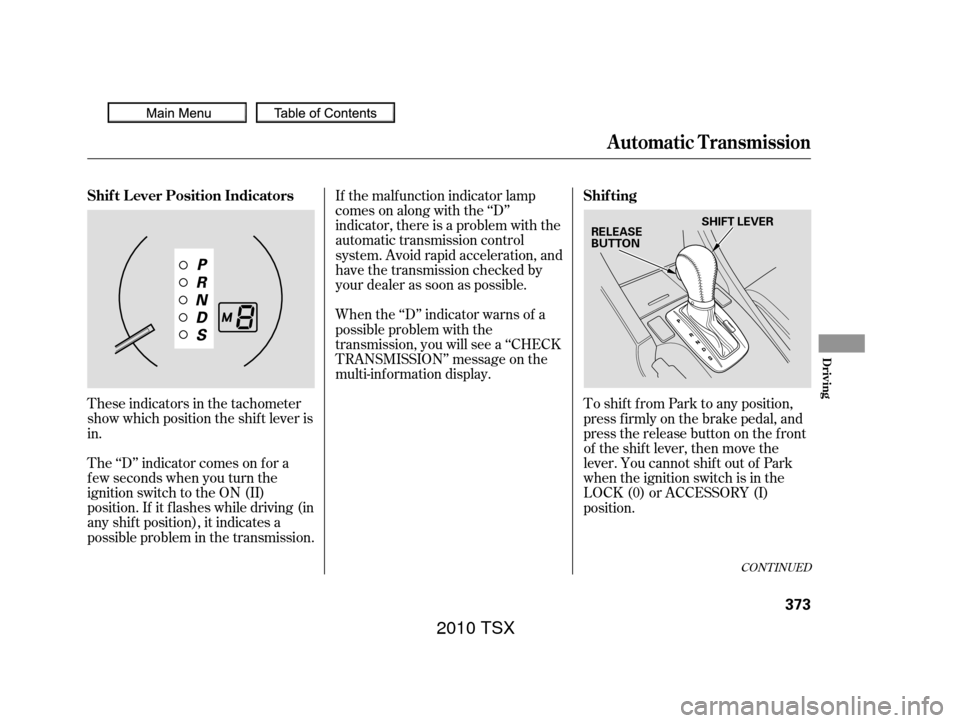

possible problem in the transmission. These indicators in the tachometer
show which position the shif t lever is
in. When the ‘‘D’’ indicator warns of a
possible problem with the
transmission, you will see a ‘‘CHECK
TRANSMISSION’’ message on the
multi-inf ormation display.
To shif t f rom Park to any position,
pressfirmlyonthebrakepedal,and
pressthereleasebuttononthefront
of the shift lever, then move the
lever. You cannot shift out of Park
when the ignition switch is in the
LOCK (0) or ACCESSORY (I)
position.
CONT INUED
Shif t L ever Position Indicators Shif ting
Automatic Transmission
Driving
373
SHIFT LEVER
RELEASE
BUTTON
2010 TSX

´à
à
à
à
Î
Î
Î
Î
Î
Î
The transmission control system
monitors the accelerator pedal use
and your driving conditions. When
you press the accelerator pedal as in
normal driving, the system judges
that you are driving at a constant
cruising speed without using the
paddle shif ters. Under these
conditions, D-paddle shif t mode is
canceled, and the transmission
automatically returns to drive mode
(D). Here are the speed ranges f or
downshif ting.
Hold the paddle shifter for 2
seconds to return to drive mode (D). Speed range
under 118 mph (190 km/h)
under 130 mph (209 km/h)
under 87 mph (140 km/h)
under 84 mph (135 km/h)
under 55 mph (88 km/h)
under 24 mph (38 km/h)
To shift
from
54
43
32
21
If you try to do this, the gear
position indicator will f lash the
numberof thelowergearseveral
times, then return to a higher gear. You downshif t bef ore the engine
speed reaches the highest
threshold of the lower gear.
The automatic transmission will not
allow you to shif t up or down if : Each time you pull either paddle
shifter, the transmission shifts one
gear up or down. If you want to shif t
up or down more than two gears, pull
the paddle shif ter twice, pause, and
then pull it again. The transmission remains in the
selected gear if you do not accelerate. When the transmission returns to
drive mode (D), the displayed gear
number disappears.
6-cylinder models
1
2
1
2
1:
2:
4-cylinder models
6-cylinder models
Driving with the Paddle Shif ters
378
2010 TSX

´µ
CONT INUED
When you move the shif t lever f rom
‘‘D’’ to ‘‘S’’ position and pull either
paddle shif ter, the gear position
indicator displays ‘‘M’’ along with the
selected gear number.
To upshift, pull the (right) paddle
shif ter. To downshif t, pull the
(lef t) paddle shif ter.
With the shif t lever in the S position,
you can manually shif t up or down
with the paddle shifters. The
transmission goes into the sequential
shif t mode and holds the selected
gear.
To enter the sequential shif t mode,
pressthereleasebuttononthefront
of the shift lever, move the lever to
the S position, then pull either paddle
shif ter. To return to drive mode (D),
move the shift lever to the D position.
While you are driving in the
sequential shif t mode, the
transmission will not automatically
return to drive mode (D).
The transmission downshif ts to f irst
gear and returns to drive mode (D)
when the vehicle comes to a
complete stop or the vehicle speed is
about 6 mph (10 km/h).
If there is a problem in the
transmission while you are driving
with the paddle shifters, the D
indicator f lashes, the D-paddle shif t
mode is canceled, and the
transmission returns to drive mode
(D). You upshif t bef ore the engine
speed reaches the lowest
threshold of the higher gear.
You pull both paddle shif ters at
thesametime.
Driving with the Paddle Shif ters
Using the Paddle Shif ters in the S
position (Sequential Shif t Mode)
Driving
379
‘‘M’’ INDICATOR
GEAR POSITION INDICATOR
2010 TSX

The automatic transmission will not
allow you to shif t up or down if :If you try to do this, the gear
position indicator will f lash the
number of the lower gear several
times, then return to a higher gear.
If the vehicle speed decreases
below the redline of the selected
lowergearwhiletheindicatoris
f lashing, the transmission
downshif ts, and the indicator
displays the selected gear.
You pull both paddle shif ters at
thesametime.
Downshifting with the paddle shifter
allows you to increase the engine
braking when going down steep or
long hills, and provides more power
when climbing uphills. You can
upshif t the transmission manually to
reduce the rpm.
The transmission also shif ts
automatically as the vehicle comes to
a complete stop. It downshif ts to f irst
gear when the vehicle speed reaches
6mph(10km/h)orless.
When you accelerate f rom a stop,
the transmission starts in f irst gear,
and you must manually upshif t
between first and fifth gears. Make
sure you upshif t bef ore the engine
speed reaches the tachometer’s red
zone.
The transmission remains in the
selectedgear(5,4,3,2,or1).There
is no automatic downshif t when you
push the accelerator pedal to the
f loor.
When you are driving in 4th or 5th
gear, the transmission downshif ts to
the lower gear under the f ollowing
conditions:
The vehicle slows down to a
certain speed.
You press the brake pedal. You downshif t bef ore the engine
speed reaches the highest
threshold of the lower gear.
You upshif t bef ore the engine
speed reaches the lowest
threshold of the higher gear.
Driving with the Paddle Shif ters
380
2010 TSX

´
à
à
à
à à
à
à
à
Î
Î
Î
Î
Î
Î Î
Î
Î
Î
Î
ÎÎ
Î
When you are in sequential shif t
mode, and the vehicle is stopped,
pull the (right) paddle shifter to
shif t to second gear. You will see
‘‘M2’’ in the display. Starting in
second gear helps to reduce
wheelspin in deep snow or on a
slippery surf ace.
Here are the speed ranges f or
upshif ting and downshif ting.
To shift from
12
23
34
45 Speed range
over 0 mph (0 km/h)
over 6 mph (10 km/h)
over 9 mph (15 km/h)
over 20 mph (32 km/h)
over 18 mph (29 km/h)
over 32 mph (52 km/h)
over 38 mph (60 km/h) Speed range
under 31 mph (50 km/h)
under 62 mph (100 km/h) under 90 mph(145 km/h)
under 94 mph (150 km/h)
under 124 mph (200 km/h)
under 130 mph (209 km/h)
To shift
from
21
32
43
54
1
2
1
2
1
2 1
2
1
2
1:
2:
4-cylinder models
6-cylinder models
1 :
2: 4-cylinder models
6-cylinder models
Driving with the Paddle Shif ters
Driving
St art ing in Second Gear
381
2010 TSX
