Quick Reference Guide P. 2
Safe Driving P. 21
Instrument Panel P. 63
Controls P. 85
FeaturesP. 145
Driving P. 189
Maintenance P. 227
Handling the Unexpected P. 277
Information P. 311
Index P. 323
14 ACURA TSX 5D-31TL76300.book 1 ページ ２０１３年６月１７日　月曜日　午後３時２１分
Quick Reference GuideIndex
TOC
Chapter Table of Contents
Navigation KeyQRGIndex
Book Table of Contents
2014 TSX Sport Wagon
* Not avai lable on al l model s

7

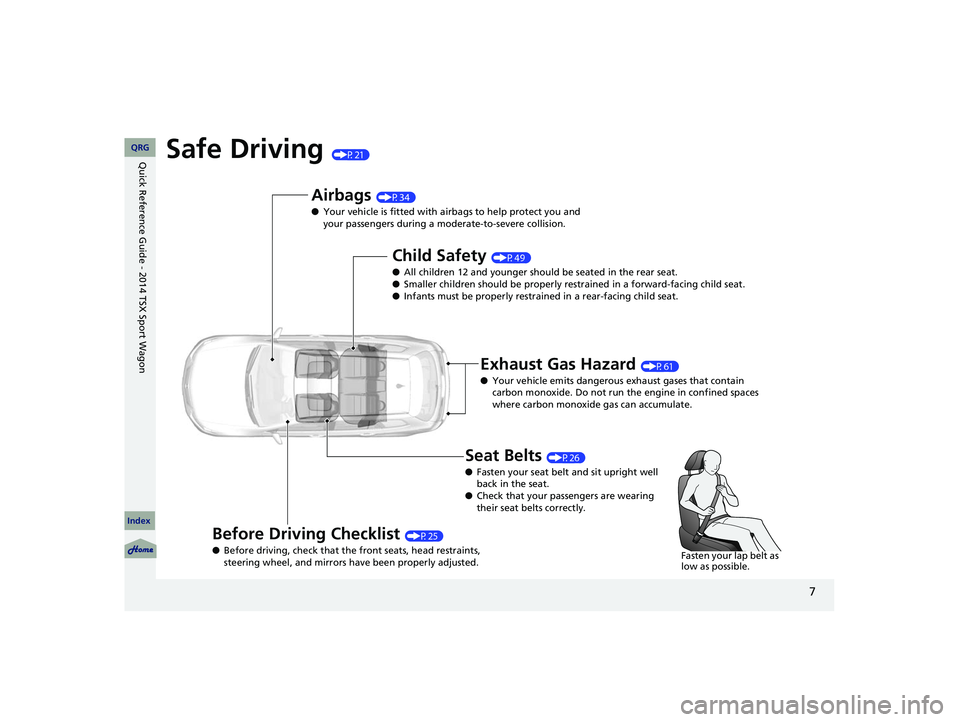

Safe Driving (P21)
Airbags (P34)
● Your vehicle is fitted with airbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P49)
● All children 12 and youn ger should be seated in the rear seat.
● Smaller children should be properly restrained in a forward-facing child seat.
● Infants must be properly restrai ned in a rear-facing child seat.
Exhaust Gas Hazard (P61)
● Your vehicle emits dangerous exhaust gases that contain
carbon monoxide. Do not run the engine in confined spaces
where carbon monoxide gas can accumulate.
Before Driving Checklist (P25)
● Before driving, check that the front seats, head restraints,
steering wheel, and mirrors ha ve been properly adjusted.
Seat Belts (P26)
● Fasten your seat belt and sit upright well
back in the seat.
● Check that your pass engers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
14 ACURA TSX 5D-31TL76300.book 7 ページ ２０１３年６月１７日　月曜日　午後３時２１分
Index
Quick Reference Guid e - 2014 TSX Sport WagonQRG

13
Driving (P189)
Release Button
Shift Lever
Depress the brake pedal and press the
release button to move out of
(P
.
Move the shift lever without
pressing the release button.
Press the release
button to move
the shift lever.
Automatic Transmission (P203)
● Shift to
(P
and depress the brake pe dal when starting the
engine.
● Shifting
Park
Turn off or start the engine.
Transmission is locked.
Reverse
Neutral
Transmission is not locked.
Drive
Normal driving. D-paddle
shift mode can be used.
S Position
Sequential shift mode can be
used.
Paddle Shifters (P205)
● Paddle shifters allow you to shift gears much like a manual
transmission (1st through 5th). Th is is useful for engine braking.
● D-paddle shift mode: The
transmission will shift back
to automatic mode once the
system detects that the
vehicle is cruising.
● Sequential shift mode: Holds
the selected gear, and the M
indicator comes on.
● The selected gear position is
shown in the instrument
panel.
Shift Down

(-

Paddle Shifter Shift Up
(+

Paddle Shifter Selected Gear
Number M
Indicator
14 ACURA TSX 5D-31TL76300.book 13 ページ ２０１３年６月１７日　月曜日　午後３時２１分
Index
Quick Reference Guid e - 2014 TSX Sport WagonQRG

14
VSA® OFF Button (P211 )
● The vehicle stability assist (VSA ®) system
helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
● VSA ®
comes on automati cally every time
you start the engine.
● To turn V SA® on or off, press and hold
the button until you hear a beep.
Cruise Control (P 207)
● Cruise control allows you to maintain a
set speed without keeping your foot on
the accelerator pedal.
● To use crui
se control, press the CRUISE
button, then press DECEL /SET once you
have achieved the desired speed (above
25 mph or 40 km/h).
Tire Pressure Monitoring
System (TPMS)
(P212)
● The TPMS monitors tire pressure.
● The TPMS is turned on automatically
every time you st art the engine.
Refueling (P 221)
Fuel recommendation: Premium unleaded gasoline with a pump octane number
91 or higher recommended
Fuel tank capacity: 18.5 US gal (70 L)
aUnlock the driver’s door.
bPress on the edge of the
fuel fill door to make it
pop up slightly.
cTurn the fuel fill cap
slowly to remove the
cap.
dPlace the cap in the
holder on the fuel fill
door.
eAfter refueling, screw
the cap back on until it
clicks at least once.
14 ACURA TSX 5D-31TL76300.book 14 ページ ２０１３年６月１７日　月曜日　午後３時２１分
Index
Quick Reference Guid e - 2014 TSX Sport WagonQRG

15
Maintenance (P 227)
Under the Hood (P 235)
● Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
● Check brake fluid.
● Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, pull the lever up, and lift up
the hood.
cWhen finished, clos e the hood and make sure it is firmly
locked in place.
Lights (P247)
● Inspect all lights regularly.
Wiper Blades (P255)
● Replace blades if they leave streaks
across the windshield.
Tires (P259)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter
driving.
14 ACURA TSX 5D-31TL76300.book 15 ページ ２０１３年６月１７日　月曜日　午後３時２１分
Index
Quick Reference Guid e - 2014 TSX Sport WagonQRG

16
Handling the Unexpected (P 277)
Flat Tire (P 287)
● Park in a safe location and repair the flat
tire using the tire repair kit.
Indicators Come On
(P299)
● Identify the indicator and consult the
owner’s manual.
Engine Won’t Start (P 293)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse (P 303)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P297)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P 308)
● Call a professional towing service if you
need to tow your vehicle.
14 ACURA TSX 5D-31TL76300.book 16 ページ ２０１３年６月１７日　月曜日　午後３時２１分
Index
Quick Reference Guid e - 2014 TSX Sport WagonQRG
\f

18
Why does the beeper
sound when I open the
driver’s door?The beeper sounds when:
●The key is left in the ignition switch.
●The exterior lights are left on.
Why does the beeper
sound when I start driving?The beeper sounds when:
●Driver and/or front passenger ar e not wearing their seat belts.
●The parking brake lever is not fully released.
Why do I hear a screeching
sound when I apply the
brake pedal?The brake pads may need to be replaced. Have your vehicle
inspected by a dealer.
Is it possible to use
unleaded gasoline with a
Pump Octane Number
(PON) of 87 or higher on
this vehicle?The recommended fuel is premium unleaded gasoline with a
PON of 91 or higher. If this fuel is not available, you can
temporarily use unleaded gasoline with a PON of 87 or higher.
This will result in decreased en gine performance, and can cause
occasional metallic knocking noise in the engine.
14 ACURA TSX 5D-31TL76300.book 18 ページ ２０１３年６月１７日　月曜日　午後３時２１分
Index
Quick Reference Guid e - 2014 TSX Sport WagonQRG

61
Exhaust Gas Hazard
Carbon Monoxide Gas
The engine exhaust from this vehicle contains carbon monoxide, a colorless,
odorless, and highly toxic gas. As long as you properly maintain your vehicle, carbon
monoxide gas will not get into the interior.
■Have the exhaust system inspected for leaks whenever
• The exhaust system is making an unusual noise.
• The exhaust system may have been damaged.
• The vehicle is raised for an oil change.
When you operate a vehicle with the tailgate open, airflow can pull exhaust gas into
the interior and create a hazardous condition. If you must drive with the tailgate
open, open all the windows and set the climate control system as shown below.
1. Select the fresh air mode.
2. Select the mode.
3. Set the fan speed to high.
4. Set the temperature control to a comfortable setting.
Adjust the climate control sy stem in the same manner if you sit in your parked
vehicle with the engine running.
1Carbon Monoxide Gas
An enclosed area such as a garage can quickly fill up
with carbon monoxide gas.
Do not run the engine with the garage door closed.
Even when the garage door is open, drive out of the
garage immediately afte r starting the engine.
3 WARNING
Carbon monoxide gas is toxic.
Breathing it can cause unconsciousness and
even kill you.
Avoid any enclosed areas or activities that
expose you to carbon monoxide.
14 ACURA TSX 5D-31TL76300.book 61 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Safe DrivingTOC
2014 TSX Sport Wagon

64
Instrument Panel
Indicators
IndicatorNameOn/BlinkingExplanationMessage
Parking Brake and
Brake System
Indicator
●Comes on for a few seconds when
you turn the ignition switch to ON
(w
, then goes off.●Comes on when the parking brake
is applied, and goes off when it is
released.
●Come on when the brake fluid
level is low.
●Comes on if there is a problem
with the brake system.
●The beeper sounds and the
indicator comes on if you drive
with the parking brake not fully
released.
●Comes on while driving - Make sure
the parking brake is released. Check the
brake fluid level.
2 What to do when the indicator
comes on while driving P. 301
●Comes on along with the ABS
indicator - Have the vehicle checked by
a dealer.
2 If the Brake Sy stem Indicator
Comes On P. 301
Low Oil Pressure
Indicator
●Comes on when you turn the
ignition switch to ON (w
, and goes
off when the engine starts.
●Comes on when the engine oil
pressure is low.
●Comes on while driving - Immediately
stop in a safe place.
2 If the Low Oil Pr essure Indicator
Comes On P. 299
Shift Position
Indicator
●Indicates the current shift lever
position.
2 Shifting P. 203—
14 ACURA TSX 5D-31TL76300.book 64 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
TOC
2014 TSX Sport Wagon

65
uu Indicators u
Continued
IndicatorNameOn/BlinkingExplanationMessage
Malfunction
Indicator Lamp
●Comes on when you turn the
ignition switch to ON (w
, and goes
off either when the engine starts
or after several seconds if the
engine did not started. If
“readiness codes” have not been
set, it blinks five times before it
goes off.
●Comes on if there is a problem
with the emissions control system.
●Blinks when a misfire in the
engine’s cylinders is detected.
●Readiness codes are part of the on board
diagnostics for the emissions control
systems.
2 Testing of Readiness Codes P. 317●Comes on while driving - Have the
vehicle checked by a dealer.
●Blinks while driving - Stop in a safe
place where there are no flammable
objects. Stop the engine for 10 minutes
or more, and wait for it to cool down.
Then, take the vehicle to a dealer.
2 If the Malfunction Indicator Lamp
Comes On or Blinks P. 300
Charging System
Indicator
●Comes on when you turn the
ignition switch to ON (w
, and goes
off when the engine starts.
●Comes on when the battery is not
charging.
●Comes on while driving - Turn off the
climate control system and rear defogger
in order to reduce electricity
consumption.
2 If the Charging System Indicator
Comes On P. 299
Transmission
Indicator
●Comes on for a few seconds when
you turn the ignition switch to ON
(w
, then goes off.●Blinks if the transmission system
has a problem.
●Blinks while driving - Avoid sudden
starts and acceleration and have the
vehicle checked by a dealer immediately.
14 ACURA TSX 5D-31TL76300.book 65 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Instrument PanelTOC
2014 TSX Sport Wagon
