To Change the pass-key setting:1. Select‘‘Setup Bluetooth Phone ’’
from the Phone Setup screen.
2. Select ‘‘Pass-Key. ’’
NOTE: The default pass-key ‘‘0000 ’’
is used until you change the setting.
For a randomly generated pass-key
each time you pair a phone, select
‘‘ Random. ’’
To create your own pass-key, select
‘‘Fixed ’’and follow step 3 and 4.
3. Delete the current pass-key.
4. Enter a new pass-key, and select ‘‘OK. ’’
To delete a paired phone:1. Select ‘‘Setup Bluetooth Phone ’’
from the Phone Setup screen.
2. Select ‘‘Delete a phone. ’’
3. Select the phone you want to delete. The Bluetooth icon shows
you the currently linked phone.
4. A trash icon appears next to the select phone. Select ‘‘OK ’’to
continue.
DELETE THE NUMBER FIRST
TRASH ICON
BLUETOOTH ICON
Bluetooth
®HandsFreeLink
®(Models with navigation system)
42409/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

Search for Next Connected PhoneTo change from the currently linked
phone to another paired phone,
select‘‘Search a Next Connected
Phone ’’on the Phone Setup screen.
HFL disconnects the linked phone
and starts searching for another
paired phone.
If no other paired phone is found,
HFL will automatically link the
previous phone.
Edit User/PINYou can name up to six HFL users.
Each can be PIN protected, and have
its own phonebook, speed dial, and
call history.Select the user you want to edit on
the Cellular Phone screen.
If the user your selected is PIN-
protected, the speed dial list
becomes ‘‘
ꭧꭧꭧꭧ
.’’
To name a user:1. Select ‘‘Edit User/PIN ’’from the
Phone Setup screen.
2. Select ‘‘Name. ’’
3. Enter a user name, and select ‘‘OK ’’when complete.
SELECT A USER NAME
SPEED DIAL LIST
WHEN PIN-PROTECTED
CONTINUED
Bluetooth
®HandsFreeLink
®(Models with navigation system)
425
Features
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

To create a PIN for each user:When you set a PIN for a user, you
will be asked to enter the PIN every
time you select the user on the
Cellular Phone screen.1. Select‘‘Edit User/PIN’’ from the
Phone Setup screen.
2. Select ‘‘PIN.’’
3. Enter a 4-digit PIN, re-enter it, and select ‘‘OK. ’’ If you select
‘‘DO NOT USE PIN ’’
before entering any number, the user
will not have a PIN.
If the user is already PIN-protected,
you need to enter the current PIN
before creating a new one.
To delete a user:Deleting a user will delete all setting,
such as call history and phonebook.
1. Select ‘‘Edit User/PIN ’’from the
Phone Setup screen.
2. Select ‘‘Delete. ’’
3. Follow the prompts to complete the deletion.
Bluetooth
®HandsFreeLink
®(Models with navigation system)
42609/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

Import Cellular Phonebook(available on some phones)The entire phonebook data (up to
10,000 numbers for 1,000 names) of
the cell phone that is linked to HFL
can be imported to the system.1. Select ‘‘Import Cellular
Phonebook ’’from the Phone Setup
screen.
2. HFL begins importing the phonebook. Select ‘‘OK ’’after the
import is completed. Up to three category icons appear
next to the phonebook entries
ꭧ.
These indicate how many numbers
are stored for the name. If a name
has more than three category icons,
‘‘
.... ’’is displayed.
ꭧ : Available on some phones.
Edit Speed DialUp to 20 speed dial numbers can be
stored per user, and the first four
numbers are displayed on the
Cellular Phone screen.
Select a ‘‘No Entry’’ field to store a
speed dial entry, or use the following
procedure.
Preference
Home
Mobile
Work
Pager Fax
Car
Voice
Other
The first four speed dial entries
CONTINUED
Bluetooth
®HandsFreeLink
®(Models with navigation system)
427
Features
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

To store a speed dial number:1. Select‘‘Edit Speed Dial ’’from the
Phone Setup screen.
2. Select ‘‘Register Speed Dial.’’
3. Select a number on the speed dial list where you want to store the
number.
4. Choose a number from:
Phonebook－ the linked cell
phone's imported phonebook.
Call History －the last 30 numbers
Dial －manual number input
5. When the speed dial number is successfully stored, you are asked
to store a voice tag for the number.
Follow the prompts. When a voice tag is stored for the
entry, you can dial the number by
saying
‘‘Call’’ and the voice tag name.
Bluetooth
®HandsFreeLink
®(Models with navigation system)
42809/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

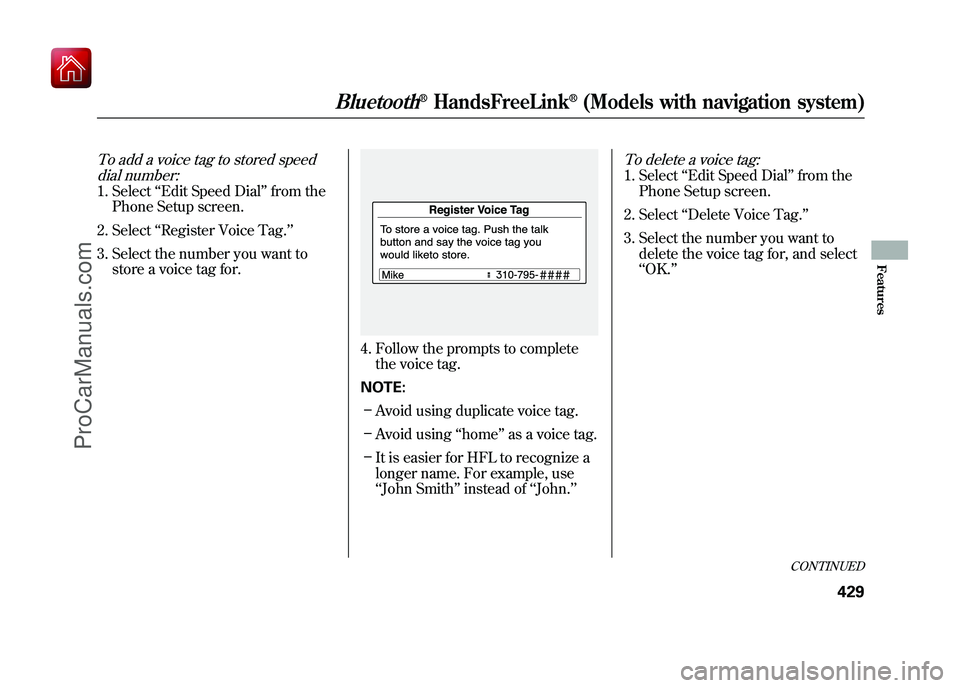

To add a voice tag to stored speeddial number:1. Select ‘‘Edit Speed Dial ’’from the
Phone Setup screen.
2. Select ‘‘Register Voice Tag.’’
3. Select the number you want to store a voice tag for.
4. Follow the prompts to completethe voice tag.
NOTE: – Avoid using duplicate voice tag.
– Avoid using ‘‘home ’’as a voice tag.
– It is easier for HFL to recognize a
longer name. For example, use
‘‘John Smith ’’instead of ‘‘John. ’’
To delete a voice tag:1. Select ‘‘Edit Speed Dial ’’from the
Phone Setup screen.
2. Select ‘‘Delete Voice Tag. ’’
3. Select the number you want to delete the voice tag for, and select
‘‘OK. ’’
CONTINUED
Bluetooth
®HandsFreeLink
®(Models with navigation system)
429
Features
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

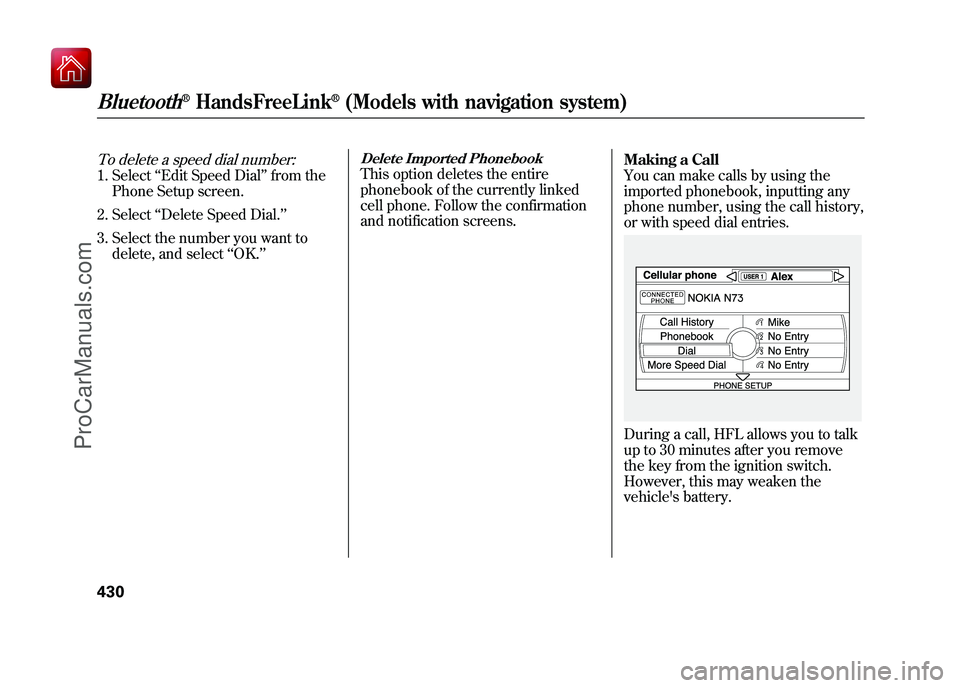

To delete a speed dial number:1. Select‘‘Edit Speed Dial ’’from the
Phone Setup screen.
2. Select ‘‘Delete Speed Dial.’’
3. Select the number you want to delete, and select ‘‘OK. ’’
Delete Imported PhonebookThis option deletes the entire
phonebook of the currently linked
cell phone. Follow the confirmation
and notification screens. Making a Call
You can make calls by using the
imported phonebook, inputting any
phone number, using the call history,
or with speed dial entries.
During a call, HFL allows you to talk
up to 30 minutes after you remove
the key from the ignition switch.
However, this may weaken the
vehicle's battery.
Bluetooth
®HandsFreeLink
®(Models with navigation system)
43009/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

To make a call using a name in thePhone Book:1. Select ‘‘Phonebook ’’from the
Cellular Phone screen.
If a phonebook has not yet been
imported, the system will attempt to
import one first. 2. Select a name from the list. You can also select ‘‘Search
Phonebook ’’and enter the first few
letters of the name. 3. Push ENTER to begin automatic
dialing.
To make a call using a phonenumber:1. Select ‘‘Dial ’’from the Cellular
Phone screen.
2. Enter the phone number, and select ‘‘Dial.’’
To enter the phone number by voice,
say it in a continuous string.
CONTINUED
Bluetooth
®HandsFreeLink
®(Models with navigation system)
431
Features
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

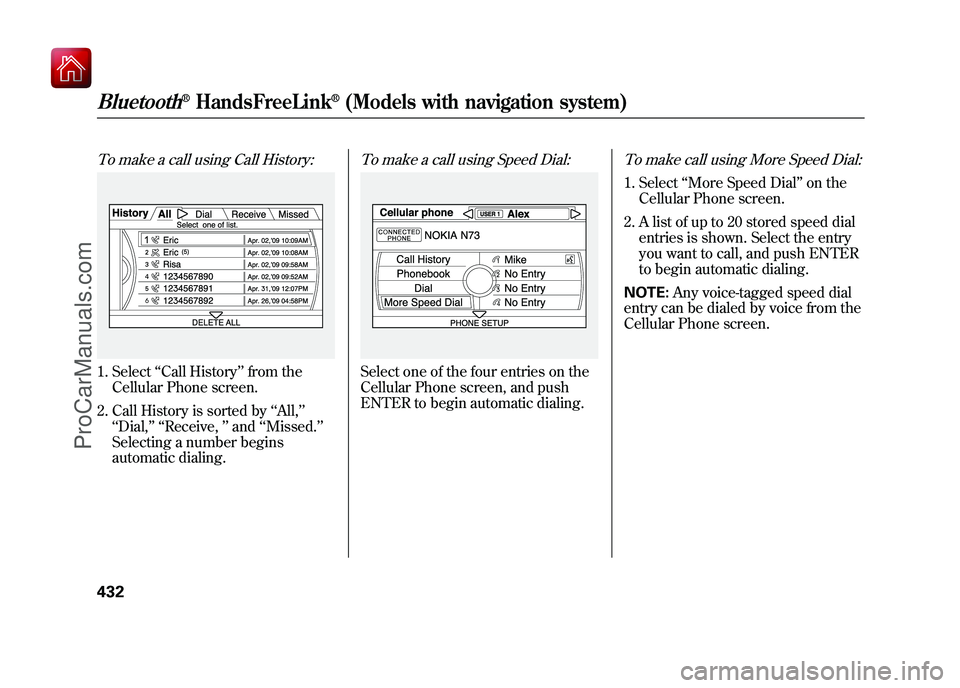

To make a call using Call History:1. Select‘‘Call History ’’from the
Cellular Phone screen.
2. Call History is sorted by ‘‘All, ’’
‘‘ Dial,’’ ‘‘ Receive, ’’and ‘‘Missed. ’’
Selecting a number begins
automatic dialing.
To make a call using Speed Dial:Select one of the four entries on the
Cellular Phone screen, and push
ENTER to begin automatic dialing.
To make call using More Speed Dial:1. Select ‘‘More Speed Dial ’’on the
Cellular Phone screen.
2. A list of up to 20 stored speed dial entries is shown. Select the entry
you want to call, and push ENTER
to begin automatic dialing.
NOTE: Any voice-tagged speed dial
entry can be dialed by voice from the
Cellular Phone screen.
Bluetooth
®HandsFreeLink
®(Models with navigation system)
43209/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

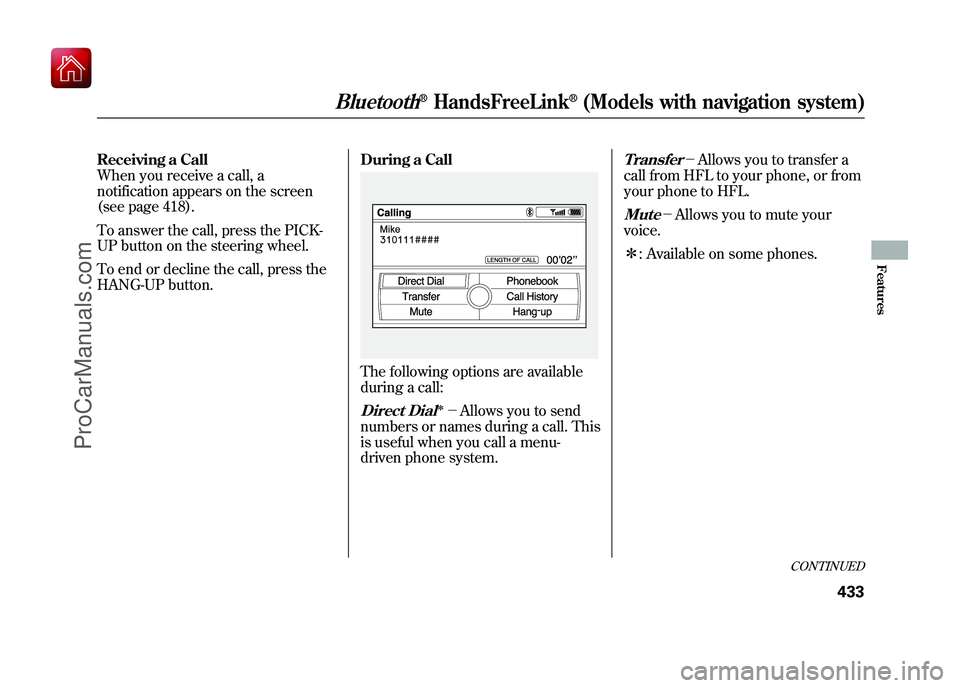

Receiving a Call
When you receive a call, a
notification appears on the screen
(see page 418).
To answer the call, press the PICK-
UP button on the steering wheel.
To end or decline the call, press the
HANG-UP button.During a Call
The following options are available
during a call:Direct Dial
ꭧ－
Allows you to send
numbers or names during a call. This
is useful when you call a menu-
driven phone system.
Transfer
－ Allows you to transfer a
call from HFL to your phone, or from
your phone to HFL.
Mute
－ Allows you to mute your
voice.
ꭧ : Available on some phones.
CONTINUED
Bluetooth
®HandsFreeLink
®(Models with navigation system)
433
Features
