IGN ACCESSORY (I) or LOCK (0)－
Follow the multi-information display
message and turn off all electrical
devices. Driving the vehicle will
recharge the battery, however the
vehicle may not start. If no start, see
jump starting (page 587), or contact
your dealer. Models equipped with the keyless
access system have an engine start/
stop button instead of an ignition
switch (IGN). ON mode is the
equivalent of ON (II). See page 196
for ignition switch and power mode
comparison.Multi-Information Display8609/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

INST. MPG (U.S. models)/INST. L/100 km (Canadian models)This shows your instant fuel
economy.
RANGEThis shows the estimated distance
you can travel on the fuel remaining
in the fuel tank. This distance is
estimated from the fuel economy you
received over the last several miles
(U.S.) or kilometers (Canada), so it
will vary with changes in speed,
traffic, etc.AVG. SPEED A/BThis shows the average speed you
are traveling in miles per hour (mph)
for U.S. models or kilometers per
hour (km/h) for Canadian models.
ELAPSED TIME A/BThis shows the time passed traveled
since you last reset it. When you turn
the ignition switch to the ON (II)
position, ELAPSED TIME A or B is
reset.
Models equipped with the keyless
access system have an engine start/
stop button instead of an ignition
switch. ON mode is the equivalent of
ON (II). See page 196 for ignition
switch and power mode comparison.
Multi-Information Display8809/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

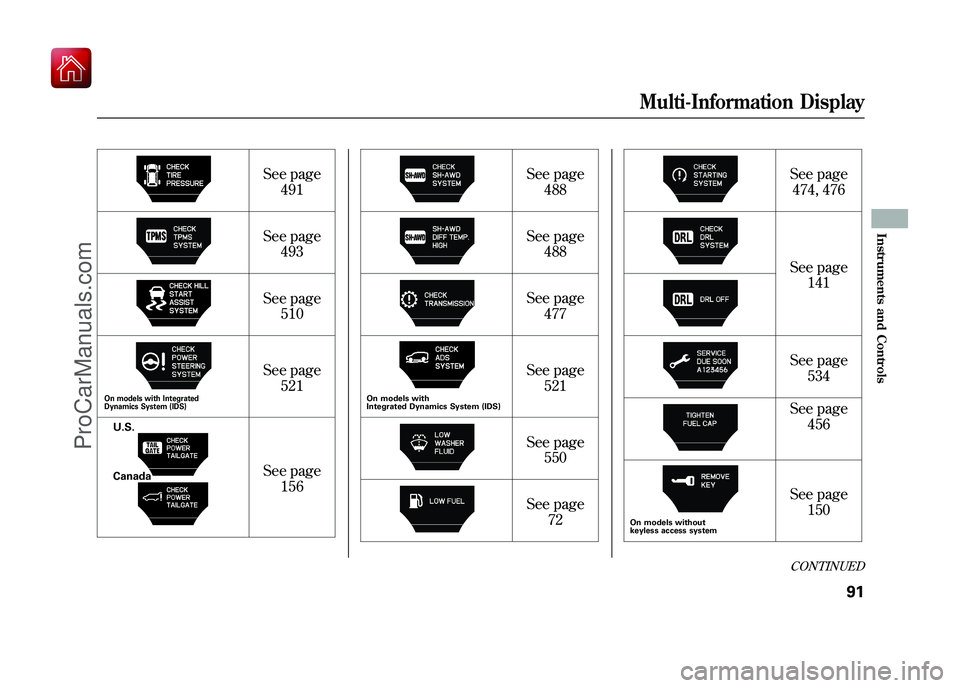

See page491
See page 493
See page 510
See page 521
See page 156 See page
488
See page 488
See page 477
See page 521
See page 550
See page 72 See page
474, 476
See page 141
See page 534
See page 456
See page 150
On models with Integrated
Dynamics System (IDS)U.S.
Canada
On models with
Integrated Dynamics System (IDS)
On models without
keyless access system
CONTINUED
Multi-Information Display
91
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

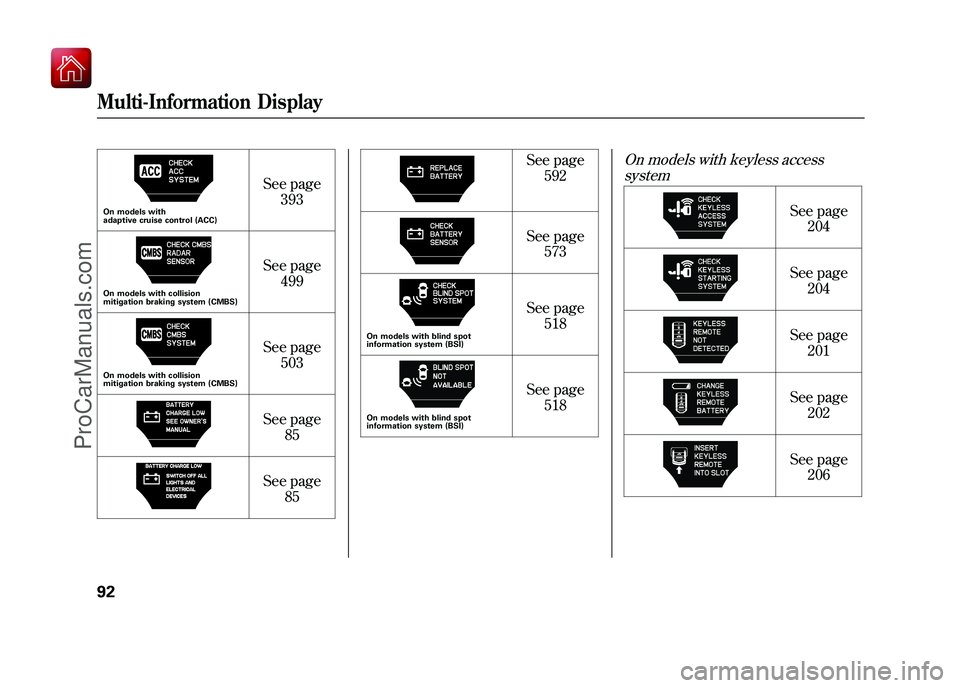

See page393
See page 499
See page 503
See page 85
See page 85 See page
592
See page 573
See page 518
See page 518
On models with keyless accesssystem
See page 204
See page 204
See page 201
See page 202
See page 206
On models with
adaptive cruise control (ACC)On models with collision
mitigation braking system (CMBS)On models with collision
mitigation braking system (CMBS)
On models with blind spot
information system (BSI)On models with blind spot
information system (BSI)
Multi-Information Display9209/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

Customize Settings
You can customize some vehicle
control settings.
To change the settings, the ignition
switch must be in the ON (II)
position, and the vehicle must be
stopped with the transmission in
Park.
If you turn the ignition switch to the
ACCESSORY (I) or the LOCK (0)
position, or move the shift lever out
of Park, the display will change to the
normal screen.
Models equipped with the keyless
access system have an engine start/
stop button instead of an ignition
switch. VEHICLE OFF (LOCK)
mode is the equivalent of LOCK (0),
ACCESSORY mode is the equivalent
of ACCESSORY (I), and ON mode is
the equivalent of ON (II).
For more information, see pages 194
and 196.You can customize some vehicle
control settings for
‘‘DRIVER 1’’ and
‘‘ DRIVER 2’’ separately. If ‘‘DRIVER
1’’ or‘‘DRIVER 2’’ is not displayed,
customizing is not possible.
To have the driver's ID detected,
make sure your remote transmitter/
keyless access remote is linked to
the system and the driver's door is
unlocked with a corresponding
remote transmitter/keyless access
remote.
If you try to enter the customizing
mode while the vehicle is moving,
you will see a ‘‘MUST STOP AND
SHIFT TO PARK TO CHANGE
SETTINGS ’’message and you cannot
change the settings. See page 160 to link your remote
transmitter/keyless access remote to
your vehicle.
If the remote transmitter is not
linked,
‘‘CUSTOMIZING NOT
AVAILABLE UNTIL LINKED TO
REMOTE ’’will be displayed, and you
cannot customize the settings.
If you use the key to unlock the
driver's door, the system cannot
recognize either ‘‘DRIVER 1’’ or
‘‘ DRIVER 2. ’’Multi-Information Display9409/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

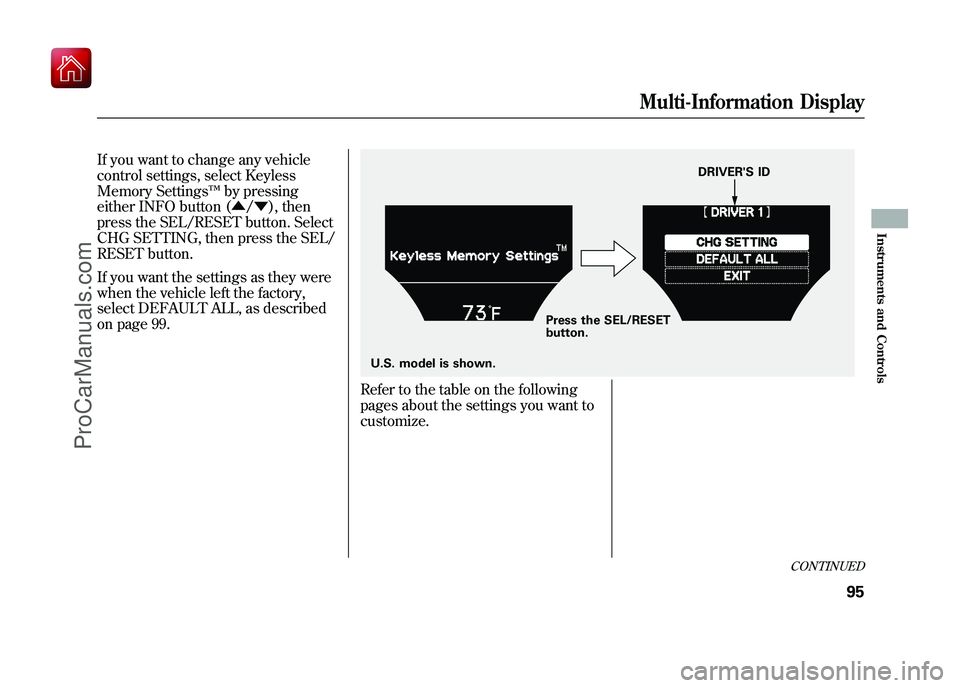

If you want to change any vehicle
control settings, select Keyless
Memory Settings™by pressing
either INFO button (▲ /▼ ), then
press the SEL/RESET button. Select
CHG SETTING, then press the SEL/
RESET button.
If you want the settings as they were
when the vehicle left the factory,
select DEFAULT ALL, as described
on page 99.
Refer to the table on the following
pages about the settings you want to
customize.
Press the SEL/RESET
button. DRIVER'S ID
U.S. model is shown.
CONTINUED
Multi-Information Display
95
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

Group SetupMenu Item DescriptionSetting OptionPage
ACC SETUP
ꭧ 2
(P. 102) PRE-RUNNING CAR DETECT
BEEP Causes the system to beep when a vehicle ahead of
you gets too close. ON
ꭧ
1
103
OFF
ACC DISPLAY SPEED UNIT Changes the ACC display speed unit. km/h
ꭧ 1(Canada)
104
mph
ꭧ 1(U.S.)
METER SETUP
(P. 105) LANGUAGE SELECTION Changes the language used in the display. ENGLISHꭧ
1
107
FRENCH
SPANISH
ADJUST OUTSIDE TEMP.
DISPLAY Changes the outside temperature reading above or
below its current reading. －
5°F ～ꭗ 0°F
ꭧ1～5°F
(U.S.) 108
－ 3°C ～ꭗ0°Cꭧ 1～3°C
(Canada)
TRIP COMPUTER TRIP A
INFO RESET Changes the setting of how to reset trip meter A,
average fuel economy A, average speed A, and
elapsed time A. WITH REFUELꭧ
1
109
MANUAL ONLY
IGN OFF
ADJUST ALARM VOLUME Changes the indicator alarm volume into three levels. HIGH
110
MID
ꭧ 1
LOW
AUTO INTERIOR
ILLUMINATION Changes the interior light sensitivity to your liking. MAX LOW
111
HIGH MIN
MID
ꭧ 1
OFF
KEYLESS START GUIDANCE
SCREENS
ꭧ 3
Changes the display of the keyless start guidance
screens. ON
ꭧ
1
113
OFF
ꭧ 1: Default setting
ꭧ 2: On models with adaptive cruise control (ACC)
ꭧ 3: On models with keyless access system
Multi-Information Display9609/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

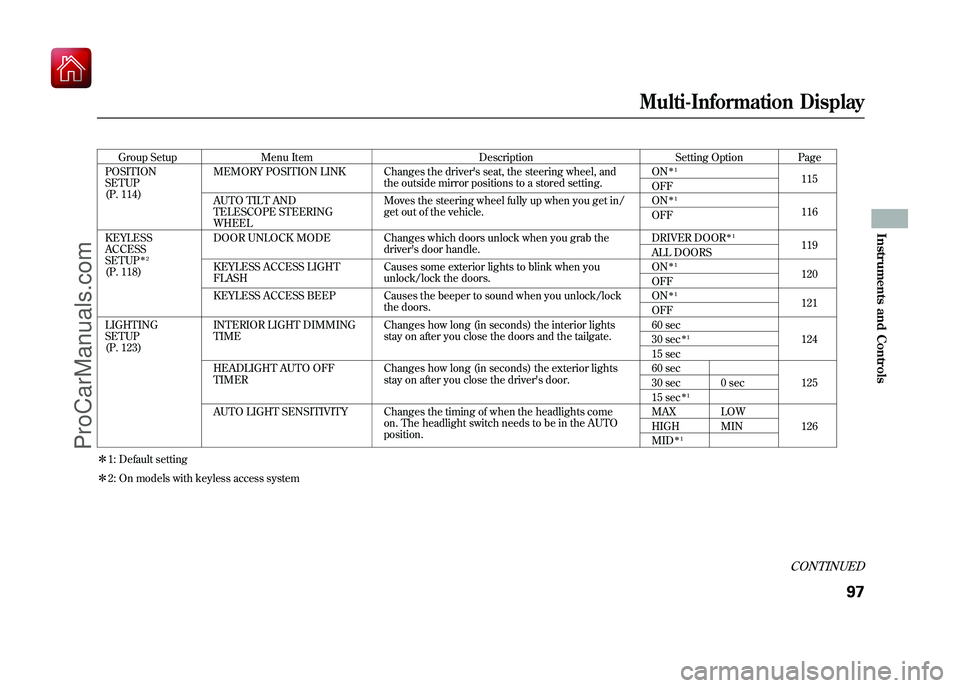

Group SetupMenu Item DescriptionSetting OptionPage
POSITION
SETUP
(P. 114) MEMORY POSITION LINK Changes the driver's seat, the steering wheel, and
the outside mirror positions to a stored setting. ON
ꭧ
1
115
OFF
AUTO TILT AND
TELESCOPE STEERING
WHEEL Moves the steering wheel fully up when you get in/
get out of the vehicle.
ON
ꭧ
1
116
OFF
KEYLESS
ACCESS
SETUP
ꭧ 2
(P. 118) DOOR UNLOCK MODE Changes which doors unlock when you grab the
driver's door handle. DRIVER DOOR
ꭧ
1
119
ALL DOORS
KEYLESS ACCESS LIGHT
FLASH Causes some exterior lights to blink when you
unlock/lock the doors. ON
ꭧ
1
120
OFF
KEYLESS ACCESS BEEP Causes the beeper to sound when you unlock/lock the doors. ON
ꭧ
1
121
OFF
LIGHTING
SETUP
(P. 123) INTERIOR LIGHT DIMMING
TIME
Changes how long (in seconds) the interior lights
stay on after you close the doors and the tailgate. 60 sec
124
30 sec
ꭧ 1
15 sec
HEADLIGHT AUTO OFF
TIMER Changes how long (in seconds) the exterior lights
stay on after you close the driver's door. 60 sec
125
30 sec 0 sec
15 sec
ꭧ 1
AUTO LIGHT SENSITIVITY Changes the timing of when the headlights come
on. The headlight switch needs to be in the AUTO
position. MAX LOW
126
HIGH MIN
MID
ꭧ 1
ꭧ 1: Default setting
ꭧ 2: On models with keyless access system
CONTINUED
Multi-Information Display
97
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

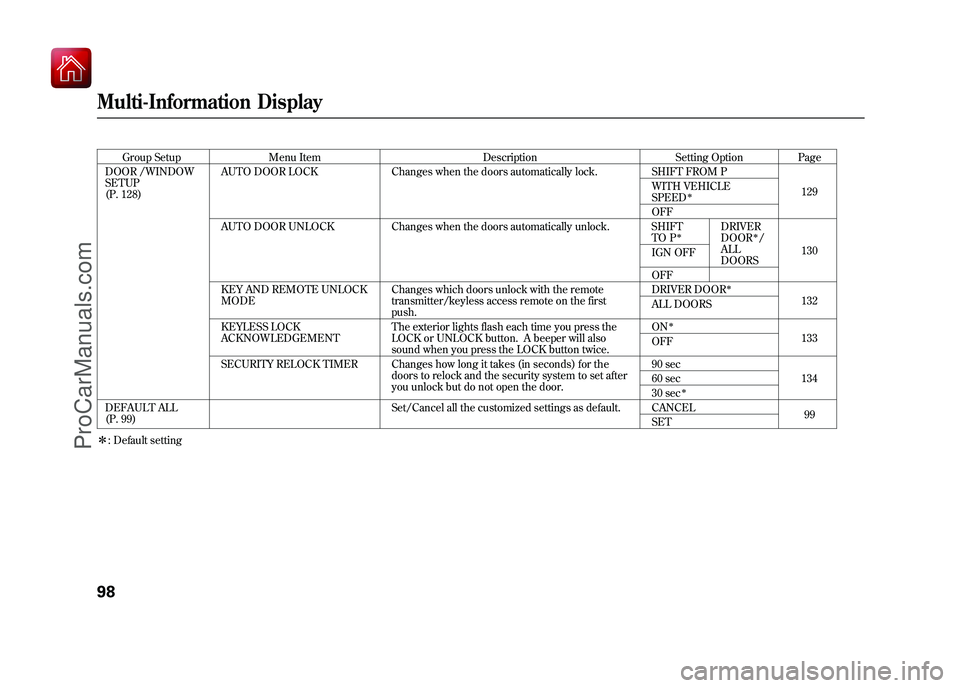

Group SetupMenu Item DescriptionSetting OptionPage
DOOR /WINDOW
SETUP
(P. 128) AUTO DOOR LOCK
Changes when the doors automatically lock. SHIFT FROM P
129
WITH VEHICLE
SPEED
ꭧ
OFF
AUTO DOOR UNLOCK Changes when the doors automatically unlock. SHIFT TO P
ꭧ
DRIVER
DOOR
ꭧ/
ALL
DOORS 130
IGN OFF
OFF
KEY AND REMOTE UNLOCK
MODE Changes which doors unlock with the remote
transmitter/keyless access remote on the first
push. DRIVER DOOR
ꭧ
132
ALL DOORS
KEYLESS LOCK
ACKNOWLEDGEMENT The exterior lights flash each time you press the
LOCK or UNLOCK button. A beeper will also
sound when you press the LOCK button twice. ON
ꭧ
133
OFF
SECURITY RELOCK TIMER Changes how long it takes (in seconds) for the doors to relock and the security system to set after
you unlock but do not open the door. 90 sec
134
60 sec
30 sec
ꭧ
DEFAULT ALL
(P. 99) Set/Cancel all the customized settings as default. CANCEL
99
SET
ꭧ : Default settingMulti-Information Display9809/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

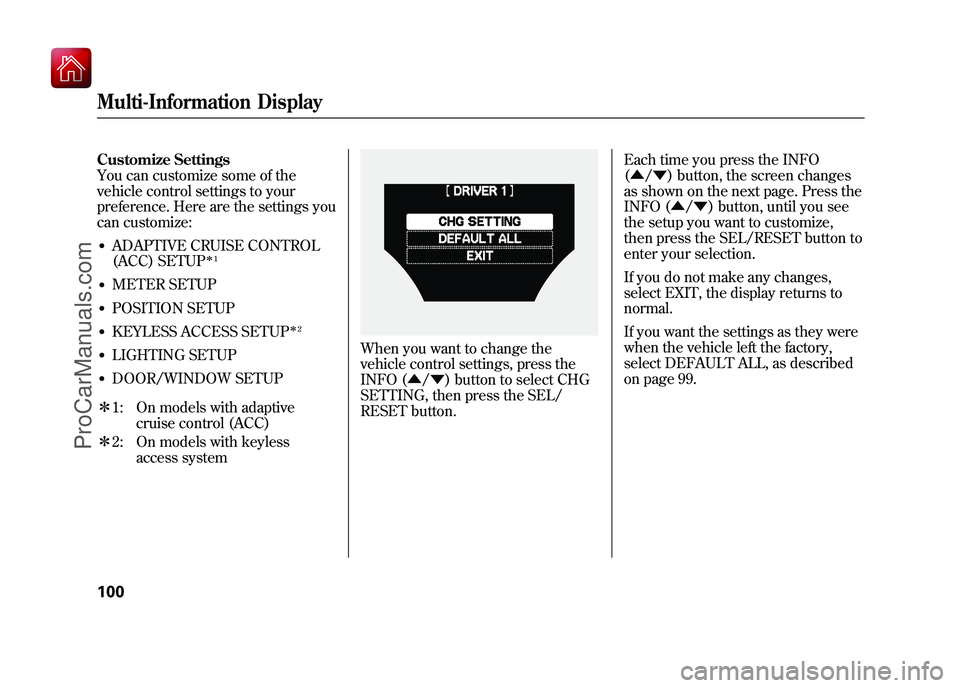

Customize Settings
You can customize some of the
vehicle control settings to your
preference. Here are the settings you
can customize:●ADAPTIVE CRUISE CONTROL
(ACC) SETUP
ꭧ1
●METER SETUP●POSITION SETUP●KEYLESS ACCESS SETUP
ꭧ2
●LIGHTING SETUP●DOOR/WINDOW SETUP
ꭧ 1: On models with adaptive
cruise control (ACC)
ꭧ 2: On models with keyless
access system
When you want to change the
vehicle control settings, press the
INFO (▲ /▼ ) button to select CHG
SETTING, then press the SEL/
RESET button. Each time you press the INFO
(▲
/▼ ) button, the screen changes
as shown on the next page. Press the
INFO (▲ /▼ ) button, until you see
the setup you want to customize,
then press the SEL/RESET button to
enter your selection.
If you do not make any changes,
select EXIT, the display returns to
normal.
If you want the settings as they were
when the vehicle left the factory,
select DEFAULT ALL, as described
on page 99.
Multi-Information Display10009/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
