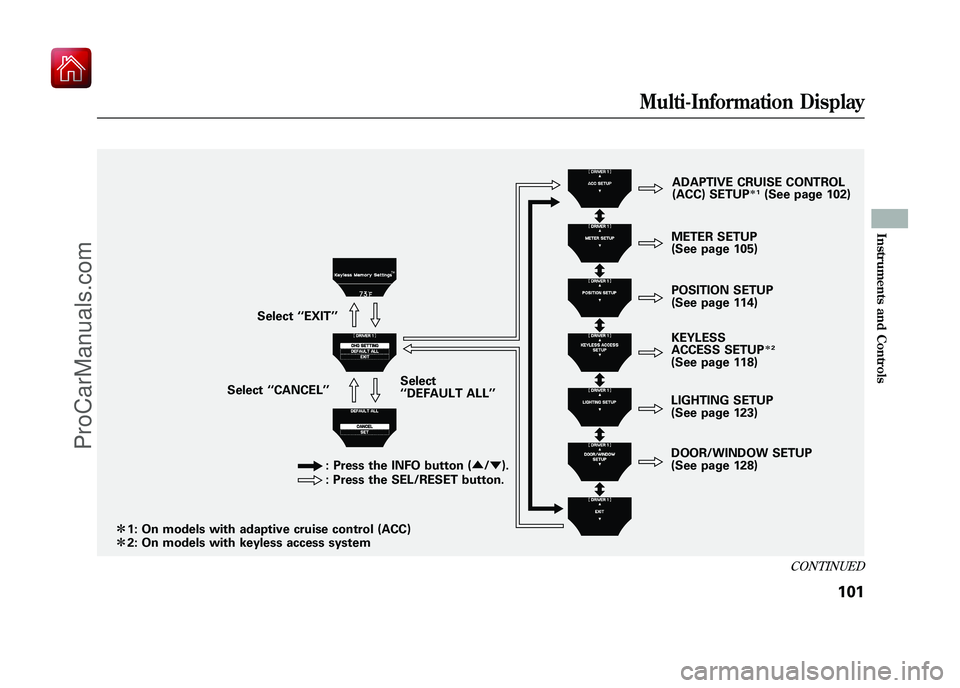

keyless ACURA ZDX 2010 Owner's Guide

Select‘‘EXIT ’’
Select ‘‘CANCEL ’’ Select
‘‘
DEFAULT ALL ’’
: Press the INFO button ( ▲/▼ ).
: Press the SEL/RESET button.
ꭧ 1: On models with adaptive cruise control (ACC)
ꭧ 2: On models with keyless access system ADAPTIVE CRUISE CONTROL
(ACC) SETUP
ꭧ
1(See page 102)
METER SETUP
(See page 105)
POSITION SETUP
(See page 114)
KEYLESS
ACCESS SETUPꭧ 2
(See page 118)
LIGHTING SETUP
(See page 123)
DOOR/WINDOW SETUP
(See page 128)
CONTINUED
Multi-Information Display
101
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

Press the SEL/RESET button to see
the selections.
Select the desired setting by
pressing the INFO (▲/▼ ) button,
then enter your selection by pressing
the SEL/RESET button.
When your selection is successfully
completed, the display changes as
shown above, and then goes back to
the customize item screen.
If the ‘‘SETTING INCOMPLETE ’’
message appears, go back to ‘‘ACC
DISPLAY SPEED UNIT ’’and repeat
the procedure again. Meter Setup
Here are the five or six custom
settings for the meter setup:
●LANGUAGE SELECTION●ADJUST OUTSIDE TEMP.
DISPLAY●TRIP COMPUTER TRIP A INFO
RESET●ADJUST ALARM VOLUME●AUTO INTERIOR
ILLUMINATION●KEYLESS START GUIDANCE
SCREENS
ꭧ
ꭧ
: On models with keyless access
system
While METER SETUP is shown,
press the SEL/RESET button to
enter the customize mode.
CONTINUED
Multi-Information Display
105
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

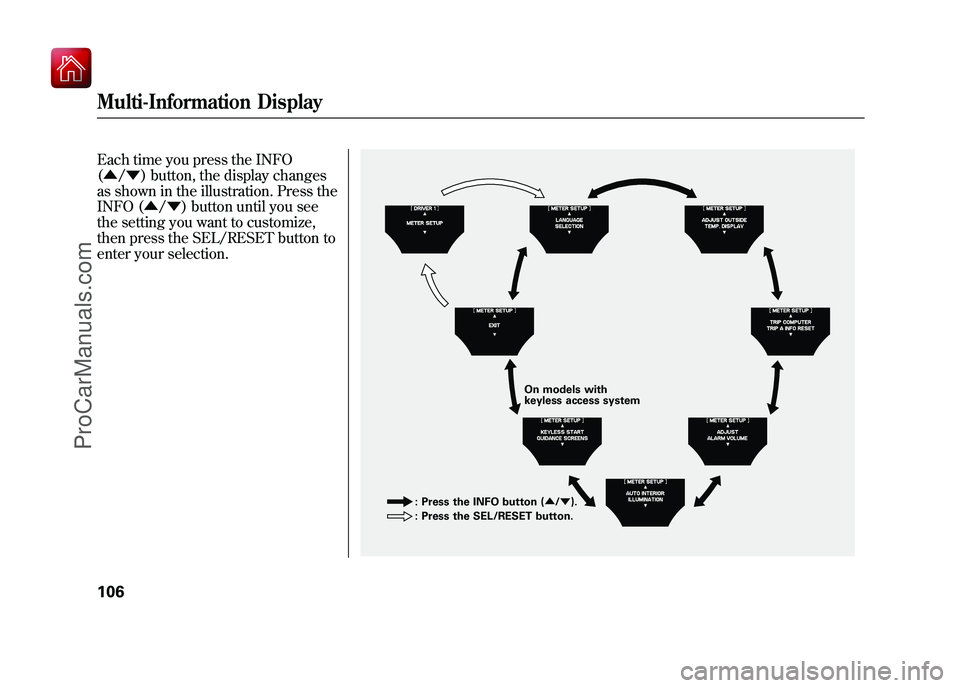

Each time you press the INFO
(▲/▼ ) button, the display changes
as shown in the illustration. Press the
INFO (▲ /▼ ) button until you see
the setting you want to customize,
then press the SEL/RESET button to
enter your selection.
: Press the INFO button ( ▲/▼ ).
: Press the SEL/RESET button. On models with
keyless access system
Multi-Information Display10609/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

Trip Computer Trip A Info ResetYou can select the reset timing of the
Trip A information: Trip A, Average
Fuel Economy A, Average Vehicle
Speed A, and Elapsed Time A.
There are three reset choices you
can make:
WITH REFUEL－The Trip A
information is reset every time you
refuel your vehicle.
MANUAL ONLY －You can reset the
Trip A information when you press
and hold the SEL/RESET button
until the number resets. IGN OFF
－The Trip A information is
reset when you turn the ignition
switch to the LOCK (0) position.
Models equipped with the keyless
access system have an engine start/
stop button instead of an ignition
switch. VEHICLE OFF (LOCK)
mode is the equivalent of LOCK (0).
For more information, see pages 194
and 196.
You can choose this item to
customize from ‘‘METER SETUP ’’by
pressing the INFO (▲ /▼ ) button
repeatedly.
CONTINUED
Multi-Information Display
109
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

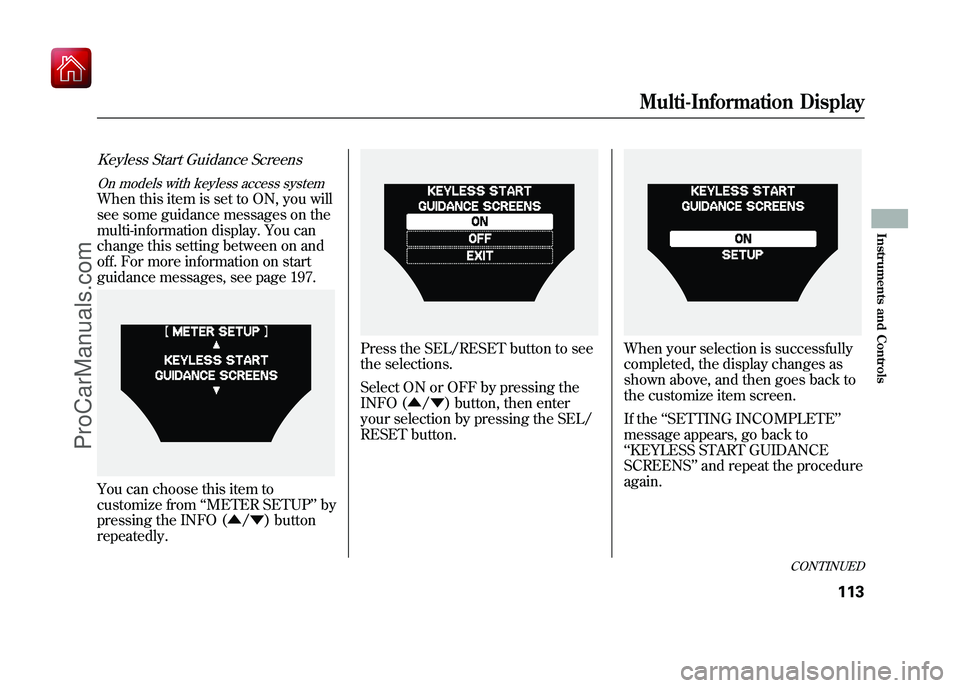

Keyless Start Guidance ScreensOn models with keyless access systemWhen this item is set to ON, you will
see some guidance messages on the
multi-information display. You can
change this setting between on and
off. For more information on start
guidance messages, see page 197.You can choose this item to
customize from‘‘METER SETUP ’’by
pressing the INFO (▲ /▼ ) button
repeatedly.
Press the SEL/RESET button to see
the selections.
Select ON or OFF by pressing the
INFO (▲ /▼ ) button, then enter
your selection by pressing the SEL/
RESET button.
When your selection is successfully
completed, the display changes as
shown above, and then goes back to
the customize item screen.
If the ‘‘SETTING INCOMPLETE ’’
message appears, go back to
‘‘ KEYLESS START GUIDANCE
SCREENS ’’and repeat the procedure
again.
CONTINUED
Multi-Information Display
113
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

Memory Position LinkIf‘‘MEMORY POSITION LINK ’’is
set to ‘‘ON, ’’the driver's seat, the
steering wheel, and outside mirror
positions move to the position stored
in the memory when you open the
driver's door, using the remote
transmitter.
On models with keyless access
system, open the driver's door with
the remote, or grab the door handle
while carrying the remote. To set the memory positions, see
page 180.
On models with keyless access
systemFor information on using the remote,
see page 183.
You can choose this customize item
from ‘‘POSITION SETUP ’’by
pressing the INFO (▲ /▼ ) button
repeatedly.
Press the SEL/RESET button to see
the selections.
Select ON or OFF by pressing the
INFO (▲ /▼ ) button, then enter
your selection by pressing the SEL/
RESET button.
CONTINUED
Multi-Information Display
115
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

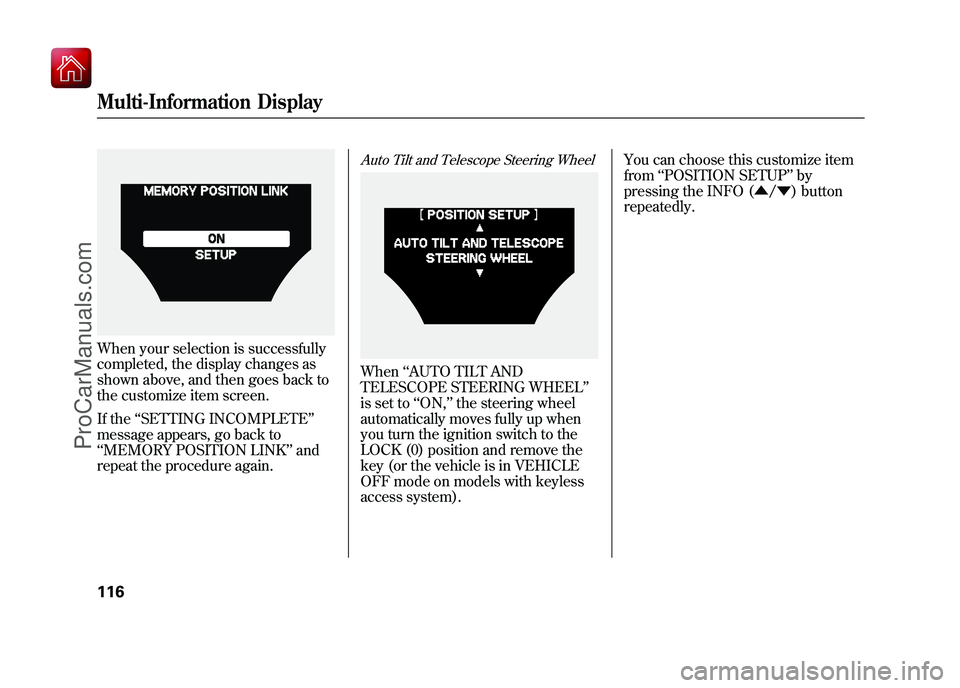

When your selection is successfully
completed, the display changes as
shown above, and then goes back to
the customize item screen.
If the‘‘SETTING INCOMPLETE ’’
message appears, go back to
‘‘ MEMORY POSITION LINK ’’and
repeat the procedure again.
Auto Tilt and Telescope Steering WheelWhen ‘‘AUTO TILT AND
TELESCOPE STEERING WHEEL ’’
is set to ‘‘ON, ’’the steering wheel
automatically moves fully up when
you turn the ignition switch to the
LOCK (0) position and remove the
key (or the vehicle is in VEHICLE
OFF mode on models with keyless
access system). You can choose this customize item
from
‘‘POSITION SETUP ’’by
pressing the INFO (▲ /▼ ) button
repeatedly.
Multi-Information Display11609/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

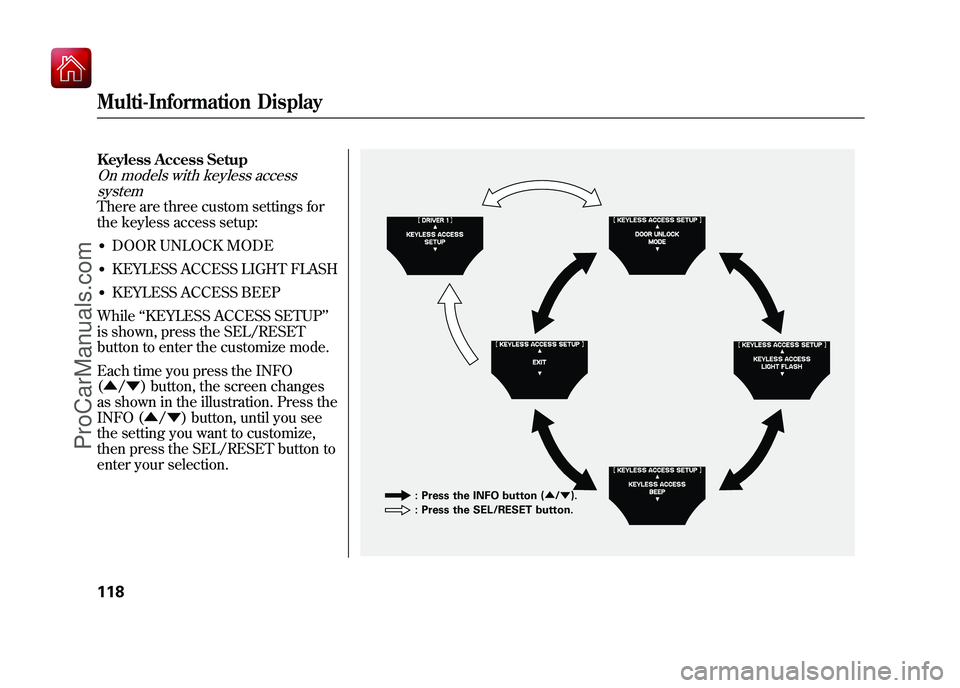

Keyless Access SetupOn models with keyless accesssystemThere are three custom settings for
the keyless access setup:●DOOR UNLOCK MODE●KEYLESS ACCESS LIGHT FLASH●KEYLESS ACCESS BEEP
While ‘‘KEYLESS ACCESS SETUP ’’
is shown, press the SEL/RESET
button to enter the customize mode.
Each time you press the INFO
(▲ /▼ ) button, the screen changes
as shown in the illustration. Press the
INFO (▲ /▼ ) button, until you see
the setting you want to customize,
then press the SEL/RESET button to
enter your selection.
: Press the INFO button ( ▲/▼ ).
: Press the SEL/RESET button.
Multi-Information Display11809/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

Door Unlock ModeTo select whether the driver's door
or all doors unlock when you open
the driver's door by grabbing the
door handle (while carrying the
remote), follow these instructions:
You can choose this item to
customize from‘‘KEYLESS ACCESS
SETUP ’’by pressing the INFO
(▲ /▼ ) button repeatedly.
Press the SEL/RESET button to see
the selections.
Select DRIVER DOOR or ALL
DOORS by pressing the INFO
(▲ /▼ ) button, then enter your
selection by pressing the SEL/
RESET button.
When your selection is successfully
completed, the display changes as
shown above, and then goes back to
the customize item screen.
If the ‘‘SETTING INCOMPLETE ’’
message appears, go back to ‘‘DOOR
UNLOCK MODE ’’and repeat the
procedure again.
CONTINUED
Multi-Information Display
119
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

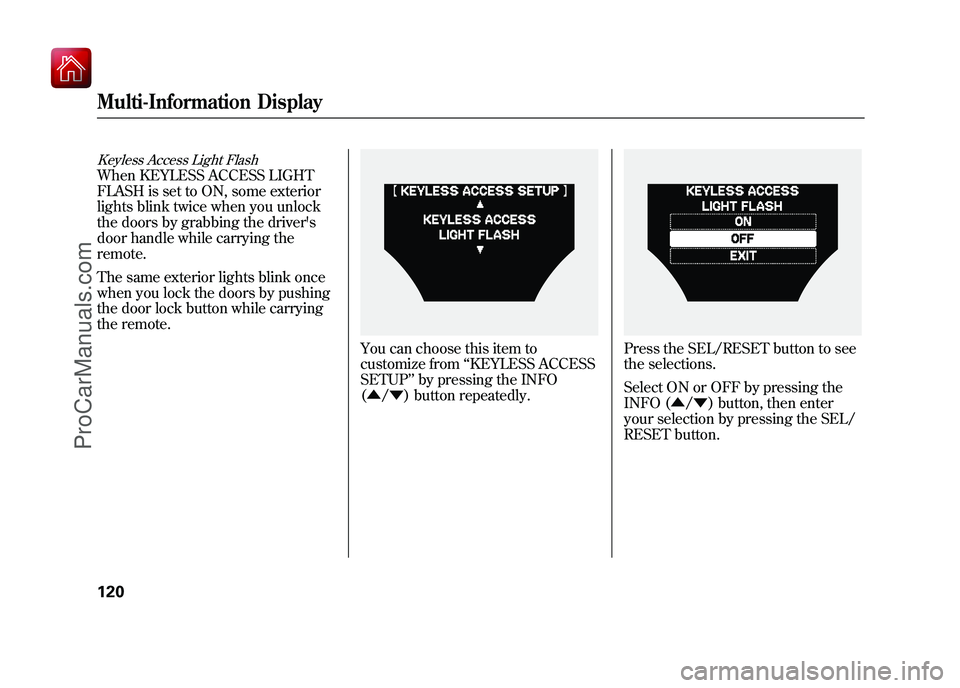

Keyless Access Light FlashWhen KEYLESS ACCESS LIGHT
FLASH is set to ON, some exterior
lights blink twice when you unlock
the doors by grabbing the driver's
door handle while carrying the
remote.
The same exterior lights blink once
when you lock the doors by pushing
the door lock button while carrying
the remote.
You can choose this item to
customize from‘‘KEYLESS ACCESS
SETUP ’’by pressing the INFO
(▲ /▼ ) button repeatedly.
Press the SEL/RESET button to see
the selections.
Select ON or OFF by pressing the
INFO (▲ /▼ ) button, then enter
your selection by pressing the SEL/
RESET button.
Multi-Information Display12009/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
