cooling ACURA ZDX 2010 Owners Manual

Temperature Gauge
This shows the temperature of the
engine's coolant. During normal
operation, the pointer should rise
from the bottom mark to about the
middle of the gauge. In severe
driving conditions, such as very hot
weather or a long period of uphill
driving, the pointer may rise to the
upper zone. If it reaches the red (hot)
mark, pull safely to the side of the
road. For instructions and
precautions on checking the engine's
cooling system, see page 589.
If the pointer of the temperature
gauge reaches to or above the red
mark, you will also see the‘‘WATER
TEMP HOT ’’message on the multi-
information display. This will alert
you that the engine should be cooled
down.
Gauges
77
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

When you set the temperature to its
lower limit (
) or its upper limit
(
), the system runs at full cooling
or heating only. It does not regulate
the interior temperature.
When you press a fan control bar, the
fan is taken out of AUTO mode.
You can also select the appropriate
mode on the driver’ s side and the
passenger ’s side separately. To
change a mode, press and release
the appropriate side mode control
button. This will take the mode
control out of AUTO mode.
On models with navigation systemIn AUTO mode, the vehicle ’s interior
temperature is independently
regulated for the driver and front
passenger according to each
adjusted temperature. The system
also regulates each temperature
based on the information of the
sunlight sensor and the sun ’s
position which is updated
automatically by the navigation ’s
global positioning system (GPS). If
one side of the vehicle is getting too
much sun, the system lowers the
temperature only on that side.
SYNC ButtonWhen you press this button, the
indicator in the button comes on, and
the passenger ’s side temperature and
mode control is synchronized to the
driver ’s side set temperature and
mode control. Changing the
passenger ’s side temperature or
mode control makes the indicator go
off and takes the system out of SYNC
mode.
Climate Control System22209/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

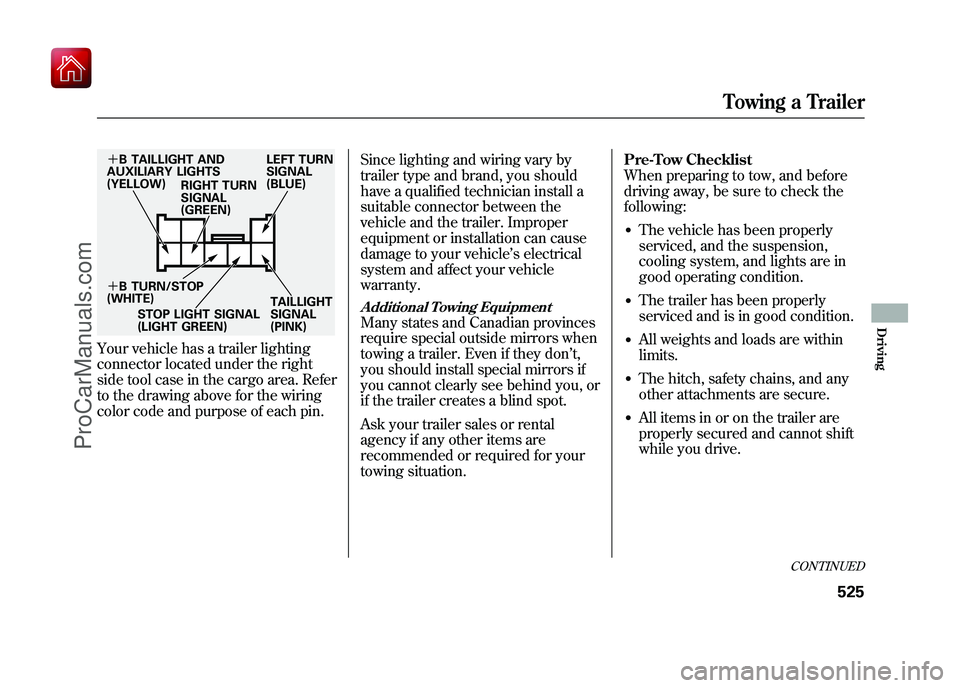

Your vehicle has a trailer lighting
connector located under the right
side tool case in the cargo area. Refer
to the drawing above for the wiring
color code and purpose of each pin.Since lighting and wiring vary by
trailer type and brand, you should
have a qualified technician install a
suitable connector between the
vehicle and the trailer. Improper
equipment or installation can cause
damage to your vehicle
’s electrical
system and affect your vehicle
warranty.
Additional Towing EquipmentMany states and Canadian provinces
require special outside mirrors when
towing a trailer. Even if they don ’t,
you should install special mirrors if
you cannot clearly see behind you, or
if the trailer creates a blind spot.
Ask your trailer sales or rental
agency if any other items are
recommended or required for your
towing situation. Pre-Tow Checklist
When preparing to tow, and before
driving away, be sure to check the
following:
●The vehicle has been properly
serviced, and the suspension,
cooling system, and lights are in
good operating condition.●The trailer has been properly
serviced and is in good condition.●All weights and loads are within
limits.●The hitch, safety chains, and any
other attachments are secure.●All items in or on the trailer are
properly secured and cannot shift
while you drive.
＋
B TAILLIGHT AND
AUXILIARY LIGHTS
(YELLOW) RIGHT TURN
SIGNAL
(GREEN) LEFT TURN
SIGNAL
(BLUE)
＋ B TURN/STOP
(WHITE)
STOP LIGHT SIGNAL
(LIGHT GREEN) TAILLIGHT
SIGNAL
(PINK)
CONTINUED
Towing a Trailer
525
Driving
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

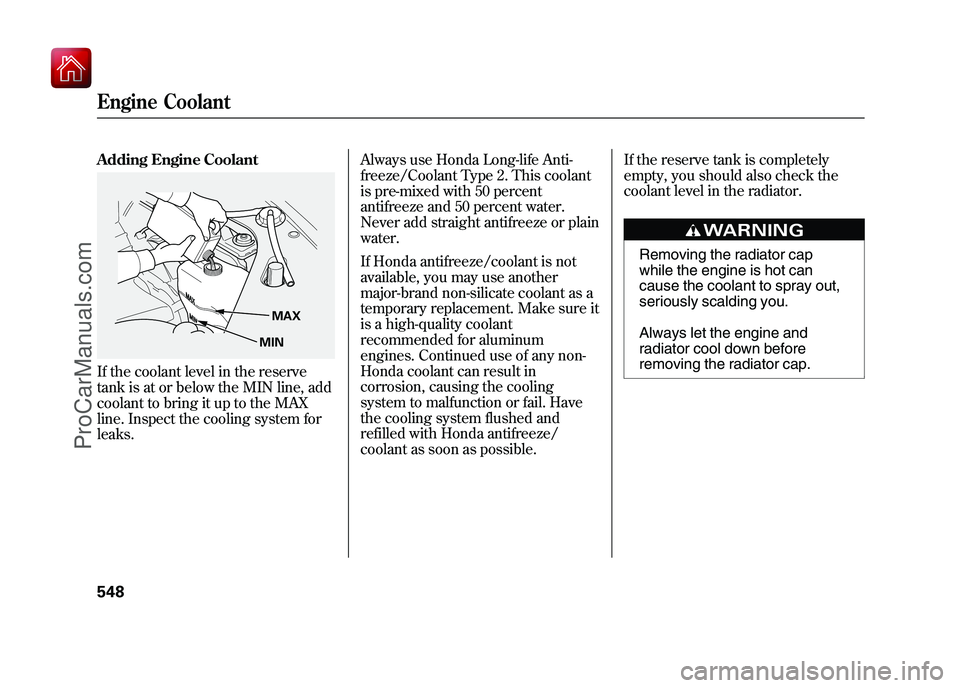

Adding Engine CoolantIf the coolant level in the reserve
tank is at or below the MIN line, add
coolant to bring it up to the MAX
line. Inspect the cooling system for
leaks.Always use Honda Long-life Anti-
freeze/Coolant Type 2. This coolant
is pre-mixed with 50 percent
antifreeze and 50 percent water.
Never add straight antifreeze or plain
water.
If Honda antifreeze/coolant is not
available, you may use another
major-brand non-silicate coolant as a
temporary replacement. Make sure it
is a high-quality coolant
recommended for aluminum
engines. Continued use of any non-
Honda coolant can result in
corrosion, causing the cooling
system to malfunction or fail. Have
the cooling system flushed and
refilled with Honda antifreeze/
coolant as soon as possible.If the reserve tank is completely
empty, you should also check the
coolant level in the radiator.
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
MAX
MIN
Engine Coolant54809/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

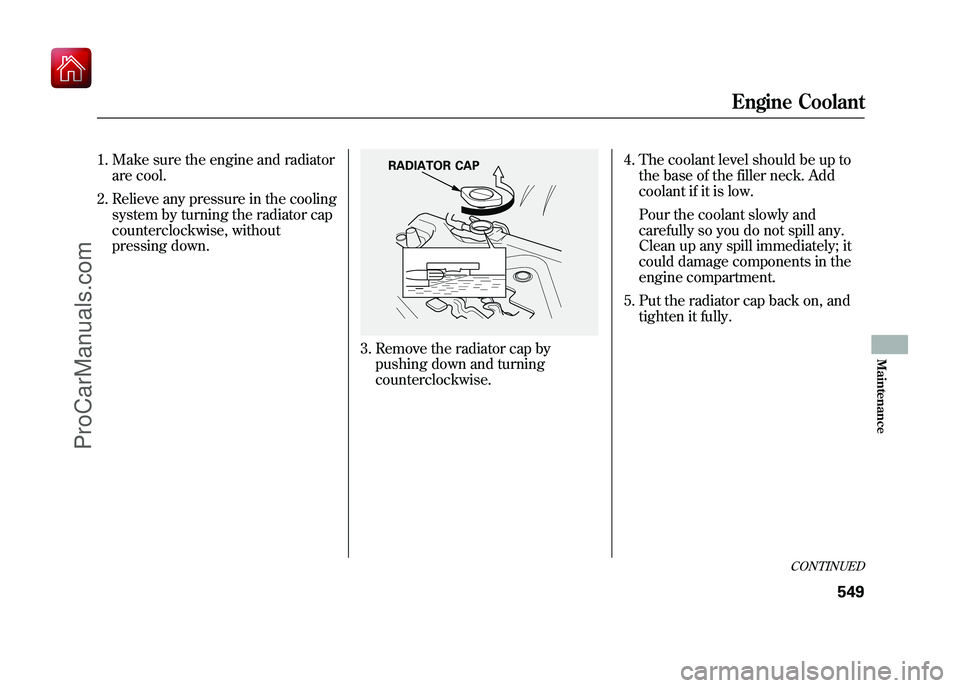

1. Make sure the engine and radiatorare cool.
2. Relieve any pressure in the cooling system by turning the radiator cap
counterclockwise, without
pressing down.
3. Remove the radiator cap bypushing down and turning
counterclockwise. 4. The coolant level should be up to
the base of the filler neck. Add
coolant if it is low.
Pour the coolant slowly and
carefully so you do not spill any.
Clean up any spill immediately; it
could damage components in the
engine compartment.
5. Put the radiator cap back on, and tighten it fully.
RADIATOR CAP
CONTINUED
Engine Coolant
549
Maintenance
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

6. Pour coolant into the reserve tank.Fill it to halfway between the MAX
and MIN marks. Put the cap back
on the reserve tank.
Do not add any rust inhibitors or
other additives to your vehicle's
cooling system. They may not be
compatible with the coolant or
engine components. Windshield Washers
Check and fill the windshield washer
reservoir according to the warning
message on the multi-information
display.
If the washer fluid is low, a
‘‘LOW
WASHER FLUID ’’message appears
on the multi-information display.
Fill the reservoir with a good-quality
windshield washer fluid. This
increases the cleaning capability and
prevents freezing in cold weather.
When you refill the reservoir, clean
the edges of the windshield wiper
blades with windshield washer fluid
on a clean cloth. This will help to
condition the blade edges.
Do not use engine antifreeze or a
vinegar/water solution in the
windshield washer reservoir. Antifreeze
can damage your vehicle's paint, while
a vinegar/water solution can damage
the windshield washer pump. Use only
commercially-available windshield
washer fluid.
MAX
MIN
RESERVE TANK
Engine Coolant, Windshield Washers55009/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

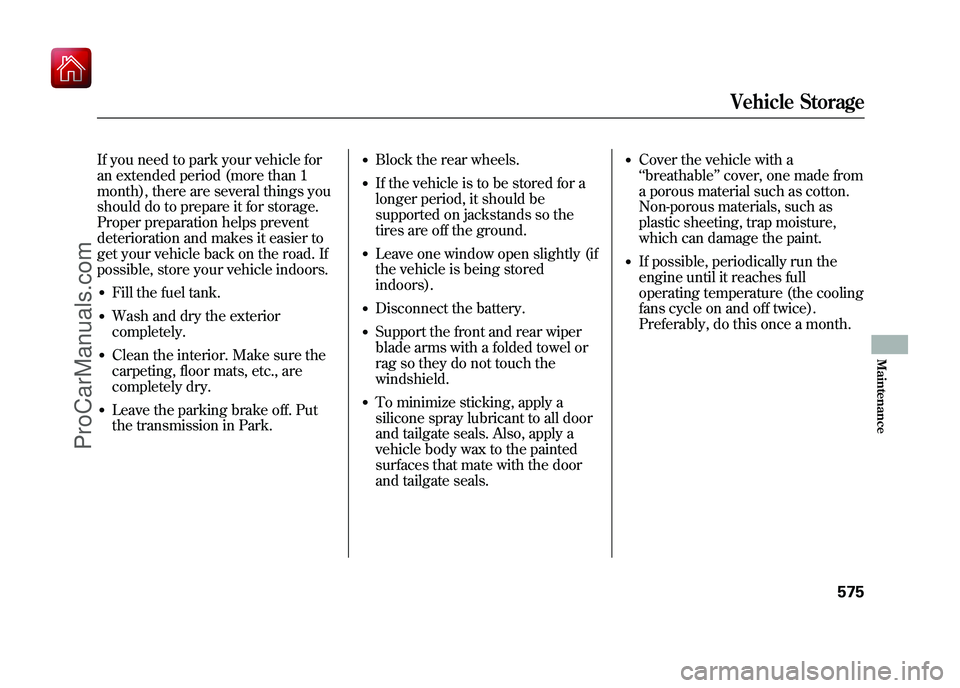

If you need to park your vehicle for
an extended period (more than 1
month), there are several things you
should do to prepare it for storage.
Proper preparation helps prevent
deterioration and makes it easier to
get your vehicle back on the road. If
possible, store your vehicle indoors.●Fill the fuel tank.●Wash and dry the exterior
completely.●Clean the interior. Make sure the
carpeting, floor mats, etc., are
completely dry.●Leave the parking brake off. Put
the transmission in Park.
●Block the rear wheels.●If the vehicle is to be stored for a
longer period, it should be
supported on jackstands so the
tires are off the ground.●Leave one window open slightly (if
the vehicle is being stored
indoors).●Disconnect the battery.●Support the front and rear wiper
blade arms with a folded towel or
rag so they do not touch the
windshield.●To minimize sticking, apply a
silicone spray lubricant to all door
and tailgate seals. Also, apply a
vehicle body wax to the painted
surfaces that mate with the door
and tailgate seals.
●Cover the vehicle with a
‘‘breathable’’ cover, one made from
a porous material such as cotton.
Non-porous materials, such as
plastic sheeting, trap moisture,
which can damage the paint.●If possible, periodically run the
engine until it reaches full
operating temperature (the cooling
fans cycle on and off twice).
Preferably, do this once a month.
Vehicle Storage
575
Maintenance
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

4. If the temperature gauge stays atthe red mark, turn off the engine.
5. Look for any obvious coolant leaks, such as a split radiator hose.
Everything is still extremely hot,
so use caution. If you find a leak, it
must be repaired before you
continue driving (see Emergency
Towing on page 602).
6. If you do not find an obvious leak, check the coolant level in the
radiator reserve tank. Add coolant
if the level is below the MIN mark.
7. If there was no coolant in the reserve tank, you may need to add
coolant to the radiator. Let the
engine cool down until the pointer
reaches the middle of the
temperature gauge, or lower,
before checking the radiator.
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
8. Using gloves or a large heavy cloth, turn the radiator cap
counterclockwise, without pushing
down, to the first stop. After the
pressure releases, push down on
the cap, and turn it until it comes
off. 9. Start the engine and set the
climate control to AUTO at ‘‘Hi. ’’
Add coolant to the radiator up to
the base of the filler neck. If you
do not have the proper coolant
mixture available, you can add
plain water. Remember to have the
cooling system drained and refilled
with the proper mixture as soon as
you can.
10. Put the radiator cap back on tightly. Run the engine, and check
the temperature gauge. If it goes
back to the red mark, the engine
needs repair (see Emergency
Towing on page 602).
11. If the temperature stays normal, check the coolant level in the
radiator reserve tank. If it has gone
down, add coolant to the MAX
mark. Put the cap back on tightly.
If the Engine Overheats59009/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

GCWR (Gross Combined WeightRating)
...................................
523
Gearshift Lever Positions Automatic
Transmission
...............
477, 478
Glove Box
..................................
215
Gross Axle Weight Rating (GAWR)
.................................
523
Gross Vehicle Weight Rating (GVWR)
.................................
523
GVWR (Gross Vehicle Weight Rating)
...................................
523
H
Hazard Warning Flashers
..........
143
Headlights
.................................
139
Aiming
....................................
555
Automatic Lighting Off
............
142
Daytime Running Lights
.........
141
High Beam Indicator
................
71
High Beams, Turning on
.........
139
Lights On Indicator
..................
71
Low Beams, Turning on
..........
139
Reminder Chime
.....................
139 Turning on
..............................
139
Washers
..................................
138
Head Restraints
..........................
162
Heaters, Seats
.....................
167, 168
Heating and Cooling
..................
220
High-Low Beam Switch
..............
139
HomeLink
®Universal
Transceiver
............................
396
Hood, Opening and Closing the
..........................................
457
Horn
......................................
4, 136
I
Identification Number, Vehicle
...................................
606
Ignition Keys
........................................
147
Switch
.....................................
150
Timing Control System
...........
617
Immobilizer System
...................
149
Important Safety Precautions
.........
6
Indicators, Instrument Panel
........
63
ABS (Anti-lock Brake)
.......
67, 496
Active Damper System
.............
72 Adaptive Cruise Control
(ACC)
...................................
73
Brake (Parking and Brake System)
.........................
66, 594
Charging System
..............
65, 592
Collision Mitigation Braking System ™
...............................
74
Cruise Control
..........................
71
Cruise Main
.............................
71
Door and Tailgate Open
...........
69
Electric Power Steering
............
74
Fog Lights
................................
71
High Beam
...............................
71
Key (Immobilizer System)
.......
70
Lights On
.................................
71
Low Fuel
..................................
72
Low Oil Pressure
..............
65, 591
Low Tire Pressure
....................
69
Maintenance Minder
...............
533
Malfunction Indicator Lamp
.............................
65, 593
Passenger Airbag Off
...............
36
Seat Belt Reminder
.............
21, 64
Security System
.......................
72
SH-AWD
®.................................
70
CONTINUED
Index
V
INDEX
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com
