2. If it comes on and stays on at anyother time, there is a problem with
the VSA or Hill Start Assist
system. You will also see a
‘‘CHECK VSA SYSTEM ’’or
‘‘ CHECK HILL START ASSIST
SYSTEM ’’message on the multi-
information display. Take your
vehicle to a dealer to have it
checked. Without VSA, your
vehicle still has normal driving
ability, but will not have VSA
traction and stability enhancement.
For more information, see page
508.
If the VSA indicator illuminates,
hill start assist will not be working.
Without hill start assist, the vehicle
will roll downhill immediately
when you release the brake on an
incline.
VSA OFF Indicator
This indicator comes on as a
reminder that you have turned off the
vehicle stability assist (VSA) system.
It indicator normally comes on for a
few seconds when you turn the
ignition switch
ꭧto the ON (II)
position. It may also come on briefly
when the ignition switch is turned to
the START (III) position. For more
information, see page 508.
ꭧ : Models equipped with the
keyless access system have an
engine start/stop button instead of
an ignition switch. ON mode is the
equivalent of ON (II), and START
mode is the equivalent of START
(III). For more information, see
pages 194 and 196.
Turn Signal and
Hazard Warning
Indicators
The left or right turn signal indicator
blinks when you signal a lane change
or turn. If an indicator does not blink
or blinks rapidly, it usually means
one of the turn signal bulbs is burned
out (see page 555 and 558). Replace
the bulb as soon as possible, since
other drivers cannot see that you are
signaling.
When you press the hazard warning
button, both turn signal indicators
and all turn signals on the outside of
the vehicle flash.
Instrument Panel Indicators6809/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

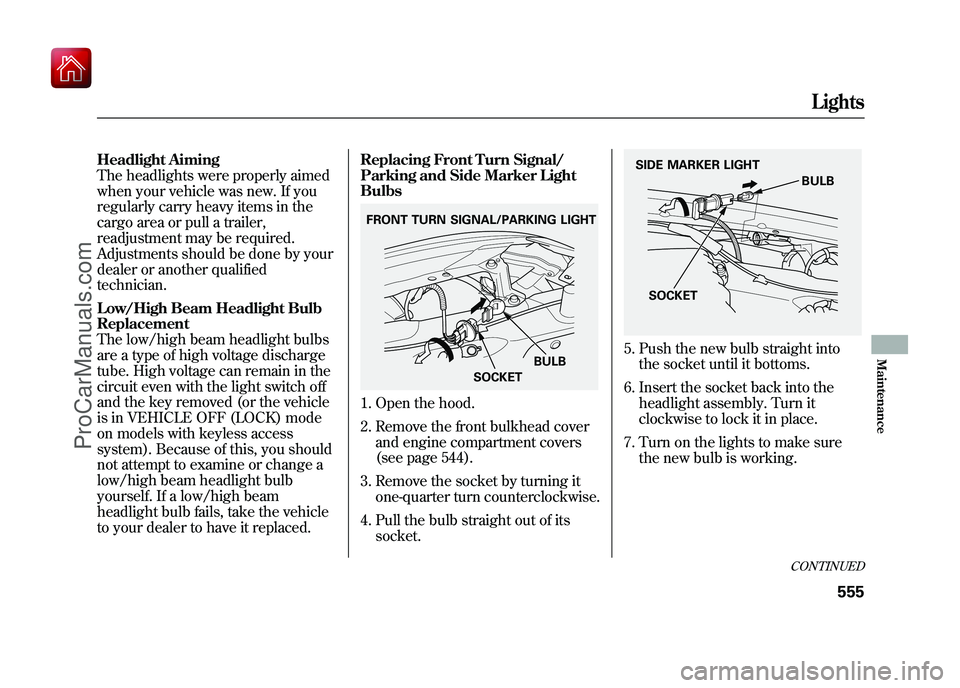

Headlight Aiming
The headlights were properly aimed
when your vehicle was new. If you
regularly carry heavy items in the
cargo area or pull a trailer,
readjustment may be required.
Adjustments should be done by your
dealer or another qualified
technician.
Low/High Beam Headlight Bulb
Replacement
The low/high beam headlight bulbs
are a type of high voltage discharge
tube. High voltage can remain in the
circuit even with the light switch off
and the key removed (or the vehicle
is in VEHICLE OFF (LOCK) mode
on models with keyless access
system). Because of this, you should
not attempt to examine or change a
low/high beam headlight bulb
yourself. If a low/high beam
headlight bulb fails, take the vehicle
to your dealer to have it replaced.Replacing Front Turn Signal/
Parking and Side Marker Light
Bulbs
1. Open the hood.
2. Remove the front bulkhead cover
and engine compartment covers
(see page 544).
3. Remove the socket by turning it one-quarter turn counterclockwise.
4. Pull the bulb straight out of its socket.
5. Push the new bulb straight intothe socket until it bottoms.
6. Insert the socket back into the headlight assembly. Turn it
clockwise to lock it in place.
7. Turn on the lights to make sure the new bulb is working.
FRONT TURN SIGNAL/PARKING LIGHT
SOCKETBULB
SIDE MARKER LIGHT
SOCKET BULB
CONTINUED
Lights
555
Maintenance
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

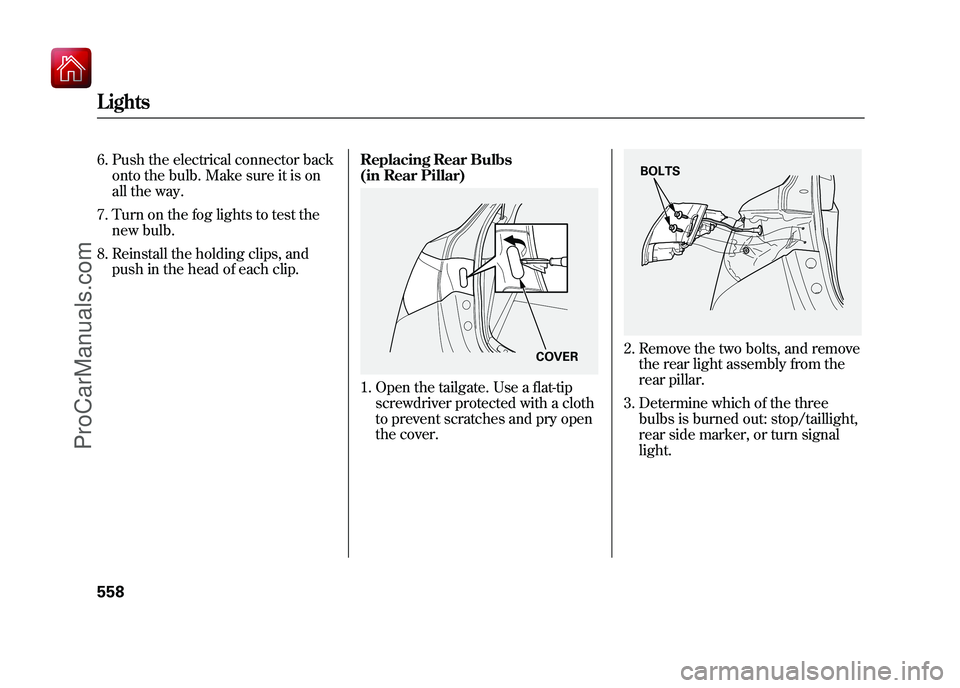

6. Push the electrical connector backonto the bulb. Make sure it is on
all the way.
7. Turn on the fog lights to test the new bulb.
8. Reinstall the holding clips, and push in the head of each clip. Replacing Rear Bulbs
(in Rear Pillar)
1. Open the tailgate. Use a flat-tip
screwdriver protected with a cloth
to prevent scratches and pry open
the cover.
2. Remove the two bolts, and removethe rear light assembly from the
rear pillar.
3. Determine which of the three bulbs is burned out: stop/taillight,
rear side marker, or turn signal
light.
COVER
BOLTS
Lights55809/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

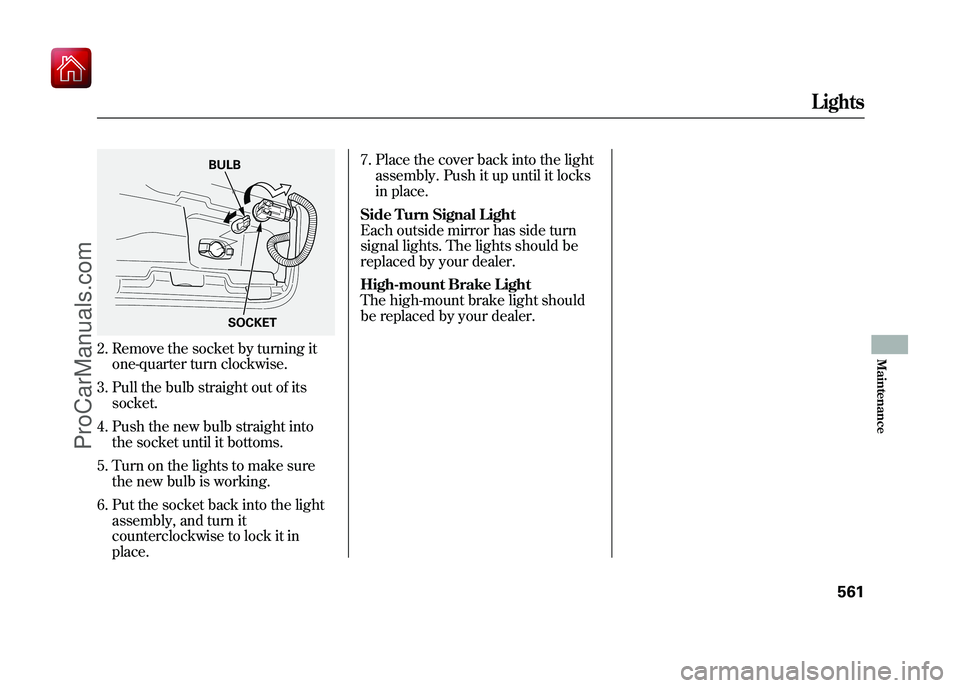

2. Remove the socket by turning itone-quarter turn clockwise.
3. Pull the bulb straight out of its socket.
4. Push the new bulb straight into the socket until it bottoms.
5. Turn on the lights to make sure the new bulb is working.
6. Put the socket back into the light assembly, and turn it
counterclockwise to lock it in
place. 7. Place the cover back into the light
assembly. Push it up until it locks
in place.
Side Turn Signal Light
Each outside mirror has side turn
signal lights. The lights should be
replaced by your dealer.
High-mount Brake Light
The high-mount brake light should
be replaced by your dealer.
BULB
SOCKET
Lights
561
Maintenance
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

LightsHeadlights (high/low beam)
ꭧ1
35 W (D2S)
Daytime running lights 60 W (HB3)
Front side marker lights 5 W
Front turn signal/parking lights 28/8 W (Amber)
Fog lights 55 W (H11)
Side turn signal lights LED
Rear turn signal lights 21 W
Rear side marker lights 3 CP
Stop/taillights 21/5 W
Back-up lights 21 W
License plate lights 5 W
High-mount brake lights LED
Front and rear individual map lights LED
Cargo area light 8 W
Door courtesy lights 3.4 W
Vanity mirror lights 1.4 W
Console compartment light 1.4 W
Glove box light 1.4 W
Foot light LED
Door inner handle light
ꭧ 2
LED
ꭧ1: The low beam headlights are high voltage discharged type. Replacement of a low beam headlight bulb should be performed by your dealer.
ꭧ2: On models with adaptive cruise control (ACC)
Battery Capacity 12 V －60AH/5 HR
12 V －72AH/20 HR Fuses
Interior Driver's side See page 600 or the fuse label attached under the steering column.
Passenger's side See page 601 or the fuse label attached on the inside of fuse box lid.
Under-hood See page 599 or the fuse box cover.
Engine Type Water-cooled, 4-stroke SOHC VTEC V6 gasoline engine
Bore x Stroke 3.54 x 3.78 in (90.0 x 96.0 mm)
Displacement 223.5 cu-in (3,664 cm
3)
Compression ratio 11.2 : 1
Spark plugs DENSO: NGK:SXU22HCR11S
ILZKR7B-11S
Alignment Toe-in Front 0.00 in (0.0 mm)
Rear 0.07 in (2.0 mm)
Camber Front －0.5°
Rear －0.5°
Caster Front 4.64°
Tires Size Front/Rear P255/50R19 103H
Spare T165/80D17 104M
Pressure Front/Rear 32 psi (220 kPa, 2.2 kgf/cm2)
Spare 60 psi (420 kPa, 4.2 kgf/cm2)
Specifications
609
Technical Information
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

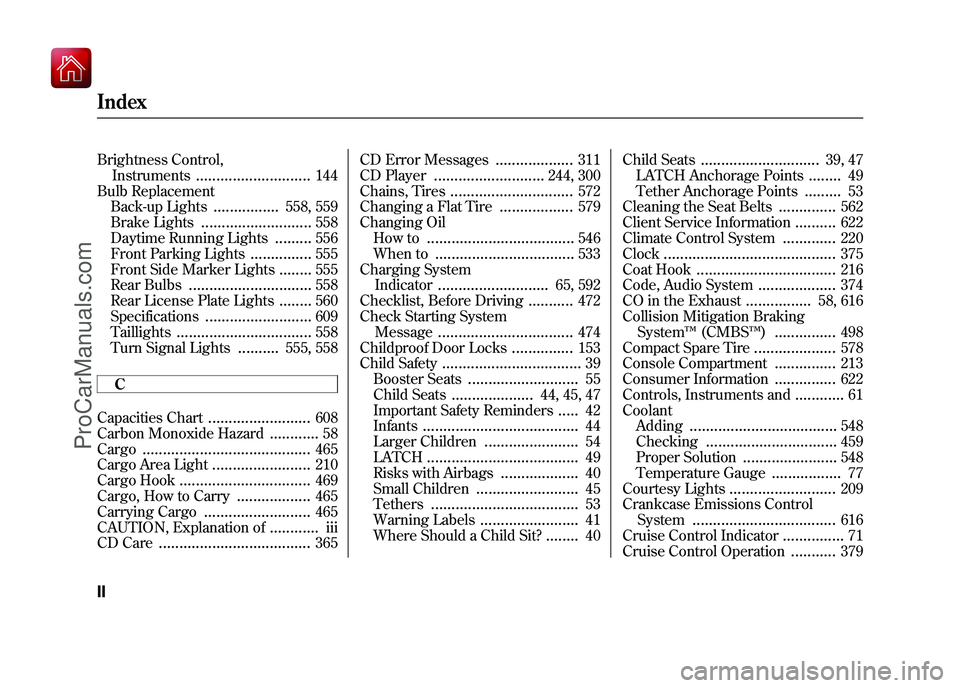

Brightness Control,Instruments
............................
144
Bulb Replacement Back-up Lights
................
558, 559
Brake Lights
...........................
558
Daytime Running Lights
.........
556
Front Parking Lights
...............
555
Front Side Marker Lights
........
555
Rear Bulbs
..............................
558
Rear License Plate Lights
........
560
Specifications
..........................
609
Taillights
.................................
558
Turn Signal Lights
..........
555, 558
C
Capacities Chart
.........................
608
Carbon Monoxide Hazard
............
58
Cargo
.........................................
465
Cargo Area Light
........................
210
Cargo Hook
................................
469
Cargo, How to Carry
..................
465
Carrying Cargo
..........................
465
CAUTION, Explanation of
............
iii
CD Care
.....................................
365 CD Error Messages
...................
311
CD Player
...........................
244, 300
Chains, Tires
..............................
572
Changing a Flat Tire
..................
579
Changing Oil How to
....................................
546
When to
..................................
533
Charging System Indicator
...........................
65, 592
Checklist, Before Driving
...........
472
Check Starting System Message
.................................
474
Childproof Door Locks
...............
153
Child Safety
..................................
39
Booster Seats
...........................
55
Child Seats
....................
44, 45, 47
Important Safety Reminders
.....
42
Infants
......................................
44
Larger Children
.......................
54
LATCH
.....................................
49
Risks with Airbags
...................
40
Small Children
.........................
45
Tethers
....................................
53
Warning Labels
........................
41
Where Should a Child Sit?
........
40 Child Seats
.............................
39, 47
LATCH Anchorage Points
........
49
Tether Anchorage Points
.........
53
Cleaning the Seat Belts
..............
562
Client Service Information
..........
622
Climate Control System
.............
220
Clock
..........................................
375
Coat Hook
..................................
216
Code, Audio System
...................
374
CO in the Exhaust
................
58, 616
Collision Mitigation Braking System ™(CMBS ™)
...............
498
Compact Spare Tire
....................
578
Console Compartment
...............
213
Consumer Information
...............
622
Controls, Instruments and
............
61
Coolant Adding
....................................
548
Checking
................................
459
Proper Solution
.......................
548
Temperature Gauge
.................
77
Courtesy Lights
..........................
209
Crankcase Emissions Control System
...................................
616
Cruise Control Indicator
...............
71
Cruise Control Operation
...........
379
IndexII09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

Side Airbag Off
....................
35, 67
SRS
.....................................
34, 66
System Message
.................
69, 89
Tire Pressure Monitor
..............
69
Turn Signal and Hazard Warning
...............................
68
VSA OFF
..................................
68
VSA System
.............................
67
Individual Map Lights
................
209
Infant Restraint
............................
44
Infant Seats
..................................
44
Tether Anchorage Point
...........
53
Inflation, Proper Tire
..................
567
Inside Mirror
.............................
177
Inspection, Tire
..........................
569
Installing a Child Seat
..................
48
Instrument Panel
..........................
63
Instrument Panel Brightness
.....
144
Instruments and Controls
.............
61
Integrated Dynamics System (IDS)
......................................
519
Interface Dial
.............................
277
Interior Care
..............................
576
Interior Lights
............................
208
Courtesy Lights
.......................
209
Introduction
...................................
i iPod
®...................................
255, 340
iPod
®Error Messages
.........
263, 348
J
Jacking up the Vehicle
...............
579
Jack, Tire
...................................
579
Jump Starting
.............................
587
K
Keyless Access System
..............
183
Keys
...........................................
147
L
Label, Certification
.....................
606
Lane Change, Signaling
.............
139
Lap/Shoulder Belt
.................
16, 22
LATCH Anchorage System
..........
49
Light Control Buttons
................
208
Lights Bulb Replacement
...................
555
Indicator
...................................
63 Interior
....................................
208
Parking
...................................
139
Load Limit
...........................
466, 522
LOCK (Ignition Key Position)....
150
Locks Anti-theft Steering Column
......
150
Childproof Door
......................
153
Fuel Fill Door
..........................
455
Glove Box
...............................
215
Lockout Prevention
.................
152
Power Door
.............................
151
Tailgate
...................................
153
Low Coolant Level
......................
459
Lower Anchors
.............................
49
Low Fuel Indicator
.......................
72
Low Oil Pressure Indicator
...........................
65, 591
Lubricant Specifications Chart...
608
Luggage, Storing (cargo)
...........
465
M
Maintenance
..............................
531
Main Items and Sub Items
......
538
Minder
....................................
533
IndexVI09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

Seat Belts
.................................
9, 21
Additional Information
.............
21
Advice for Pregnant Women
....
19
Automatic Seat Belt
Tensioners
...........................
23
Cleaning
..................................
562
e-pretensioner
..........................
24
Lap/Shoulder Belt
..............
16, 22
Maintenance
............................
25
Reminder Indicator and Beeper
.............................
21, 64
System Components
................
21
Use During Pregnancy
.............
19
Wearing a Lap/Shoulder Belt
..................................
16, 22
Seats
..........................................
161
Head Restraints
.......................
162
Heaters
...........................
167, 168
Position Memory
....................
180
Ventilation
...............................
168
Seats, Adjusting the
...................
161
Security System
.........................
378
Security System Indicator
............
72
Sensors Driver's Seat Position Sensor
...
30 Front Passenger's Weight
Sensors
................................
30
Impact Sensors
........................
26
Serial Number
............................
606
Service Intervals
.........................
533
Service Manual (U.S. only)
........
625
Service Station Procedures
........
455
Setting the Clock
........................
375
SH-AWD
®...................................
487
Indicator
...................................
70
Shifting the Automatic Transmission
..........................
478
Shift Lever Position Indicators
...
477
Shift Lock Release
......................
480
Side Airbags
.................................
32
How the Side Airbag Off Indicator Works
...................
35
How Your Side Airbags Work..32
Side Curtain Airbags
....................
33
How Your Side Curtain Airbags Work
....................................
33
Side Marker Lights, Bulb Replacement in
.......................
555
Signaling Turns
............................
68
Snow Tires
.................................
571
Sound System
.....................
228, 277 Spare Tire
..................................
578
Inflating
...........................
567, 578
Specifications
..........................
609
Spark Plugs
................................
609
Specifications
.............................
608
Speed Control
............................
379
Speed Limiter
.............................
480
Speedometer
................................
76
SRS, Additional Information
.........
26
Additional Safety Precautions
...
37
Airbag Service
..........................
37
Airbag System Components
.....
26
How the Side Airbag Off Indicator Works
...................
35
How the SRS Indicator Works..34
How Your Front Airbags Work
....................................
28
How Your Side Airbags Work..32
How Your Side Curtain Airbags Work
....................................
33
SRS Indicator
.........................
34, 66
START (Ignition Key Position)
.................................
150
Starting the Engine With a Dead Battery
................
587
CONTINUED
Index
IX
INDEX
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com
