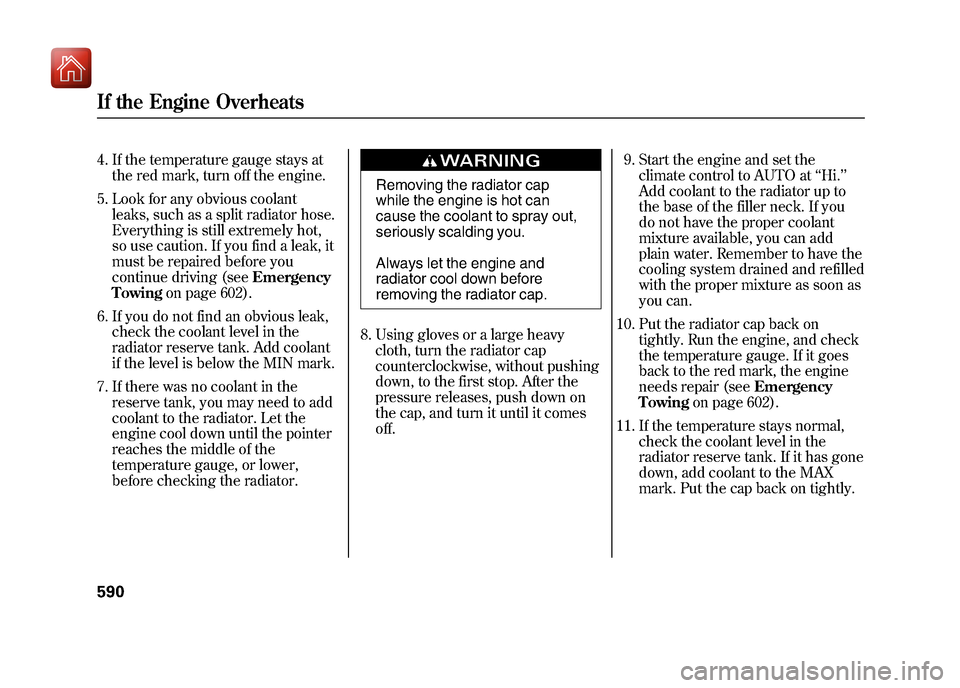

Page 595 of 645
4. If the temperature gauge stays atthe red mark, turn off the engine.
5. Look for any obvious coolant leaks, such as a split radiator hose.
Everything is still extremely hot,
so use caution. If you find a leak, it
must be repaired before you
continue driving (see Emergency
Towing on page 602).
6. If you do not find an obvious leak, check the coolant level in the
radiator reserve tank. Add coolant
if the level is below the MIN mark.
7. If there was no coolant in the reserve tank, you may need to add
coolant to the radiator. Let the
engine cool down until the pointer
reaches the middle of the
temperature gauge, or lower,
before checking the radiator.
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
8. Using gloves or a large heavy cloth, turn the radiator cap
counterclockwise, without pushing
down, to the first stop. After the
pressure releases, push down on
the cap, and turn it until it comes
off. 9. Start the engine and set the
climate control to AUTO at ‘‘Hi. ’’
Add coolant to the radiator up to
the base of the filler neck. If you
do not have the proper coolant
mixture available, you can add
plain water. Remember to have the
cooling system drained and refilled
with the proper mixture as soon as
you can.
10. Put the radiator cap back on tightly. Run the engine, and check
the temperature gauge. If it goes
back to the red mark, the engine
needs repair (see Emergency
Towing on page 602).
11. If the temperature stays normal, check the coolant level in the
radiator reserve tank. If it has gone
down, add coolant to the MAX
mark. Put the cap back on tightly.
If the Engine Overheats59009/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
Page 613 of 645
DimensionsLength 193.1 in (4,904 mm)
Width 78.5 in (1,993 mm)
Height 62.8 in (1,596 mm)
Wheelbase 108.3 in (2,750 mm)
Track Front 67.7 in (1,720 mm)
Rear 67.7 in (1,719 mm)
Weights Gross vehicle weight rating See the tire information label attached to the driver's doorjamb.
Gross combined weight
ꭧ 1
rating (GCWR) 6,593 lbs (2,990 kg)
ꭧ 1: The GCWR must be reduced 2 percent for every 1,000 feet (305
meters) of elevation.
Air Conditioning Refrigerant type HFC-134a (R-134a)
Charge quantity 16.9 -18.7 oz (480 -530 g)
Lubricant type ND-OIL 8
Seating Capacities Total 5
Front 2
Rear 3 Capacities
Fuel tank Approx. 21.00 US gal (79.5 L)
Engine
coolant Change
ꭧ
1
1.77 US gal (6.7 L)
Total 2.27 US gal (8.6 L)
Engine oil Change
ꭧ 2
4.5 US qt (4.3 L)
Including
filter
Without
filter 4.2 US qt (4.0 L)
Total 5.3 US qt (5.0 L)
Automatic
transmission
fluid Change 3.3 US qt (3.1 L)
Total 8.5 US qt (8.0 L)
Rear
differential
fluid Change 2.67 US qt (2.53 L)
Total 2.93 US qt (2.77 L)
Transfer
assembly
fluid Change 0.45 US qt (0.43 L)
Total 0.48 US qt (0.45 L)
Windshield washer reservoir 5.2 US qt (4.9 L)
ꭧ 1: Including the coolant in the reserve tank and that remaining in the
engine
Reserve tank capacity:
0.18 US gal (0.675 L)
ꭧ 2: Excluding the oil remaining in the engine
Specifications60809/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
Page 635 of 645
EngineAdding Engine Coolant
...........
548
Coolant Temperature Gauge
....
77
If it Won't Start
........................
585
Malfunction Indicator Lamp
.............................
65, 593
Oil Life Indicator
.....................
533
Oil Pressure Indicator
.......
65, 591
Oil, What Kind to Use
.............
545
Overheating
............................
589
Specifications
..........................
609
Speed Limiter
..........................
480
Engine Coolant
..........................
548
Ethanol in Gasoline
....................
454
Evaporative Emissions Controls
..................................
616
Exhaust Fumes
............................
58
Exhaust Gas Recirculation System
...................................
617
Expectant Mothers, Use of Seat Belts by
....................................
19
F
Fan, Interior
...............................
223 Features
.....................................
219
Filters Dust and Pollen
.......................
562
Oil
...........................................
546
Flashers, Hazard Warning
.........
143
Flat Tire, Changing a
.................
579
Floor Mats
.................................
563
Fluids Automatic Transmission
.........
551
Brake
......................................
553
Location
..................................
543
Power Steering
........................
554
Windshield Washer
.................
550
FM/AM Radio Reception
...........
369
Fog Lights
..................................
141
Four-way Flashers
......................
143
Front Airbags
.........................
10, 28
Front Seat
..................................
161
Adjusting
.................................
161
Front Seat Heaters and Seat Ventilation
..............................
168
Fuel
............................................
454
Economy
.................................
460
Fill Door and Cap
....................
455
Gauge
......................................
76
Low Fuel Indicator
...................
72 Octane Requirement
...............
454
Opening the Fuel Fill Door Manually
.............................
602
Reserve Indicator
.....................
72
Tank, Filling the
......................
455
Tighten Fuel Cap
....................
456
Fuel Economy
............................
460
Fuses, Checking the
..................
596
G
Gas Mileage, Improving
.............
461
Gasoline
.....................................
454
Gauge
......................................
76
Low Fuel Indicator
...................
72
Octane Requirement
...............
454
Tank, Refueling
.......................
455
Gas Station Procedures
..............
455
Gauges Engine Coolant Temperature...
77
Fuel
..........................................
76
Speedometer
............................
76
Tachometer
..............................
76
GAWR (Gross Axle Weight Rating)
...................................
523
IndexIV09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
Page 639 of 645
Power Seat Adjustments
............
161
Power Socket Locations
.............
217
Power Steering Fluid
.................
554
Power Windows
.........................
171
Pregnancy, Using Seat Belts
........
19
Preparing to Drive
......................
472
Proper Seat Belt Usage
................
16
Protecting Adults and Teens
........
12
Additional Safety Precautions
...
20
Advice for Pregnant Women
....
19
Protecting Children
......................
39
General Guidelines
..................
39
Protecting Infants
.....................
44
Protecting Larger Children
......
54
Protecting Small Children
........
45
Using Child Seats with Tethers
.................................
53
Using LATCH
..........................
49
R
Radiator Overheating
.................
589
Radio/CD Sound System
...........
228
Radio/Disc Sound System
............................
230, 278 Radio Theft Protection
...............
374
Readiness Codes
........................
619
Rear Lights, Bulb Replacement
...........................
558
Rear Seat Heaters (Canadian models)
..................................
170
Rearview Mirror
.........................
177
Rearview Mirror with Rearview Camera Display
......................
451
Rear Window Defogger
..............
143
Reclining the Seat Backs
............
161
Refueling
....................................
455
Reminder Indicators
.....................
64
Remote Audio Controls
..............
371
Remote Transmitter
...................
157
Replacement Information Dust and Pollen Filter
.............
562
Engine Oil and Filter
...............
546
Fuses
......................................
595
Light Bulbs
.............................
555
Schedule
.................................
542
Spark Plugs
.............................
609
Timing Belt
.............................
554
Tires
.......................................
570
Wiper Blades
..........................
564 Replacing Seat Belts After a
Crash
........................................
25
Reporting Safety Defects (U.S. only)
.......................................
624
Reserve Tank, Engine Coolant
............................
459, 548
Restraint, Child
............................
39
Reverse Gear Position
................
479
Rotation, Tire
.............................
570
S
Safety Belts
..............................
9, 21
Safety Defects, Reporting (U.S.
only)
.......................................
624
Safety Features
..............................
8
Airbags
...............................
10, 26
Door Locks
..............................
12
Head Restraints
........................
15
Seat Belts
........................
9, 16, 21
Seats & Seat-Backs
..............
14, 15
Safety Labels, Location of
.............
59
Safety Messages
..........................
iii
Seat Belt e-pretensioners
..............
24
IndexVIII09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
