engine coolant Acura ZDX 2012 Owner's Manual

Acura ZDX 2012 Owner's Manual ZDX 2012 Acura Acura https://www.carmanualsonline.info/img/32/11158/w960_11158-0.png Acura ZDX 2012 Owner's Manual

Page 82 of 645

Acura ZDX 2012  Owners Manual Temperature Gauge
This shows the temperature of the
engines coolant. During normal
operation, the pointer should rise
from the bottom mark to about the
middle of the gauge. In severe
driving conditio

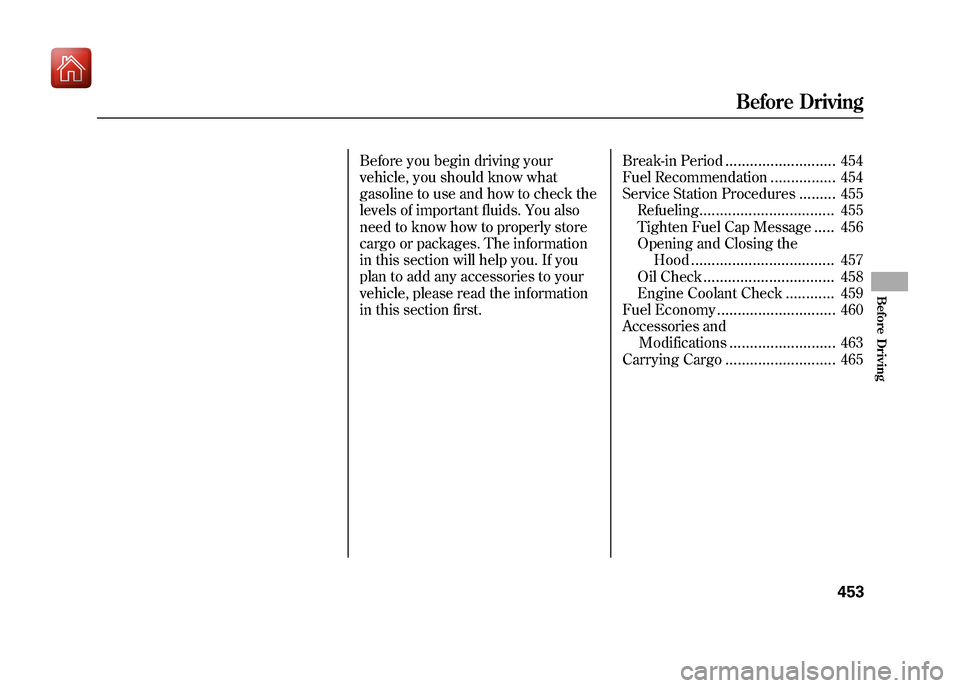

Page 458 of 645

Acura ZDX 2012  Owners Manual Before you begin driving your
vehicle, you should know what
gasoline to use and how to check the
levels of important fluids. You also
need to know how to properly store
cargo or packages. The informat

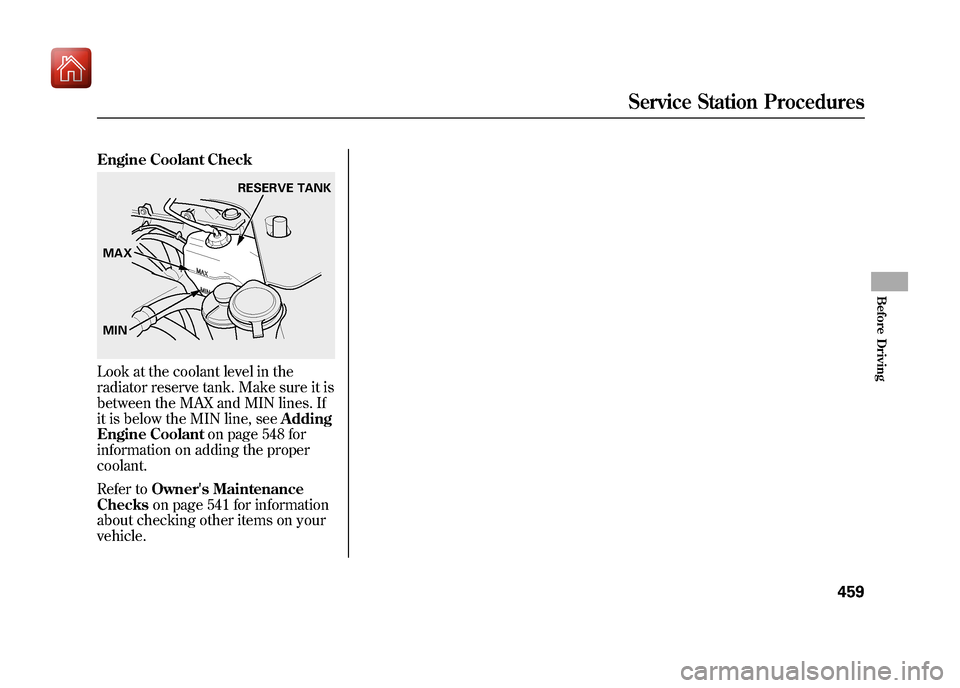

Page 464 of 645

Acura ZDX 2012  Owners Manual Engine Coolant CheckLook at the coolant level in the
radiator reserve tank. Make sure it is
between the MAX and MIN lines. If
it is below the MIN line, seeAdding
Engine Coolant on page 548 for
informa

Page 536 of 645

Acura ZDX 2012  Owners Manual This section explains why it is
important to keep your vehicle well
maintained and how to follow basic
maintenance safety precautions.
This section also includes
instructions on how to read the
mainte

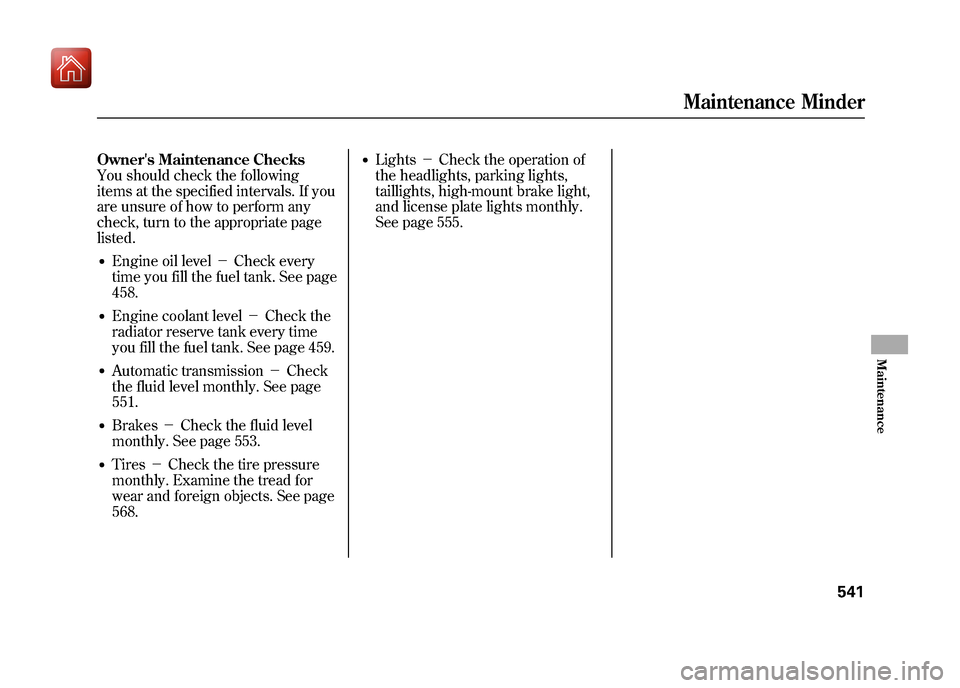

Page 546 of 645

Acura ZDX 2012  Owners Manual Owners Maintenance Checks
You should check the following
items at the specified intervals. If you
are unsure of how to perform any
check, turn to the appropriate page
listed.●Engine oil level-Che

Page 547 of 645

Acura ZDX 2012  Owners Manual SymbolMaintenance Main Items
A
●Replace engine oil
1
B
●Replace engine oil
1and oil filter
●Inspect front and rear brakes●Check parking brake adjustment●Inspect these items:●Tie rod ends,

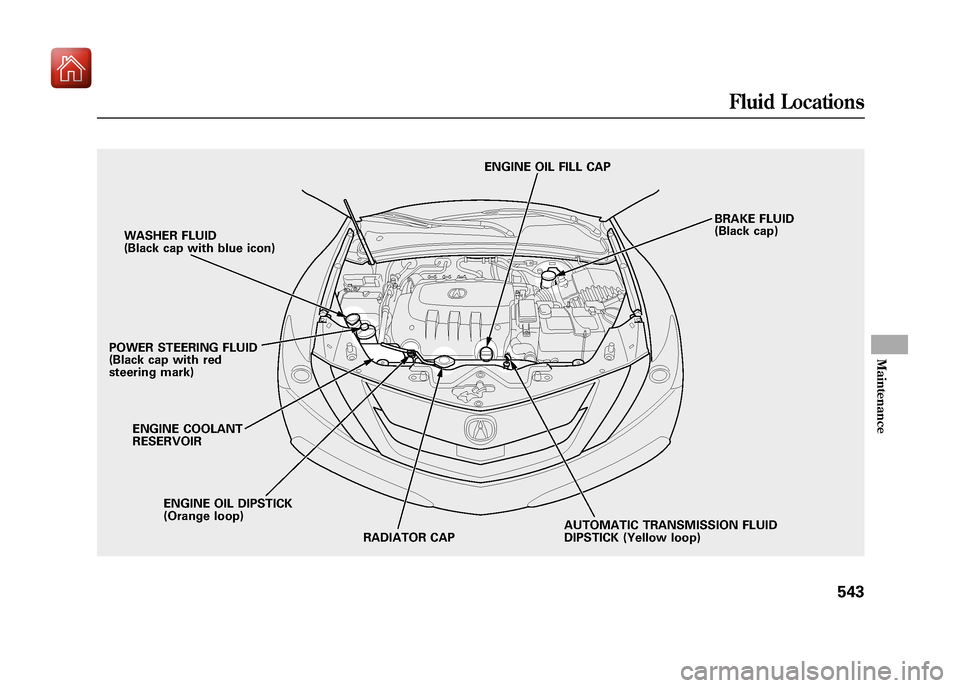

Page 548 of 645

Acura ZDX 2012  Owners Manual WASHER FLUID
(Black cap with blue icon)
POWER STEERING FLUID
(Black cap with red
steering mark)
ENGINE OIL DIPSTICK
(Orange loop)
ENGINE COOLANT
RESERVOIR
AUTOMATIC TRANSMISSION FLUID
DIPSTICK (Yellow

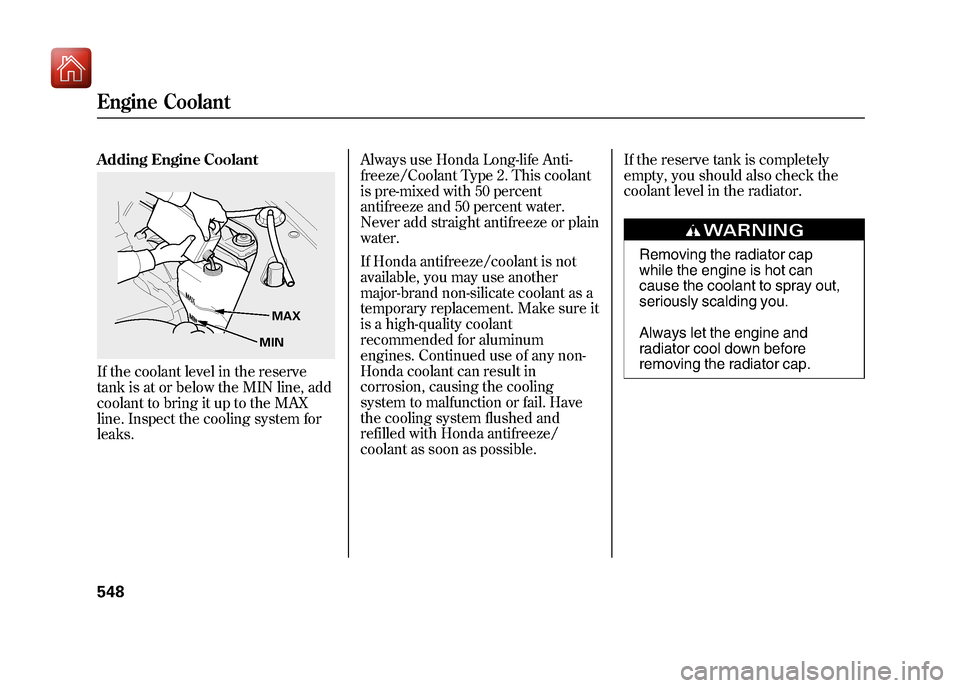

Page 553 of 645

Acura ZDX 2012  Owners Manual Adding Engine CoolantIf the coolant level in the reserve
tank is at or below the MIN line, add
coolant to bring it up to the MAX
line. Inspect the cooling system for
leaks.Always use Honda Long-life A

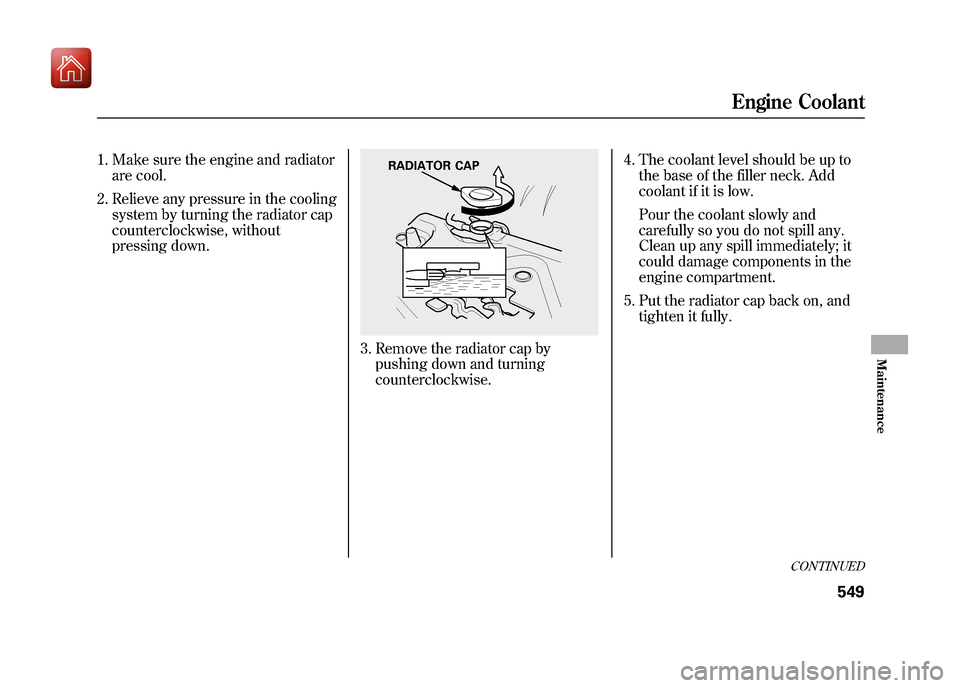

Page 554 of 645

Acura ZDX 2012  Owners Manual 1. Make sure the engine and radiatorare cool.
2. Relieve any pressure in the cooling system by turning the radiator cap
counterclockwise, without
pressing down.
3. Remove the radiator cap bypushing do

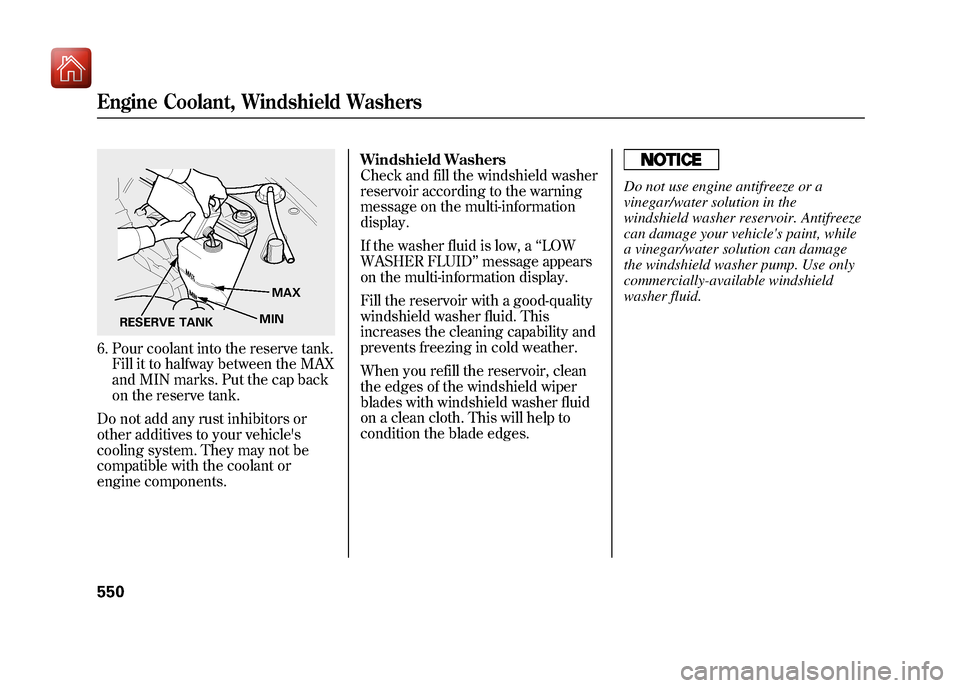

Page 555 of 645

Acura ZDX 2012  Owners Manual 6. Pour coolant into the reserve tank.Fill it to halfway between the MAX
and MIN marks. Put the cap back
on the reserve tank.
Do not add any rust inhibitors or
other additives to your vehicles
coolin
