Page 440 of 645

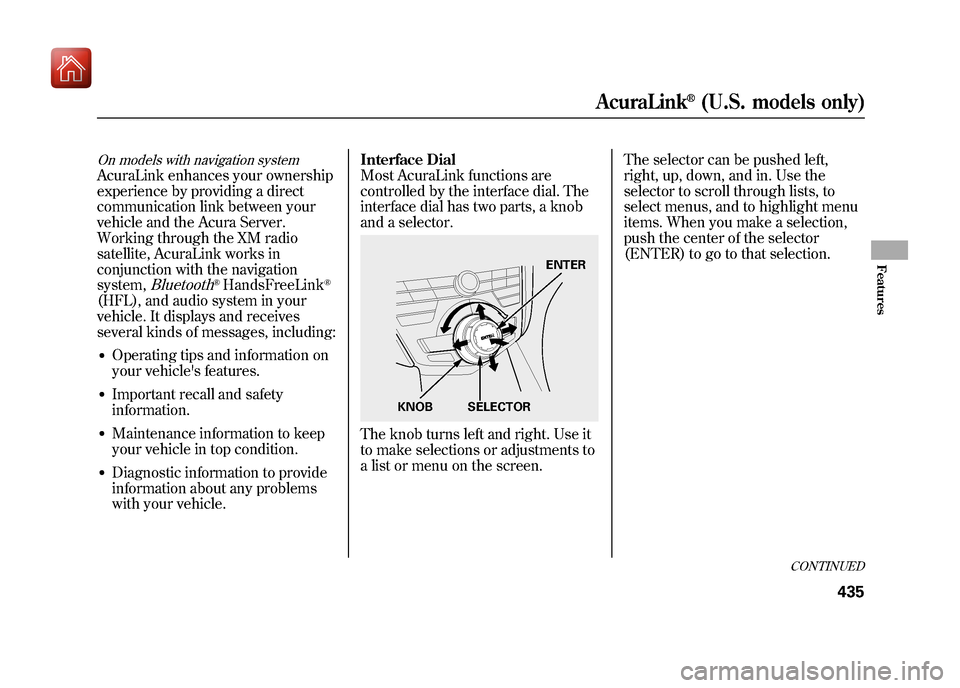

On models with navigation systemAcuraLink enhances your ownership
experience by providing a direct
communication link between your
vehicle and the Acura Server.
Working through the XM radio
satellite, AcuraLink works in
conjunction with the navigation
system,
Bluetooth
®HandsFreeLink
®
(HFL), and audio system in your
vehicle. It displays and receives
several kinds of messages, including:●Operating tips and information on
your vehicle's features.●Important recall and safety
information.●Maintenance information to keep
your vehicle in top condition.●Diagnostic information to provide
information about any problems
with your vehicle.Interface Dial
Most AcuraLink functions are
controlled by the interface dial. The
interface dial has two parts, a knob
and a selector.
The knob turns left and right. Use it
to make selections or adjustments to
a list or menu on the screen.
The selector can be pushed left,
right, up, down, and in. Use the
selector to scroll through lists, to
select menus, and to highlight menu
items. When you make a selection,
push the center of the selector
(ENTER) to go to that selection.
ENTER
KNOB SELECTOR
CONTINUED
AcuraLink
®(U.S. models only)
435
Features
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
Page 452 of 645

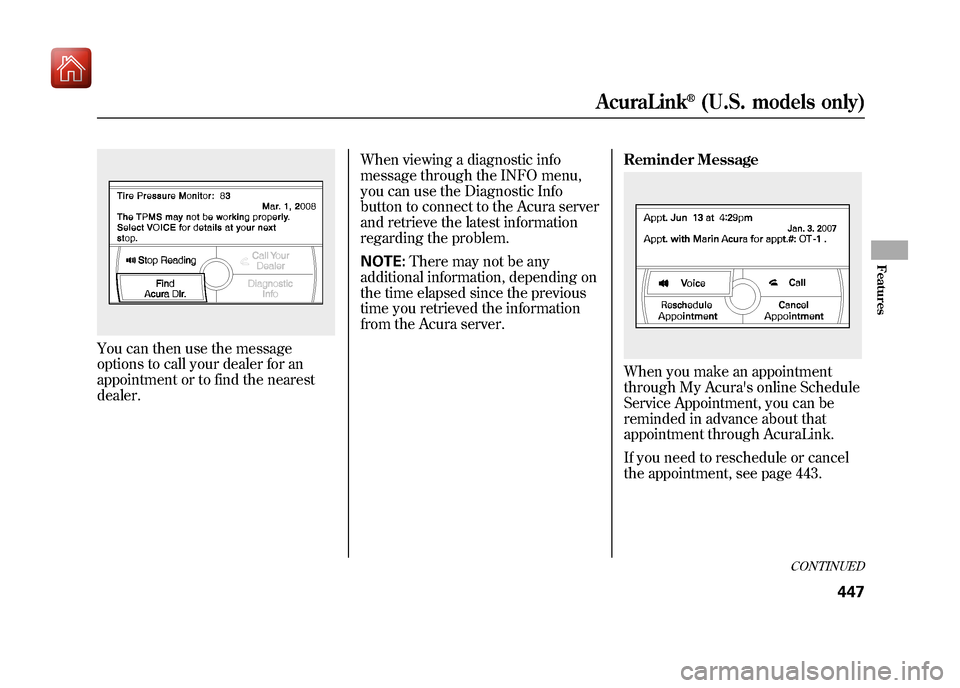

You can then use the message
options to call your dealer for an
appointment or to find the nearest
dealer.When viewing a diagnostic info
message through the INFO menu,
you can use the Diagnostic Info
button to connect to the Acura server
and retrieve the latest information
regarding the problem.
NOTE:
There may not be any
additional information, depending on
the time elapsed since the previous
time you retrieved the information
from the Acura server. Reminder Message
When you make an appointment
through My Acura's online Schedule
Service Appointment, you can be
reminded in advance about that
appointment through AcuraLink.
If you need to reschedule or cancel
the appointment, see page 443.
CONTINUED
AcuraLink
®(U.S. models only)
447
Features
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
Page 454 of 645

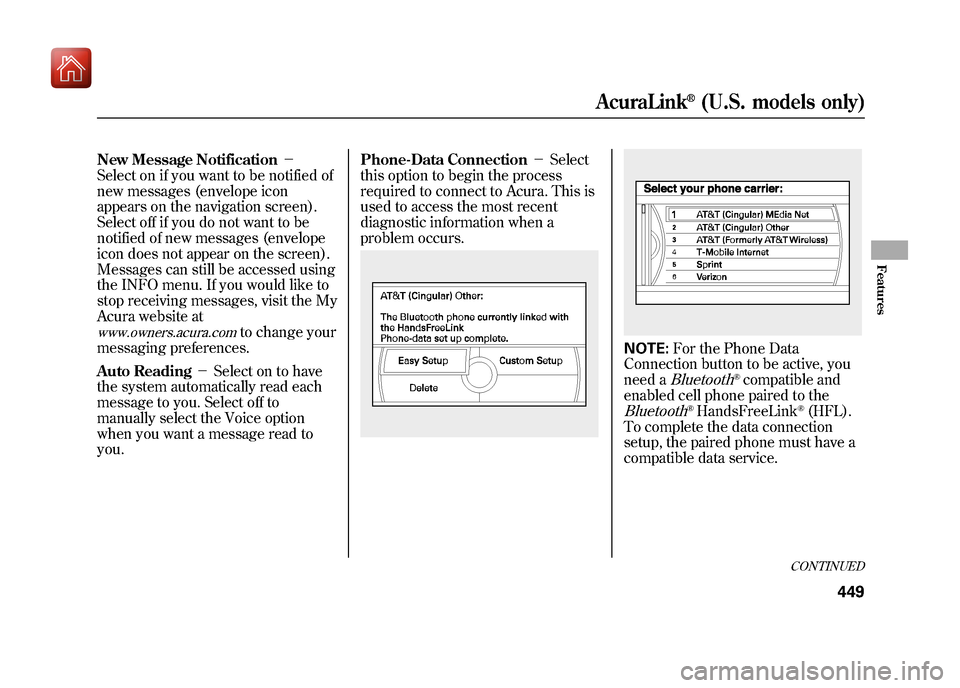

New Message Notification-
Select on if you want to be notified of
new messages (envelope icon
appears on the navigation screen).
Select off if you do not want to be
notified of new messages (envelope
icon does not appear on the screen).
Messages can still be accessed using
the INFO menu. If you would like to
stop receiving messages, visit the My
Acura website atwww.owners.acura.com
to change your
messaging preferences.
Auto Reading -Select on to have
the system automatically read each
message to you. Select off to
manually select the Voice option
when you want a message read to
you. Phone-Data Connection
-Select
this option to begin the process
required to connect to Acura. This is
used to access the most recent
diagnostic information when a
problem occurs.
NOTE: For the Phone Data
Connection button to be active, you
need a
Bluetooth
®compatible and
enabled cell phone paired to the
Bluetooth
®HandsFreeLink
®(HFL).
To complete the data connection
setup, the paired phone must have a
compatible data service.
CONTINUED
AcuraLink
®(U.S. models only)
449
Features
