fuse box location Acura ZDX 2012 Owner's Manual

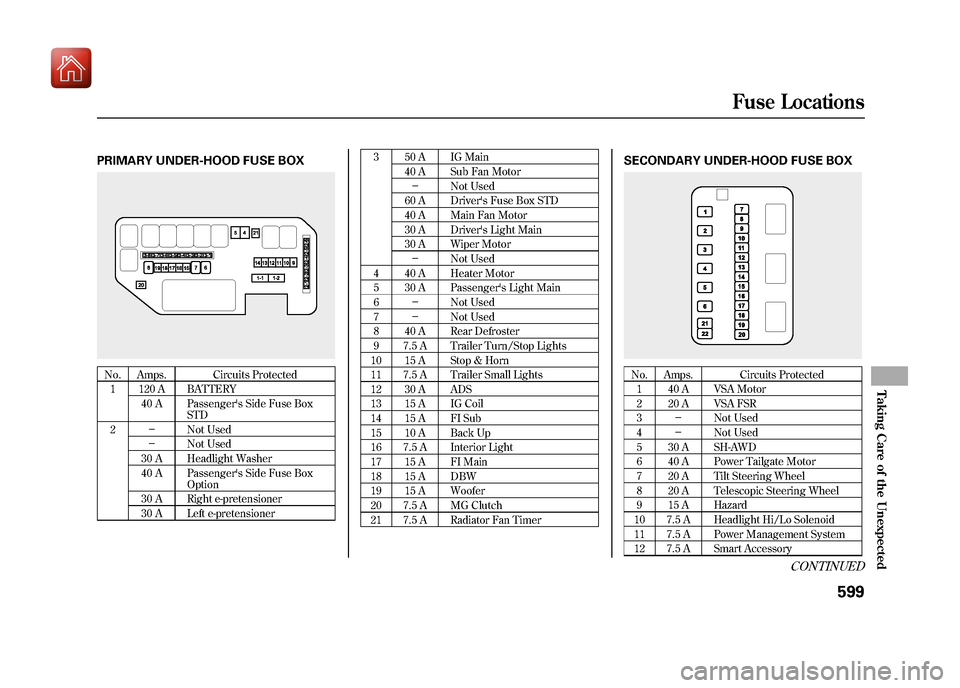

PRIMARY UNDER-HOOD FUSE BOXNo. Amps. Circuits Protected1 120 A BATTERY 40 A Passenger's Side Fuse Box STD
2 － Not Used
－ Not Used
30 A Headlight Washer
40 A Passenger's Side Fuse Box Option
30 A Right e-pretensioner
30 A Left e-pretensioner 3 50 A IG Main
40 A Sub Fan Motor－ Not Used
60 A Driver's Fuse Box STD
40 A Main Fan Motor
30 A Driver's Light Main
30 A Wiper Motor － Not Used
4 40 A Heater Motor
5 30 A Passenger's Light Main
6 － Not Used
7 － Not Used
8 40 A Rear Defroster
9 7.5 A Trailer Turn/Stop Lights
10 15 A Stop & Horn
11 7.5 A Trailer Small Lights
12 30 A ADS
13 15 A IG Coil
14 15 A FI Sub
15 10 A Back Up
16 7.5 A Interior Light
17 15 A FI Main
18 15 A DBW
19 15 A Woofer
20 7.5 A MG Clutch
21 7.5 A Radiator Fan Timer
SECONDARY UNDER-HOOD FUSE BOXNo. Amps. Circuits Protected 1 40 A VSA Motor
2 20 A VSA FSR
3 － Not Used
4 － Not Used
5 30 A SH-AWD
6 40 A Power Tailgate Motor
7 20 A Tilt Steering Wheel
8 20 A Telescopic Steering Wheel
9 15 A Hazard
10 7.5 A Headlight Hi/Lo Solenoid
11 7.5 A Power Management System
12 7.5 A Smart Accessory
CONTINUED
Fuse Locations
599
Taking Care of the Unexpected
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

13 20 A Rear Seat Heaters
14 20 A Sunshade
15 20 A Power Tailgate Closer
16－ Not Used
17 － Not Used
18 － Not Used
19 － Not Used
20 － Not Used
21 － Not Used
22 － Not Used

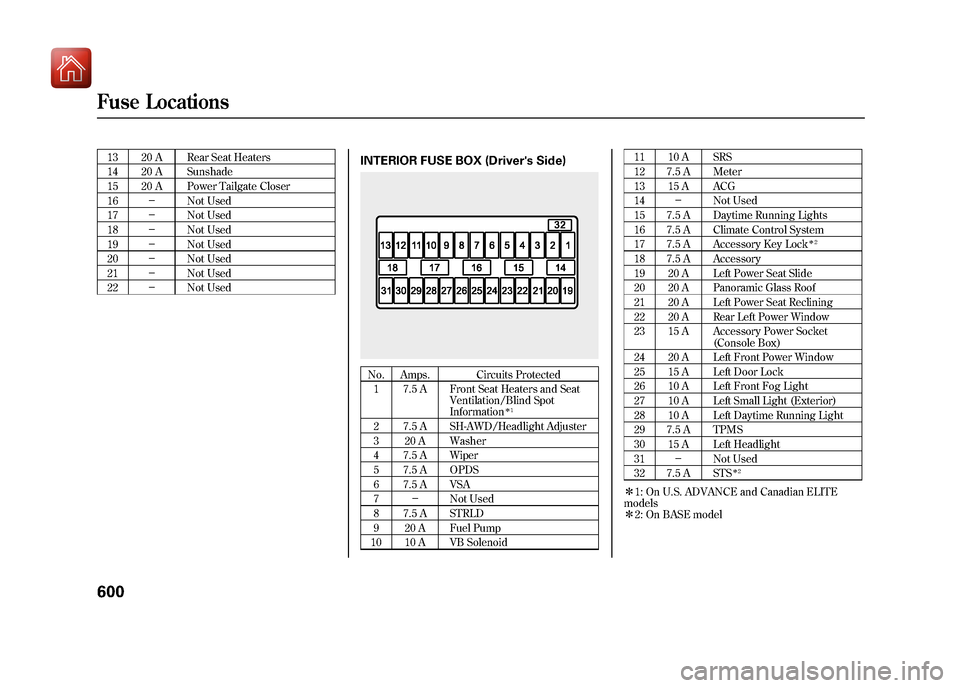

INTERIOR FUSE BOX (Driver's Side)No. Amps. Circuits Protected
1 7.5 A Front Seat Heaters and Seat Ventilation/Blind Spot
Information
ꭧ1
2 7.5 A SH-AWD/Headlight Adjuster
3 20 A Washer
4 7.5 A Wiper
5 7.5 A OPDS
6 7.5 A VSA
7 － Not Used
8 7.5 A STRLD
9 20 A Fuel Pump
10 10 A VB Solenoid 11 10 A SRS
12 7.5 A Meter
13 15 A ACG
14
－ Not Used
15 7.5 A Daytime Running Lights
16 7.5 A Climate Control System
17 7.5 A Accessory Key Lock
ꭧ 2
18 7.5 A Accessory
19 20 A Left Power Seat Slide
20 20 A Panoramic Glass Roof
21 20 A Left Power Seat Reclining
22 20 A Rear Left Power Window
23 15 A Accessory Power Socket
(Console Box)
24 20 A Left Front Power Window
25 15 A Left Door Lock
26 10 A Left Front Fog Light
27 10 A Left Small Light (Exterior)
28 10 A Left Daytime Running Light
29 7.5 A TPMS
30 15 A Left Headlight
31 － Not Used
32 7.5 A STS
ꭧ 2
ꭧ1: On U.S. ADVANCE and Canadian ELITE
models
ꭧ 2: On BASE model
Fuse Locations60009/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

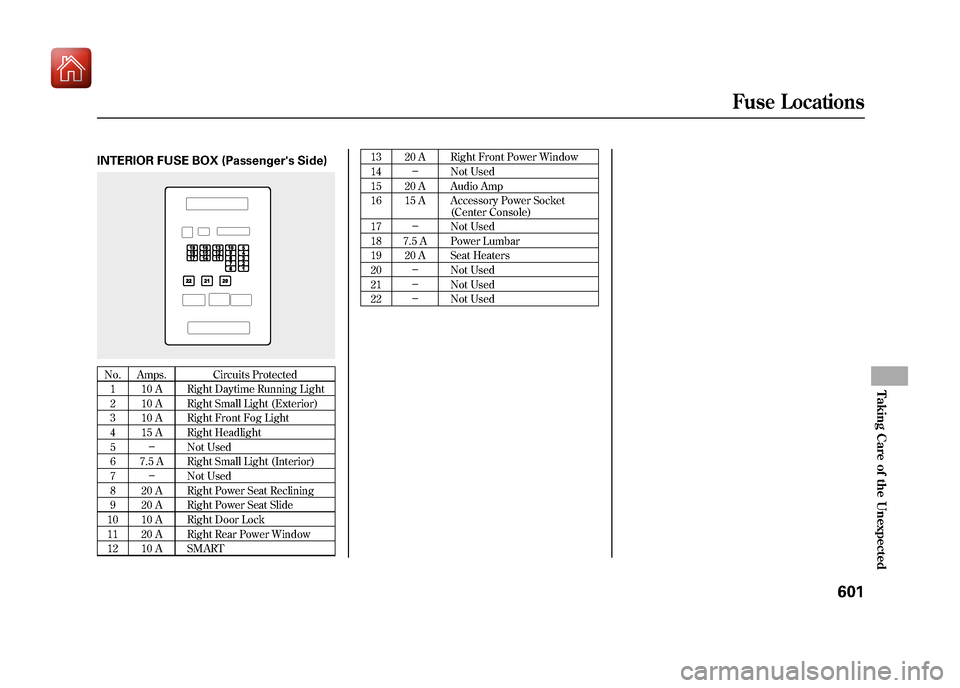

INTERIOR FUSE BOX (Passenger's Side)No. Amps. Circuits Protected1 10 A Right Daytime Running Light
2 10 A Right Small Light (Exterior)
3 10 A Right Front Fog Light
4 15 A Right Headlight
5 － Not Used
6 7.5 A Right Small Light (Interior)
7 － Not Used
8 20 A Right Power Seat Reclining
9 20 A Right Power Seat Slide
10 10 A Right Door Lock
11 20 A Right Rear Power Window
12 10 A SMART 13 20 A Right Front Power Window
14
－ Not Used
15 20 A Audio Amp
16 15 A Accessory Power Socket (Center Console)
17 － Not Used
18 7.5 A Power Lumbar
19 20 A Seat Heaters
20 － Not Used
21 － Not Used
22 － Not Used
Fuse Locations
601
Taking Care of the Unexpected
