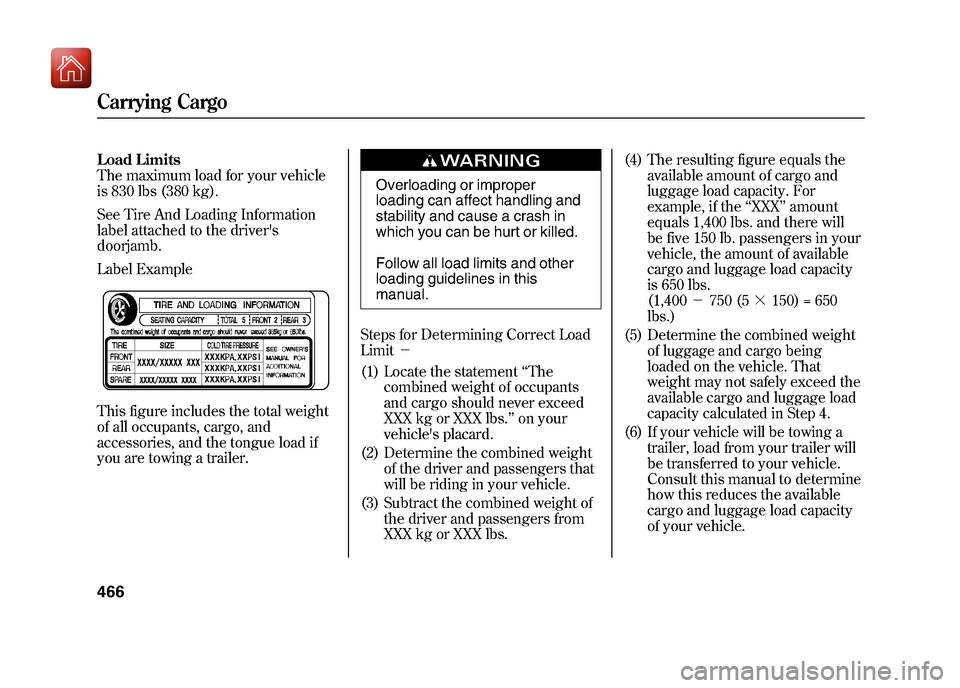

load capacity Acura ZDX 2012 Owner's Manual

Load Limits
The maximum load for your vehicle
is 830 lbs (380 kg).
See Tire And Loading Information
label attached to the driver's
doorjamb.
Label Example
This figure includes the total weight
of all occupants, cargo, and
accessories, and the tongue load if
you are towing a trailer.
Overloading or improper
loading can affect handling and
stability and cause a crash in
which you can be hurt or killed.
Follow all load limits and other
loading guidelines in this
manual.
Steps for Determining Correct Load
Limit －
(1) Locate the statement ‘‘The
combined weight of occupants
and cargo should never exceed
XXX kg or XXX lbs. ’’on your
vehicle's placard.
(2) Determine the combined weight of the driver and passengers that
will be riding in your vehicle.
(3) Subtract the combined weight of the driver and passengers from
XXX kg or XXX lbs. (4) The resulting figure equals the
available amount of cargo and
luggage load capacity. For
example, if the ‘‘XXX ’’amount
equals 1,400 lbs. and there will
be five 150 lb. passengers in your
vehicle, the amount of available
cargo and luggage load capacity
is 650 lbs.
(1,400 －750 (5 ╳150) = 650
lbs.)
(5) Determine the combined weight of luggage and cargo being
loaded on the vehicle. That
weight may not safely exceed the
available cargo and luggage load
capacity calculated in Step 4.
(6) If your vehicle will be towing a trailer, load from your trailer will
be transferred to your vehicle.
Consult this manual to determine
how this reduces the available
cargo and luggage load capacity
of your vehicle.
