buttons Acura ZDX 2012 Owner's Guide

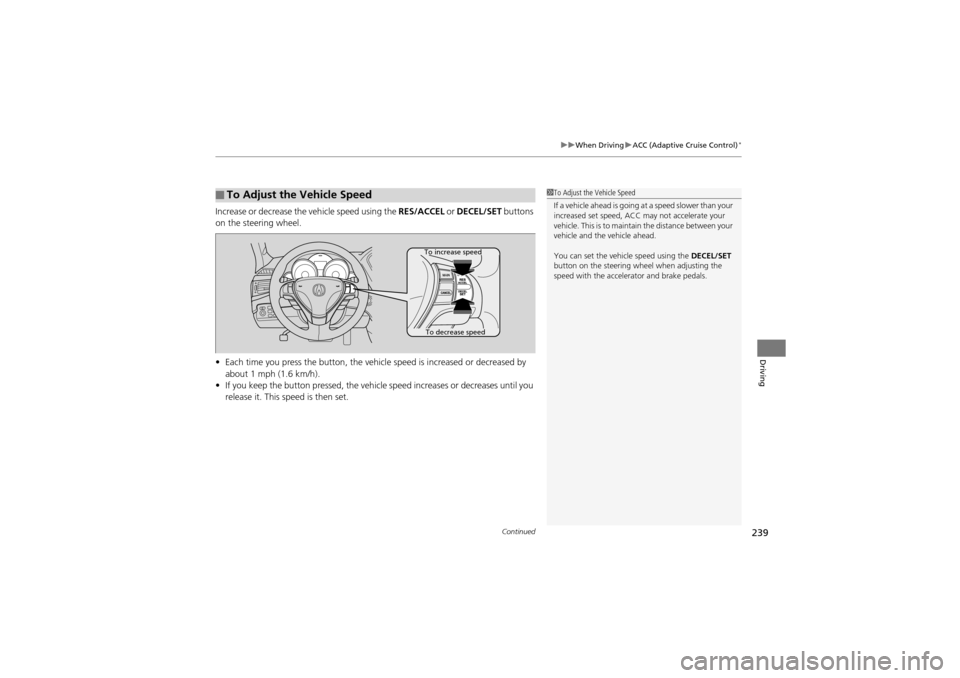

Continued239
uuWhen Driving uACC (Adaptive Cruise Control)*
Driving
Increase or decrease the vehicle speed using the RES/ACCEL or DECEL/SET buttons
on the steering wheel.
• Each time you press the button, the vehicl e speed is increased or decreased by
about 1 mph (1.6 km/h).
• If you keep the button pressed, the vehicl e speed increases or decreases until you
release it. This speed is then set.
■To Adjust the Vehicle Speed1 To Adjust the Vehicle Speed
If a vehicle ahead is going at a speed slower than your
increased set speed, ACC may not accelerate your
vehicle. This is to maintain the distance between your
vehicle and the vehicle ahead.
You can set the vehicle speed using the DECEL/SET
button on the steering wh eel when adjusting the
speed with the accelera tor and brake pedals.
To increase speed
To decrease speed

331
Handling the Unexpected
Shift Lever Does Not Move
Follow the procedure below if you cannot move the shift lever out of the P
position.
1.Set the parking brake.
2. Remove the key from the ignition switch.
2. Remove the built-in key from the keyless
access remote.
3. Wrap a cloth around the tip of a small flat-
tip screwdriver and remo ve the cover of the
shift lock release slot.
u Put the tip of the flat-tip screwdriver into
the slot and remove it as shown in the
image.
4. Insert the key into the shift lock release slot.
5. While pushing on the key, press the shift
lever release button and place the shift lever
into
N.
u The lock is now rel eased. Have the shift
lever checked by a dealer as soon as
possible.
■Releasing the Lock
Slot
Cover
Models without keyless access remote
Models with keyless access remote
All models
Release
ButtonShift Lock
Release Slot

364
Index
H
Halogen Bulbs........................................... 292
Handling the Unexpected ........................ 317
HandsFreeLink ® (HFL) ............................... 197
Help Features........................................... 198
HFL Buttons ............................................. 197
HFL Menus .............................................. 199
Information Display.................................. 198
Making a Call .......................................... 203
Muting a Call........................................... 204
Phone Setup ............................................ 201
Phonebook .............................................. 205
Receiving a Call ....................................... 204
Sending Numbers or Names During a Call ......................... 204
Transferring a Call ................................... 204
Hazard Warning Button ............................... 2
Head Restraints ......................................... 145
Headlights ................................................. 131
Aiming .................................................... 291
Automatic Operation ............................... 132
Dimming ......................................... 131, 133
Operating ................................................ 131
Heaters (Seat) ............................ 160, 161, 162
HFL (HandsFreeLink ®)............................... 197
High-Beam Indicator .................................. 75
HomeLink ® Universal Transceiver ............ 195
I
Identification Numbers ............................ 351
Engine and Transmission ......................... 351
Vehicle Identification .... ........................... 351
Ignition Switch ......................................... 127
Illumination Control ................................. 136
Button..................................................... 136
Immobilizer System .................................. 120
Indicator.................................................... 76
Indicators .................................................... 68
ABS (Anti-lock Brake System)..................... 71
Active Damper System............................... 73
Adaptive Cruise Control (ACC) .......... 78, 235
Charging System .......... ..................... 69, 334
CRUISE CONTROL ............................. 77, 233
CRUISE MAIN .................................... 77, 232
Door and Tailgate Open ...................... 26, 73
ECPS (Electric Controlled Power Steering) System ............................................ 73, 336
Fog Light ................................................... 75
High-Beam ................................................ 75
Immobilizer System ......... .......................... 76
Keyless Access System ............................... 77
Lights On .................................................. 75
Low Fuel ................................................... 71
Low Oil Pressure ................................ 68, 334
Low Tire Pressure/TPMS ............. 74, 248, 250
Maintenance Minder ............................... 273
Malfunction Indicator Lamp............... 69, 335
Parking Brake and Brake System ........ 68, 336
Seat Belt Reminder .............................. 28, 71 Security System Alarm............................... 76
SH-AWD
®......................................... 77, 245
Shift Position............................................. 70
Side Airbag Off ................................... 48, 75
Supplemental Restraint System ........... 46, 72
System Message ....................................... 74
Transmission ............................................. 70
Turn Signal ............................................... 75
VSA ®
(Vehicle Stability Assist) System ...... 72, 243
VSA ® OFF.......................................... 72, 244
Information .............................................. 349
Information Buttons .................................. 88
Instant Fuel Economy ................................ 92
Instrument Panel ........................................ 67
Brightness Control .................................. 136
Integrated Dynamics System (IDS) .......... 252
Interior Lights ........................................... 151
Interior Rearview Mirror ......................... 141
J
Jack (Wheel Nut Wrench) ........................ 323
Jump Starting ........................................... 329
K
Key Number Tag ...................................... 105
Keyless Access System .............................. 108
Keyless Lockout Prevention ..................... 107
