Page 321 of 370

Acura ZDX 2012  Owners Manual 319Continued
Handling the Unexpected
If a Tire Goes Flat
Changing a Flat Tire
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a

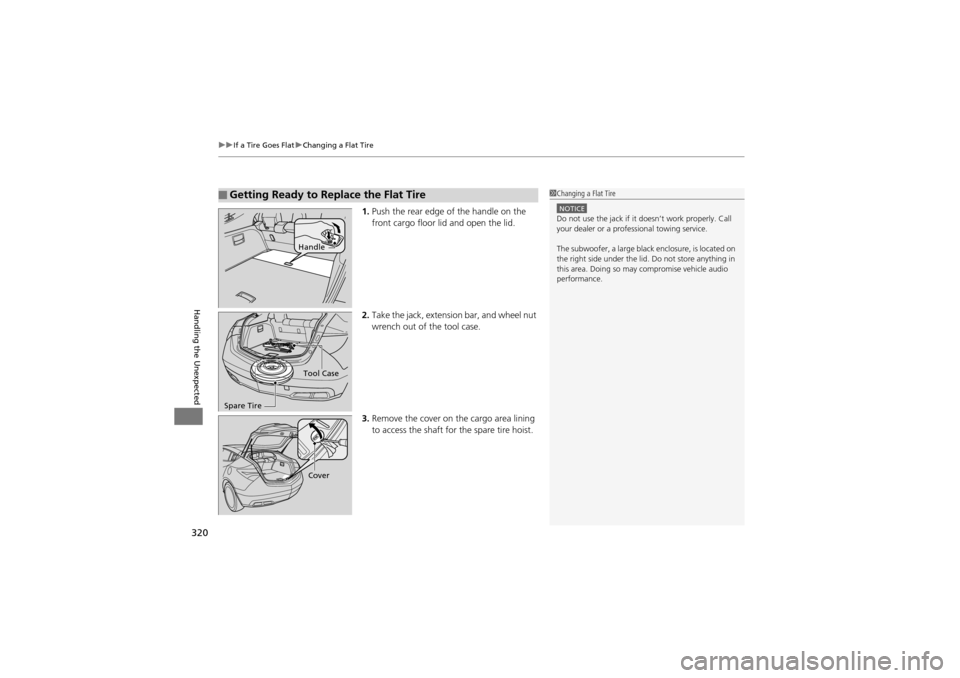

Page 322 of 370

Acura ZDX 2012  Owners Manual uuIf a Tire Goes Flat uChanging a Flat Tire
320
Handling the Unexpected
1. Push the rear edge of the handle on the
front cargo floor lid and open the lid.
2. Take the jack, extension bar, and wheel n

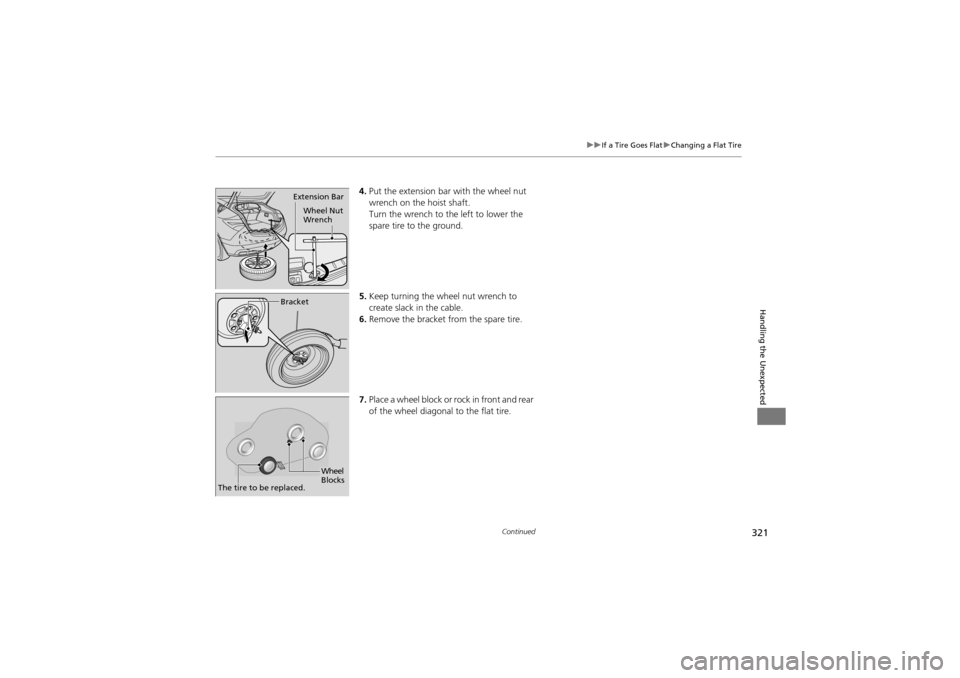

Page 323 of 370

Acura ZDX 2012  Owners Manual 321
uuIf a Tire Goes Flat uChanging a Flat Tire
Continued
Handling the Unexpected
4. Put the extension bar with the wheel nut
wrench on the hoist shaft.
Turn the wrench to th e left to lower the
spa

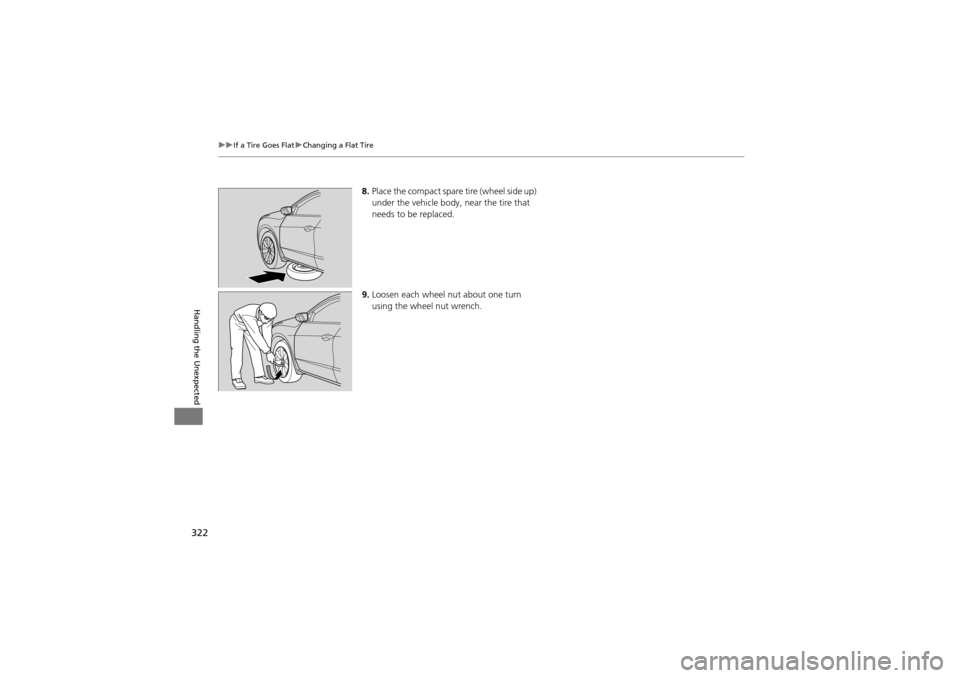

Page 324 of 370

Acura ZDX 2012  Owners Manual 322
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
8. Place the compact spare tire (wheel side up)
under the vehicle body,  near the tire that
needs to be replaced.
9. Loosen ea

Page 325 of 370

Acura ZDX 2012  Owners Manual Continued323
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
1. Place the jack under the jacking point
closest to the tire to be changed.
2. Turn the end bracket (as shown in the

Page 326 of 370

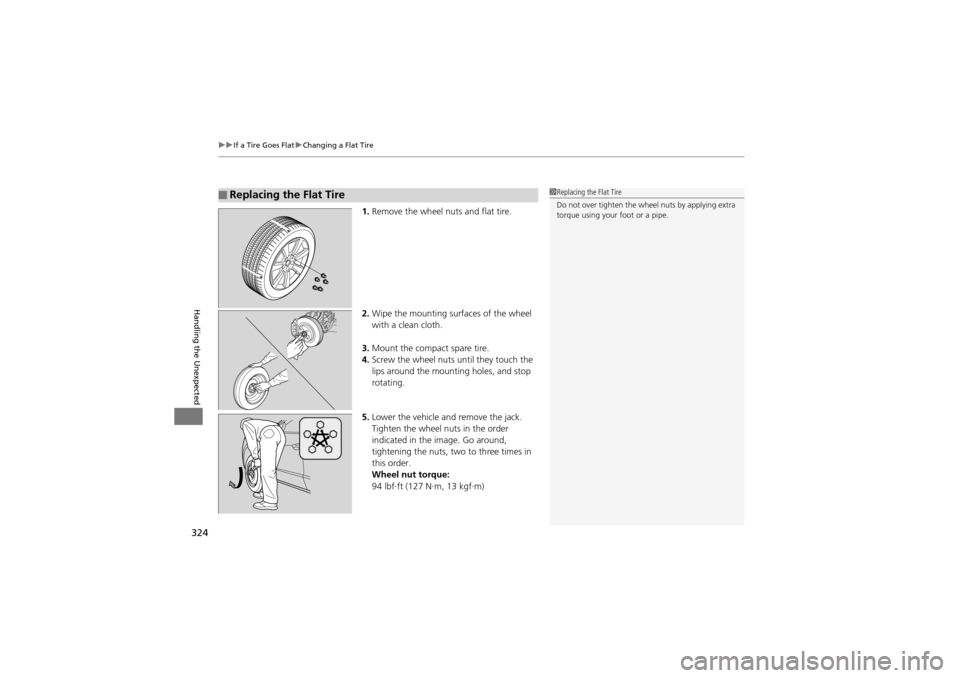

Acura ZDX 2012  Owners Manual uuIf a Tire Goes Flat uChanging a Flat Tire
324
Handling the Unexpected
1. Remove the wheel nuts and flat tire.
2. Wipe the mounting surfaces of the wheel
with a clean cloth.
3. Mount the compact spa

Page 327 of 370

Acura ZDX 2012  Owners Manual 325
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
1. Remove the center cap and place the flat
tire face up under the hoist.
2. Insert the hoist bracket into the center hole
of

Page 328 of 370

Acura ZDX 2012  Owners Manual 326
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, turn the ignition switch to START e*1 and check the
starter.
*1: Models with the keyless  access sy

Page 329 of 370

Acura ZDX 2012  Owners Manual 327
uuEngine Does Not Start uIf the Keyless Access Remote Battery is Weak
Handling the Unexpected
If the Keyless Access Remote Battery is Weak
If the beeper sounds and the  CHANGE KEYLESS REMOTE BATTE

Page 330 of 370

Acura ZDX 2012  Owners Manual 328
uuEngine Does Not Start uEmergency Engine Stop
Handling the Unexpected
Emergency Engine Stop
If you cannot stop the engine by pressing the  ENGINE START/STOP button, do
either of the following op
