display Acura ZDX 2012 Owner's Manual

This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manual (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information an d specifications included in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to di scontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 21For Safe Driving P. 22 Seat Belts P. 27 Airbags P. 35
2Instrument Panel P. 67Indicators P. 68 Gauges and Multi-Information Display P. 87
2Controls P. 101Setting the Clock P. 102 Locking and Unlocking the Doors P. 103
Opening and Closing the Panoramic Glass Roof P. 126
Adjusting the Seats P. 143
2Features P. 167Audio System P. 168 Audio System Basic Operation P. 171
General Information on the Audio System P. 191
Bluetooth ® HandsFreeLink ® P. 197
2 Driving P. 209Before Driving P. 210 Towing a Trailer P. 215
Rearview Camera P. 262 Refueling P. 263 Fuel Economy P. 266
2Maintenance P. 269Before Performing Maintenance P. 270 Maintenance MinderTM P. 273
Checking and Maintaining Wiper Blades P. 298
Climate Control System Maintenance P. 312
2 Handling the Unexpected P. 317Tools P. 318 If a Tire Goes Flat P. 319
Overheating P. 332 Indicator, Coming On/Blinking P. 334
When You Cannot Unlock the Fuel Fill Door P. 346
2 Information P. 349Specifications P. 350 Identification Numbers P. 351
Emissions Testing P. 354 Warranty Coverages P. 356

2
Quick Reference Guide

Visual Index
❙Indicators (P 68)❙Gauges (P 87)
❙Multi-Information Display (P 88)
❙Blind Spot Information System (BSI) Alert Indicator* (P 246)
❙Navigation System*
() See Navigation System Manual
❙Audio System (P 168)
❙Hazard Warning Button
❙Climate Control System (P 163)
❙Rear Window Defogger (P 137)
❙Front Seat Heater Switches* (P 160)
❙Ignition Switch* (P 127)
❙Steering Wheel Adjustments (P 140)
❙Heated Mirror Button (P 137)
❙Front Seat Heater and Seat
Ventilation Switches* (P 161)
❙ (Vehicle Stability Assist (VSA ®) System OFF) Button (P 243)
❙Collision Mitigation Braking SystemTM (CMBSTM) OFF Button* (P 259)
❙Blind Spot Information System (BSI) OFF Button* (P 247)
❙Headlight Washer Button* (P 135)

8
Quick Reference Guide
Instrument Panel (P 67)
System Indicators
Malfunction
Indicator Lamp Low Oil Pressure
Indicator
Charging System
IndicatorAnti-lock Brake
System (ABS)
Indicator
Vehicle Stability
Assist (VSA ®)
System Indicator VSA ® OFF Indicator
Low Tire Pressure/
TPMS Indicator Electronically
Controlled Power
Steering System
(ECPS) Indicator
*
Lights Reminders
Lights On Indicator
High Beam Indicator
Fog Light Indicator
Immobilizer System
Indicator
Seat Belt Reminder
Indicator
System Indicators
Cruise Control
Indicator*
System Message
Indicator
Parking Brake and
Brake System
Indicator Supplemental
Restraint System
Indicator
Side Airbag Off
Indicator
Door and Tailgate
Open Indicator
Cruise Main
Indicator
*
TachometerSpeedometer
Fuel Gauge
Security System
Indicator Shift Lever Position Indicator
Low Fuel Indicator
Gauges (P 87)/Multi-Information Display (P 88)/
System Indicators
(P 68)
Turn Signal and
Hazard Warning
Indicators
Temperature Gauge
SH-AWD Indicator
Keyless Access
System Indicator
*
Active Damper
System Indicator*
Blind Spot
Information
Indicator
*
Collision Mitigation
Braking SystemTM
(CMBSTM) Indicator*
Adaptive Cruise
Control (ACC)
Indicator
*
System Indicators
Multi-Information Display
U.S.
Canada Canada
U.S.

11
Quick Reference Guide
Climate Control System (P 163)
● Press the driver's or passenger’s AUTO button to activate the climate control system.
● Press the button to turn the system on or off.
● Press the button to defrost the windshield.
The climate control syst em is voice operable. See the navi gation system manual for complete
details.
Models with navigation system
(Fan Control) Bar
(Rear Window Defogger/
Heated Mirror) Button
(Windshield Defroster) Button
A/C (Air Conditioning)
Button
Air flows from dashboard vents
and back of the center console.Air flows from floor and
dashboard vents, and back of
the center console.
Air flows from floor vents.
Air flows from floor and
windshield defroster vents.
(ON/OFF
) Button
(Recirculation) Button
Passenger’s Side MODE
Control Button
Passenger’s Side
Temperature
Control Switch
SYNC (Synchronized)
Button Driver’s Side
AUTO
Button
Driver’s Side
Temperature
Control Switch Driver’s Side
MODE
Control Button Passenger’s Side
AUTO
Button
Clock (P 102)
aPress the SETUP button.
bTurn the selector knob to select CLOCK
ADJUST , then press the knob.
cTurn the selector knob to select the
clock display setting, hours, or minutes,
then press the knob.
dTurn the selector kn ob to change the
clock display setting, hours, or minutes,
then press the knob.
eSelect Set with the selector knob, then
press the knob to complete clock
adjustment.
The navigation system re ceives signals from
GPS satellites, updating the clock
automatically.
Models without navigation system
Models with navigation system

12
Quick Reference Guide
Features (P 167)
Audio system (P 168)
For navigation system operation () See Navigation System Manual
Audio Display
SCAN/A.SEL (Auto
Select) Bar
AM/FM
Button
RETURN Button
Selector Knob
TITLE
Button
TUNE Bar VOL
(Volume/
Power) Knob
DISC Button
USB/AUX Button
CD Slot (CD Eject)
Button
Preset Buttons
(1-6)
SETUP Button
SKIP
Bar
CATEGORY Bar
LOAD Button (
XM ®)
Button
● Audio Remote Controls (P 190)
● VOL (Volume) Button
Press / to adjust the volume
up/down.
● MODE Button
Press and release to change the audio
mode: FM1 /FM2 /AM /XM1 /XM2 /CD/ AUX .
● CH (Channel) Button
Radio: Press and release to change the preset station.
Press and hold to select the next or
previous strong station.
CD/USB device: Press and release to skip to the
beginning of the next song or
return to the beginning of the
current song.
Press and hold to change a folder.
VOL Button
MODE Button
CH Button
34

46
uuAirbags uAirbag System Indicators
Safe Driving
Airbag System Indicators
If a problem occurs in the airbag syst em, the SRS indicator will come on and a
message appears on the mu lti-information display.
■When the ignition switch is turned to
ON
w*1
The indicator comes on for a few seconds,
then goes off. This tells you the system is
working properly.
If the indicator comes on at any other time , or does not come on at all, have the
system checked by a dealer as soon as possible. If you don’t, your airbags and seat
belt tensioners may not work properly when they are needed.
*1: Models with the keyless access system have an ENGINE START/STOP button
instead of an ignition switch.
■SRS (Supplemental Restraint System) Indicator
1 SRS (Supplemental Restraint System) Indicator
3WARNING
Ignoring the SRS indicator can result in
serious injury or death if the airbag systems
or tensioners do not work properly.
Have your vehicle checked by a dealer as
soon as possible if the SRS indicator alerts
you to a possible problem.

67
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 68
Multi-Information Display Warning and
Information Messages ...................... 80
Gauges and Multi-Information Display
Gauges .............................................. 87
Multi-Information Disp lay .................. 88

74
uuIndicators u
Instrument Panel
*1: Models with the keyless access system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage
Low Tire
Pressure/
TPMS
Indicator
●Comes on for a few seconds when you
turn the ignition switch to ON (w*1.●Comes on if the tire pressure of any of the
tires becomes significantly low.
●Blinks for about one minute, and then
stays on if there is a problem with the
TPMS, or when a compact spare tire is
temporarily installed.
●Comes on while driving - Stop in a
safe place, check tire pressures, and
inflate the tire(s) if necessary.
●Blinks and remains on - Have the
vehicle checked by a dealer. If the
vehicle is fitted with a compact spare,
get your regular tire repaired or
replaced and put back on your vehicle
as soon as you can.
System
Message
Indicator
●Comes on for a few seconds when you
turn the ignition switch to ON (w*1, then
goes off.
●Comes on along with a beep when a
problem is detected. A system message on
the multi-information display appears at
the same time.
●While the indicator is on, press the /
(information) bu tton to see the
message again.
●Refer to the Indicato rs information in
this chapter when a system message
appears on the mu lti-information
display. Take the appropriate action for
the message.
●The multi-information di splay does not return
to the normal screen un less the warning is
canceled, or the / button is pressed.
—
3
4
34

79
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
BSI (Blind Spot
Information)
Indicator
*
●Comes on for a fe w seconds when
you change the power mode to ON,
then goes off.
●Stays on while BSI is turned off.●Comes on when mud, snow, or ice
accumulates in the vicinity of sensor.
●Comes on if there is a problem with
the system.
—
●Comes on while driving - Remove
the obstacle in the vicinity of sensor.
●Comes on while driving - Have the
vehicle checked by a dealer.
CMBSTM (Collision
Mitigation Brake
System
TM)
Indicator*
●Comes on for a fe w seconds when
you change the power mode to ON,
then goes off.
●Comes on when you deactivate the
CMBSTM. A multi-information display
message appears for five seconds.
●Comes on if there is a problem with
the CMBSTM.
●Stays on constantly without the
CMBSTM off - Have the vehicle checked
by a dealer.
2 CMBSTM (Collision Mitigation
Braking SystemTM)* P. 257
* Not available on all models

80
uuIndicators uMulti-Information Display Warning and Information Messages
Instrument Panel

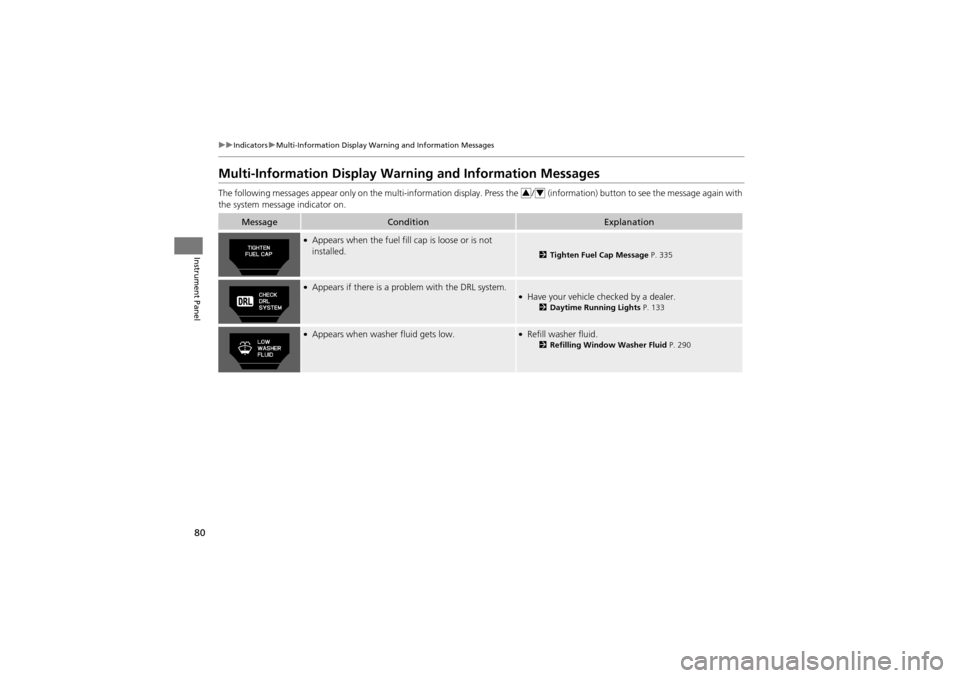

Multi-Information Display Warn ing and Information Messages
The following messages appear only on the multi-information display. Press the / (information) bu tton to see the message again with
the system message indicator on.
MessageConditionExplanation
●Appears when the fuel fill cap is loose or is not
installed.
2 Tighten Fuel Cap Message P. 335
●Appears if there is a problem with the DRL system.●Have your vehicle checked by a dealer.2Daytime Running Lights P. 133
●Appears when washer fluid gets low.●Refill washer fluid.2Refilling Window Washer Fluid P. 290
34
