uuFusesuCircuit Protected and Amps for Each Fuse
Handling the Unexpected
■Secondary Engine
Compartment
Circuits Protected
Amps.
1
VSA Motor
40 A
2
VSA FSR
20 A
3
−
−
4
−
−
5
SH-AWD
30 A
6
Power Tailgate Motor
40 A
7
Tilt Steering Wheel
20 A
8
Telescopic Steering Wheel
20 A
9
Hazard
15 A
10
Headlight Hi/Lo Solenoid
7.5 A
11
Power Management System
7.5 A
12
Keyless Access System
7.5 A
13
Rear Seat Heaters
20 A
14
Sunshade
20 A
15
Power Tailgate Closer
20 A
16
−
−
17
−
−
18
−
−
19
−
−
20
−
−
21
−
−
22
−
−
■Driver Side Interior
Circuits Protected
Amps.
1
Front Seat Heaters and Seat
Ventilation/Blind Spot
Information
(7.5 A)
2
SH-AWD/Headlight
Adjuster
7.5 A
3
Washer
20 A
4
Wiper
7.5 A
5
OPDS
7.5 A
6
VSA
7.5 A
7
−
−
8
STRLD
7.5 A
9
Fuel Pump
20 A
10
VB Solenoid
10 A
11
SRS
10 A
12
Meter
7.5 A
13
ACG
15 A
14
−
−
15
Daytime Running Lights
7.5 A
16
Climate Control System
7.5 A
17
−
(7.5 A)
18
Accessory
7.5 A
19
Left Power Seat Slide
20 A
20
Panoramic Glass Roof
20 A
21
Left Power Seat Reclining
20 A
22
Rear Left Power Window
20 A
23
Accessory Power Socket
(Console Box)
15 A
24
Left Front Power Window
20 A
25
Left Door Lock
15 A
26
Left Front Fog Light
10 A
27
Left Small Light (Exterior)
10 A
28
Left Daytime Running Light
10 A
29
TPMS
7.5 A
30
Left Headlight
15 A
31
−
−
32
STS
*
7.5 A
Circuits Protected
Amps.
* Not available on all models

308Information

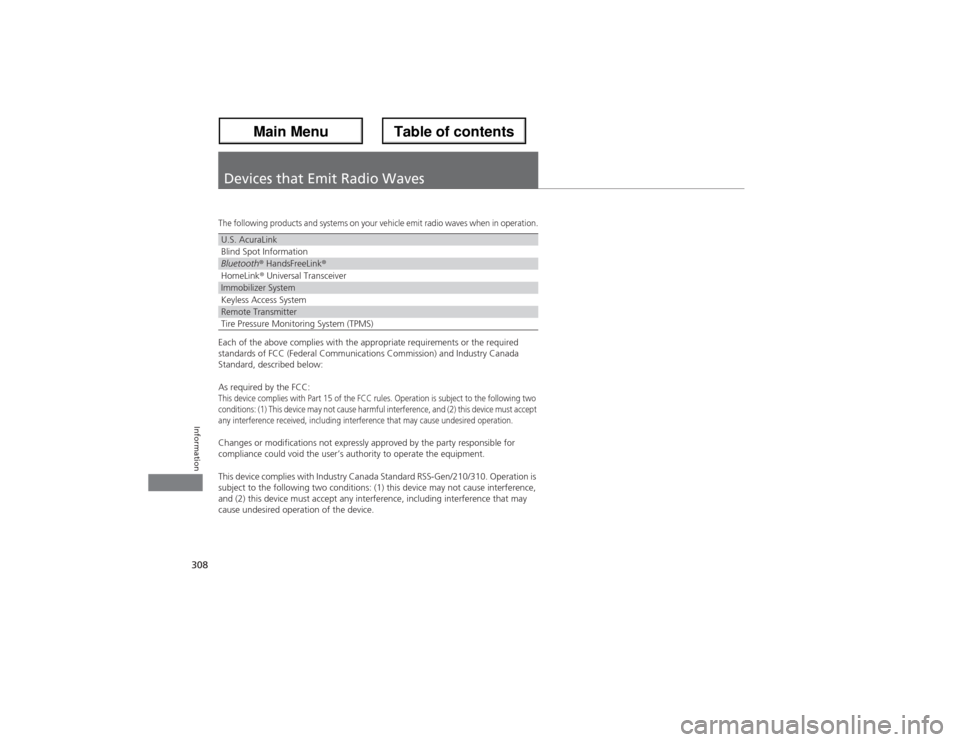

Devices that Emit Radio WavesThe following products and systems on your vehicle emit radio waves when in operation.Each of the above complies with the appropriate requirements or the required
