TECHNICALSPECIFICATIONS
FUEL FEED/IGNITION
1.8 1.9 JTS - 2.2 JTS1.9 JTDM8V
3.2 JTS1.9 JTDM16v - 2.4 JTDM
Fuel feed Multipoint fuel injection Direct injection Direct injection, Common Rail
Modifications or repairs to the fuel feed system that are not carried out properly or do not
take the system’s technical specifications into account can cause malfunctions leading to
the risk of fire.
1.9 JTS - 2.2 JTS -
1.9 JTD
M8V
1.9 JTDM16v - 2.4 JTDM
Six forward gears + reverse
and synchronisers for speeds
Dry single disk
with hydraulic control
Front 1.8
Five forward gears + reverse
and synchronisers for speeds
Dry single disk
with hydraulic control
Front
TRANSMISSION
Gearbox
Clutch
Drive
IMPORTANTIn the event of difficult disengagement, due to significant difference of grip between front and rear axle, do
not insist with heavy accelerations: it is actually more effective an attempt of disengagement at medium slow engine rpm,
with pauses of a few seconds if several attempts are necessary.
3.2 JTS
Six forward gears + reverse
and synchronisers for speeds
Dry single disk
with hydraulic control
Four-wheel drive

256
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
TECHNICALSPECIFICATIONS
1.8 - 1.9 JTS - 2.2 JTS - 3.2 JTS - 2.4 JTDM
1.9 JTDM8v - 1.9 JTDM16v
Service brakes:
– front Disc, self-ventilating Disc, self-ventilating
– rear Disc Disc, self-ventilating
Parking brake Controlled by hand lever, it works on rear brakes
IMPORTANT Water, ice and antifreeze salt on roads may deposit on the brake discs thus reducing braking efficiency at first braking.
1.8 - 1.9 JTS - 2.2 JTS - 3.2 JTS - 1.9 JTDM8V- 1.9 JTDM16v - 2.4 JTDM
Type Rack and pinion with hydraulic power steering
Turning radius
(between pavements) 11.1
BRAKES
STEERING
1.8 - 1.9 JTS - 2.2 JTS - 3.2 JTS - 1.9 JTDM8V- 1.9 JTDM16v - 2.4 JTDM
Front High quadrilateral system
Rear Multi-link system
SUSPENSIONS

257
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
TECHNICALSPECIFICATIONS
UNDERSTANDING
TYRE MARKING fig. 5
Example: 205/55 R 16 91 V
205= Nominal width (S, distance be-
tween sidewalls in mm).
55= Percentage height/width ratio
(H/S).
R= Radial tyre.
16= Rim diameter in inches. (Ø).
91= Load rating (capacity).
V= Maximum speed index.
WHEELS
RIMS AND TYRES
Pressed steel or alloy rims. Tubeless tyres
with radial carcass. The homologated
tyres are listed in the Log book.
IMPORTANTIn the event of discrep-
ancies between the information provid-
ed on this “Owner’s Manual” and the
“Log book”, consider the specifications
shown in the log book only.
A0E0186mfig. 5
On cars fitted with four-wheel drive, all
four tyres should be the same (brand
and track) to prevent damaging the 4-
WD system. The efficiency of the 4-WD
system however, is not jeopardized if
tyres with different wear conditions are
fitted.
Attaining to the prescribed size, to en-
sure safety of the car in movement, it
must be fitted with tyres of the same
make and type on all wheels.
IMPORTANTDo not use inner tubes
with Tubeless tyres.
SPACE-SAVER SPARE WHEEL
Pressed steel rim. Tubeless tyre.

258
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
TECHNICALSPECIFICATIONS
UNDERSTANDING RIM
MARKING
Example: 7 J x 16 H2 ET 43
7= rim width in inches 1.
J= rim drop center outline (side
projection where the tyre bead
rests)2.
16= rim nominal diameter in inch-
es (corresponds to diameter of
the tyre to be mounted) (3=
Ø).
H2= “hump” shape and number (re-
lief on the circumference hold-
ing the Tubeless tyre bead on
the rim).
43= wheel camber angle (distance
between the disc/rim support-
ing plane and the wheel rim
centre line). Maximum speed rating
Q= up to 160 km/h.
R= up to 170 km/h.
S= up to 180 km/h.
T= up to 190 km/h.
U= up to 200 km/h.
H= up to 210 km/h.
V= up to 240 km/h.
W= up to 270 km/h.
Y= up to 300 km/h.
Maximum speed rating
for snow tyres
Q M + S= up to 160 km/h.
T M + S= up to 190 km/h.
H M + S= up to 210 km/h. Load rating (capacity)
60= 250 kg 84= 500 kg
61= 257 kg 85= 515 kg
62= 265 kg 86= 530 kg
63= 272 kg 87= 545 kg
64= 280 kg 88= 560 kg
65= 290 kg 89= 580 kg
66= 300 kg 90= 600 kg
67= 307 kg 91= 615 kg
68= 315 kg 92= 630 kg
69= 325 kg 93= 650 kg
70= 335 kg94= 670 kg
71= 345 kg 95= 690 kg
72= 355 kg
96= 710 kg
73= 365 kg 97= 730 kg
74= 375 kg98= 750 kg
75= 387 kg 99= 775 kg
76= 400 kg 100= 800 kg
77= 412 kg 101= 825 kg
78= 425 kg 102= 850 kg
79= 437 kg 103= 875 kg
80= 450 kg 104= 900 kg
81= 462 kg 105= 925 kg
82= 475 kg 106= 950 kg
83= 487 kg

259
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
TECHNICALSPECIFICATIONS
Traditional snow chains may not be used on tyres type 225/50 R17” only spider type chains
can be used. Tyres 235/45 R18” cannot be fitted with snow chains due to interference with the
fender. Also for 3.2 JTS version, snow chains shall be fitted on the FRONT axle of the car.
4,00B x17"
T125/80 R17
1.8
1.9 JTS
7Jx16” steel
205/55 R16 91V
7Jx16” steel
215/55 R16 93V
7Jx16” alloy
215/55 R16 93V
7,5Jx17” (*) alloy
225/50 R17 98W
8Jx18” alloy
235/45 R18 98W
2.2 JTS
7Jx16” steel
215/55 R16 93V
7Jx16” alloy
215/55 R16 93V
7,5Jx17” (*) alloy
225/50 R17 98W
8Jx18” alloy
235/45 R18 98W
3.2 JTS
7,5Jx17” (*) alloy
225/50 R17 98W
8Jx18” alloy
235/45 R18 98W
1.9 JTDM8v
7Jx16” steel
215/55 R16 93V
7Jx16” alloy
215/55 R16 93V
7,5Jx17” (*) alloy
225/50 R17 98W
8Jx18” alloy
235/45 R18 98W
1.9 JTDM16v
7Jx16” steel
215/55 R16 93V
7Jx16” alloy
215/55 R16 93V
7,5Jx17” (*) alloy
225/50 R17 98W
8Jx18” alloy
235/45 R18 98W
2.4 JTDM
7,5Jx17” (*) alloy
225/50 R17 98W
8Jx18” alloy
235/45 R18 98W
(*) Tyres that cannot be fitted with traditional snow chains. Only “spider” type chains can be used.
IMPORTANTSnow tyres with speed index Hor superior are recommended.
(
▼) Unchainable tyres. Size certified and admitted only for PIRELLI 235/40 R19 96Y. When using winter tyres, use 225/50
R17 98 tyres or 235/45 R18 98. Vehicles with TI fittings should not use 16” wheel rims.
TI
Versions
8Jx19"alloy
235/40 R19 96Y (▼)
tyre
rim
tyre
rim
tyre
rim
tyre
rim
tyre
rim
tyre
rim
TYRES
Standardtyres
For versions/
markets where
applicable
Optionals
Space-saver
spare wheel
(for versions/
markets where
applicable)

260
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
TECHNICALSPECIFICATIONS
COLD TYRE INFLATION PRESSURE
(▼) Unchainable tyres. Size certified and admitted only for PIRELLI 235/40 R19 96Y. When using winter tyres, use 225/50 R17 98 tyres or
235/45 R18 98. Vehicles with TI fittings should not use 16” wheel rims.
Add +0.3 bar to the prescribed inflation pressure when the tyres are warm. Recheck pressure value with cold tyres.
With snow tyres, add +0.2 bar to the inflation pressure value prescribed for standard tyres.
Inflate tyres to full load pressures if driving at continuous speed exceeding 160 km/h.Space-saver
spare wheel
T125/80 R17
4.2
WHEEL ANGLES
Tyres
205/55 R16 91V
front rear
2.3 2.3
2.6 2.6Tyres
215/55 R16 93V
front rear
2.3 2.3
2.6 2.6Tyres
225/50 R17 98W
front rear
2.5 2.5
2.7 2.7Tyres
235/45 R18 98W
front rear
2.7 2.5
2.8 2.6Tyres
235/40 R19 96Y (▼)
front rear
2.7 2.5
2.8 2.6
average load bar
full load bar
All types
–35’ ± 18’
max. difference
right/left: 24’
4° 15’ ± 18’
max. difference
right/left: 18’
–8’ ± 4’
max. difference
right/left: 4’
–40’ ± 18’
max. difference
right/left: 24’
13’ ± 7’
(total toe-in: 26’ ± 7’)4x2 Versions
–1° 1’± 18’
max. difference
right/left: 24’
4° 15’± 18’
max. difference
right/left: 18’
–7’± 4’
max. difference
right/left: 4’
–1° 3’± 18’
max. difference
right/left: 24’
11’± 7’
(total toe-in: 22’± 7’)4x4 Versions
–38’±18’
max. difference
right/left: 24’
4° 15’ ± 18’
max. difference
right/left: 18’
–7’ ± 4’
max. difference
right/left: 4’
–1° 3’ ± 18’
max. difference
right/left: 24’
11’ ± 7’
(total toe-in: 22’ ± 7’)
TI Versions
Front
wheels
Rear
wheels
– camber
– caster
– half toe-in
(per wheel)
– camber
– half toe-in (per wheel)
VEHICLE GEOMETRYThe TI fittings present lower suspensions of 20 mm with respects to the other versions.

261
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
TECHNICALSPECIFICATIONS
Versions A B C D E F G H
1.8 - 1.9 JTS - 2.2 JTS -
3.2 JTS - 1.9 JTD
M8v -4660 1000 2700 960 1422 1578 1828 1555
1.9 JTDM16v - 2.4 JTDM1417 (■) 1593 (■) 1573 (■)
DIMENSIONS
Dimensions are
expressed in mm and
refer to the car
fitted with standard tyres.
Min. size variations
when optional tyres are
fitted.
The height refers to
the car unladen.
BOOT VOLUME
Boot volume .............. 405 dm3
A0E0044mfig. 6
(■) With tyres 215/55 R16”

262
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
TECHNICALSPECIFICATIONS

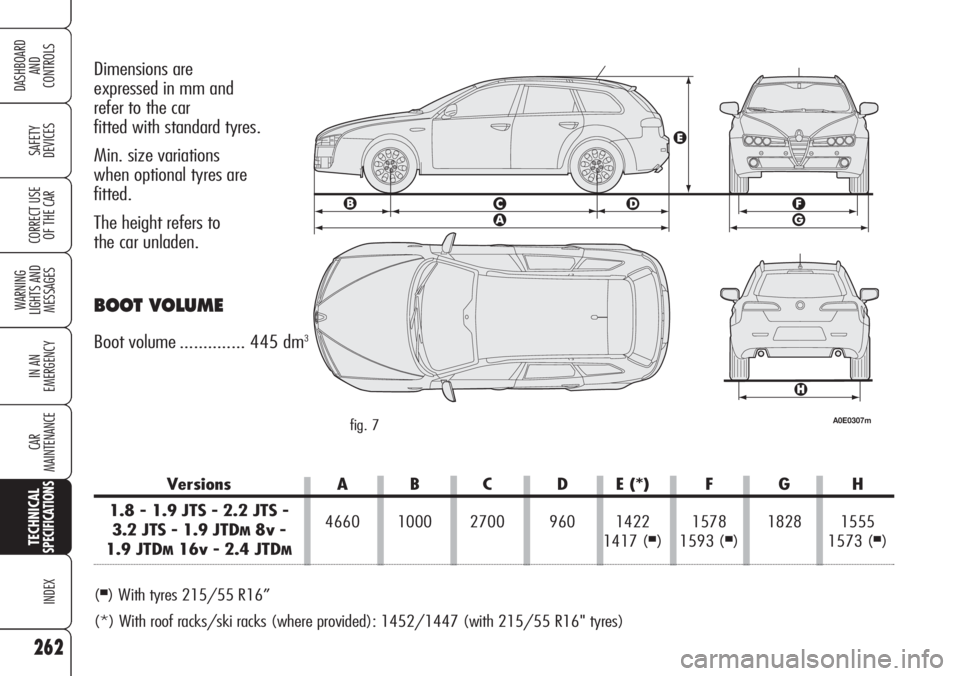

Dimensions are
expressed in mm and
refer to the car
fitted with standard tyres.
Min. size variations
when optional tyres are
fitted.
The height refers to
the car unladen.
BOOT VOLUME
Boot volume .............. 445 dm3
A0E0307mfig. 7
Versions A B C D E (*) F G H
1.8 - 1.9 JTS - 2.2 JTS -
3.2 JTS - 1.9 JTD
M8v -4660 1000 2700 960 1422 1578 1828 1555
1.9 JTDM16v - 2.4 JTDM1417 (■) 1593 (■) 1573 (■)
(
■) With tyres 215/55 R16”
(*) With roof racks/ski racks (where provided): 1452/1447 (with 215/55 R16" tyres)

263
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
TECHNICALSPECIFICATIONS
PERFORMANCE
SALOON VERSIONS Top speed Acceleration Kilometer with standing start
from 0-100 km/h
km/h sec. sec.
1.8206 10.2 31.3
1.9 JTS212 9.7 30.7
2.2 JTS222 8.8 29.6
3.2 JTS240 7.0 27.5
1.9 JTDM8v191 11.0 32.8
1.9 JTDM16v210 9.4 30.8
2.4 JTDM228 8.4 29.2
SPORTWAGON VERSIONSTop speed Acceleration Kilometer with standing start
from 0-100 km/h
km/h sec. sec.
1.8204 10.4 31.5
1.9 JTS210 9.9 31.3
2.2 JTS220 9.0 30.3
3.2 JTS 237 7.2 27.9
1.9 JTDM8v190 11.2 33.3
1.9 JTDM16v208 9.6 31.3
2.4 JTDM226 8.6 29.7

2.2 JTS
1490
1200
1100
2010
520
1500
75
50
3.2 JTS
1680
1300
1100
2200
520
1700
75
50
1.9 JTDM8v
1525
1200
1100
2045
520
1500
75
50
1.9 JTDM16v
1535
1200
1100
2055
520
1500
75
50
2.4 JTDM
1630
1300
1100
2150
520
1500
75
50
1.9 JTS
1480
1200
1100
2000
520
1500
75
50
264
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
TECHNICALSPECIFICATIONS
WEIGHTS
1.8
1430
1200
1100
1950
520
1400
75
50
Weights (kg)
Saloon versions
Weight empty
(including fluids, 90%
fuel in the tank and
no optional)
Maximum
admitted load (*)
– front axle
– rear axle
– total
Payload including
driver (**)
Towable loads
Max. load on ball
Maximum load
on roof
(*) Loads not to be exceeded. The driver is responsible for arranging the loads in the boot an/or on the roof so
that they comply with these limits.
(**) If special equipment is fitted (sunroof, tow hitch etc.) the unladen weight increases, thus reducing the payload as specified in
the maximum weight allowed.
