Incorrect pressure causes abnormal tyre
wearfig. 17:
Anormal pressure: tread evenly worn.
Blow pressure: tread particularly worn
at the edges.
Chigh pressure: tread particularly worn
in the centre.
Tyres must be replaced when the tread
wears down to 1.6 mm. In any case,
comply with the laws in the country
where the car is being driven.
IMPORTANT NOTES
As far as possible, avoid sharp braking
and screech starts, etc. Be careful not to
hit the kerb, potholes or other obstacles
hard. Driving for long stretches over
bumpy roads can damage the tyres.
Periodically check that the tyres have no
cuts in the side wall, abnormal swelling
or irregular tyre wear. If any of these oc-
cur, have the car seen to at Alfa Romeo
Authorized Services.
Avoid overloading the car when travel-
ling: this may cause serious damage to
the wheels and tyres; if a tyre is punc-
tured, stop immediately and change it
to avoid damage to the tyre, the rim,
suspensions and steering system.
WHEELS AND TYRES
Check the pressure of each tyre, includ-
ing the space-saver spare wheel, every
four weeks and before long journeys:
pressure should be checked with the tyre
rested and cold.
For the correct tyre inflation pressure,
see “Wheels” in “Technical specifica-
tions” section.
A0E0120mfig. 17

249
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
TECHNICALSPECIFICATIONS
T T
E E
C C
H H
N N
I I
C C
A A
L L
S S
P P
E E
C C
I I
F F
I I
C C
A A
T T
I I
O O
N N
S S
IDENTIFICATION DATA ......................................... 250
ENGINE CODES - BODYWORK VERSIONS ............... 252
ENGINE ............................................................ 253
FUEL FEED/IGNITION ........................................ 255
TRANSMISSION ................................................ 255
BRAKES ............................................................ 256
STEERING.......................................................... 256
SUSPENSIONS................................................... 256
WHEELS ........................................................... 257
DIMENSIONS..................................................... 261
PERFORMANCE .................................................. 263
WEIGHTS .......................................................... 264
CAPACITIES........................................................ 266
FLUIDS AND LUBRICANTS .................................... 267
FUEL CONSUMPTION .......................................... 269
CO
2EMISSIONS ............................................... 270
RADIO FREQUENCY REMOTE CONTROL:
MINISTERIAL CERTIFICATIONS ............................. 271

256
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
TECHNICALSPECIFICATIONS
1.8 - 1.9 JTS - 2.2 JTS - 3.2 JTS - 2.4 JTDM
1.9 JTDM8v - 1.9 JTDM16v
Service brakes:
– front Disc, self-ventilating Disc, self-ventilating
– rear Disc Disc, self-ventilating
Parking brake Controlled by hand lever, it works on rear brakes
IMPORTANT Water, ice and antifreeze salt on roads may deposit on the brake discs thus reducing braking efficiency at first braking.
1.8 - 1.9 JTS - 2.2 JTS - 3.2 JTS - 1.9 JTDM8V- 1.9 JTDM16v - 2.4 JTDM
Type Rack and pinion with hydraulic power steering
Turning radius
(between pavements) 11.1
BRAKES
STEERING
1.8 - 1.9 JTS - 2.2 JTS - 3.2 JTS - 1.9 JTDM8V- 1.9 JTDM16v - 2.4 JTDM
Front High quadrilateral system
Rear Multi-link system
SUSPENSIONS

260
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
TECHNICALSPECIFICATIONS

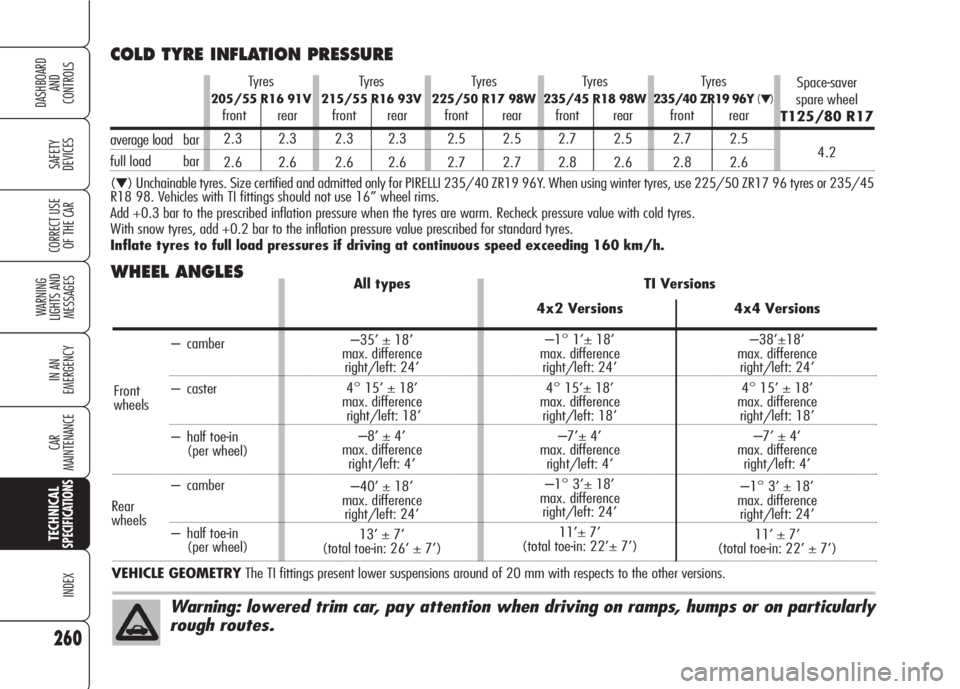

COLD TYRE INFLATION PRESSURE
