Performance of the
VDC system, in terms
of active safety should not in-
duce the driver to take point-
less and unnecessary risks.
The style of driving must in
any case always be adapted to
the conditions of the road sur-
face, visibility an traffic. Road
safety is always the driver’s
responsibility.
WARNING
During the use of the
space-saver spare
wheel (where provided), the
VDC system carries on work-
ing. However, you must re-
mind that the space-saver
spare wheel has dimensions
smaller than the standard tyre
and therefore its grip is re-
duced as to the other car tyres.
WARNING
For correct operation of
the VDC system, the
tyres must absolutely be of
the same brand and type on all
wheels, in perfect conditions
and, above all, of type, brand
and size specified.
WARNING
HILL HOLDER SYSTEM
(where provided)
This system is an integral part of the VDC
system and it is provided to facilitate
starting on slopes:
❒uphill: car at a standstill on a road
with a gradient higher than 6%, en-
gine running, clutch and brake ped-
al depressed, gearbox to neutral or
engaged gear other than reverse;
❒downhill: car at a standstill on a road
with a gradient higher than 6%, en-
gine running, clutch and brake ped-
al depressed and reverse gear en-
gaged.
At pickup the VDC system control unit
will keep brake force on wheels until
reaching the torque suitable for starting,
or in any case for about 1 second in or-
der to pass easily from the brake pedal
to the accelerator pedal.

249
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
TECHNICALSPECIFICATIONS
T T
E E
C C
H H
N N
I I
C C
A A
L L
S S
P P
E E
C C
I I
F F
I I
C C
A A
T T
I I
O O
N N
S S
IDENTIFICATION DATA ......................................... 250
ENGINE CODES - BODYWORK VERSIONS ............... 252
ENGINE ............................................................ 253
FUEL FEED/IGNITION ........................................ 255
TRANSMISSION ................................................ 255
BRAKES ............................................................ 256
STEERING.......................................................... 256
SUSPENSIONS................................................... 256
WHEELS ........................................................... 257
DIMENSIONS..................................................... 261
PERFORMANCE .................................................. 263
WEIGHTS .......................................................... 264
CAPACITIES........................................................ 266
FLUIDS AND LUBRICANTS .................................... 267
FUEL CONSUMPTION .......................................... 269
CO
2EMISSIONS ............................................... 270
RADIO FREQUENCY REMOTE CONTROL:
MINISTERIAL CERTIFICATIONS ............................. 271

261
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
TECHNICALSPECIFICATIONS
Versions A B C D E F G H
1.8 - 1.9 JTS - 2.2 JTS -
3.2 JTS - 1.9 JTD
M8v -4660 1000 2700 960 1422 1578 1828 1555
1.9 JTDM16v - 2.4 JTDM1417 (■) 1593 (■) 1573 (■)
DIMENSIONS
Dimensions are
expressed in mm and
refer to the car
fitted with standard tyres.
Min. size variations
when optional tyres are
fitted.
The height refers to
the car unladen.
BOOT VOLUME
Boot volume .............. 405 dm3
A0E0044mfig. 6
(■) With tyres 215/55 R16”

262
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
TECHNICALSPECIFICATIONS

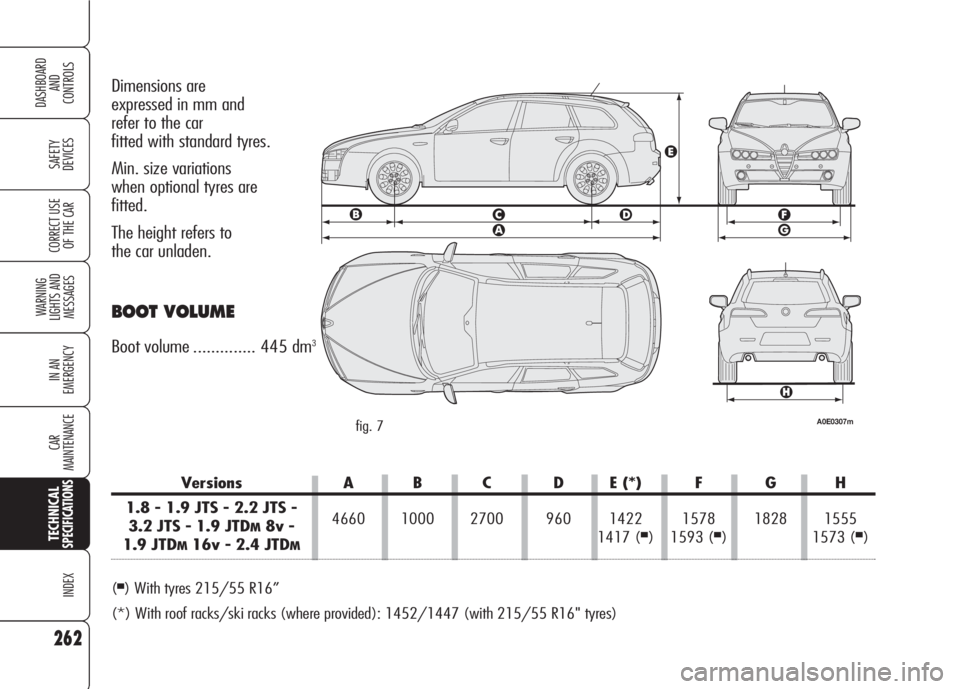

Dimensions are
expressed in mm and
refer to the car
fitted with standard tyres.
Min. size variations
when optional tyres are
fitted.
The height refers to
the car unladen.
BOOT VOLUME
Boot volume .............. 445 dm3
A0E0307mfig. 7
Versions A B C D E (*) F G H
1.8 - 1.9 JTS - 2.2 JTS -
3.2 JTS - 1.9 JTD
M8v -4660 1000 2700 960 1422 1578 1828 1555
1.9 JTDM16v - 2.4 JTDM1417 (■) 1593 (■) 1573 (■)
(
■) With tyres 215/55 R16”
(*) With roof racks/ski racks (where provided): 1452/1447 (with 215/55 R16" tyres)
