USERS FUSE AMPERE FIGURE
Heated rear window F40 30 56
Defrosting of external mirrors/heated windshield relay coil F41 7.5 56
Brake branch point power (ABS/VDC) –
Steering angle branch point – Yawing sensor F42 7.5 56
Windshield wiper/washer F43 30 56
Front cigar lighter on central console F44 10 56
Supply of socket in the boot F45 15 56
Sunroof F46 20 56
Power supply of driver door node F47 20 56
Power supply of passenger door nodes F48 30 56
+ Key for wheel node/Sunroof control unit/
Front and rear ceiling lights/Cvs/Blue&Me node/Volumetric/
Left and right seat F49 7.5 56
Air Bag system F50 7.5 56
Supply under key for Telematic info node/
Automatic gearbox node/Additional heater/
Left dashboard controls/ START/STOP button,
Parking sensors control unit/Electrochromatic mirror/
Blue&Me node/Car radio prearrangement/AQS/Cruise Control F51 7.5 56
181-222 Alfa 159 GB 4-06-2008 9:43 Pagina 217

218
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
IN AN
EMERGENCY
USERS FUSE AMPERE FIGURE
Rear window wiper/Rear lighter F52 15 56
Instrument panel branch point F53 10 56
Amplifier Bose audio system F54 30 62
Front left seat movement control F56 25 62
Driver’s seat warming left F57 7.5 62
Front right seat movement control F60 25 62
Amplifier Bose audio system on rear parcel shelf F61 15 62
Front passenger’ seat warming right F67 7.5 62
Free F58 --- 62
Free F59 --- 62
Free F62 --- 62
Free F63 --- 62
Free F64 --- 62
Free F66 --- 62
Free F68 --- 62
Free F69 --- 62
Free F77 --- 62
Free F78 --- 62
Free F79 --- 62
Free F80 --- 62
181-222 Alfa 159 GB 4-06-2008 9:43 Pagina 218

225
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
CAR
MAINTENANCE
35 70 105 140 175
●●●●●
●●●●●
●●●●●
●●●●●
●●●●●
●●●●●
●●●●●
●●●●●
●●●●●
●●●
●●
●
●
SERVICE SCHEDULE
Thousands of km
Check tyre conditions/wear and adjust pressure if required
Check light system operation (headlights, direction indicators, hazard lights,
boot lights, passenger compartment lights, glovebox lights, warning lights, etc.)
Check windscreen wiper/washer operation,adjust nozzles if required
Check windscreen/rear window blade position/wear
Check front disk brake pad conditions and wear and wear indicator operation
Check rear disk brake pad conditions and wear
Sight inspect the conditions of: body external parts, underbody protection,
pipes and hoses (exhaust - fuel - brakes), rubber parts
(boots, sleeves, bushes, etc.)
Check cleanness of locks, bonnet and boot and lever cleanness
and lubrication
Check and top up, if required, fluid levels (brakes/hydraulic clutch,
power steering, windscreen washer, battery, engine coolant, etc.)
Check and adjust handbrake lever stroke
Sight inspect accessory drive belt conditions (except 1.8 version)
Sight inspect accessory drive belt conditions (1.8 version)
Sight inspect timing belt conditions (1.8 version)
223-248 Alfa 159 GB 4-06-2008 9:44 Pagina 225

227
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
CAR
MAINTENANCE
USE OF THE CAR
UNDER HEAVY
CONDITIONS
Should prevailing use of the car be un-
der one of the following specially heavy
conditions:
❒ trailer or caravan towing;
❒ dusty roads;
❒ short distances (less than 7-8 km)
and repeated with external temper-
atures below zero;
❒ frequently idling engines or long dis-
tance low speed driving (e.g.: door-
to-door deliveries) or in case of a long
term inactivity;
❒ urban routes;
carry out checks more frequently than
required on Service Schedule:
❒ check front disk brake pad conditions
and wear;
❒ check cleanness of bonnet and boot
locks and lever cleanness and lubri-
cation;
❒ sight inspect the conditions of: en-
gine, gearbox, transmission, pipes
and hoses (exhaust - fuel - brakes),
rubber parts (boots, sleeves, bushes,
etc.);
❒ check battery charge and fluid level
(electrolyte);
❒ visual check on various drive belt con-
ditions;
❒ change engine oil and oil filter, if re-
quired;
❒ check and replace pollen filter, if re-
quired;
❒ check and replace air cleaner, if re-
quired.
PERIODICAL CHECKS
Every 1,000 km or before long jour-
neys, check and top up if required:
❒engine coolant fluid level;
❒brake fluid level;
❒windscreen washer fluid level;
❒ tyre pressure and conditions.
❒ check light system operation (head-
lights, direction indicators, hazard
lights, etc.);
❒ check windscreen wiper/washer op-
eration and windscreen/rear window
blade position/wear;
Every 3,000 km check and top up if re-
quired: engine oil level.
You are recommended to use FL Se-
leniaproducts, designed and produced
specifically for Alfa Romeo cars (see
table “Capacities” in section “Techni-
cal specifications”).
223-248 Alfa 159 GB 4-06-2008 9:44 Pagina 227

244
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
CAR
MAINTENANCE
SPRAY NOZZLES
If the jet of fluid is missing, firstly check
that there is fluid in the reservoir: see
“Checking fluid levels” in this section).
Then check that the nozzle holes are not
clogged, if necessary use a needle.
Fluid jets shall be directed at about 1/3
height from the window upper edge.
HEADLIGHT WASHERS
Regularly check that the spray jets are
intact and clean.
The headlight washers are automatical-
ly switched on when the windscreen
washer is operated and the dipped
beams are on.
Changing the windscreen
wiper blades fig. 18
How to remove the blade:
– raise the windscreen wiper arm A;
– turn the blade Bby 90° around pin
C, on the final section of the arm;
– remove the blade from the pin C.
How to refit the new blade:
– fit pin Cinto the hole in the middle
of the blade B;
– refit the arm with the blade on the
windscreen.
A0E0080mfig. 18
223-248 Alfa 159 GB 4-06-2008 9:44 Pagina 244

Exterior plastic parts must be cleaned in
the same way as the rest of the car.
Where possible, do not park under trees;
the resinous substance many species re-
lease give the paint a dull appearance
and increase the possibility of triggering
rust processes.
IMPORTANTBird droppings must be
washed off immediately and thorough-
ly as the acid they contain is particular-
ly aggressive.
246
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
CAR
MAINTENANCE
Windows
Use specific window cleaner products. Use
also clean cloths to avoid scratching the
glass or damaging the transparency.
IMPORTANTThe inside of the
rearscreen should be wiped gently with
a cloth in the direction of the filaments
to avoid damaging the heating device.
Front headlights
Front headlights shall be washed with
soft cloth moistened with water and car
detergent.
IMPORTANT Cleaning headlight lens-
es with a dry cloth will damage the
headlights with lack of performance as
a consequence. Solvents mat the lens-
es with lack of performance as a con-
sequence.
IMPORTANT When washing the front
headlights with a water monitor noz-
zle keep at least 2 cm away from the

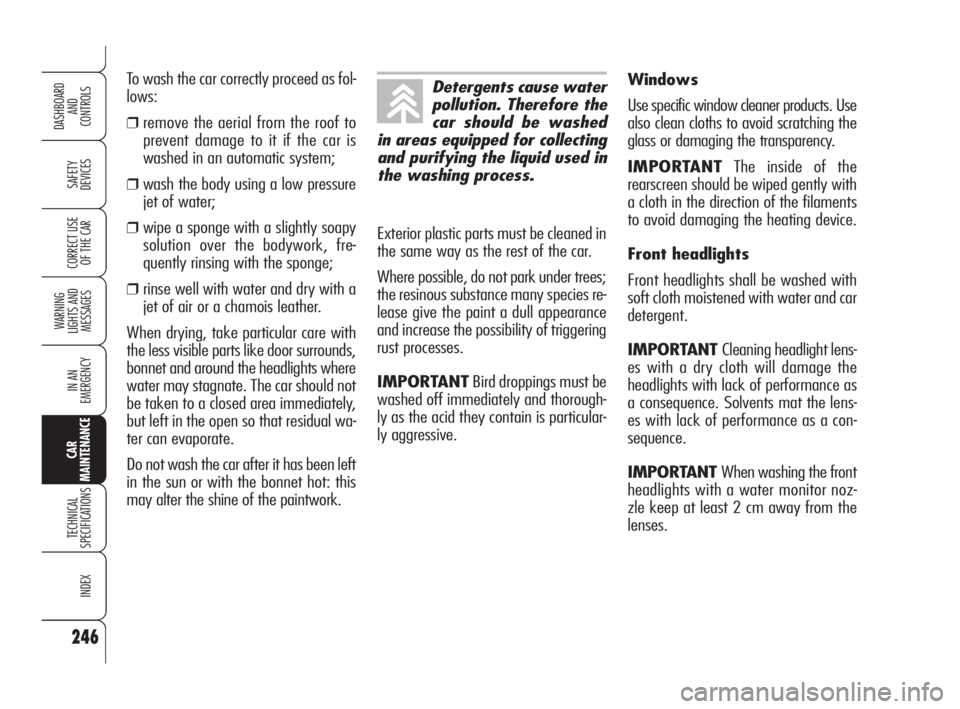

lenses. To wash the car correctly proceed as fol-

lows:
❒remove the aerial from the roof to
prevent damage to it if the car is
washed in an automatic system;
❒wash the body using a low pressure
jet of water;
❒wipe a sponge with a slightly soapy
solution over the bodywork, fre-
quently rinsing with the sponge;
❒rinse well with water and dry with a
jet of air or a chamois leather.
When drying, take particular care with
the less visible parts like door surrounds,
bonnet and around the headlights where
water may stagnate. The car should not
be taken to a closed area immediately,
but left in the open so that residual wa-
ter can evaporate.
Do not wash the car after it has been left
in the sun or with the bonnet hot: this
may alter the shine of the paintwork.
Detergents cause water
pollution. Therefore the
car should be washed
in areas equipped for collecting
and purifying the liquid used in
the washing process.
223-248 Alfa 159 GB 4-06-2008 9:44 Pagina 246

Never use the wiper to
remove ice or snow from
the rear window. In these
conditions, the wiper is submitted
to excessive effort that results in
motor protection cutting in and
wiper operation inhibition for few
seconds as a consequence. Should
it be not possible to restore its
operation, contact Alfa Romeo
Authorized Service.
HANGING THE REARSCREEN
WIPER BLADE
Proceed as follows:
❒raise the cover A-fig. 2, slacken
the nut Band remove the arm C;
❒position the new arm correctly, ful-
ly tighten the nut Band then lower
the cover A.
REARSCREEN WIPER
OPERATION
Rear window wiper
activation/deactivation
Turning the unstable ring nut A-fig. 1
to position
'ON/OFFwill obtain flick
wipe of the rear window wiper. To turn
it off, turn the ring nut back to position
'ON/OFF.
The activation of the rear windshield
wiper occurs also with the front wind-
shield wipe on and reverse gear insert-
ed.
Rear window "smart"
washing
Turning the unstable ring nut A-fig. 1
to position &will obtain rear window
washing. Keeping the unstable ring nut
at position &it will be possible to acti-
vate with just one movement both the
windscreen wiper and the rear window
wiper; the latter comes actually into ac-
tion automatically when the unstable
ring nut is kept at position &for over
half a second.
276
ALFA 159 SPORTWAGON
A0E0264mfig. 1A0E0267mfig. 2
The rear window wiper stops working
a few strokes after releasing the ring
nut; a further stroke after about 6 sec-
onds completes the wiping operation.
271-292 Alfa 159 GB 4-06-2008 9:45 Pagina 276

298
SOUND SYSTEM
HI-FI BOSE SYSTEM
(optional for versions/
markets where applicable)
The HI-FI BOSE system installed on your car
has been accurately designed to offer out-
standing sound quality and reproduce the
musical realism of a live concert, for all the
seats in the passenger compartment.
The system’s features include outstanding
faithful reproduction of crystalline treble
tones and full, rich basses which among oth-
er things, make the Loudness function su-
perfluous. In addition, the complete range
of the sounds is reproduced in the whole pas-
senger compartment enveloping the occu-
pants with the natural spatial sensation that
is felt when listening to live music.
The components adopted are patented and
are the result of the most sophisticated tech-
nology, but at the same time they are easy
and intuitive to use, so that even less expert
people can use the system.Technical data
The system includes:
– 2 tweeters with 50 W max. power,
set at dashboard ends;
– 2 mid-woofers with a diameter of 165
mm and 90 W max. power, set in front
doors;
– 2 rear tweeters with 50 W max.
power, set in rear doors;
– 2 mid-woofers with a diameter of 165
mm and 90 W max. power, set in rear
doors;– 1 mid-tweeter (Centerfill) with a
diameter of 80 mm and 50 W max.
power, set in the middle of the dashboard;
– 1 Sub-woofer (Saloon versions), with
a diameter of 250 mm and 200 W max.
power, set on the rear window parcel
shelf;
– 1 Bass-box reflex (Sportwagon ver-
sions) 130 mm diameter, 200 W max.
power, set in the boot;
– Power amplifier with 6 independent
channels, set on the rear window parcel
shelf and controlling all installed speakers.
293-318 Alfa 159 GB 4-06-2008 9:47 Pagina 298

Rims
– understanding rim marking ... 258
Roof rack/ski rack ............ 106-284
Rubber hoses .......................... 243
Safe lock device ...................... 14
Safety devices.................... 129
S.B.R. system ......................... 131
Seat belts ............................... 130
Seats ..................................... 45
Side/taillights
– bulb replacement ......... 200-203
– control .............................. 70
Ski tunnel ............................... 84
Smart washing ........................ 74
Snow chains ........................... 163
Sound system ......................... 293
Steering................................. 256
Steering lock ........................... 21
Steering wheel (adjustment) ..... 49
Sun curtains ............................ 88
Sun visors ............................... 88
Sunroof.................................. 93
Suspensions............................ 256
Symbols................................. 9
Technical Specifications...... 249
Third brake light ...................... 204
Top speeds .............................. 263
Towing the car ......................... 221
Towing trailers
– installing the tow hook ........ 159
T.P.M.S. system ....................... 122Transmission ........................... 255
Tyres
– changing ........................... 183
– inflation pressures ............... 260
– snow tyres ........................ 162
– standard tyres .................... 259
– understanding tyre marking .. 257
VDC system ........................... 110
Warning lights and
messages.......................... 165
Weights ................................. 264
Wheel geometry ...................... 260
Wheel rims
– understanding rim marking ... 258
Wheels
– changing ........................... 183
– technical data .................... 257
Wheels and tyres ..................... 241
Windows (cleaning) ................. 247
Windscreen washer
– control .............................. 75
– fluid level .......................... 232
Windscreen wiper
– blades .............................. 243
– control .............................. 73
– nozzle .............................. 244 Parking lights
– control .............................. 72
Parking sensors ....................... 118
Performance ........................... 263
Power windows ....................... 99
Pretensioners.......................... 132
Protecting the environment ........ 127
Puddle light
– bulb replacement ................ 208
Quick tyre repair kit
Fix&Go automatic .................. 190
Radio frequency remote control:
ministerial certifications ........... 271
Radio transmitters
and cellular telephones ........... 117
Rain sensor ............................. 74
Rear ceiling lights
– bulb replacement ................ 205
– control .............................. 80
Rear fog lights
– bulb replacement ................ 202
– control .............................. 72
Rearview mirrors ...................... 50
Reconfigurable multifunction
display................................. 30
Rev counter ............................ 21
Reverse light
– bulb replacement ................ 202
Right hand drive version.. 297
321
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
INDEX
319-328 Alfa 159 GB 4-06-2008 9:48 Pagina 321

fig. 1
1.Adjustable swivel side air vents -2.Front side window demisting/defrosting vents -3.Passenger’s air bag - 4.Fuel lev-
el gauge/engine coolant temperature gauge/engine oil temperature gauge (petrol versions) or turbocharger pressure
gauge (diesel versions) - 5.Adjustable swivel centre air vents - 6.Upper central vent - 7.External lights control lever -
8.Driver’s air bag and horn - 9.Instrument panel - 10.Windscreen wiper control lever - 11.Front side window demist-
ing/defrosting vents - 12.Adjustable swivel side air vents - 13.Switches for external lights, trip meter reset and headlamp
aiming device. - 14.Dashboard fusebox lid - 15.Bonnet opening lever - 16. Sound system controls on the steering wheel
(where provided) - 17.Driver’s knees air bag - 18.Cruise Control lever (where provided) - 19.Ignition device - 20.En-
gine START/STOP button - 21.Heating/ventilation/climate controls - 22.Sound system (where provided) - 23.Glove
box - 24.Passenger’s knees air bag (where provided)
DASHBOARD
323
RIGHT HAND DRIVE VERSION
319-328 Alfa 159 GB 4-06-2008 9:48 Pagina 323
