heater Alfa Romeo 159 2009 Owner handbook (in English)

6
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
DD D
A A
S S
H H
B B
O O
A A
R R
D D
A A
N N
D D
C C
O O
N N
T T
R R
O O
L L
S S
CRUISE CONTROL ............................................. 76
CEILING LIGHTS................................................ 78
CONTROLS....................................................... 81
INTERIOR FITTINGS............................................ 83
SUNROOF........................................................ 93
DOORS ........................................................... 96
POWER WINDOWS ........................................... 99
BOOT .............................................................. 101
BONNET.......................................................... 105
ROOF RACK/SKI RACK ...................................... 106
HEADLIGHTS..................................................... 106
ABS SYSTEM ................................................... 108
VDC SYSTEM ................................................... 110
EOBD SYSTEM ................................................. 115
SOUND SYSTEM PRESETTING.............................. 116
ACCESSORIES PURCHASED BY THE OWNER .......... 116
INSTALLATION OF ELECTRIC/ELECTRONIC DEVICES .. 117
PARKING SENSORS ........................................... 118
TYRE PRESSURE MONITORING SYSTEM
(T.P.M.S.)........................................................ 122
AT THE FILLING STATION .................................... 125
PROTECTING THE ENVIRONMENT ........................ 127 DASHBOARD.................................................... 7
INSTRUMENT PANEL ......................................... 8
SYMBOLS....................................................... 9
ALFA ROMEO CODE SYSTEM............................... 9
ELECTRONIC KEY .............................................. 11
ALARM ........................................................... 17
IGNITION DEVICE............................................... 19
INSTRUMENTS.................................................. 21
MULTIFUNCTION DISPLAY ................................... 25
RECONFIGURABLE MULTIFUNCTION DISPLAY.......... 30
SEATS ............................................................ 45
HEAD RESTRAINTS............................................. 48
STEERING WHEEL ............................................. 49
REARVIEW MIRRORS......................................... 50
CLIMATE CONTROL SYSTEM ............................... 53
MANUAL CLIMATE CONTROL SYSTEM ................... 55
AUTOMATIC TWO-/THREE-ZONE
CLIMATE CONTROL SYSTEM ............................... 58
ADDITIONAL HEATER ......................................... 69
EXTERNAL LIGHTS............................................. 70
WINDOW WASHING ......................................... 73
001-045 Alfa 159 GB 4-06-2008 9:38 Pagina 6

69
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
SWITCHING THE CLIMATE
CONTROL SYSTEM OFF
Press OFF button. The circular led around
the button turns on, signalling the OFF
state.
With climate control system off:
❒the system stores performed opera-
tions;
❒the display is off;
❒air recirculation is active (button led
on);
❒compressor is active;
❒ventilation is off.
To turn the climate control system on
again press button AUTO or any other
button (excluding
(andv).
Turning the climate control system on
again, air recirculation will be again con-
trolled automatically.Pressing button OFF on the rear control
will display the wording OFF on the rear
display and will stop air flow to rear
seats.
ADDITIONAL
HEATER (diesel
versions only)
(where provided)
The car is fitted with an additional heater
that supports the engine during cold or
winter weather to quickly reach a com-
fortable temperature in the passenger
compartment.
The additional heater works with the en-
gine running when the outside temper-
ature is below 20°C and the engine has
not yet reached normal operating tem-
perature.After connecting/dis-
connecting the battery,
wait for 3 minutes at
least before fitting the electronic
key into the ignition device in
order to allow the climate con-
trol system control unit to reset
the positions of the electric ac-
tuators that adjust air temper-
ature and distribution.
046-082 Alfa 159 GB 4-06-2008 9:40 Pagina 69

157
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
Climate control
The air conditioner is an additional load
which greatly affects the engine leading
to higher consumption. When the tem-
perature outside the car permits it, use
the air vents where possible.
Spoilers
The use of aerodynamic optional extras
which are not certified for the specific
use on the vehicle, may reduce the aero-
dynamic penetration of the vehicle and
increase consumption. Unnecessary loads
Do not travel with too much luggage
stowed in the boot. The weight of the
car (especially when driving in town)
and its trim greatly affects consumption
and stability.
Roof rack/ski rack
Remove the roof rack or the ski rack
from the roof as soon as they are no
longer used. These accessories lower air
penetration and adversely affect con-
sumption levels. When needing to car-
ry particularly voluminous objects, prefer-
ably use a trailer.
Electric devices
Use electric devices only for the amount
of time needed. Rear heated window,
additional headlights, windscreen wipers
and heater fan need a considerable
amount of energy, therefore increasing
the requirement of current increases fu-
el consumption (up to +25% in the ur-
ban cycle).CONTAINING
RUNNING COSTS
Here are some suggestions which may
help you to keep the running costs of
your car down and lower the amount of
toxic emissions released into the at-
mosphere.
GENERAL CONSIDERATIONS
Car maintenance
Have checks and adjustments carried out
in accordance with the “Service sched-
ule”.
Tyres
Check the pressure of the tyres routine-
ly at an interval of no more than 4
weeks: if the pressure is too low, con-
sumption levels increase as resistance
to rolling is higher.
149-164 Alfa 159 GB 4-06-2008 9:42 Pagina 157

214
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
IN AN
EMERGENCY
FUSE SUMMARY TABLE
LIGTHS FUSE AMPERE FIGURE
Right main beam headlight F14 7.5 60
Left main beam headlight F15 7.5 60
Right dipped beam headlight F12 15 56
Left dipped beam headlight F13 15 56
Front fog light F30 15 60
Reversing light/Brake light F35 7.5 56
Third brake light F37 7.5 56
Front/rear ceiling light F39 10 56
Front ceiling light F49 7.5 56
Direction indicators F53 10 56
Hazard lights F53 10 56
USERS FUSE AMPERE FIGURE
Engine housing control unit services F70 (MEGA-FUSE) 150 58
Instrument panel control unit F71 70 58
Additional heater (passenger compartment water heating 600W)
(diesel versions) F72 50 58
Plug pre-heating control unit (diesel versions) F73 60 58
Instrument panel control unit F01 (MAXI-FUSE) 60 60
181-222 Alfa 159 GB 4-06-2008 9:43 Pagina 214

215
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
IN AN
EMERGENCY

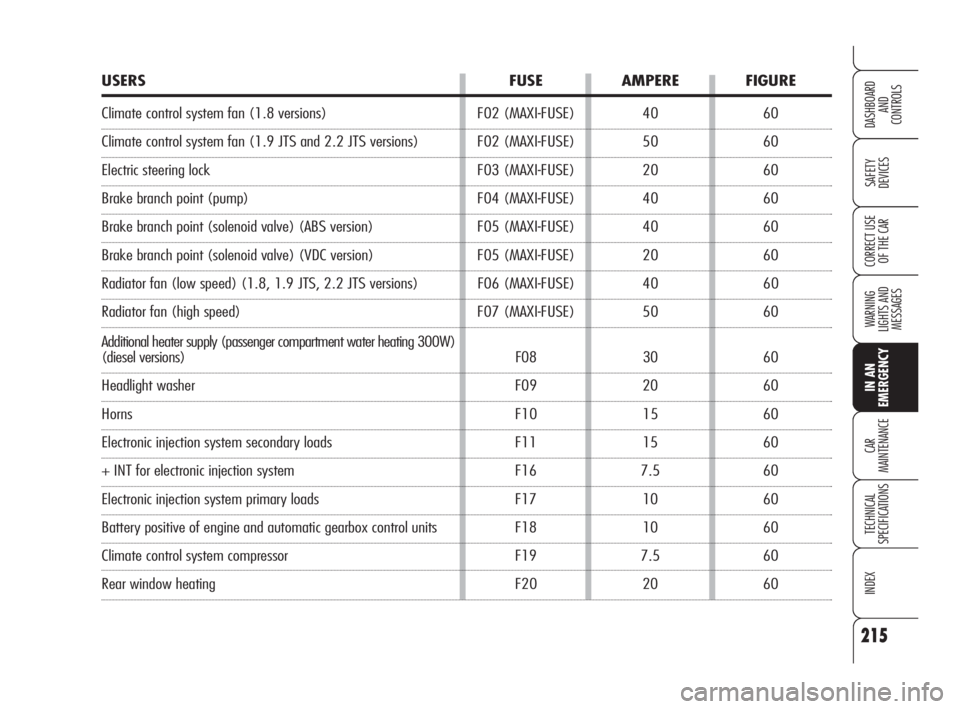

USERS FUSE AMPERE FIGURE
Climate control system fan (1.8 versions) F02 (MAXI-FUSE) 40 60
Climate control system fan (1.9 JTS and 2.2 JTS versions) F02 (MAXI-FUSE) 50 60
Electric steering lock F03 (MAXI-FUSE) 20 60
Brake branch point (pump) F04 (MAXI-FUSE) 40 60
Brake branch point (solenoid valve) (ABS version) F05 (MAXI-FUSE) 40 60
Brake branch point (solenoid valve) (VDC version) F05 (MAXI-FUSE) 20 60
Radiator fan (low speed) (1.8, 1.9 JTS, 2.2 JTS versions) F06 (MAXI-FUSE) 40 60
Radiator fan (high speed) F07 (MAXI-FUSE) 50 60
Additional heater supply (passenger compartment water heating 300W)
(diesel versions) F08 30 60
Headlight washer F09 20 60
Horns F10 15 60
Electronic injection system secondary loads F11 15 60
+ INT for electronic injection system F16 7.5 60
Electronic injection system primary loads F17 10 60
Battery positive of engine and automatic gearbox control units F18 10 60
Climate control system compressor F19 7.5 60
Rear window heating F20 20 60
181-222 Alfa 159 GB 4-06-2008 9:43 Pagina 215

217
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
IN AN
EMERGENCY
USERS FUSE AMPERE FIGURE
Heated rear window F40 30 56
Defrosting of external mirrors/heated windshield relay coil F41 7.5 56
Brake branch point power (ABS/VDC) –
Steering angle branch point – Yawing sensor F42 7.5 56
Windshield wiper/washer F43 30 56
Front cigar lighter on central console F44 10 56
Supply of socket in the boot F45 15 56
Sunroof F46 20 56
Power supply of driver door node F47 20 56
Power supply of passenger door nodes F48 30 56
+ Key for wheel node/Sunroof control unit/
Front and rear ceiling lights/Cvs/Blue&Me node/Volumetric/
Left and right seat F49 7.5 56
Air Bag system F50 7.5 56
Supply under key for Telematic info node/
Automatic gearbox node/Additional heater/
Left dashboard controls/ START/STOP button,
Parking sensors control unit/Electrochromatic mirror/
Blue&Me node/Car radio prearrangement/AQS/Cruise Control F51 7.5 56
181-222 Alfa 159 GB 4-06-2008 9:43 Pagina 217

319
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
INDEX
– useful advice for
lengthening the life ............. 239
Bodywork (cleaning) ................ 245
Bonnet ................................... 105
Boot ...............................101-277
– light replacement ................ 208
Brakes ................................... 256
Bulb (replacement) .................. 196
– general instructions ............. 196
– types of bulbs .................... 197
Capacities.............................. 266
Car inactivity ........................... 164
Car maintenance................ 223
– periodical checks ................ 227
– use of the car under heavy
conditions.......................... 227
– service Schedule ................. 225
– scheduled service ................ 224
Carrying children safely ............. 135
– child restraint systems ......... 138
– passenger’s seat compliance . 138
– presetting for mounting the
“Universal Isofix” child restraint
system .......................140-285Ceiling lights
– front ................................. 78
– rear .................................. 80
Checking fluid levels ................. 228
Child lock device ...................... 97
Cigar lighter ............................ 85
Climate control system .............. 53
– automatic two-/three-zone .. 58
– manual ............................. 55
CO
2emissions......................... 270
CODE card .............................. 12
Containing running costs ........... 157
Controls................................. 81
Correct use of the car........ 149
Courtesy mirror light
– bulb replacement ................ 206
Cruise Control .......................... 76
Dashboard and controls.... 6
Dashboard buttons ................... 72
Diesel fuel filter ....................... 236
Dimensions............................. 261
Dipped beam headlights
– bulb replacement ................ 201
– control .............................. 70 ABS system ............................ 108
Accessories purchased
by the owner ........................ 116
Additional heater ..................... 69
Air bags ...........................141-145
Air/pollen filter ........................ 236
Air vents ................................. 54
Alarm ..................................... 17
Alfa Romeo CODE system .......... 9
Alfa 159 Sportwagon....... 275
Armrest
– central .............................. 82
– rear ........................... 83-84
Ashtray.................................. 87
ASR system ............................ 112
At the filling station .................. 125
Automatic headlight sensor ........ 71
Automatic two/three-zone
climate control system ............ 58
Battery
– checking the charge ............ 237
– jump starting ..................... 182
– recharging ......................... 219
– replacing ........................... 238
II I
N N
D D
E E
X X
319-328 Alfa 159 GB 4-06-2008 9:48 Pagina 319
