HOW TO DEACTIVATE
THE ALARM
Press button Ë. The system will react as
follows (with the exception of certain
markets):
❒two brief flashes of the direction in-
dicators;
❒two brief “beeps”;
❒door unlocking.
The alarm can be deactivated by fitting
the electronic key into the ignition
switch.
IMPORTANTOn certain versions any
attempt to break in detected by the sys-
tem will be indicated by a warning mes-
sage on the instrument panel display
when fitting the electronic key into the
ignition switch.VOLUMETRIC PROTECTION/
ANTI-RAISING SENSORS
To make sure that the protection sensors
are working properly, check that win-
dows and sunroof (for versions/markets,
where provided) are shut.
This function can be cut out (for exam-
ple if you leave animals on the car) by
pressing button A-fig. 13on the front
ceiling light within 1 minute after in-
strument panel turning off.
When this function is off the button led
will turn on. Volumetric protection/anti-
raising sensors cut out shall be repeated
at each instrument panel turning off. Surveillance
When the system has been turned on,
the led A-fig. 12will flash to indicate
that the system is in the surveillance
mode. The led will flash continuously
while the system is under surveillance.
IMPORTANTOperation of the alarm
is adapted at the origin to the regula-
tions of the different countries.
Self-diagnosis and monitoring
of doors/bonnet/boot
If, after the alarm has been activated, a
second acoustic signal is heard, turn the
system off by pressing button
Ë, check
for proper locking of doors, bonnet and
boot, then turn the system on again by
pressing button
Á.
Otherwise if a door or bonnet/boot lid
is not correctly closed it will not be con-
trolled by the system. If the control sig-
nal is repeated when the doors and bon-
net/boot are closed properly this means
that the self-diagnosis function has de-
tected a system operating fault, in which
case it is necessary to contact Alfa
Romeo Authorized Services.
18
SAFETY
DEVICES
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
A0E0480mfig. 13
001-045 Alfa 159 GB 8-04-2009 10:48 Pagina 18

Reset Trip B
As concerns the Trip B values, it is pos-
sible to select through the “Setup
Menu” the reset mode (Manual or Au-
tomatic) (see paragraph “Setup Menu”
on previous pages):
❒manual reset: press and keep pressed
button TRIP for over 2 seconds.
❒automatic reset: it takes place each
time the electronic key is fitted into
the ignition device.
At Trip B reset a warning message will
be displayed.
IMPORTANTTrip B reset will not re-
set “Range” and “Current Consump-
tion”.
44
SAFETY
DEVICES
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

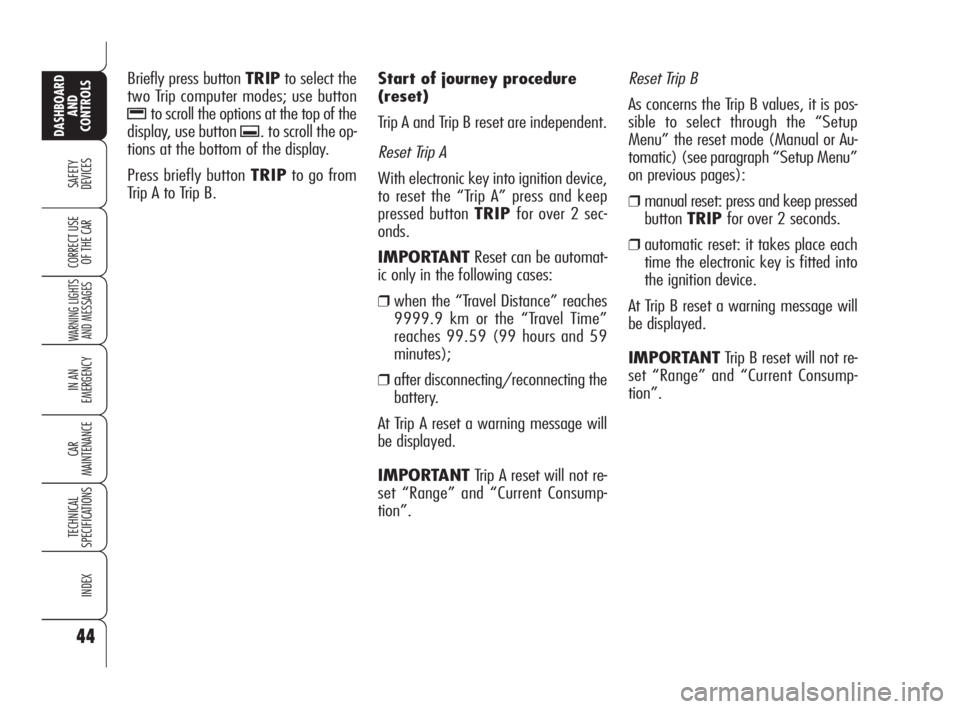

Briefly press button TRIPto select the
two Trip computer modes; use button
-to scroll the options at the top of the
display, use button
.. to scroll the op-
tions at the bottom of the display.
Press briefly button TRIPto go from
Trip A to Trip B.Start of journey procedure
(reset)
Trip A and Trip B reset are independent.
Reset Trip A
With electronic key into ignition device,
to reset the “Trip A” press and keep
pressed button TRIP for over 2 sec-
onds.
IMPORTANTReset can be automat-
ic only in the following cases:
❒when the “Travel Distance” reaches
9999.9 km or the “Travel Time”
reaches 99.59 (99 hours and 59
minutes);
❒after disconnecting/reconnecting the
battery.
At Trip A reset a warning message will
be displayed.
IMPORTANTTrip A reset will not re-
set “Range” and “Current Consump-
tion”.
001-045 Alfa 159 GB 8-04-2009 10:48 Pagina 44

79
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
In the following table are summarised the causes that make front/rear ceiling lights turn on/off and their turning on/off
mode:
Cause
Opening one of the front/rear doors
Closing all the doors
Removing the electronic key from the ignition device
Locking the doors
Unlocking the doors
Cutting in of the fuel cut-off switch
Front and rear ceiling lights turning on/off mode
Central front light and rear light turning on for a few minutes.
This timed operation will be reactivated each time a door is opened.
With electronic key removed from ignition device: ceiling lights
will stay on for other 10 seconds. This timed operation
is stopped when refitting the electronic key into the ignition
device
Starting the engine: front central and rear courtesy lights will
turn off
Front central and rear courtesy lights turning on for about
10 seconds
Front central and rear courtesy lights turning off
Front central and rear courtesy lights turning on for about
10 seconds
Front central and rear courtesy lights turning on for a few
minutes. Reactivating the fuel cut-off switch will turn off the
ceiling lights
In all the cases tabulated above, front and rear ceiling lights turning on/off is gradual, for 2 seconds.
046-082 Alfa 159 GB 8-04-2009 14:23 Pagina 79

CLEARING THE
PROGRAMMED BUTTONS
You are recommended to clear the
HomeLink programming before selling
the car.
Programming is cleared on all the three
buttons at the same time.
Proceed as follows:
❒press and keep pressed the outer
buttons (Aand C): 20 seconds af-
ter led Dwill start flashing.
❒Release both buttons.
TECHNICAL DATA FOR THE
ASSISTANCE SERVICE
If after following the previous instruc-
tions you are still unable to set the
HomeLink system, contact the Assis-
tance Service (HomeLink toll free num-
ber 00800046635465) and commu-
nicate the following data:
❒make and model of your car, in-
cluding the date of manufacture and
the country where you bought it;
❒make, model, date of manufacture
and operating frequency of the orig-
inal portable remote control (if
known).
IMPORTANTCertain phone carriers
do not permit the use of the toll-free
number. It is therefore required to dial
the alternative pay-number, +49 6838
907-277 (dialling this number will start
an international call). The distance required between the
portable remote control and the Home-
Link depends on the system to be pro-
grammed (type of frequency of main
door, gate or other system).
If Ddoes not start to flash quickly try
again changing the distance between
HomeLink and portable remote control
(move them away slightly). If 20 sec-
onds later the led is still flashing slow-
ing, repeat the operation changing again
the distance between Homelink and re-
mote control.
3) the HomeLink led Dwill start blink-
ing, first slowly and then quickly. When
it starts flashing quickly, release both
buttons (HomeLink and portable remote
control).
In this way the system previously pro-
grammed on HomeLink is cleared and
the new system is ready for use. This
operation has no effect on the other two
HomeLink buttons.
92
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
083-128 Alfa 159 GB 3-12-2009 14:08 Pagina 92

99
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
IMPORTANTIn the event the anti-
crushing function is activated 5 times in
only 1 minute or in the event of a fail-
ure, the system will automatically enter
the “recovery” mode (self-protection).
This condition is pointed out by the fact
that, in the closing stroke, the windows
goes up in jerks.
In this case it is necessary to carry out
system restore procedure as follows:
❒open the windows;
or
❒remove and then refit the key into the
ignition device.
If no malfunction is present, the window
returns to its normal operation automat-
ically. In the event of a failure see section
“Warning lights and messages”.
Windows and sunroof
opening/closing by the
electronic key (for versions/
markets, where provided)
By the metal insert of the key
On all versions:
❒turning clockwise the metal insert of
the key into the driver's door re-
volving plug will open all the win-dows and the sunroof (for versions/
markets, where provided) at the
same time.
❒turning counterclockwise the metal
insert of the key into the driver's
door revolving plug will close all the
windows and the sunroof (for ver-
sions/ markets, where provided) at
the same time.
By remote control
On all versions, keep button Ëpressed
for over 2 seconds to open all the win-
dows and the sunroof (where provided)
at the same time.
POWER WINDOWS
Versions with 2 front power windows
are fitted with automatic window open-
ing/closing only on the driver’s side.
Versions with 4 power windows are fit-
ted with automatic window opening/
closing on all doors. For versions/mar-
kets where applicable the passenger
side electrical window and the rear elec-
trical windows are provided with a safe-
ty system with anti-crushing seal able to
recognize the eventual presence of an
obstacle during the closing movement
of the window; upon verification of this
event the system interrupts and imme-
diately inverts the run of the window.
This system is particularly useful when
children operate the windows inadver-
tently and make it possible to close/
open (where provided) the windows us-
ing the remote control when leaving the
car.
The system complies
with the forthcoming
Standard 2000/4/ EC
concerning the safety of pas-
sengers leaning out of the pas-
senger compartment.
083-128 Alfa 159 GB 3-12-2009 14:08 Pagina 99

170
SAFETY
DEVICES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
WARNING
LIGHTS AND
MESSAGES
LIGHT STAYS ON:
LOW ENGINE OIL
PRESSURE (red)
FLASHING LIGHT:
EXHAUSTED ENGINE
OIL
(only Diesel versions
with DPF - red)
When the electronic key is inserted into
the starting device,
the warning light switch-
es on and should go out as soon as the en-
gine is started.
1. Low engine oil pressare
The warning light turns on and stays on con-
stantly (for versions/markets, where pro-
vided) along with the message on the dis-
play when the system detects that engine
oil pressure is low.– use of the vehicle for short drives, in which
the engine does not have time to reach its
regular operating temperature
– repeated interruption of the regeneration
process, signalled by the DPF warning light
coming on.
LOW BATTERY
CHARGE (red)
The warning light (where pro-
vided) turns on, but it should go
off as soon as the engine has started (with
the engine running at idle speed a brief de-
lay in going out is allowed).
If the warning light (or as an alternative, on
certain versions, a symbol and a message
are displayed) stays on glowing steadily or
flashing contact immediately Alfa Romeo Au-
thorized Services.w
v
If the warning light vturns on when the vehicle
is travelling (on certain versions
together with the message on the
display) stop the engine immedi-
ately and contact a Alfa Romeo
Authorized Services.
WARNING
2. Exhausted engine oil
(only Diesel versions with DPF)
The warning light will flash and a specific mes-
sage will appear on the display (for ver-
sions/markets, where provided). The warn-
ing light may flash in the following ways, de-
pending on the version:
– for 1 minute every two hours;
– for 3 minute cycles with the warning light
off for intervals of 5 seconds until oil is
changed.
After the initial warning, each time the engine
is started up, the warning light will continue
to flash in the above mentioned modes, un-
til the oil is changed. A specific message will
appear on the display (for versions/markets,
where provided) in addition to the warning
light. If the warning light flashes, this does
not mean that the car is defective but sim-
ply informs the driver that it is now necessary
to change the oil as a result of regular vehi-
cle use.
Note that engine oil is exhausted faster un-
der the following circumstances:
– use of the vehicle prevalently for city driving,
requiring more frequent regeneration of DPF
MINIMUM ENGINE
OIL LEVEL (RED)
When the electronic key is in-
serted into the starting device the
display will show the engine oil level for
a few seconds.
On some versions the display will show
a message and a symbol if the engine oil
level is too low. In this case, top up the
engine oil to the correct level (see “Check-
ing fluid levels” in “Car maintenance”
chapter).k
Exhausted engine oil
should be replaced as soon
as possible after the warning light
comes on, never more than 500
km after the warning light first
comes on. Failure to change the oil
within the first 500 km may result
in severe damage to the engine
and will result in forfeiture of the
warranty. Remember that when
the warning light flashes, it does
not mean that the level of engine
oil is low, so if the light flashes you
must not top up.
WARNING
165-180 Alfa 159 GB 3-12-2009 14:09 Pagina 170

CAR PROTECTION
SYSTEM FAILURE
(amber)
STEERING LOCK
INHIBITION
(amber)
Car protection system failure
Warning light (where provided) coming
on (on certain versions a message is dis-
played) indicates car protecting system
failure: in this event contact Alfa Romeo
Authorized Services as soon as possible.
Steering lock inhibition
Warning light (where provided) turns on
(on certain versions a message is dis-
played) when removing the electronic
key from the ignition device when the
car has turned off while travelling.
ALARM FAILURE
(amber)
(for versions/markets,
where provided)
BREAK-IN ATTEMPT
(amber)
ELECTRONIC KEY
NOT RECOGNIZED
(amber)
Alarm failure
The turning on of the warning light
(where provided) (on certain versions a
message is displayed) indicates that
there is a failure in the alarm system.
Contact Alfa Romeo Authorized Services
as soon as possible.
Break-in attempt
The turning on of the warning light (where
provided) (on certain versions a message
is displayed) indicates an attempt of
break-in. Contact Alfa Romeo Authorized
Services as soon as possible.
Electronic key not recognized
The turning on of the warning light (where
provided) (on certain versions a message
is displayed) indicates that the electronic
key being used is not enabled. – flashing: indicates the possibility of
damage to the catalyst (see “EOBD sys-
tem” in section “Dashboard and con-
trols”). If the light flashes, it is neces-
sary to release the accelerator pedal to
lower the speed of the engine until the
warning light stops flashing; continue
the journey at moderate speed, trying
to avoid driving conditions that may
cause further flashing and contact Alfa
Romeo Authorized Services as soon as
possible.
172
SAFETY
DEVICES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
WARNING
LIGHTS AND
MESSAGES
If when fitting the key in-
to the ignition device, the
warning light
Udoes
not turn on or if turns on with
fixed light or flashing when the
car is travelling, contact Alfa
Romeo Authorized Services as
soon as possible. Warning light
Uoperation can by checked by
traffic agents by proper equip-
ment therefore, comply with
laws and regulations in force in
the country where you are dri-
ving.
>Y
165-180 Alfa 159 GB 3-12-2009 14:09 Pagina 172

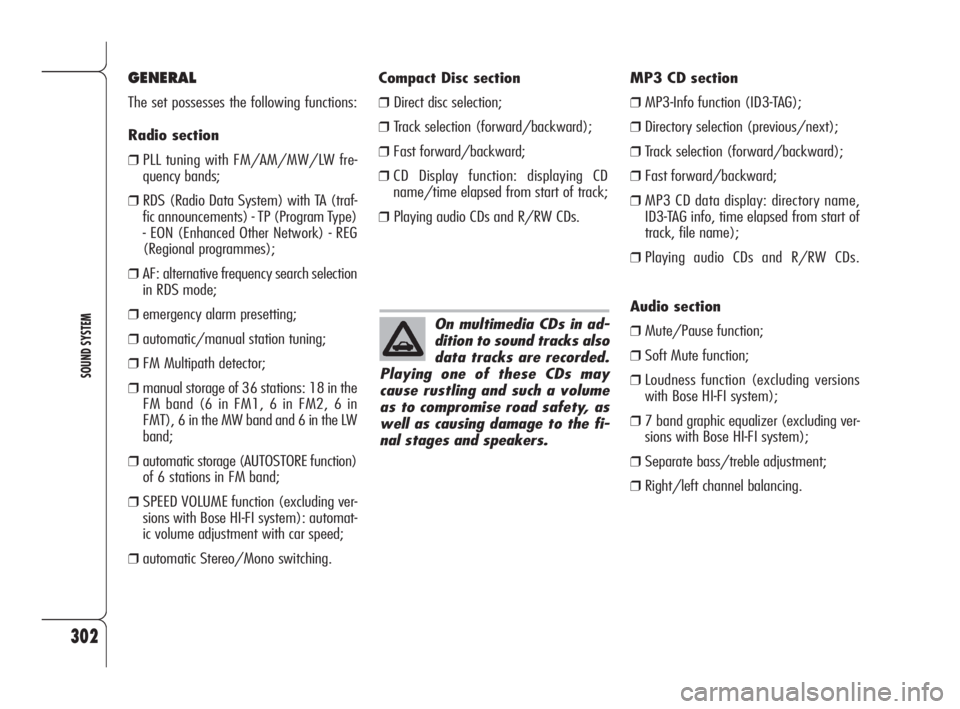

302
SOUND SYSTEM
On multimedia CDs in ad-
dition to sound tracks also
data tracks are recorded.
Playing one of these CDs may
cause rustling and such a volume
as to compromise road safety, as
well as causing damage to the fi-
nal stages and speakers.
MP3 CD section
❒MP3-Info function (ID3-TAG);
❒Directory selection (previous/next);
❒Track selection (forward/backward);
❒Fast forward/backward;
❒MP3 CD data display: directory name,
ID3-TAG info, time elapsed from start of
track, file name);
❒Playing audio CDs and R/RW CDs.
Audio section
❒Mute/Pause function;
❒Soft Mute function;
❒Loudness function (excluding versions
with Bose HI-FI system);
❒7 band graphic equalizer (excluding ver-
sions with Bose HI-FI system);
❒Separate bass/treble adjustment;
❒Right/left channel balancing. Compact Disc section
❒Direct disc selection;
❒Track selection (forward/backward);
❒Fast forward/backward;
❒CD Display function: displaying CD
name/time elapsed from start of track;
❒Playing audio CDs and R/RW CDs.
GENERAL
The set possesses the following functions:
Radio section
❒PLL tuning with FM/AM/MW/LW fre-
quency bands;
❒RDS (Radio Data System) with TA (traf-
fic announcements) - TP (Program Type)
- EON (Enhanced Other Network) - REG
(Regional programmes);
❒AF: alternative frequency search selection
in RDS mode;
❒emergency alarm presetting;
❒automatic/manual station tuning;
❒FM Multipath detector;
❒manual storage of 36 stations: 18 in the
FM band (6 in FM1, 6 in FM2, 6 in
FMT), 6 in the MW band and 6 in the LW
band;
❒automatic storage (AUTOSTORE function)
of 6 stations in FM band;
❒SPEED VOLUME function (excluding ver-
sions with Bose HI-FI system): automat-
ic volume adjustment with car speed;
❒automatic Stereo/Mono switching.
293-318 Alfa 159 GB 8-04-2009 10:56 Pagina 302

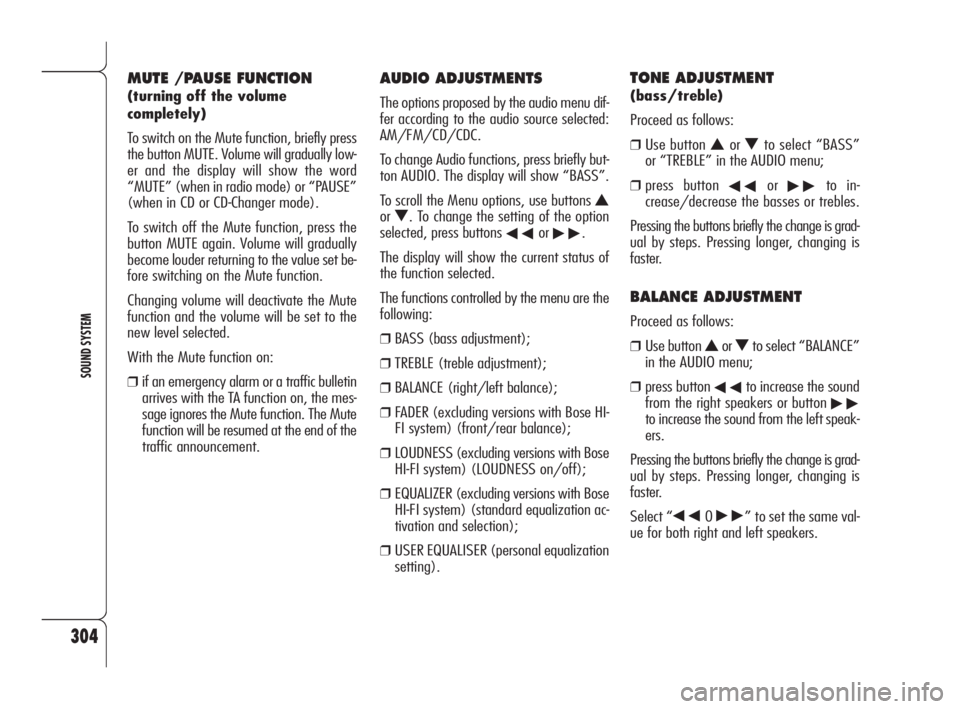

304
SOUND SYSTEM
AUDIO ADJUSTMENTS
The options proposed by the audio menu dif-
fer according to the audio source selected:
AM/FM/CD/CDC.
To change Audio functions, press briefly but-
ton AUDIO. The display will show “BASS”.
To scroll the Menu options, use buttons
N
or O. To change the setting of the option
selected, press buttons
÷or ˜.
The display will show the current status of
the function selected.
The functions controlled by the menu are the
following:
❒BASS (bass adjustment);
❒TREBLE (treble adjustment);
❒BALANCE (right/left balance);
❒FADER (excluding versions with Bose HI-
FI system) (front/rear balance);
❒LOUDNESS (excluding versions with Bose
HI-FI system) (LOUDNESS on/off);
❒EQUALIZER (excluding versions with Bose
HI-FI system) (standard equalization ac-
tivation and selection);
❒USER EQUALISER (personal equalization
setting).
TONE ADJUSTMENT
(bass/treble)
Proceed as follows:
❒Use button Nor Oto select “BASS”
or “TREBLE” in the AUDIO menu;
❒press button ÷or ˜to in-
crease/decrease the basses or trebles.
Pressing the buttons briefly the change is grad-
ual by steps. Pressing longer, changing is
faster.
BALANCE ADJUSTMENT
Proceed as follows:
❒Use button Nor Oto select “BALANCE”
in the AUDIO menu;
❒press button ÷to increase the sound
from the right speakers or button
˜to increase the sound from the left speak-
ers.
Pressing the buttons briefly the change is grad-
ual by steps. Pressing longer, changing is
faster.
Select “
÷0 ˜” to set the same val-
ue for both right and left speakers.
MUTE /PAUSE FUNCTION
(turning off the volume
completely)
To switch on the Mute function, briefly press
the button MUTE. Volume will gradually low-
er and the display will show the word
“MUTE” (when in radio mode) or “PAUSE”
(when in CD or CD-Changer mode).
To switch off the Mute function, press the
button MUTE again. Volume will gradually
become louder returning to the value set be-
fore switching on the Mute function.
Changing volume will deactivate the Mute
function and the volume will be set to the
new level selected.
With the Mute function on:
❒if an emergency alarm or a traffic bulletin
arrives with the TA function on, the mes-
sage ignores the Mute function. The Mute
function will be resumed at the end of the
traffic announcement.
293-318 Alfa 159 GB 8-04-2009 10:56 Pagina 304
