Alfa Romeo 4C 2015 Owner handbook (in English)

SUITABILITY OF THE PASSENGER SEAT FOR UNIVERSAL CHILD RESTRAINT
SYSTEM USE
The car complies with the European Directive 2000/3/EC which governs the arrangement of child restraint systems on the
passenger's seat of the car as shown in the following table:
Group Weight groups Passenger
Group 1 9-18 kg L
Group 2 15-25 kg L
Group 3 22-36 kg L
L = suitable for special child restraint systems for this type of car.
97

CHILD RESTRAINT SYSTEMS RECOMMENDED BY ALFA ROMEO FOR YOUR 4C
Lineaccessori Alfa Romeo offers two special forward facing child restraint systems for 4C, secured with the three-point seat
belt only.
Weight group Child restraint systemType of child restraint
systemChild restraint system installation
Group1–from9up
to 18 kg
Britax Romer Duo Plus
Approval number: E1
04301133
Fiat order code: 71803161Child restraint system to be fitted facing
forwards only using ONLY the car's safety
belts.
It is recommended not to use the ISOFIX
anchorages and the child restraint system
top tether as the car is not equipped with
ISOFIX anchorages and top tether.
Group2–3from15
kg to 36 kg
Fair Junior Fix
Approval number: E4
04443721
Fiat order code: 71806570It must be installed forward facing only,
using ONLY the car's seat belt.
It is recommended not to use the ISOFIX
anchorages as the car is not equipped with
ISOFIX anchorages.
98
SAFETY

Main safety rules to be
followed when carrying
children
❒Follow the instructions supplied with
the child restraint system itself, which
the manufacturer must provide.
Keep the instructions in the car along
with the other documents and this
handbook. Do not use child restraint
systems without instructions;
❒always check that the seat belt is well
fastened by pulling on it;
❒only one child is to be strapped into
each restraint system; never carry
two children using one child restraint
system;
❒always check that seat belts do not
rest on the child’s neck;
❒while travelling, do not let the child sit
incorrectly or release the belts;
❒never carry children on your lap, even
newborns. No-one could restrain
them in the event of an accident;
❒in the event of an accident, replace
the child restraint system with a
new one.FRONT AIRBAGS
DRIVER AND
PASSENGER FRONT
AIRBAGS
The car features multistage front
airbags (“Smart bag system”) for driver
and passenger.
The front driver/passenger airbags are
designed to protect occupants in the
event of frontal impacts of medium-high
severity, by placing the bag between
the occupant and the steering wheel or
dashboard.
Therefore, non-activation of the front
airbags in other types of collisions (side
collisions, rear shunts, rollovers, etc.)
does not indicate a system malfunction.
Airbags are not a replacement of but
complementary to the seat belts, which
you are recommended to always wear.
In the event of impact, those not
wearing a seat belt are projected
forwards and may come into contact
with the bag which is still inflating. The
protection offered by the bag is
compromised in these circumstances.
72)
Front airbags may not activate in the
following situations:❒frontal impacts against highly
deformable objects not involving the
front surface of the car (e.g. wing
collision against guard rail);
❒jamming of the car underneath other
vehicles or protective barriers (e.g.
underneath a truck or a guard rail); in
this case, the bags would offer no
additional protection with respect to
the seat belt and their deployment
would be inappropriate. In these
cases, non-deployment does not
indicate a system malfunction.
Driver front airbag
This is located in a dedicated
compartment in the centre of the
steering wheel fig. 71.
73)
71A0L0055
99

Passenger front airbag
This is located in a dedicated
compartment in the dashboard fig. 72.
74)
GENERAL WARNINGS
The front airbags may activate in the
event of sharp impacts to the
underbody of the car (e.g. impact with
steps, pavements, potholes or road
bumps, etc.).
When the airbag deploys it emits a
small amount of dust: the dust is
harmless and does not indicate the
beginning of a fire. The dust may irritate
the skin and eyes however: in this
case, wash with neutral soap
and water.
Airbag checking, repair and
replacement must be carried out at a
dedicated Alfa Romeo Dealership.If the car is scrapped, have the airbag
system deactivated at a dedicated
Alfa Romeo Dealership.
Pretensioners and airbags are deployed
according to different logics on the
basis of the type of collision. Failure to
deploy of one of the devices does
not necessarily indicate a system
malfunction.
77) 78) 79) 80) 81) 82) 83)
WARNING
72) Do not apply stickers or other
objects to the steering wheel or
the passenger side airbag cover.
Do not place objects on the
passenger side of the dashboard
because these could interfere
with the correct opening of the
passenger airbag and cause injury
to occupants.
73) Always drive keeping your hands
on the steering wheel rim so that
the airbag can inflate freely if
necessary. Do not drive with your
body bent forward. Keep the
backrest in straight position,
resting correctly your back on it.74) Instructions to deactivate the
passenger's front airbag can be
found in the "Menu Options"
paragraph of the "Knowing the
instrument panel" chapter. Please
note that under these conditions
the airbag will NOT deploy in case
of need (accident).
75) Do not rest your head, arms or
elbows on the door to prevent
injury during airbag deployment.
76) Never lean your head, arms and
elbows out of the window.
77) If the
warning light does not
switch on when the key is turned
to MAR-ON, or stays on while
driving (on some versions
together with a message on the
display) there may be a fault in the
restraint systems. In this case,
airbags or pretensioners may not
be activated in the case of an
accident or (in a lesser number of
cases) they may be activated
incorrectly. Before proceeding,
contact a dedicated Alfa Romeo
Dealership to have the system
checked immediately.
78) Do not travel carrying objects on
your lap, in front of your chest or
between your lips (pipe, pencils,
etc.): they could cause severe
injury if the airbag is deployed.
72A0L0056
100
SAFETY

79) If the car has been subject to
theft, attempted theft, vandalism,
or flooding, have the airbag
system inspected at a dedicated
Alfa Romeo Dealership.
80) The airbags may also be
deployed when the car is not
moving, if the key is inserted and
turned to MAR-ON even when
the engine is off, if the car is hit by
another moving vehicle. Also
remember that no safety device
(airbags or pretensioners) will
activate in the event of impact
when the key is at STOP.
Non-deployment of these devices
under these circumstances does
not therefore indicate a system
malfunction.
81) When the ignition key is turned
to MAR-ON, the
warning light
comes on constantly for the first 4
seconds. Then, if the warning
light remains on, this means the
passenger's protection has been
deactivated; if the warning light
switches off, instead, the
passenger's protection is enabled.
82) The front airbag is designed
to be deployed for impacts of
a greater intensity than for the
pretensioners. For impacts whose
intensity falls between the two
levels, normally, only the
pretensioners will be activated.83) The airbag does not replace seat
belts but increases their
effectiveness. Because front
airbags are not deployed for
low-speed frontal impacts, side
collisions, rear shunts or rollovers,
occupants are protected only by
their seat belts, which must
always be fastened.
101

102
This page is intentionally left blank

STARTING AND DRIVING
Let’s get to the "heart" of the car:
seeing how you can exploit all of its
potential to the full.
We’ll look at how to drive it in any
situation, so that it can be a welcome
companion, with our comfort and
our wallets in mind.STARTING THE ENGINE ................104
PARKING ........................................105
USING THE TRANSMISSION .........106
SAVING FUEL .................................111
SNOW TYRES ................................113
SNOW CHAINS...............................113
CAR INACTIVITY .............................114
103

STARTING THE
ENGINE
Procedure84) 85) 86)
❒press the brake pedal;
❒turn the ignition key to AVV and
release it as soon as the engine
starts.
IMPORTANT INFORMATION
8) 9)
❒If the engine does not start at the first
attempt, return the ignition key to
STOP before repeating the
procedure.
❒If, when the ignition key is at
MAR-ON, the
instrument panel
warning light stays on together with
the
warning light, turn the key
to STOP and then back to MAR-ON;
if the warning light stays on, try the
other keys provided with the vehicle.
If it is still not possible to start the
engine, contact a dedicated Alfa
Romeo Dealership.
❒Do not leave the ignition key at
MAR-ON when the engine is
stopped.WARMING UP THE
ENGINE JUST AFTER IT
HAS STARTED
Procedure
❒drive off slowly, letting the engine turn
at medium revs. Do not accelerate
abruptly;
❒do not demand full performance at
first. It is advisable to wait until the
digital engine coolant temperature
indicator starts moving.
SWITCHING OFF THE
ENGINE
Procedure
Turn the ignition key to STOP while the
engine is idling.10)
IMPORTANT After a demanding drive,
keep the engine idling for at least a
couple of minutes before stopping it, in
order to permit the temperature inside
the engine compartment to lower.
WARNING
84) It is dangerous to run the engine
in enclosed areas. The engine
takes in oxygen and releases
carbon dioxide, carbon monoxide
and other toxic gases.
85) The brake servo is not active
until the engine is started, so
you would need to apply much
more force than usual to the
brake pedal.
86) Do not start the engine by
pushing, towing or driving
downhill. These manoeuvres may
damage the catalytic converter.
IMPORTANT
8) It is advisable not to demand
maximum performance from your
car (e.g. excessive acceleration,
long distances at maximum rpm,
excessively intense braking, etc.)
when it is first used.
104
STARTING AND DRIVING

9) When the engine is off, do not
leave the ignition key turned to
MAR-ON to prevent unnecessary
electrical consumption from
draining the battery.
10) A quick burst on the accelerator
before turning off the engine
serves absolutely no practical
purpose; it wastes fuel and is
especially damaging to

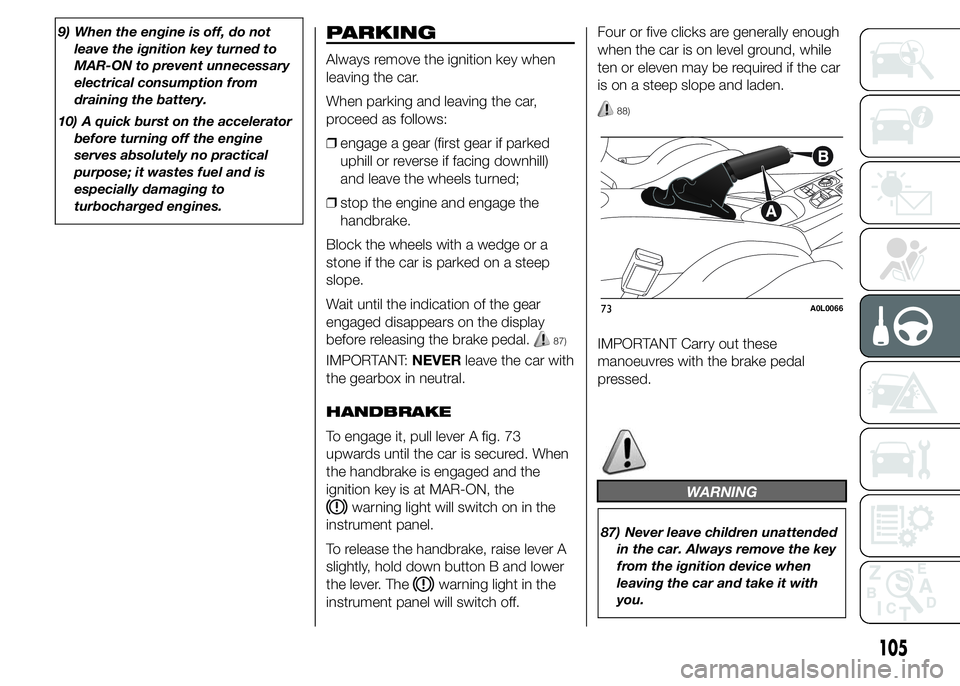

turbocharged engines.PARKING
Always remove the ignition key when
leaving the car.
When parking and leaving the car,
proceed as follows:
❒engage a gear (first gear if parked
uphill or reverse if facing downhill)
and leave the wheels turned;
❒stop the engine and engage the
handbrake.
Block the wheels with a wedge or a
stone if the car is parked on a steep
slope.
Wait until the indication of the gear
engaged disappears on the display
before releasing the brake pedal.
87)
IMPORTANT:NEVERleave the car with
the gearbox in neutral.
HANDBRAKE
To engage it, pull lever A fig. 73
upwards until the car is secured. When
the handbrake is engaged and the
ignition key is at MAR-ON, the
warning light will switch on in the
instrument panel.
To release the handbrake, raise lever A
slightly, hold down button B and lower
the lever. The
warning light in the
instrument panel will switch off.Four or five clicks are generally enough
when the car is on level ground, while
ten or eleven may be required if the car
is on a steep slope and laden.
88)
IMPORTANT Carry out these
manoeuvres with the brake pedal
pressed.
WARNING
87) Never leave children unattended
in the car. Always remove the key
from the ignition device when
leaving the car and take it with
you.
73A0L0066
105

88) The car must be locked after a
few clicks of the parking brake: if
this is not so, contact the
dedicated Alfa Romeo Dealership
to have it adjusted. Always park
the vehicle safely as indicated by
the Highway Code and as
described above.USING THE
TRANSMISSION
The 4C features the TCT 6-speed twin
dry clutch transmission with steering
wheel controls. This is an advanced
technical solution which combines the
control of a manual gearbox, the
immediacy of a sequential system and
the convenience of being able to select
an automatic selection programme
without the slowdown of a conventional
automatic transmission.
With the key removed from the ignition,
the system will not implement any
action when the buttons on the
transmission control panel on the
central tunnel fig. 74 are pressed,
irrespective of the pressure applied to
the brake pedal. Therefore, the
transmission will remain in the condition
that it was in when the engine was
switched off.With car stationary and key at MAR-ON
(ignition-operated electrical services
activated), the screen displays the gear
engaged and the active operating
mode (automatic =AUTOor manual =
no display).
OPERATING MODES
The transmission can operate in two
operating modes (except when the
"Race" mode is selected):
❒the first manual type (MANUAL), in
which the driver decides directly
when to change gear;
❒the second completely automatic
(AUTO), in which the system decides
when to change gear.
When the "Race" mode is selected, the
only allowed operating mode is
MANUAL.
Manual operation
(MANUAL)
In this operating mode, the driver is
responsible for choosing the best gear
to engage, depending on the car
operating conditions.
Use the “+” steering wheel stalk to
engage a higher gear, or the “–” stalk to
engage a lower gear (see the following
paragraph, "Steering wheel stalks").
74A0L0067
106
STARTING AND DRIVING
