sensor Alfa Romeo 4C 2016 Owner handbook (in English)

Warning lights on
panelWhat it means What to do
amberTPMSIMPORTANT Do not continue driving with one or more
flat tyres as handling may be compromised. Stop the
car, avoiding sharp braking and steering. Repair
immediately using the dedicated kit (see "Repairing a
wheel" paragraph in the "In an emergency" chapter)
and contact the dedicated Alfa Romeo Dealership as
soon as possible.
TPMS failure
The warning light switches on when a fault is
detected in the TPMS.
Should one or more wheels be fitted without
sensors, the display will show a warning message
until initial conditions are restored.
In this case, contact the dedicated Alfa Romeo
Dealership as soon as possible.
Low tyre pressure - See manual
The warning light switches on, together with a
dedicated message on the display, to indicate that
the tyre pressure is lower than the recommended
value and/or that slow pressure loss is occurring. In
these circumstances, optimal tyre duration and fuel
consumption may not be guaranteed.
Should two or more tyres be in the condition
mentioned above, the display will show the
indications corresponding to each tyre in sequence.
In any situation in which the message on the display is
"See manual", it is ESSENTIAL to refer to the contents
of the "Wheel" paragraph in the "Technical data"
chapter, strictly complying with the indications that
you find there.
71

Warning lights on
displayWhat it means What to do
amberFUEL RESERVE/LIMITED RANGE
The digital warning light switches on in the display when
about 4–5 litres of fuel are left in the tank.
63)
amberFUEL RESERVE/LIMITED RANGE SENSOR FAULT
The digital warning light switches on in the display when
a fuel reserve sensor fault is detected. The display
shows the dedicated message.Contact a dedicated Alfa Romeo Dealership as soon as
possible.
greenCRUISE CONTROL
(for versions/markets, where provided)
The digital warning light switches on in the display when
the ignition key is turned to MAR, but it should switch
off after a few seconds, if the Cruise Control is
deactivated.
The digital warning light switches on when the Cruise
Control ring nut is turned to the ON position (see the
“Cruise Control” paragraph in the "Knowing your car"
chapter).
The display shows the dedicated message.
greenDOOR MIRROR DEMISTING/DEFROSTING
The digital warning light switches on in the display when
the buttonon the control panel is pressed.
78

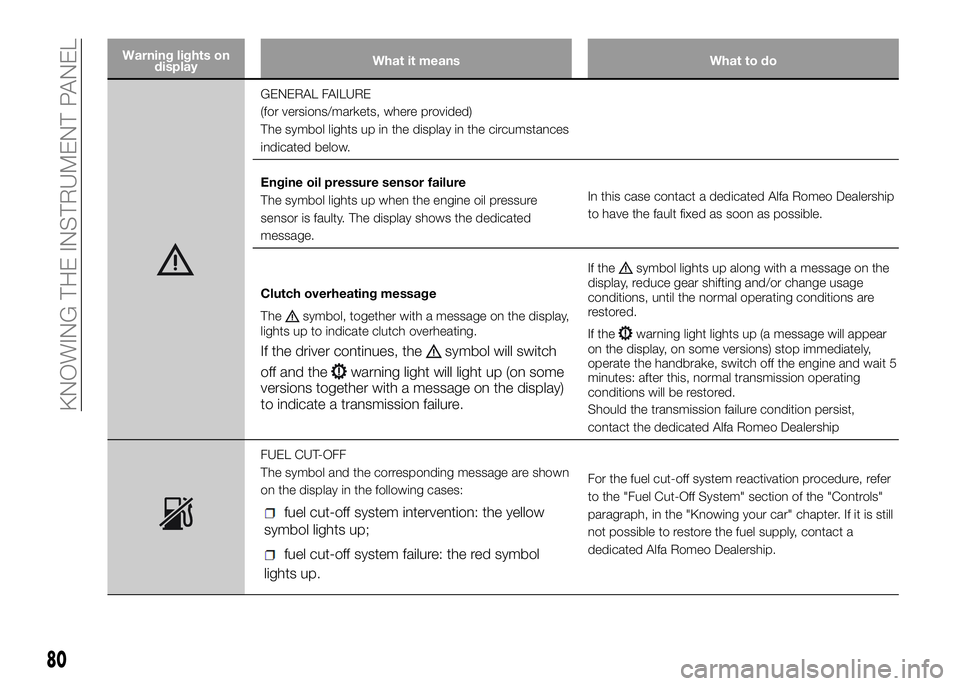

KNOWING THE INSTRUMENT PANEL

Warning lights on
displayWhat it means What to do
GENERAL FAILURE
(for versions/markets, where provided)
The symbol lights up in the display in the circumstances
indicated below.
Engine oil pressure sensor failure
The symbol lights up when the engine oil pressure
sensor is faulty. The display shows the dedicated
message.In this case contact a dedicated Alfa Romeo Dealership
to have the fault fixed as soon as possible.
Clutch overheating message
The
symbol, together with a message on the display,
lights up to indicate clutch overheating.
If the driver continues, thesymbol will switch
off and the
warning light will light up (on some
versions together with a message on the display)
to indicate a transmission failure.
If thesymbol lights up along with a message on the
display, reduce gear shifting and/or change usage
conditions, until the normal operating conditions are
restored.
If the
warning light lights up (a message will appear
on the display, on some versions) stop immediately,
operate the handbrake, switch off the engine and wait 5
minutes: after this, normal transmission operating
conditions will be restored.
Should the transmission failure condition persist,
contact the dedicated Alfa Romeo Dealership
FUEL CUT-OFF
The symbol and the corresponding message are shown
on the display in the following cases:
fuel cut-off system intervention: the yellow
symbol lights up;
fuel cut-off system failure: the red symbol
lights up.
For the fuel cut-off system reactivation procedure, refer
to the "Fuel Cut-Off System" section of the "Controls"
paragraph, in the "Knowing your car" chapter. If it is still
not possible to restore the fuel supply, contact a
dedicated Alfa Romeo Dealership.
80
KNOWING THE INSTRUMENT PANEL

Warning lights on
displayWhat it means What to do
LUGGAGE COMPARTMENT OPEN
The symbol and the corresponding message are shown
on the display.
POSSIBLE ICE ON ROAD
The symbol and corresponding message appear on the
display when the outside temperature is below or equal
to 3°C.
IMPORTANT In the event of outside temperature sensor
failure, the digits that indicate the value are replaced by
dashes.
BRAKE LIGHT FAILURE
The symbol and corresponding message appear on the
display if a fault is detected in the brake lights.The fault may be caused by a blown bulb, a blown
protection fuse or an interruption of the electrical
connection.
PARKING SENSOR FAILURE
The symbol and corresponding message appear on the
display if there is a parking sensor failure.
DISPLAY OF SELECTED DRIVING MODE (“Alfa DNA”
system)
A letter (d, n, or a) corresponding to the active driving
mode (dynamic or race, normal, all weather) and a
dedicated message are shown on the display.
81

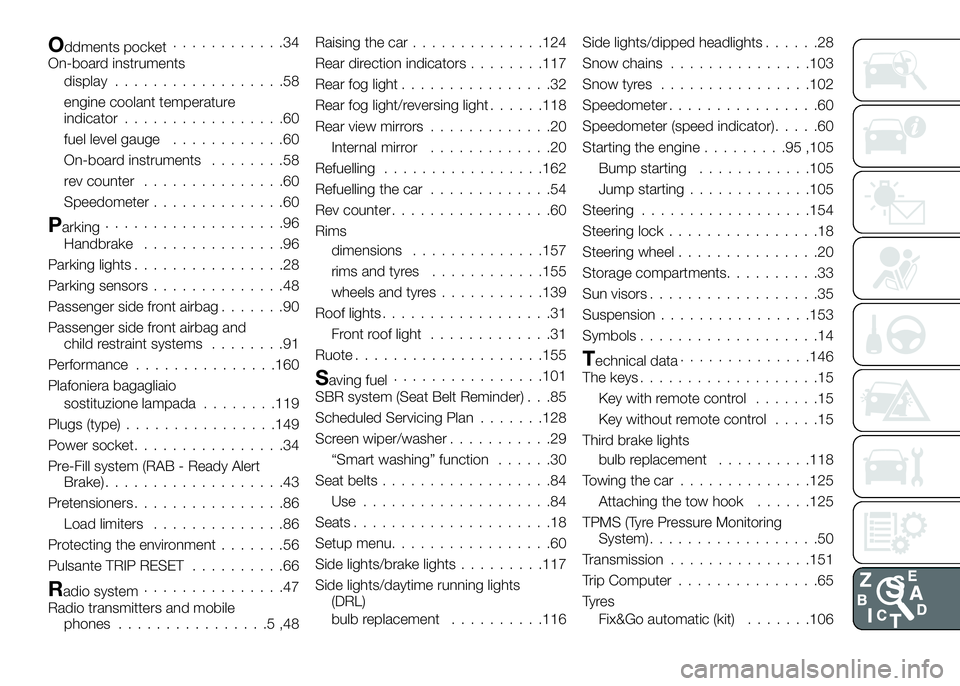

Oddments pocket............34
On-board instruments
display..................58
engine coolant temperature
indicator.................60
fuel level gauge............60
On-board instruments........58
rev counter...............60
Speedometer..............60
Parking...................96
Handbrake...............96
Parking lights................28
Parking sensors..............48
Passenger side front airbag.......90
Passenger side front airbag and
child restraint systems........91
Performance...............160
Plafoniera bagagliaio
sostituzione lampada........119
Plugs (type)................149
Power socket................34
Pre-Fill system (RAB - Ready Alert
Brake)...................43
Pretensioners................86
Load limiters..............86
Protecting the environment.......56
Pulsante TRIP RESET..........66
Radio system...............47
Radio transmitters and mobile
phones................5,48Raising the car..............124
Rear direction indicators........117
Rear fog light................32
Rear fog light/reversing light......118
Rear view mirrors.............20
Internal mirror.............20
Refuelling.................162
Refuelling the car.............54
Rev counter.................60
Rims
dimensions..............157
rims and tyres............155
wheels and tyres...........139
Roof lights..................31
Front roof light.............31
Ruote....................155
Saving fuel................101
SBR system (Seat Belt Reminder) . . .85
Scheduled Servicing Plan.......128
Screen wiper/washer...........29
“Smart washing” function......30
Seat belts..................84
Use ....................84
Seats.....................18
Setup menu.................60
Side lights/brake lights.........117
Side lights/daytime running lights
(DRL)
bulb replacement..........116Side lights/dipped headlights......28
Snow chains...............103
Snow tyres................102
Speedometer................60
Speedometer (speed indicator).....60
Starting the engine.........95,105
Bump starting............105
Jump starting.............105
Steering..................154
Steering lock................18
Steering wheel...............20
Storage compartments..........33
Sun visors..................35
Suspension................153
Symbols...................14
Technical data..............146
The keys...................15
Key with remote control.......15
Key without remote control.....15
Third brake lights
bulb replacement..........118
Towing the car..............125
Attaching the tow hook......125
TPMS (Tyre Pressure Monitoring
System)..................50
Transmission...............151
Trip Computer...............65
Ty r e s
Fix&Go automatic (kit).......106
