READ THIS CAREFULLY
REFUELLING
Only refuel with unleaded petrol with octane rating (RON) not less than 95, in compliance with the European specification EN228. In particular,
the 4C’s engine has been designed to comply with all emission limits while simultaneously guaranteeing minimal consumption and maximum
performance, using premium-quality unleaded petrol with octane rating (RON) of 98 or higher. The use of petrol that does not conform to the
specification indicated may cause the
warning light to switch on and the irregular operation of the engine.
STARTING THE ENGINE
Make sure that the handbrake is engaged. Press the brake pedal and, without pressing the accelerator, turn the ignition key to AVV; release it
as soon as the engine has started.
PARKING ON FLAMMABLE MATERIAL
The catalytic converter develops high temperatures during operation. Do not park the car on grass, dry leaves, pine needles or other flammable
material: fire hazard.
RESPECTING THE ENVIRONMENT
The car is fitted with a system that carries out a continuous diagnosis of the emission-related components in order to help protect the
environment.
ELECTRICAL ACCESSORIES
If, after purchasing the car, you want to install accessories that require an electrical supply (with the risk of gradually draining the battery),
contact the dedicated Alfa Romeo Dealership which will calculate the overall electrical consumption and check that the car’s electrical system
can support the required load.
SCHEDULED SERVICING
Correct maintenance of the car is essential for ensuring that it maintains its performance and its safety features, its environmental friendliness
and low running costs for a long time to come.
THE OWNER HANDBOOK CONTAINS…
... important information, advice and warnings for correct use, driving safety and maintenance of your car over time. Special attention must be
paid to the symbols provided(personal safety)(environmental protection)(car integrity).

REAR LIGHTSTypes of bulbs................. 114Bulb replacement.............. 112
LUGGAGE COMPARTMENT /
BONNET
Opening/closing................. 38
ENGINEChecking levels................ 132Technical data................. 149
FUEL CAPOpening/closing................. 54
2A0L0121
10
GRAPHICAL INDEX

IGNITION SWITCH
Operation
The key can be turned to three different
positions fig. 9:
STOP: engine off, key can be
removed, steering column locked.
Some electrical devices (e.g. radio,
central door locking system, alarm, etc.)
are still available;
MAR-ON: driving position. All
electrical devices are available;
AVV: engine starting.
The ignition switch is fitted with a safety
system that requires the ignition key to
be turned back to STOP if the engine
does not start, before the starting
operation can be repeated.
...... 03)
STEERING LOCK
Activation
When the key is at STOP, remove the
key and turn the steering wheel until it
locks.
Deactivation
Move the steering wheel slightly and
turn the ignition key to MAR-ON.
4) 5)
WARNING
2)If the ignition device has been tampered
with (e.g. an attempted theft), have it
checked over by the Alfa Romeo
Dealership before driving again.
3)Always take the key with you when you
leave your vehicle to prevent someone
from accidentally operating the controls.
Remember to engage the electric parking
brake. Never leave children unattended in
the vehicle.
4)It is absolutely forbidden to carry out any
after-market operation involving steering
system or steering column modifications
(e.g. installation of anti-theft device) that
could adversely affect performance,
invalidate the warranty, cause serious
safety problems and also result in the car
not meeting type-approval requirements.
5)Never extract the mechanical key while
the vehicle is moving. The steering wheel
will automatically lock as soon as it is
turned. This holds true for cars being
towed as well.
SEATS
ADJUSTMENTS
Lengthwise adjustment
(for versions/markets, where provided)
Lift lever A fig. 10 and push the seat
forwards or backwards: in the driving
position your arms should rest on the
rim of the steering wheel.
6) 7)
Alfa Romeo’s advice: the seat must be
adjusted so that the entire sole of the
foot presses on the brake pedal when it
is fully depressed; at the same time,
your right leg must be bent slightly. In
this way, in the event of emergency, the
driver can generate sufficient force to
achieve adequate pressure on the
brake pedal. Moreover, this reduces the
risk of leg injuries in the event of an
accident.
9A0L0010
10A0L0011
18
GETTING TO KNOW YOUR CAR

STEERING WHEEL
Adjustment
It can be adjusted axially and vertically.
To adjust, release lever A fig. 12,
pushing it forwards (position 1). Having
made the adjustment, lock lever A by
pulling it towards the steering wheel
(position 2).
9) 10)
Alfa Romeo’s advice: after lengthwise
seat adjustment and backrest angle
adjustment, the steering wheel can be
adjusted. To check that the steeringwheel position is correct, the left arm
must be extended completely, so that it
touches (without gripping) the highest
part of the steering wheel rim with the
wrist. At the same time, the driver’s
shoulders must remain firmly in contact
with the backrest. In this position, when
you grip the rim of the steering wheel in
"9:15" position (i.e. with hands
corresponding to the hands of a clock
at 9 hours and 15 minutes, imagining
that the wheel is a clock face) there
should be an angle of 90 degrees
between upper arm and forearm. This
permits maximum control of the
steering wheel and ensures that it is
used as a precision instrument and not
as a handgrip on bends. This is also the
most ergonomically correct driving
position, thus permitting minimum
fatigue when driving.
WARNING
9)All adjustments must be carried out only
with the car stationary and engine off.
10)It is absolutely forbidden to carry out
any after-market operation involving
steering system or steering column
modifications (e.g. installation of anti-theft
device) that could adversely affect
performance and safety, invalidate the
warranty and also result in the car not
meeting type-approval requirements.
REAR VIEW
MIRRORS
INTERNAL MIRROR
Adjustment
Operate lever A fig. 13 to adjust the
mirror into two different positions:
normal or anti-glare.
DOOR MIRRORS
Electric adjustment
The mirrors can only be adjusted with
the ignition key at MAR-ON.
Select the desired mirror using device A
fig. 14:
12A0L0012
13A0L0013
20
GETTING TO KNOW YOUR CAR

Locking takes place irrespective of the
position of the ignition key.
FUEL CUT-OFF SYSTEM
Operation
This intervenes in the event of impact,
causing:
fuel supply cut-off with the engine
consequently switching off;
the automatic unlocking of the doors;
the switching on of the interior lights;
the switching on of the hazard
warning lights.
The digital
warning light and the
dedicated message on the display
indicate the intervention of the system.
Carefully check the car for fuel leaks, for
instance in the engine compartment,
under the car or near the tank area.
17)
After a collision, turn the ignition key to
STOP to prevent the battery from
running down.
To restore the correct operation of the
car, proceed as follows:
bring the left exterior light control
stalk to central position (neutral);
turn the ignition key to the MAR-ON
position;
activate the right direction indicator;
deactivate the right direction
indicator;
activate the left direction indicator;
deactivate the left direction indicator;
activate the right direction indicator;
deactivate the right direction
indicator;
activate the left direction indicator;
deactivate the left direction indicator;
turn the ignition key to the STOP
position;
turn the ignition key to the MAR-ON
position.
WARNING
16)The use of hazard warning lights is
governed by the Highway Code of the
country you are driving in: comply with
legal requirements.
17)If, after an impact, you smell fuel or
notice leaks from the fuel system, do not
reactivate the system to avoid the risk of
fire.
INTERIOR FITTINGS
STORAGE
COMPARTMENTS
Front
For versions/markets, where provided,
the car features a storage compartment
A fig. 29 on the dashboard.
Rear
This is located at the centre of the rear
partition, easily accessible from the 2
seats. To access it, press button A
fig. 30 and release clasp B. There is a
lock in button A, permitting the storage
compartment to be locked using a
specific key.
On some versions, the storage
compartment is replaced with a mesh
pocket fig. 31.
29A0L0159
33

of travel position has been reached;
proceed in the same way as
described in points 1 and 2 for the
passenger side door;
make sure that the initialisation is
correct by checking that the windows
work automatically.
WARNING
20)Incorrect use of the electric windows
may be dangerous. Before and during their
operation, ensure that any passengers are
not at risk from the moving glass either by
personal objects getting caught in the
mechanism or by being hit by it directly.
When leaving the car, always remove the
key from the ignition to prevent accidental
operation of the electric windows from
being a hazard for those still on board.

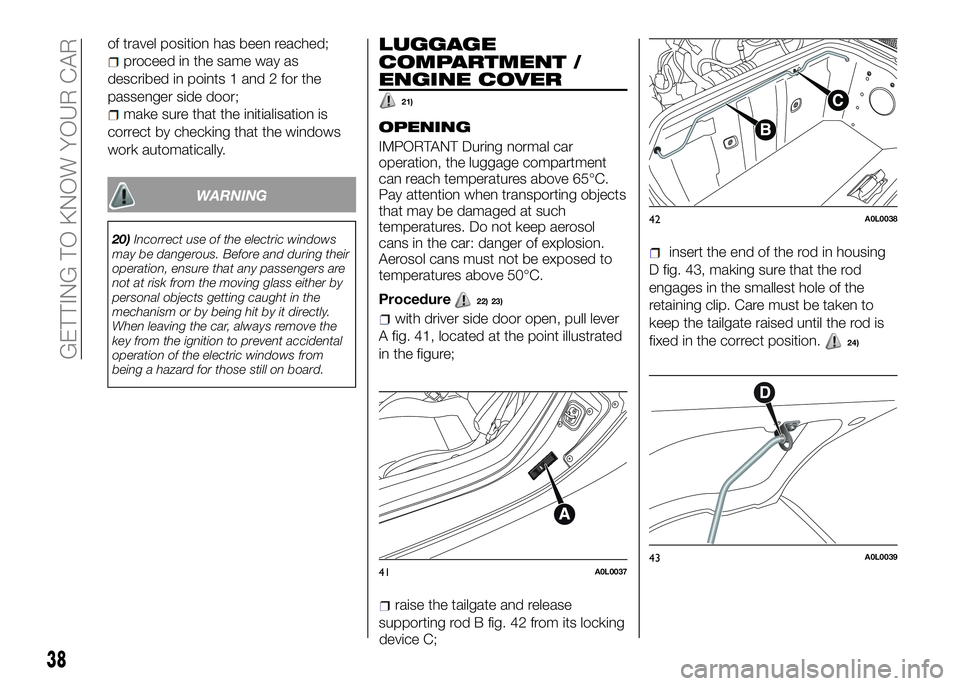

LUGGAGE
COMPARTMENT /
ENGINE COVER
21)
OPENING
IMPORTANT During normal car
operation, the luggage compartment
can reach temperatures above 65°C.
Pay attention when transporting objects
that may be damaged at such
temperatures. Do not keep aerosol
cans in the car: danger of explosion.
Aerosol cans must not be exposed to
temperatures above 50°C.
Procedure
22) 23)
with driver side door open, pull lever
A fig. 41, located at the point illustrated
in the figure;
raise the tailgate and release
supporting rod B fig. 42 from its locking
device C;
insert the end of the rod in housing
D fig. 43, making sure that the rod
engages in the smallest hole of the
retaining clip. Care must be taken to
keep the tailgate raised until the rod is
fixed in the correct position.
24)
41A0L0037
42A0L0038
43A0L0039
38
GETTING TO KNOW YOUR CAR

the tailgate when raising, in order to
prevent any external occurrence (e.g. a
gust of wind) from suddenly opening
the tailgate to end of travel. Additionally,
in order to prevent any damage to the
car or broken windows, do not force
the tailgate beyond the opening
position necessary to secure the
supporting rod B in the hole of the
retaining clip.
CLOSING
Procedure25)
hold the tailgate up with one hand
and use the other to remove rod B
fig. 42 from housing D fig. 43 and
reinsert it in its locking device C fig. 42;
lower the engine cover to
approximately 20 centimetres from the
engine compartment and let it drop.
Make sure that the engine cover is
completely closed and not only
fastened in safety position by trying to
open it. If it is not completely closed, do
not press the engine cover down, but
raise it and repeat the procedure.
IMPORTANT Always check that the
tailgate is closed correctly to prevent it
from opening while the car is travelling.
WARNING
21)The maximum permitted load in the
luggage compartment, in addition to the
kits provided, is 15 kg.
22)When accessing the rear luggage
compartment, take care with parts that
may be hot, owing to the adjacent engine
compartment. Danger of serious burns.
23)Perform these operations only when
the car is stationary.
24)The tailgate may drop suddenly if the
supporting rod is not positioned correctly.
25)For safety reasons, the tailgate must
always be closed properly while the car is
travelling. Therefore, always make sure that
the tailgate is closed properly and that the
lock is engaged. If you realise during travel
that the lock is not fully engaged, stop
immediately and close the tailgate in the
correct manner.
HEADLIGHTS
LIGHT BEAM DIRECTION
The correct orientation of the headlights
is important for the driver's comfort and
safety as well as for all other road users.
This is also covered by a specific rule of
the highway code.
The headlights must be correctly
directed to ensure the best visibility
conditions for all drivers. Contact a
dedicated Alfa Romeo Dealership to
have the headlights checked and
adjusted.
ADJUSTING THE
HEADLIGHTS ABROAD
The dipped beam headlights are
aligned to comply with the regulations
of the country of purchase. When in
countries where you drive on the other
side of the road, you need to alter the
beam direction in order not to dazzle
the vehicles travelling in the opposite
direction, proceeding as follows:
39
IMPORTANT Maintain a tight grip on

safety in low-grip driving conditions. It is
advisable to select "All Weather" mode
in the presence of low-grip road
surfaces.
"ELECTRONIC Q2" SYSTEM: the
system is deactivated.
Engine and gearbox/transmission:
standard response.
Deactivation
To deactivate “All Weather” mode and
return to “Natural”, move lever A
fig. 47 upwards (to letter “d”) and keep
it in this position for half a second.
IMPORTANT
During the first 250 km of usage of
the car, the Dynamic and Race modes
are inhibited. Within this first interval of
start-up mileage it is advisable to refrain
from an aggressive driving style, so that
the best gear shifting quality can be
achieved over time.
When the engine is next started, the
"All Weather" or "Dynamic" mode
selected previously is retained. The
system will reactivate in "All Weather" or
"Dynamic" mode, depending on which
mode was selected before the engine
was switched off.
When the engine is next started, the
"Race" mode selected previously is not
retained. The system will reactivate in
"Dynamic" mode.
It is not possible to go directly from
“Dynamic” mode to “All Weather” modeand vice versa. You must always first go
back to “Natural” mode and then select
the other mode.
System failure
In the event of system failure or a fault
with lever A fig. 47, no driving modes
can be selected.
The display will become grey (same
screen as "Natural" mode) but without
an indication of the Alfa DNA setting.
The display will also show a warning
message.
EOBD SYSTEM
(European On
Board Diagnosis)
Operation
The EOBD system (European On Board
Diagnosis) carries out a continuous
diagnosis of the components of the car
related to emissions.
It also alerts the driver, by switching on
the
warning light on the instrument
panel, together with a message on the
display, when these components are no
longer in peak condition (see “Warning
lights and messages” paragraph in the
"Knowing the instrument panel"
chapter).
The aim of the EOBD system (European
On Board Diagnosis) is to:
monitor the efficiency of the system;
indicate an increase in emissions;
indicate the need to replace
deteriorated components.
The car also has a connector, which
can interface with appropriate tools,
that makes it possible to read the error
codes stored in the electronic control
units together with a series of specific
parameters for engine operation and
diagnosis. This check can also be
carried out by the traffic control
authorities.
IMPORTANT After eliminating a fault, to
check the system completely, the
dedicated Alfa Romeo Dealership is
46
GETTING TO KNOW YOUR CAR

54)The tyre repair kit (Fix&Go) provided
with the car (for versions/markets, where
provided) is compatible with the TPMS
sensors; using sealants not equivalent with
that in the original kit may adversely affect
its operation. If sealants not equivalent with
the original one are used, it is
recommended to have the TPMS sensors
checked by a qualified repair centre.REFUELLING THE
CAR
The car features the "Fast Fuel" system,
which prevents refuelling with incorrect
fuels (e.g. diesel for a petrol engine).
Stop the engine before refuelling.
Only refuel with unleaded petrol with
octane rating (RON) not less than 95, in
compliance with the European
specification EN228. In particular, the
4C’s engine has been designed to
comply with all emission limits while
simultaneously guaranteeing minimal
consumption and maximum
performance, using premium-quality
unleaded petrol with octane rating
(RON) of 98 or higher.
In order to prevent damage to the
catalytic converter never introduce even
the smallest amount of leaded petrol,
even in the event of an emergency.
IMPORTANT An inefficient catalytic
converter leads to harmful exhaust
emissions, thus contributing to air
pollution.
IMPORTANT Never introduce leaded
petrol to the tank, even in small
amounts in an emergency, as this
would damage the catalytic converter
beyond repair.
FILLING THE TANK
To ensure that you fill the tank
completely, top up twice after the first
click of the fuel supply gun. Avoid
further top-ups, which could cause
faults in the fuel supply system.
REFUELLING
PROCEDURE
The car features a "Fast Fuel" device,
integrated with the opening for the fuel
tank: it opens and recloses
automatically when the fuel supply gun
is inserted/removed.
The "Fast Fuel" device is provided with
an inhibitor which prevents refuelling
with incorrect fuel.
The refuelling procedure described
below is illustrated on the label
fig. 56 located inside the fuel flap. The
label also indicates the fuel type
(UNLEADED FUEL=petrol).
56A0L0045
54
GETTING TO KNOW YOUR CAR

Warning lights on
panelWhat it means What to do
red
amber
EBD FAILURE
The simultaneous switching on of the
(red) and
(amber) warning lights with the engine on, indicates
either a failure of the EBD system or that the system is
not available. In this case, the rear wheels may suddenly
lock and the vehicle may swerve when braking sharply.
The display shows the dedicated message.Drive very carefully to the nearest dedicated Alfa Romeo
Dealership to have the system inspected immediately.
redAIRBAG FAILURE
When the key is turned to MAR-ON, the warning light
switches on but should switch off after a few seconds.
The warning light stays on constantly if there is a fault in
the airbag system.
The display shows the dedicated message.
redSEAT BELTS NOT FASTENED
(for versions/markets, where provided)
The warning light switches on constantly with the car
stationary if the driver’s seat belt is not fastened.
The warning light flashes and a buzzer will sound if the
car is in motion and the driver’s seat belt is not correctly
fastened.For permanent deactivation of the SBR (Seat Belt
Reminder) system buzzer, contact the dedicated Alfa
Romeo Dealership. The system can be reactivated
using the Setup Menu.
WARNING
59)If thewarning light does not switch on when the key is turned to MAR or if it stays on when driving (together with the message on the
display), there may be a fault in the restraint systems; in this case, the airbags or pretensioners may not deploy in the event of an accident or,
in a lower number of cases, they could deploy erroneously. Before proceeding, contact a dedicated Alfa Romeo Dealership to have the
system checked immediately.
68
KNOWING THE INSTRUMENT PANEL
59)60)
