Alfa Romeo 4C Spider 2016 Owners Manual

TO OPEN AND CLOSE THE DECKLID
CAUTION!
•To prevent possible damage, do not slam the deck-
lid to close it. Use a firm downward push at the
center of the decklid to ensure the decklid latch is
fully engaged.
• During normal vehicle operation, the luggage com-
partment (located rear of the engine) can reach
temperatures above 149 degrees. Do not transport
objects in the luggage compartment that may be
damaged at such temperatures. Do not place aero-
sol cans in the luggage compartment. To open the decklid:
1. Open the drivers side door.
2. Pull the decklid release lever located on the rear of the
drivers door sill.
Decklid Release Lever
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 89

3. Move to the rear of the vehicle and lift the decklid.
4. Lift upward on the decklid prop rod to release it fromthe stowage retainer.
5. Place the decklid prop rod in the decklid slot to securethe decklid in the open position.
Decklid Lift Point Location
Decklid Prop Rod Location
1 — Decklid Prop Rod
2 — Stowage Retainer Location
90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!
•The maximum load limit for the luggage compart-
ment, in addition to the kits provided, is 33.1 lbs.
(15kg). Do not exceed the maximum permitted load
(Continued)
WARNING! (Continued)
in the luggage compartment. When accessing the
rear luggage compartment, do not come into con-
tact with engine, or other components, that may be
hot and could burn you if touched.
• Access the luggage compartment only with the
vehicle stationary. Before exiting the vehicle, you
should always place the vehicle into FIRST gear or
REVERSE, apply the parking brake, and remove
the key from the ignition. Never leave the key fob
in the vehicle or in a location accessible to children.
• The decklid may drop suddenly, causing serious
injury, if the supporting rod is not positioned
correctly.
• The decklid must always be closed properly, and
the lock engaged, while the vehicle is in motions.
Decklid Prop Rod Slot
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91

LIGHTS
Multifunction Lever
The multifunction lever, located on the left side of the
steering wheel, controls the operation of the headlights,
headlight beam selection, passing light and turn signals.
NOTE:The external lights can only be turned on with
the ignition in the ON/RUN position.
Multifunction Lever
92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Headlights
Rotate the end of the multifunction lever up-
ward to the first detent for headlight operation.NOTE:
When the headlights are turned on, the Daytime
Running Lights will be deactivated.Daytime Running Lights
To activate the Daytime Running Lights (DRL), rotate the
end of the multifunction lever to the Osymbol.
NOTE: The low beams and side/tail lights will not be on
with DRL.
High Beams
With the low beams activated, pull the multifunc-
tion lever towards the steering wheel to turn on
the high beams. A high beam symbol will illuminate in
the cluster to indicate the high beams are on. Pull the
multifunction lever a second time to switch the head-
lights back to low beam.
Headlight Operation
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93

Flash-To-Pass
You can signal another vehicle with your headlights by
partially pulling the multifunction lever toward the steer-
ing wheel. This will cause the high beam headlights to
turn on until the lever is released.
Parking Lights
To turn on the parking lights, remove the key
or turn the ignition to OFF/LOCK position and
turn on the headlights.
Turn Signals
Move the multifunction lever up or down and the arrows
on each side of the instrument cluster flash to show
proper operation of the front and rear turn signal lights.NOTE:
If either light remains on and does not flash, or
there is a very fast flash rate, check for a defective outside
light bulb. If an indicator fails to light when the lever is
moved, it would suggest that the indicator bulb is
defective.
Lane Change Assist
Tap the lever up or down once, without moving beyond
the detent, and the turn signal (right or left) will flash five
times then automatically turn off.
Follow Me Home/Headlight Delay — If Equipped
When this feature is selected the driver can choose to
have the headlights remain on for a preset period of time.
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Activation
Remove the key or turn the ignition to the OFF/LOCK
position, and pull the multifunction lever toward the
steering wheel, within two minutes. Each time the lever
is pulled, the activation of the lights will be extended by
30 seconds. The activation of the lights can be extended to
a maximum of 210 seconds.
Deactivation
Pull the multifunction lever toward the steering wheel
and hold it for more than two seconds.
Dimmer Controls
The dimmer controls are located on the left side of the
instrument panel below the instrument cluster.Pushing the up or down arrow will increase or decrease
the brightness of the instrument panel lights.
Dimmer Controls
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95

Interior Light
The interior light is located in the headliner in between
the sun visors. The interior light can be set to three
different positions (Off/Left Position, Center Position,
On/Right Position).
Using the interior light lens, push the lens to the right
from its center position and the lights are always on.
Push the lens to the left from its center position and the
lights are always off. Leave the lens in the center position,
and the light is turned on and off when the doors are
opened or closed.
CAUTION!
Before getting out of the vehicle be sure that the
Overhead Dome Lamp is in the center position or
that the lights are off to avoid draining the battery.
Interior Light Timing (Center Position)
There are four different modes of operation that can be
activated in this position:
•When one door is opened a three minute timer is
activated.
Interior Light (Off Position Shown)
96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

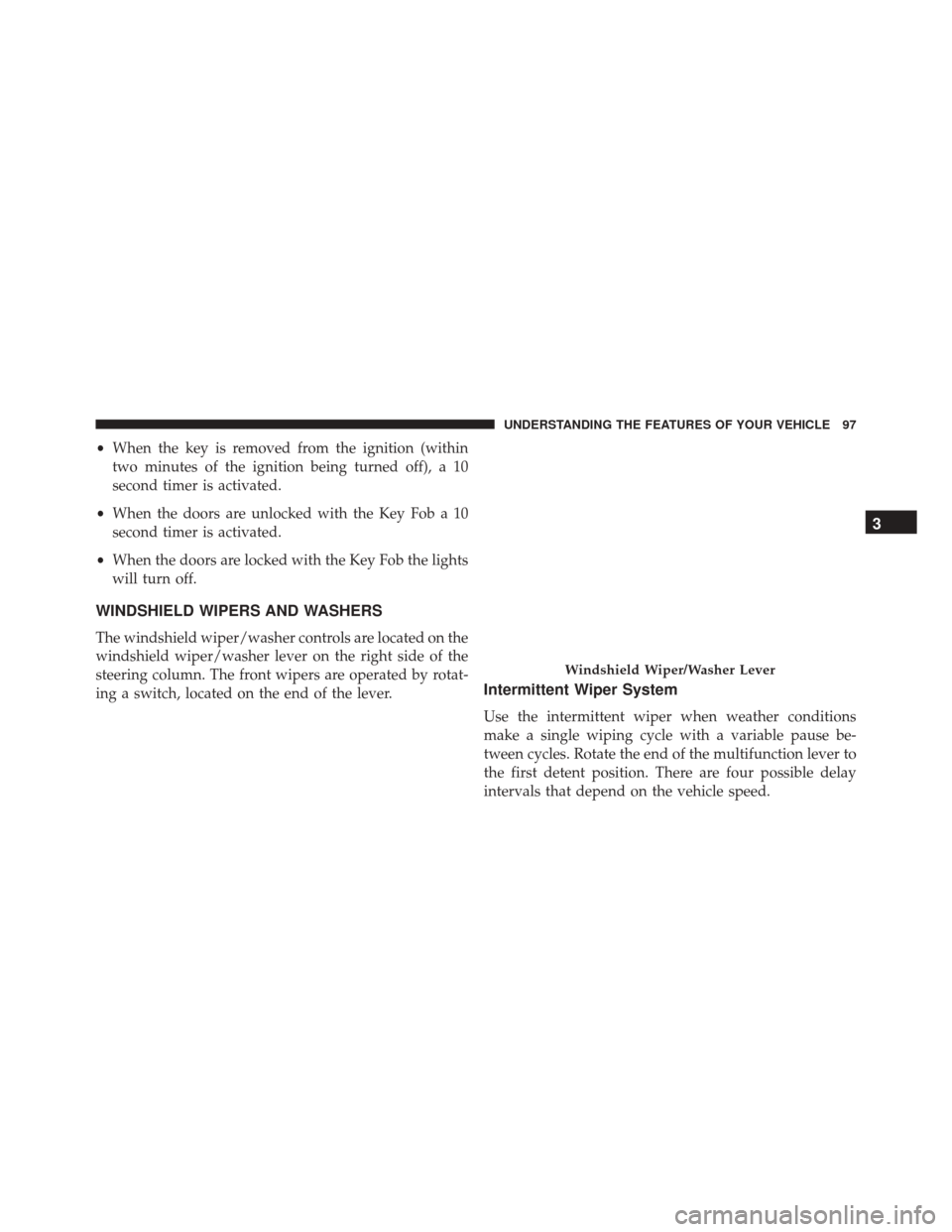

•When the key is removed from the ignition (within
two minutes of the ignition being turned off), a 10
second timer is activated.
• When the doors are unlocked with the Key Fob a 10
second timer is activated.
• When the doors are locked with the Key Fob the lights
will turn off.
WINDSHIELD WIPERS AND WASHERS
The windshield wiper/washer controls are located on the
windshield wiper/washer lever on the right side of the
steering column. The front wipers are operated by rotat-
ing a switch, located on the end of the lever.
Intermittent Wiper System
Use the intermittent wiper when weather conditions
make a single wiping cycle with a variable pause be-
tween cycles. Rotate the end of the multifunction lever to
the first detent position. There are four possible delay
intervals that depend on the vehicle speed.
Windshield Wiper/Washer Lever
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97

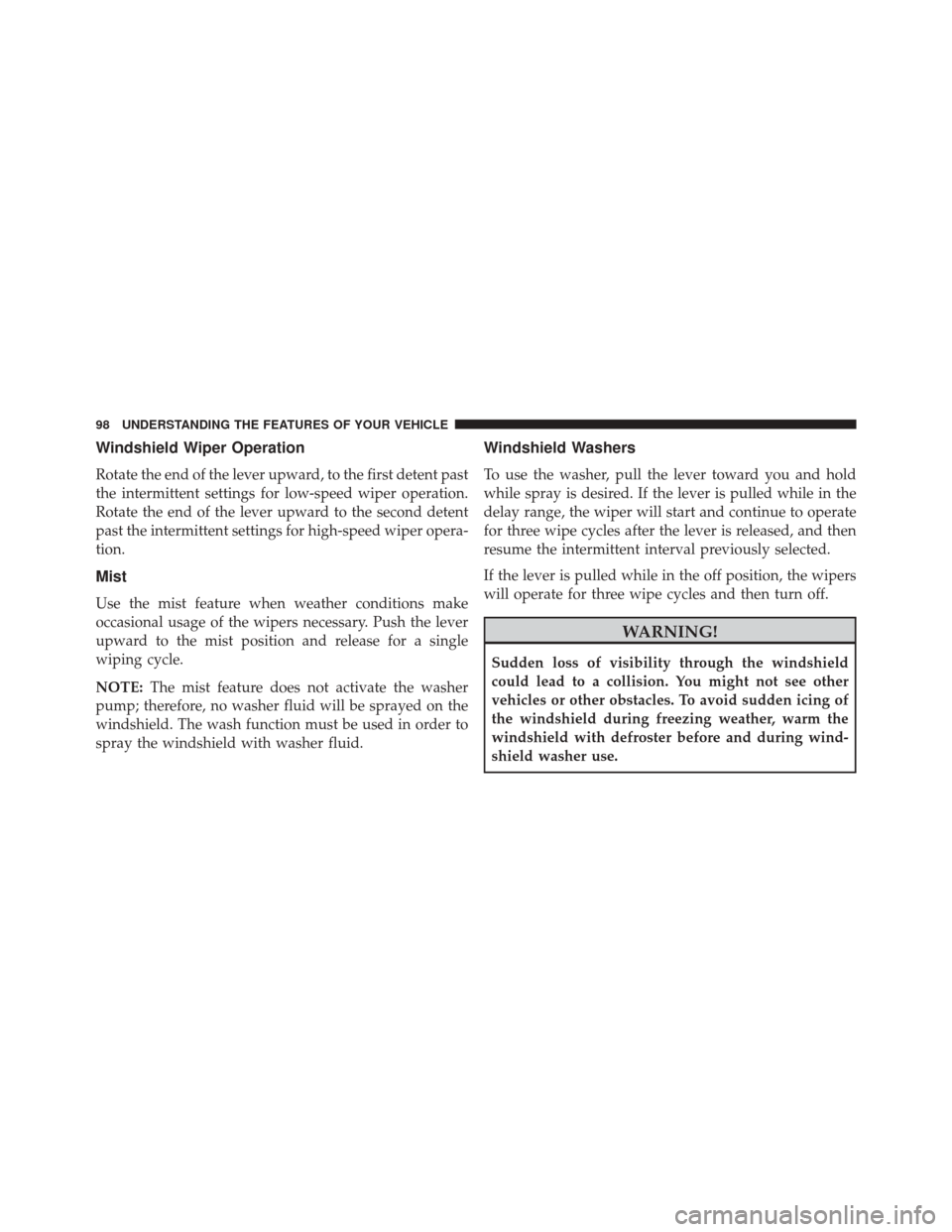

Windshield Wiper Operation
Rotate the end of the lever upward, to the first detent past
the intermittent settings for low-speed wiper operation.
Rotate the end of the lever upward to the second detent
past the intermittent settings for high-speed wiper opera-
tion.
Mist
Use the mist feature when weather conditions make
occasional usage of the wipers necessary. Push the lever
upward to the mist position and release for a single
wiping cycle.
NOTE:The mist feature does not activate the washer
pump; therefore, no washer fluid will be sprayed on the
windshield. The wash function must be used in order to
spray the windshield with washer fluid.
Windshield Washers
To use the washer, pull the lever toward you and hold
while spray is desired. If the lever is pulled while in the
delay range, the wiper will start and continue to operate
for three wipe cycles after the lever is released, and then
resume the intermittent interval previously selected.
If the lever is pulled while in the off position, the wipers
will operate for three wipe cycles and then turn off.
WARNING!
Sudden loss of visibility through the windshield
could lead to a collision. You might not see other
vehicles or other obstacles. To avoid sudden icing of
the windshield during freezing weather, warm the
windshield with defroster before and during wind-
shield washer use.
