CAUTION!
Prolonged driving with the Malfunction Indicator
Light (MIL) on could cause damage to the engine
control system. It also could affect fuel economy and
driveability. If the MIL is flashing, severe catalytic
converter damage and power loss will soon occur.
Immediate service is required.
WARNING!
A malfunctioning catalytic converter, as referenced
above, can reach higher temperatures than in normal
operating conditions. This can cause a fire if you
drive slowly or park over flammable substances such
as dry plants, wood, cardboard, etc. This could result
in death or serious injury to the driver, occupants or
others.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 139

Service Warning Indicator Light – If Equipped
Yellow TelltaleLight What It Means
Service Warning Indicator Light
The “Scheduled Servicing Plan” includes vehicle maintenance at fixed intervals, refer to the
Maintenance
chapter. This message is displayed automatically along with the warning light
when the key is turned to MAR-ON - 1242 miles (2,000 km) before these deadlines and reap-
pears every 124 miles (200 km). Below 124 miles (200 km) servicing indications are more fre-
quent. The indication will appear in miles or kilometers according to the Unit Of Measure-
ment settings. When the next scheduled service is approaching and the key is turned to
MAR-ON, the word Service will appear on the display, followed by the number of miles or
kilometers left. Contact a dedicated authorized dealership. The operations in the “Scheduled
Servicing Plan” will be performed and the message will be reset.
140 UNDERSTANDING YOUR INSTRUMENT PANEL

Green Telltale Indicator Lights
Turn Signal Indicator Lights
Green Tell-tale Light What It Means
Turn Signal Indicator Lights
The instrument cluster directional arrow will flash independently for the LEFT or RIGHT turn
signal as selected, as well as the exterior turn signal lamp(s) (front and rear) as selected when
the multifunction lever is moved down (LEFT) or up (RIGHT).
NOTE:
•A continuous chime will sound if the vehicle is driven more than 1 mile (1.6 km) with either
turn signal on.
•Check for an inoperative outside light bulb if either indicator flashes at a rapid rate.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 141

Front Fog Indicator Light — If Equipped
Green TelltaleLight What It Means
Front Fog Indicator Light — If Equipped
This indicator will illuminate when the front fog lights are on.
Park/Headlight ON Indicator Light
Green Telltale
Light What It Means
Park/Headlight ON Indicator Light
This indicator will illuminate when the park lights or headlights are turned on.
142 UNDERSTANDING YOUR INSTRUMENT PANEL

Cruise Control Engaged Indicator Light
Green TelltaleLight What It Means
Cruise Control Engaged Indicator Light
This light will turn on when the cruise control has been engaged.
Door Mirror Defrost Indicator Light
Green Telltale
Light What It Means
Door Mirror Defrost Indicator Light
This indicator will illuminate when the Door Mirror Defrost button on the instrument panel
is pushed to the ON position.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 143

White Telltale Indicator Lights
Electronic Speed Control ON Indicator Light
White TelltaleLight What It Means
Electronic Speed Control ON Indicator Light
This light will turn on when the electronic speed control is ON.
144 UNDERSTANDING YOUR INSTRUMENT PANEL

Blue Telltale Indicator Lights
High Beam Indicator Light
Blue TelltaleLight What It Means
High Beam Indicator Light
This indicator shows that the high beam headlights are on. Push the multifunction control
lever away from you to switch the headlights to high beam. Pull the lever toward you to
switch the headlights back to low beam. Pull the lever toward you for a temporary high
beam on,
flash to pass scenario.4
UNDERSTANDING YOUR INSTRUMENT PANEL 145

ELECTRONIC VEHICLE INFORMATION CENTER
(EVIC)The Electronic Vehicle Information Center (EVIC) fea-
tures a driver-interactive display that is located in the
instrument cluster.
The EVIC consists of the following:
•Digital Speedometer
• Vehicle Info
• Fuel Economy Info
• Trip Info
• Screen Setup
• Vehicle Settings
Electronic Vehicle Information Center (EVIC)
146 UNDERSTANDING YOUR INSTRUMENT PANEL

The system allows the driver to select information by
pushing the following buttons mounted on the instru-
ment panel to the left of the steering column:•
UP Arrow Button
Push and release the UParrow button to scroll
upward through the main menu and sub-
menus or to increase the displayed value. Out-
side of the menu, the UParrow will adjust the
brightness of the instrument panel.
• DOWN Arrow Button
Push and release the DOWNarrow button to
scroll downward through the main menu and
submenus or to decrease the displayed value.
Outside of the menu, the DOWNarrow will
adjust the brightness of the instrument panel.
• SET/BACK Arrow Button
Push and release the SET/BACKarrow button to access/
select the information screens or submenu screens of a
EVIC Control Buttons
4
UNDERSTANDING YOUR INSTRUMENT PANEL 147

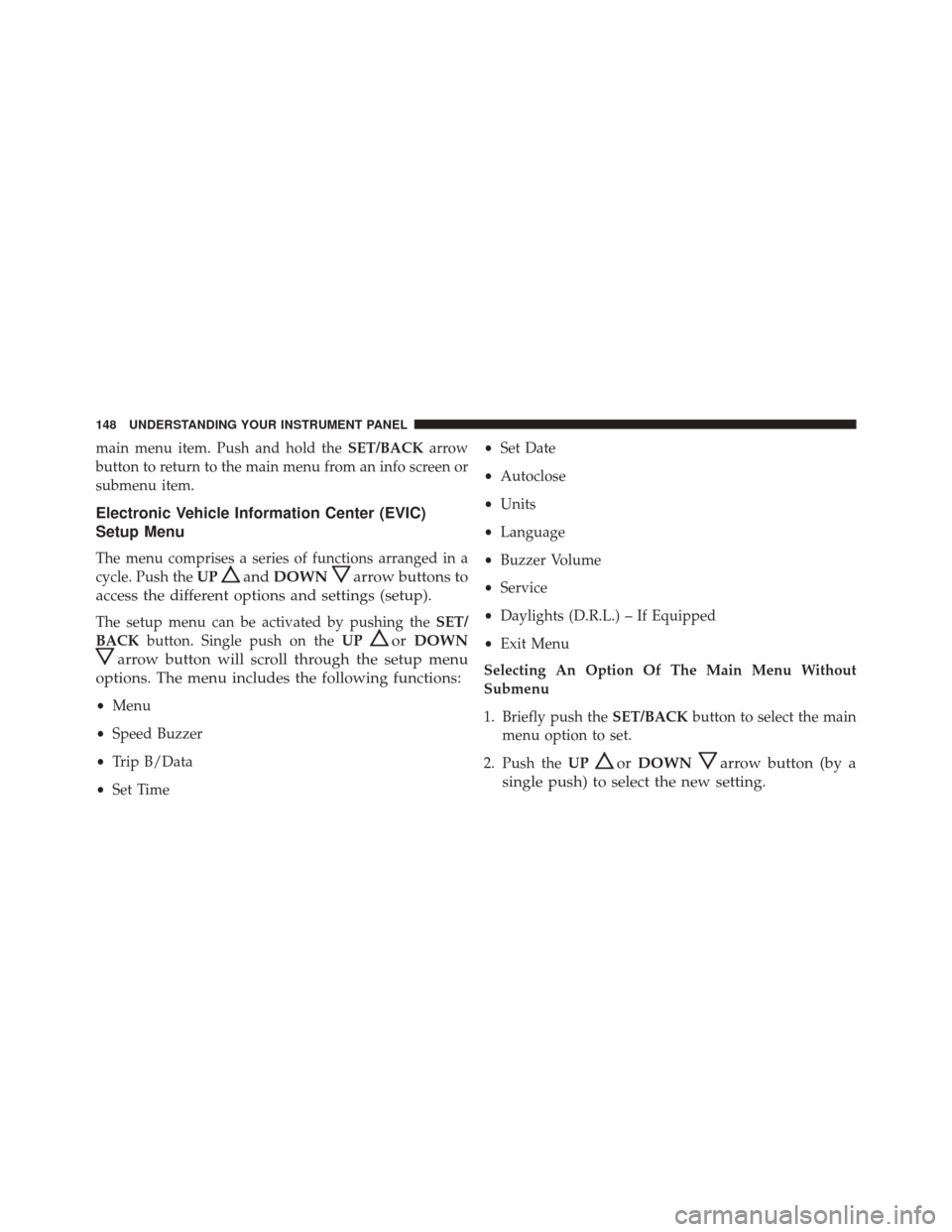

main menu item. Push and hold theSET/BACKarrow
button to return to the main menu from an info screen or
submenu item.
Electronic Vehicle Information Center (EVIC)
Setup Menu
The menu comprises a series of functions arranged in a
cycle. Push the UP
andDOWNarrow buttons to
access the different options and settings (setup).
The setup menu can be activated by pushing the SET/
BACK button. Single push on the UP
orDOWN
arrow button will scroll through the setup menu
options. The menu includes the following functions:
• Menu
• Speed Buzzer
• Trip B/Data
• Set Time •
Set Date
• Autoclose
• Units
• Language
• Buzzer Volume
• Service
• Daylights (D.R.L.) – If Equipped
• Exit Menu
Selecting An Option Of The Main Menu Without
Submenu
1. Briefly push the SET/BACKbutton to select the main
menu option to set.
2. Push the UP
orDOWNarrow button (by a
single push) to select the new setting.
