Alfa Romeo 4C Spider 2017 Owner's Manual

1 — Reverse Light Location
2 — Reverse Light LocationReversing Light Bulb Holder7
MAINTAINING YOUR VEHICLE 259

Third Brake Lights
These are LEDs. For the replacement, contact your local
dealer.
License Plate Lights
To replace the bulbs proceed as follows:
1. Position the lens in the point shown laterally tocompress the retaining clip, then pull the license
plate light cluster out. 2. Turn bulb holder (1) counterclockwise, remove bulb
(2) and replace it.
License Plate Lamp Removal
1 — Bulb Holder
2 — Bulb
260 MAINTAINING YOUR VEHICLE

Roof Light
To change the bulb, proceed as follows:
1. Remove roof light working at the points indicated bythe arrows.
2. Open protective flap (2) and replace bulb (1), releas- ing it from the side contacts. Make sure that the new
bulb is correctly secured between the contacts. 3. Close protective flap (2) and install roof light in its
housing, making sure that it is locked in place.
Roof Light
1 — Bulb
2 — Protective Flap
7
MAINTAINING YOUR VEHICLE 261

Luggage Compartment Roof Light
To replace the bulb, proceed as follows:
1. Open the luggage compartment and remove luggagecompartment roof light, working in the direction
shown by the arrow. 2. Open light protector (2) and replace the bulb.
3. Close protector on the lens.
4. Install luggage compartment roof light by inserting it
in its correct position, first on one side and then
pressing on the other side until it clicks into place.
1 — Light Cover
2 — Light Protector 262 MAINTAINING YOUR VEHICLE

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate)
1750 Turbo Engine 10.5 Gallons40 Liters
Reserve Fuel 1.1 Gallons4 Liters
Engine Oil with Filter
1750 Turbo Engine 6.1 Quarts5.8 Liters
Cooling System
1750 Turbo Engine (MOPAR
Antifreeze/Engine Coolant 10
Year/150,000 Mile Formula). 11.2 Quarts
10.6 Liters
7
MAINTAINING YOUR VEHICLE 263

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant – 1750 Turbo Engine We recommend you use MOPAR Antifreeze/Coolant 10
Year/150,000 Mile Formula OAT (Organic Additive
Technology) or equivalent meeting the requirements of
FCA Material Standard MS.90032.
Engine Oil – 1750 Turbo Engine We recommend you use SAE 5W-40 API Certified
Synthetic Engine Oil, meeting the requirements of FCA
Material Standard MS-12991.
Engine Oil Filter – 1750 Turbo Engine We recommend you use MOPAR Engine Oil Filter.
Spark Plugs – 1750 Turbo Engine We recommend you use MOPAR Spark Plugs. *
Fuel Selection – 1750 Turbo Engine Use Only 91 Octane or higher, 0-10% Ethanol.
NOTE: * The following are essential to ensure correct
operation and prevent serious damage to the engine:
only use spark plugs of the same make and type which
are specially certified for such engines strictly comply
with the spark plug replacement interval given in the maintenance schedule. For spark plug replacement, it is
advisable to contact the dedicated Alfa Romeo Dealer-
ship. Refer to the “Maintenance Schedule” section for
the required spark plug intervals.
264 MAINTAINING YOUR VEHICLE

Chassis
ComponentFluid, Lubricant, or Genuine Part
Alfa Twin Clutch Transmission
• Gearbox: Full synthetic 75W-85 manual transmission fluid meeting
MS.90021 or FPW9.55550–MZ3 or the API GL4 specification.
• Control System: Use only MOPAR C Series DDCT SAE 75W Hydrau-
lic Fluid or equivalent.
Failure to use the correct fluid may affect the function or performance of
your transmission.
Brake Master Cylinder We recommend you use MOPAR DOT 4 meeting MS.90039. If DOT 4 brake
fluid is not available, then DOT 3 is acceptable.
DOT 4 brake fluid must be changed every two years regardless of mileage.
7
MAINTAINING YOUR VEHICLE 265

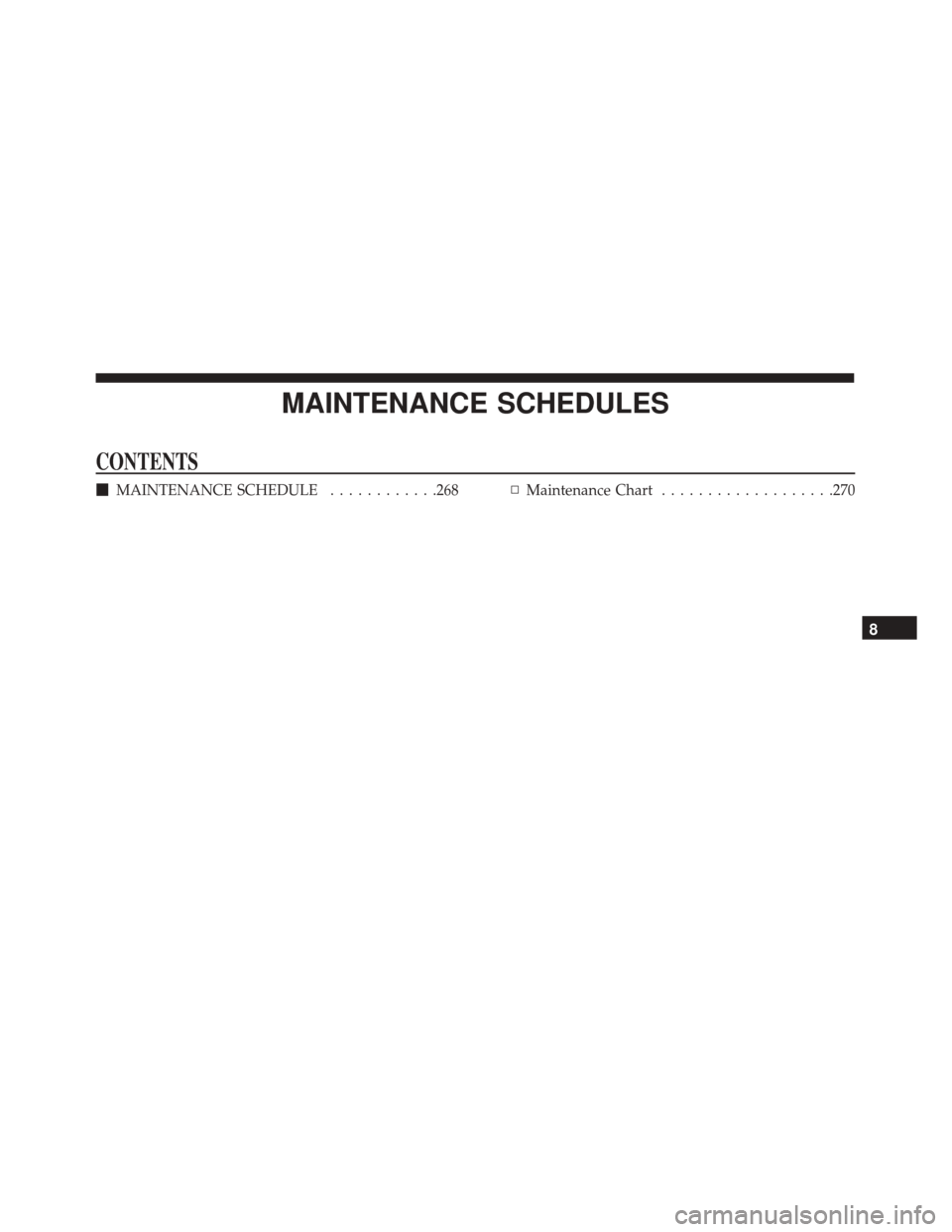

MAINTENANCE SCHEDULES
CONTENTS
MAINTENANCE SCHEDULE ............268▫Maintenance Chart ...................270
8

MAINTENANCE SCHEDULE
Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.
Based on engine operation conditions, the oil change
indicator message will illuminate in the instrument
cluster. This means that an engine oil and engine oil
filter change is required for your vehicle. Operating
conditions such as frequent short-trips, trailer tow,
extremely hot or cold ambient temperatures will influ-
ence when the “Change Oil” or “Oil Change Required”
message is displayed. Severe Operating Conditions can
cause the change oil message to illuminate as early as
3,500 miles (5,600 km) since last reset. Have your
vehicle serviced as soon as possible, within the next
500 miles (805 km).
The Wrench Warning Light may appear in the cluster as
a service reminder when vehicle maintenance is re-
quired, according to the scheduled maintenance mile-
age. The maintenance schedule intervals are set by the
manufacturer. Failure to have them carried out may
void your New Vehicle Limited Warranty.NOTE:
The actual interval for changing the oil and
replacing the engine oil filter depends on the vehicle
usage conditions and is signalled by the warning light
or message (if present) on the instrument panel or every
12 months.
Severe Duty All Models
In addition, if your vehicle is used under demanding
conditions, including:
• On the track.
• On dusty roads.
• Short, repeated trips (less than 4-5 miles or 7-8 km) at
sub-zero temperatures.
• Allowing the engine to idle for extended periods of
time.
• Driving for long distances at low speeds.
• Allowing the vehicle to sit for long periods of inac-
tivity.
